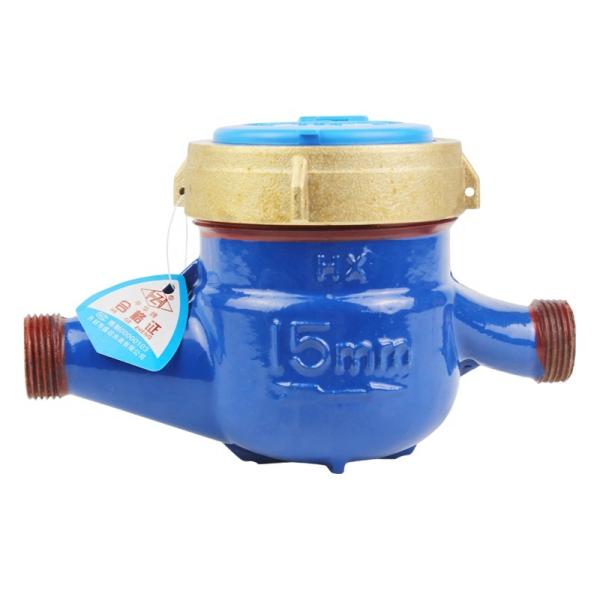

DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
DN15 Multi Jet Wet or Dry Type Water Meter Manufacture
Specifications
warranty :
1 year
customized support :
OEM
Place of Origin :
Henan, China
Brand Name :
Shengda
Model Number :
LXS-15E
Flow Rate :
2.5m3/h
Measurement Range :
DN15-50
type :
Multi-jet meters
material :
Cast iron, cast iron
Connectivity :
Threaded
Protection Class :
ip68
Name :
DN15 Multi Jet Wet or Dry Type Water Meter manufacture
Keyword :
water meter manufacture
size :
15mm
accuracy :
class B
Beam :
multi jet
temperature :
cold water 0.1-30℃, hot water meter 0.1-90℃
Standard :
ISO 4064 ClassB
Feature :
Competitive
Installation :
horizontal
Description

DN15 Multi Jet Wet or Dry Type Water Meter manufactureDN15 Multi Jet Wet or Dry Type Water Meter Manufacture

Product Description

DN15 Multi Jet Wet or Dry Type Water Meter manufacture

DN15 Multi Jet Wet or Dry Type Water Meter ManufactureDN15 Multi Jet Wet or Dry Type Water Meter ManufactureDN15 Multi Jet Wet or Dry Type Water Meter ManufactureDN15 Multi Jet Wet or Dry Type Water Meter ManufactureDN15 Multi Jet Wet or Dry Type Water Meter Manufacture

Application and performance:

Application:

It is used to measure the amount of drinking cold water flowing through the water pipe in a household or a residential unit.

Characteristic:

1. The structure is simple.

2. Easy to manufacture and maintain, low cost.

3. Durable, low water quality requirements.

4. The error is easy to adjust.

5. The flow ratio is relatively large.

6. The requirements for straight pipe section are low.

Service conditions:

  • The water pressure shall not be greater than 1.0MPa
  • The cold water meter shall not exceed 30 degrees
  • Hot water not exceeding 90C meter

Main technical parameters:

DN

Flow range

Q3/Q1

 Q4 Q3 Q2 Q1 Start flow Min reading Max reading
M3/h L/h M3
15 80 3.125 2.5 50 31.25 6 0.0001 99999
160 25 15.625 5
20 80 5 4 80 50 10 0.0001 99999
160 40 25 6
25 80 7.875 6.3 126 78.75 12 0.0001 99999
160 63 39.375 8
32 80 12.5 10 200 125 14 0.0001 99999
160 100 62.5 10
40 80 20 16 320 200 40 0.0001 99999
160 160 100 35

Ordering notice:

Price: The price here is only for reference, the accurate price please contact us to get.

Delivery time: The lead time need to calculate according to product parameters, quantity, etc. Please contact us for accurate answer.

After-sales service: If you have any questions after you get the product you get from us, please feel free to contact us, we have technical engineer to help you.

Packaging & Shipping

DN15 Multi Jet Wet or Dry Type Water Meter manufacture

DN15 Multi Jet Wet or Dry Type Water Meter Manufacture

Company Information

DN15 Multi Jet Wet or Dry Type Water Meter manufacture

DN15 Multi Jet Wet or Dry Type Water Meter Manufacture

Water meter workshop:

DN15 Multi Jet Wet or Dry Type Water Meter Manufacture

Company introduction:

DN15 Multi Jet Wet or Dry Type Water Meter Manufacture

FAQ

DN15 Multi Jet Wet or Dry Type Water Meter manufacture

1.Are you a trade company or a manufacturer?

Kaifeng Shengda Meter Co., Ltd has been a professional manufacturer for over 20 years to undertake design and processing of all types of flow meter to provide production service and technical support for customers.

2.What to do if I have any other specifications for the current?

If you have any different requirements,just contact us and we will meet you.

3.If I need a sample for pretest, do you sale sample for this inquiry?

Yes, we can sale sample for pretest. If you need this service, please contact us and we will give you a quotation.

4.Can you produce the products according to my own drawings?

Yes, we can do OEM according to your requirement.

Please contact us for the WHOLE CATALOGUE, our technical engineers are waiting for solving your problems now!! Action now!!

Tel: +86 371 23366506
Mobile: +86 18603780816 /18637817105
Email: admin@kfzhyb. com
