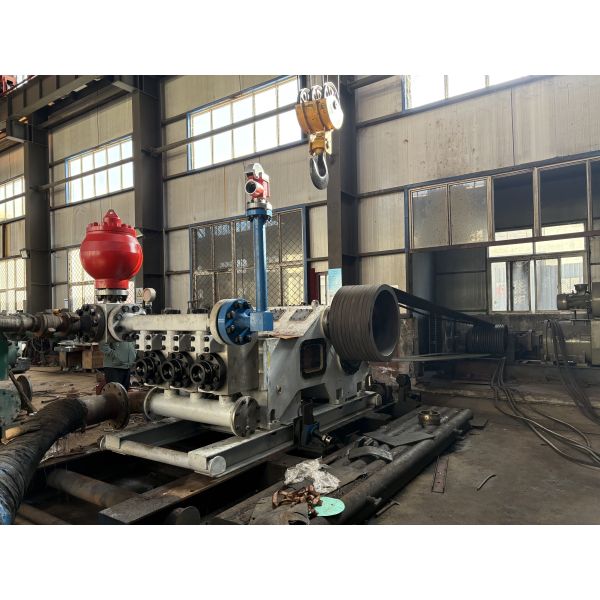

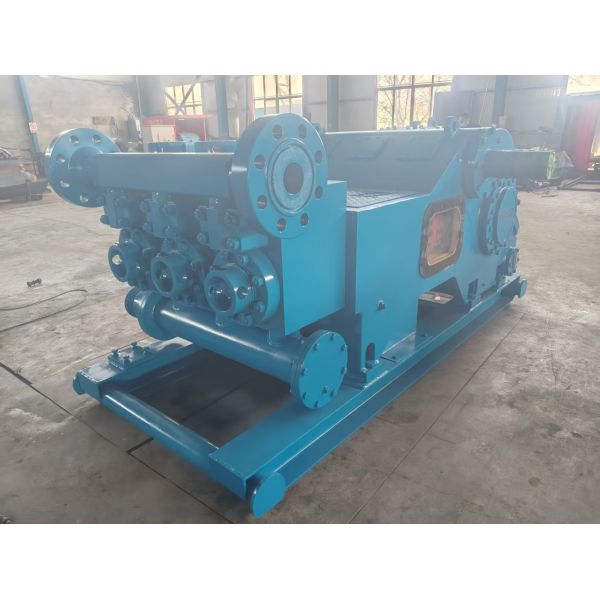

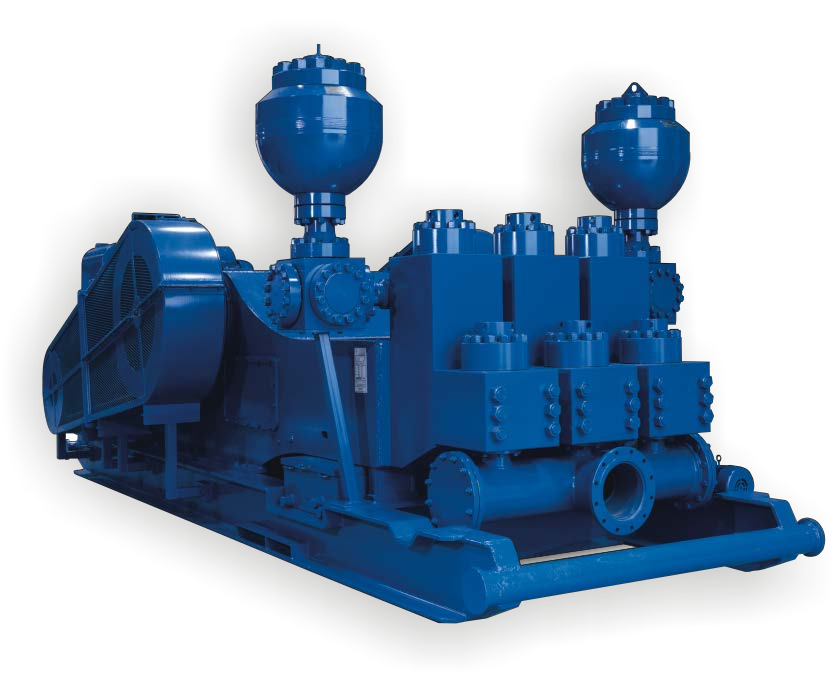

GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP
Specifications
Brand Name :
GD
Model Number :
PZ7; PZ8; PZ9; PZ10
MOQ :
1
Price :
50000
Payment Terms :
T/T
Supply Ability :
50
Delivery Time :
IN STOCK
Description

GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP

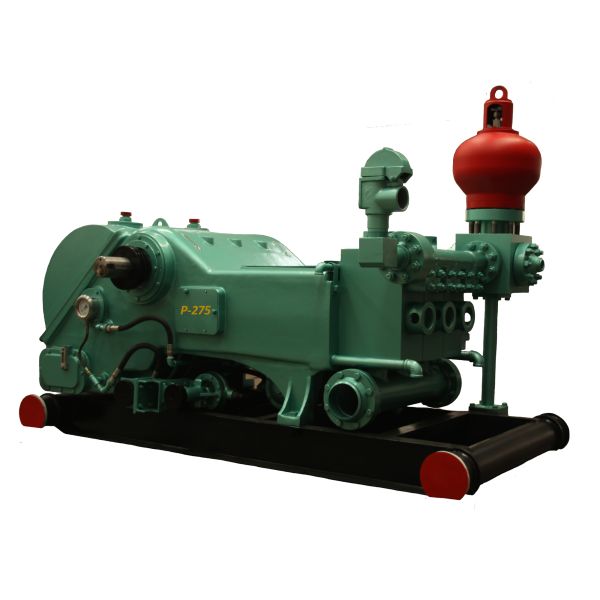

P-275 Pump Technical specifications

1.Input power rating (KW) 205 (275HP)

2.Rated pump speed (RPM) 175

3.Stroke Length (mm) 203(8”)

3.Gear ratio 4.625

4.Rated speed of transmission shaft (RPM) 823

5.Max. working pressure (Kg/sq.cm) 219(3118PSI)

6.Valve size (API) 4#

7.Max. liner diameter (in) Φ5”

8.Max. displacement (GPM) 357

9.Max. liner pressure (Kg/sq.cm) 79 (1122PSI)

10.Diameter of suction pipe (mm) 158 (6 1/4”)

11.Diameter of discharge pipe (mm) 58 (2 9/32”)

12.Overall dimensions (with steel skid,LXWXH)

13.2900*1700*2000mm(114.2”x69”x79)

14.Weight (Kg) (with skid) 5600(12400LBS)

Specifications

Rated Horsepower:

275 HP

Rated Pump Speed:

175 SPM

Stroke Length:

8"

Maximum Liner Size:

5"

Rod Load :

22,030 lbs

Gear Ratio:

4.7:1

Approximate Weight:

9,800 lbs

Performance

Liner Size, inches

Displacement

Maximum Pressure, psi

Pump RPM

JackShaft RPM

Gallon Per Revolution

Gallon Per Minute

5

2.04

357

1,122

175

823

4-1/2

1.65

289

1,386

4

1.31

228

1,753

3-1/2

1.00

175

2,290

3-1/4

0.862

151

2,657

3

0.734

128

3,118

Ratings are based on 90% mechanical efficiency and 100% volumetric efficiency.

GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP

PZ-7 Pump Technical specifications

1. Input power rating (KW) 410 (550HP)

2. Rated pump speed (RPM) 145

3. Stroke Length (mm) 177.8(7”)

4. Gear ratio 4.625

5. Rated speed of transmission shaft (RPM) 670

6. Max. working pressure (Kg/sq.cm) 352 (5000PSI)

7. Valve size (API) 7#

8. Max. liner diameter (mm) Φ7”

9. Max. displacement (GPM) 507

10. Max. liner pressure (Kg/sq.cm) 118 (1673PSI)

11. Diameter of suction pipe (mm) 203.2 (8”)

12. Diameter of discharge pipe (mm) 100 (4”)

13. Overall dimensions 3205*2250*2000mm

14. Weight (lbs )(exclude five way joint and

15. pulsation damper) 8300kg 18300lbs

16. Weight (with skid) 10800kg

Liner Size, inches

Displacement

Maximum Pressure, psi

Pump RPM

JackShaft RPM

Gallon Per Revolution

Gallon Per Minute

7

3.5

507

1,673

145

670

6-1/2

3.02

437

1,940

6-1/4

2.78

404

2,100

6

2.57

373

2,277

5-1/2

2.16

313

2,710

5

1.78

259

3,279

4-1/2

1.45

210

4,048

4

1.14

166

5,000

Ratings are based on 90% mechanical efficiency and 100% volumetric efficiency.

GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP

PZ-8 Pump Technical specifications

1. Input power rating (KW) 559 (750HP)

2. Rated pump speed (RPM) 145

3. Stroke Length (mm) 203 (8”)

4. Gear ratio 4.5

5. Rated speed of transmission shaft (RPM) 652

6. Max. working pressure (Kg/sq.cm) 352 (5000PSI)

7. Valve size (API) 7#

8. Max. liner diameter (mm) Φ7”

9. Max. displacement (GPM) 580

10. Max. liner pressure (Kg/sq.cm) 140 (1996PSI)

11. Diameter of suction pipe (mm) 254 (10”)

12. Diameter of discharge pipe (mm) 100 (4”)

13. Overall dimensions 3650×2460×2520 mm

14. Weight (without dampener and joint atc) 10000kg

15. Weight (with dampener and joint atc) 12200kg

Pump Performance Data


Dia. of Liner

IN

7”

6 1/2”

6”

5 1/2”

5”

4 1/2”

4”

Gallon/Minute

580

500

426

358

296

240

189


Displacement


Liter/Minute

2196

1893

1613

1355

1120

908

715


Discharge
Pressure

PSI

1996

2315

2717

3233

3912

4830

5000

Kg/sq.cm

140

163

191

227

285

340

352

GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP

PZ-9 Pump Technical specifications

1. Input power rating (KW) 746 (1000HP)

2. Rated pump speed (RPM) 130

3. Stroke Length (mm) 229 (9”)

4. Gear ratio 4.483

5. Rated speed of transmission shaft (RPM) 582

6. Max. working pressure (Kg/sq.cm) 352 (5000PSI)

7. Valve size (API) 7#

8. Max. liner diameter (mm) Φ7”

9. Max. displacement (GPM) 585

10. Max. liner pressure (Kg/sq.cm) 186 (2639PSI)

11. Diameter of suction pipe (mm) 254 (10”)

12. Diameter of discharge pipe (mm)100 (4”)

13. Overall dimensions 4320*2500*2600mm

14. Weight (without dampener and joint atc)12480kg

15. Weight (with skid ) 15500kg

Liner Size, inches

Displacement

Maximum Pressure, psi

Pump RPM

JackShaft RPM

Gallon Per Revolution

Gallon Per Minute

7

4.5

585

2,639

130

582

6-1/2

3.88

504

3,060

6-1/4

3.59

466

3,310

6

3.30

430

3,592

5-1/2

2.78

361

4,274

5

2.29

298

5,000

4-1/2

1.86

242

5,000

4

1.47

191

5,000

Ratings are based on 90% mechanical efficiency and 100% volumetric efficiency.

GARDNER DENVER PZ7 MUD PUMP, PZ8 MUD PUMP; PZ9 MUD PUMP; PZ10 MUD PUMP; PZ11 MUD PUMP, PAH 275 MUD PUMP

PZ-10/11 Pump Technical specifications

1. Input power rating (KW) 1193 (16000HP)

2. Rated pump speed (RPM) 115

3. Stroke Length (mm) 1279(11”)

4. Gear ratio 4.38

5. Rated speed of transmission shaft (RPM) 504

6. Max. working pressure (Kg/sq.cm) 352 (5000PSI)

7. Valve size (API) 7#

8. Max. liner diameter (mm) Φ7”

9. Max. displacement (GPM) 632

10. Max. liner pressure (Kg/sq.cm) 275 (3905PSI)

11. Diameter of suction pipe (mm) 254 (10”)

12. Diameter of discharge pipe (mm) 100 (4”)

13. Overall dimensions 4380*2700*2700 mm

14. Weight (exclude five way joint and

15. pulsation damper) 17600kg

16. Weight (lbs )(21000kg ) 46000lbs

Pump Performance Data


Dia. of Liner

IN

7

6 1/2

6

5 1/2


Displacement

Gal

632

545

465

390

lon/Minut

2392

2063

1760

1476


Discharge Pressure

PSI

3905

4529

5000

5000

Kg/sq.cm

275

318

352

352
