Specifications
Brand Name :
Weatherford, Drillmec, TSC, Texma, National, Oilwell
Model Number :
MP5
Certification :
API
Place of Origin :
CHINA
MOQ :
1 SET
Price :
40000 USD
Payment Terms :
T/T, L/C
Supply Ability :
50 SETS PER MONTH
Delivery Time :
IN STOCK
Packaging Details :
SUITABLE TO SHIPMENT
Usage :
Oil,drill rig
Power :
Electric,diesel
Pressure :
High Pressure,low pressure submersible mud pump sand dredging slurry pump
Application :
mining,oil
Structure :
Piston Pump
Fuel :
Diesel,diesel engine and hydraulic motor for option
Standard or nonstandard :
Standard
Theory :
Centrifugal Pump,Reciprocating Pump,Diaphragm pump
Type :
Mud Pump
Weight :
100-3700kg
Color :
Green or per customer design
Material :
cast iron/stainless steel mud suction pump,Chrome alloy
Warranty :
12 Months
Feature :
mud suction pump
Product name :
Mud Pump
Head :
10m mud suction pump
Oem :
can be accept,Applicable
Description

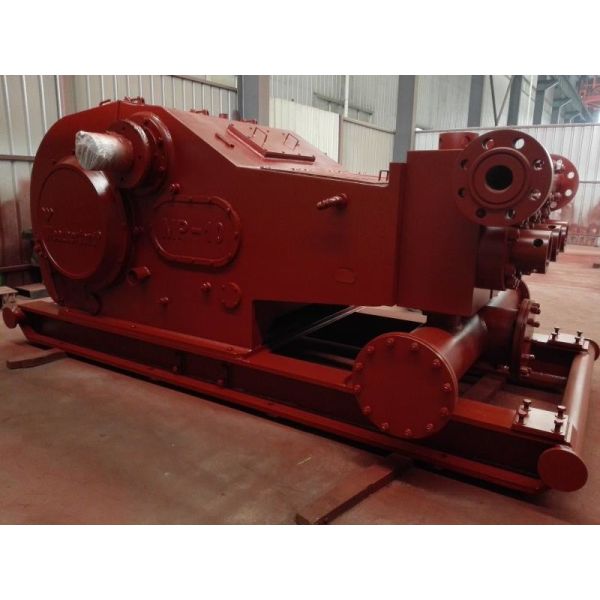

W-446 TECHNICAL SPECIFICATION

Rated input power 328KW (440HP)
Rated Stroke 320 Stroke/Minute(320SPM)
Stroke 152.4mm (6")
Gear Ratio 4.578 :1
Max. Operation pressure 35Mpa
Valve chamber Valve-Over API 4#
Max. liner dia. 6″
Max. liner mud pressure 16.9 Mpa

Dia. of suction manifold, 8″ (150#) Flange
Dia. of discharge manifold 4″(900#) Flange
Dia. pinion shaft 95.25 mm(3.75″)
Key 22.174x15.9mm
GENERAL DIMENSION:(No included base), 2479X1219X1103 mm

WEIGHT 4463 kg

2,Structure character

The pump is compact structure, small volume, lightweight, integrated herringbone gear pair, large transmit torque and smooth run. Crankshaft is welding forged and light weight without liberation

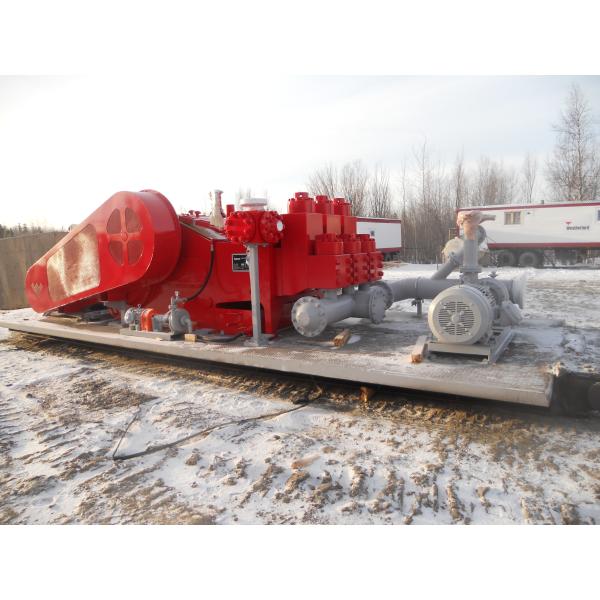

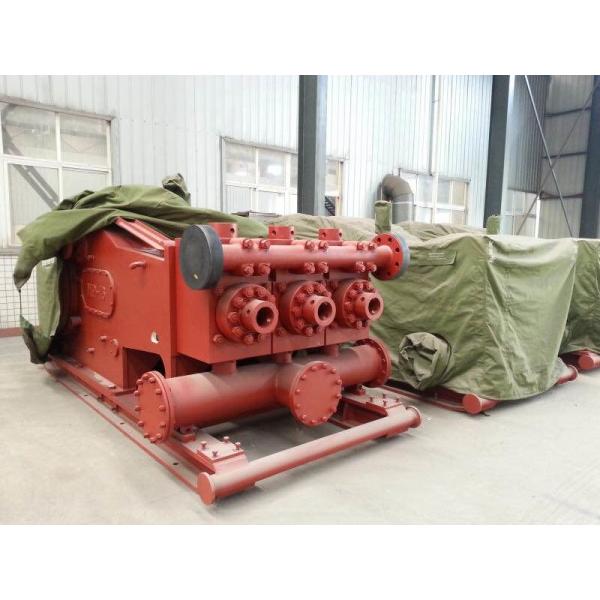

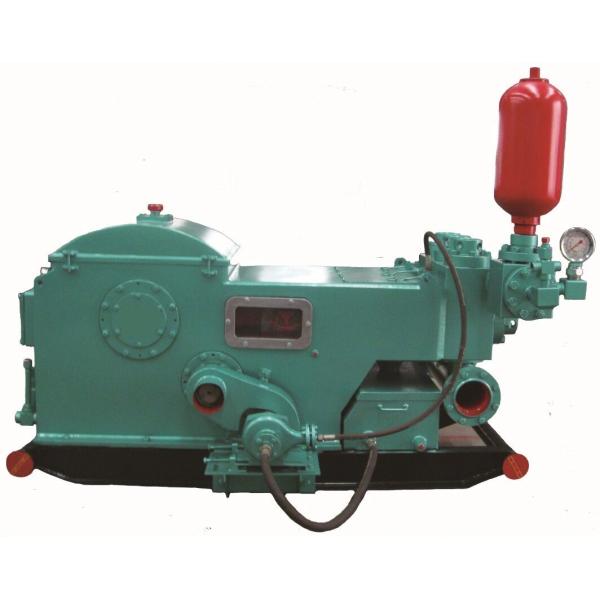

W446 Mud Pump Single-acting Triplex Pump can be used widely in oilfield operation. Liner size from 31/4"--6" is better-adopted piston structure for workover operation and low well drilling operation while plunger structure for liner size from 2---3-1/4" for high- pressure operation.

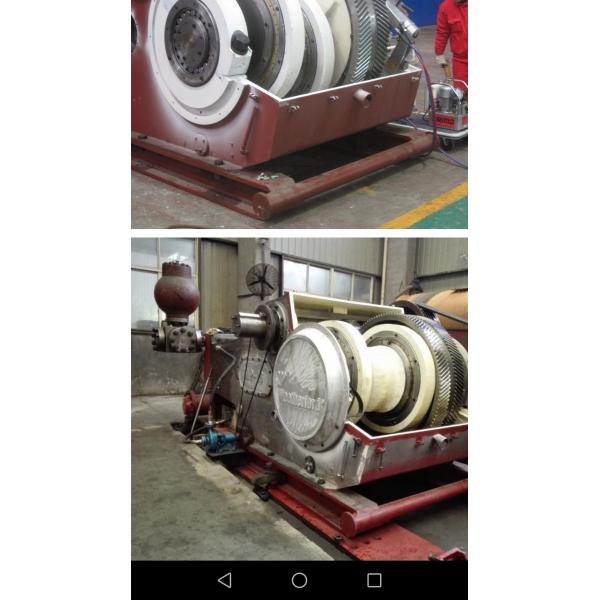

POWER END PARTS

The Pump stand is constructed of steel plates by welding. Furthermore, because the post weld annealing treatment is applied to eliminate the internal stress, its strength is high and its steel is good. Moreover, the strengthening plate structure is adopted in the crank shaft bearing house and the main bearing house, therefore its strength is high and its steel is good.

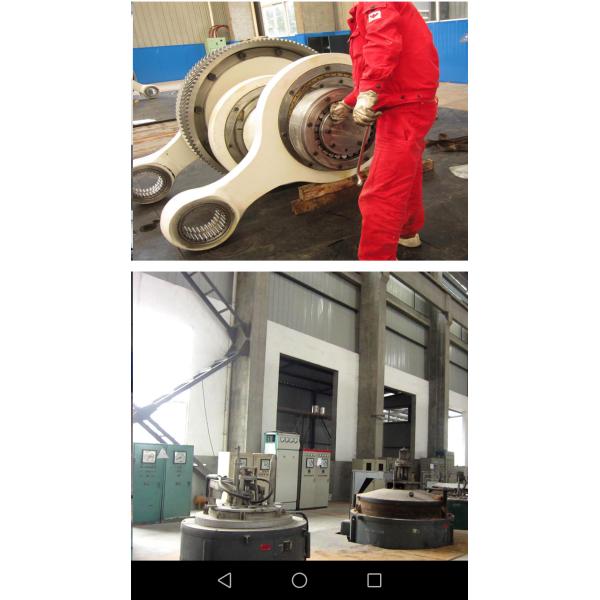

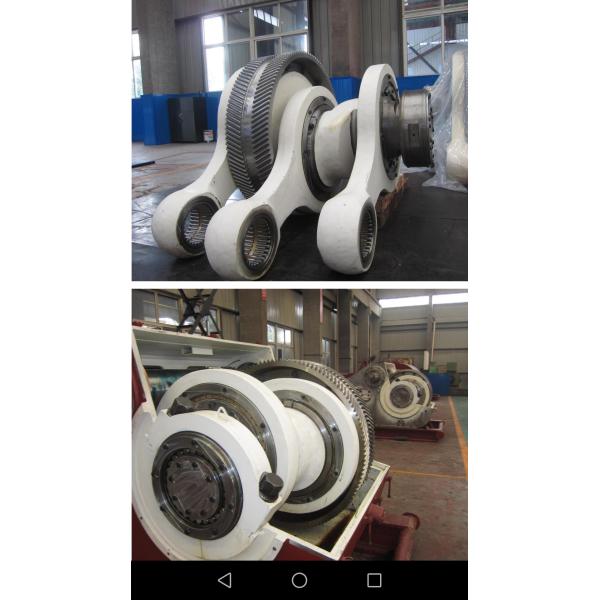

The crank shaft is constructed of forgings in balance, and thus it is light in weight and it runs smoothly without any vibration.

The gear shaft is made of forgings of alloy steel and the herringbone gear as a whole is installed with medium hardness tooth surface gear on the shaft.

The cross head is made of ductile cast iron by entire cast which thus makes the wear-resistant good. The guide plate is formed in up- and - down structure which thus can adjust the concentricity by the gasket in the up or the down gasket.

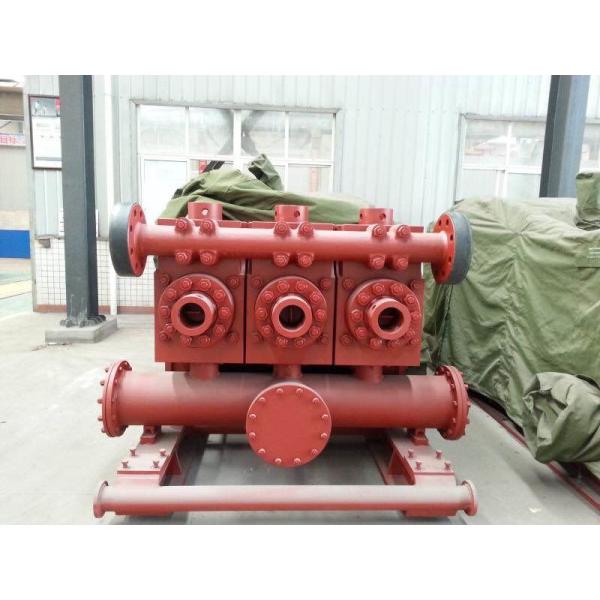

The hydraulic cylinder is made of alloy steel cast in straight-through type and its volume small and volumetric efficiency high. Furthermore, the surface of the cylinder has been treated with chemical nickel-plating to enhance its wear-resistant.

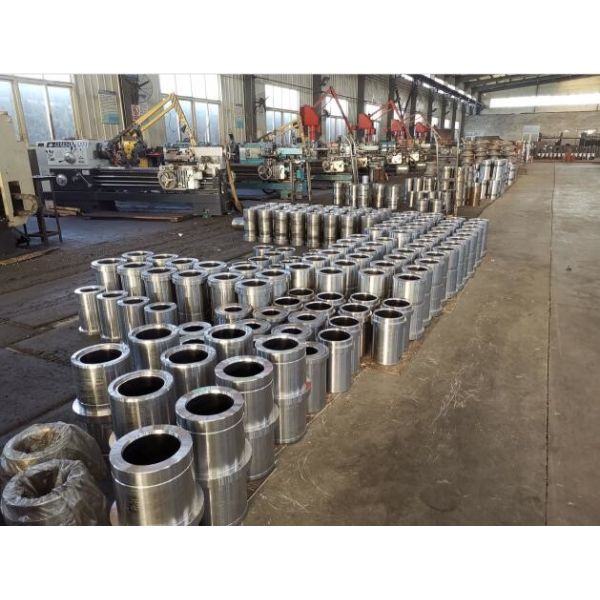

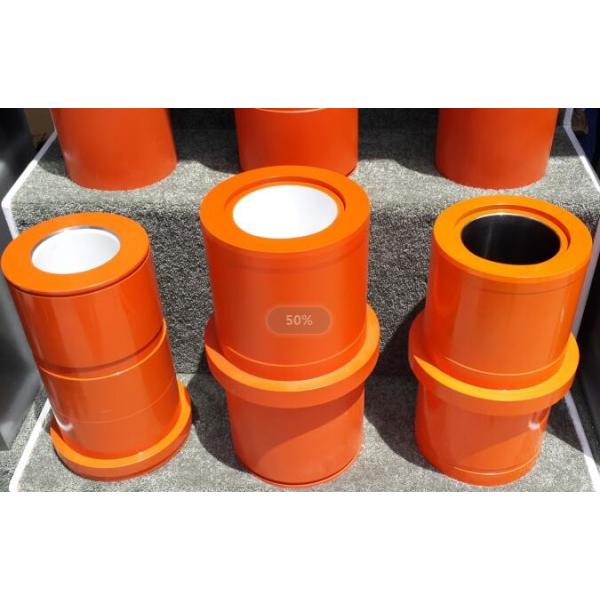

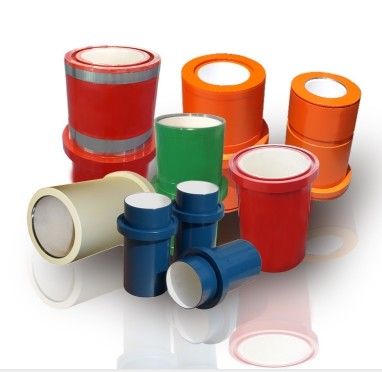

The cylinder liners of the 446 pump have a same sized external diameter. The fasten effect is achieved by the squared cylinder liner pressing cover and the bolt pressing the hydraulic cylinder. The seal between the cylinder liner and the hydraulic cylinder is achieved by the rubber mat in rectangle.

In the lubrication system, the forced lubricating is adopted. The gear oil pump, which is installed in the oil rank, transmits the pressured oil, through lubrication lines, into the cross head guide plate and all the shafts to achieve the forced lubrication and cooling purpose.

W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
Weatherford offers a full line of premium-quality mud pumps based on proven and
simple-to-maintain designs that are accepted around the world. Each pump comes with
exceptional service and support that only a true global provider like Weatherford can
promise. When you factor in our competitive pricing and off-the-shelf availability of pumps
and parts, it’s clear that Weatherford has raised the bar for mud pumps.
Weatherford is building one of the world’s leading reciprocating pump organizations by giving you more pump for your money.
We build in extra-value features that don’t cost extra and give you the lasting value of pump components built for maximum
reliability and service life.
Most importantly, our people bring invaluable experience and dedication to your application. They will help you choose from
our broad range of pumps and accessories and deliver them to you faster than anyone else in the industry.
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMPW440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMPW440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMPW440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP

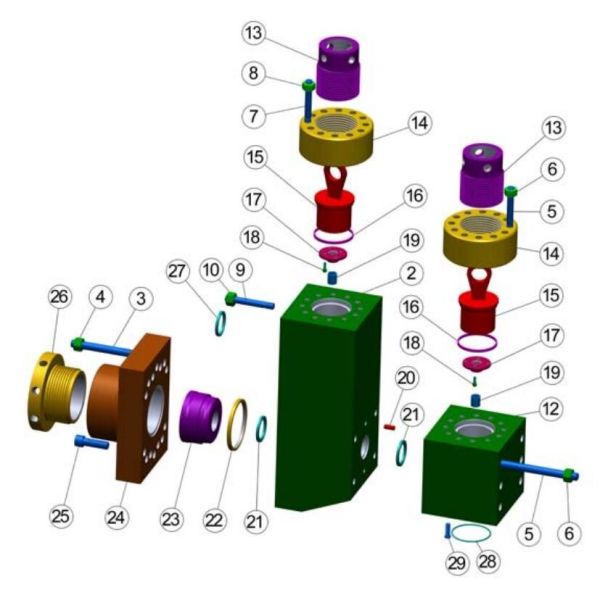

MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
FEM12PASSYSWNS FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) 3
1 8476-6S FEM12PSUCSWNS MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) 3
2 8476-5D FEM12PDISSWNS MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4 PEP55 NUT, DISCHARGE TO SUCTION STUD 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6 8P80TRSN NUT, POWER END STUD 30
7 8488-5 PEP70 PIN, DOWELL 6
8 4017-65 PEP75 CAPSCREW,LINER RETAINER SOCKET HEAD 18
9 8476-3 PP6021260SW PLATE, LINER WEAR 3
10 2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
11 6476 12PLASW FLANGE, LINER RETAINER (LINER BUSHING) 3
12 6576 12PLANSW NUT, LINER RETAINER 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14 12P160TRSN NUT, THREADED RING STUD 72
15 4676-6A 12PVCASSYSWNS PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) 6
16 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
17 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
18 P-119 07207119 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4776R 12PVGASWNS ASSEMBLY, VALVE GUIDE(INCLUDES ITEMS 19,& 20) 6
20 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
21 4016-98 PEP73 SCREW, VALVE GUIDE 12
22 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
23 AJO-419R 1540851 GASKET, SUCTION MANIFOLD 3
24 8376-2 NAT12PDSMA ADAPTER, DISCHARGE 2
25 2976-2 2410031437 SEAL, DISCHARGE ADAPTER 4
26 8376-1 NAT12PDSMC CONNECTOR, DISCHARGE 2
27 2976-1 2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 4018-18 700030711 CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) 16
29 8376-3 1292175 RING, BACKUP (DISCHARGE CONNECTOR) 4
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP

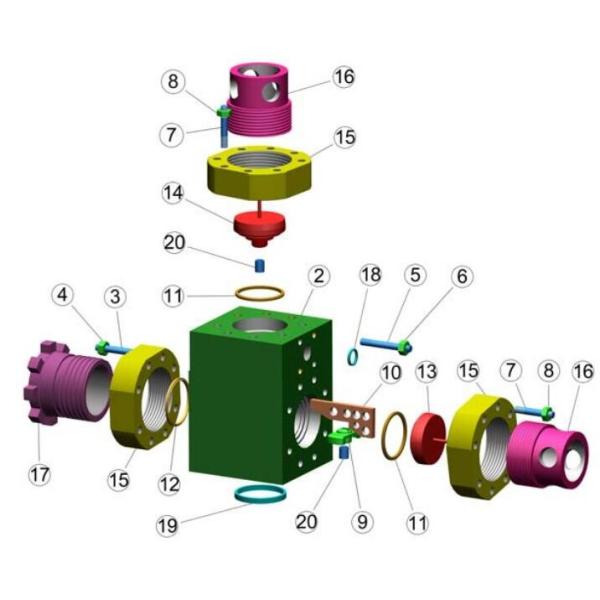

MISSION "L" MODULE FOR WIRTH TPK-1300/TPK-1600
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
FEMTPK13ASSYSW COMPLETE ASSEMBLY
8446-4 FEMTPK13DISSW DISCHARGE MODULE, STUDDED
8446-5 FEMTPK13SUCSW SUCTION MODULE,STUDDED
4016-97 OWA17DSUCSW STUD, DISCHARGE TO SUCTION MODULE
EMSF1000PFSN NUT, DISCHARGE TO SUCTION STUD
8488-5 PEP70 DOWELL PIN
8446-3 TPK13WPSW LINER WEAR PLATE
2988 1290344 WEAR PLATE AND MOD GASKET - RUBBER (SEE DATASHEET FOR ALT MATLS)
4018-11 TPK13LRBSW POWER END SOCKET HEAD CAPSCREW
4018-7 700052410 LINER RETAINER CAPSCREW
6446-1 TPK13PLRSW LINER RETAINER PLATE
6446-2 TPK13FLRSW LINER RETAINER FLANGE
6546 TPK13NLRSW LINER RETAINER NUT
8488-11 TPK13CSLRSW LINER RETAINER NUT SETSCREW
4015-2 OWA17TRSSW STUD, THREADED RING
PZ789LCSN NUT, THREADED RING STUD (1 1/2"-6 2H)
4475 OWA17FLGSW THREADED RING (THREADED FLANGE)
4575 OWA17CAPSW THREADED CAP (SCREW GLAND)
4675-1A OWA17VCASSYSW VALVE COVER ASSEMBLY (INCLUDES ITEM #'S
P-129 07207129 VALVE COVER PLUG SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
4775R OWA17VGSW VALVE GUIDE (INCLUDES BUSHING)
OWA17VCSW VALVE COVER
4700- I PZ789VGI VALVE GUIDE BUSHING
4018-88 PEP73 VALVE GUIDE SCREW
4018-19 700048210 SUCTION MANIFOLD CAPSCREW W/LOCKWASHER
7602074 LOCKWASHER SUCTION MANIFOLD CAPSCREW
4017-23 700660808 SOCKET HEAD CAPSCREW F/DISCHARGE FLANGE
8346-3 TPK13DISMESW FLANGE, DISCHARGE EXTERNAL
2974-06 20100013 SEAL DISCHARGE MANIFOLD FLANGE
4018-8 7000604 CAPSCREW, DISCHARGE MANIFOLD FLANGE
8346-2 TPK13DISMSW FLANGE, DISCHARGE INTERNAL
AJO-407U SEAL DISCHARGE MANIFOLD FLANGE
8346-1 TPK13RDISMSW RING, DISCHARGE MANIFOLD
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
NATIONAL 9-P-100 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
FEMNAT9PCA FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-6, 9-22, 29-35) 3
1 1293240 FEMNATDIS9P MODULE, STUDDED FLUID END DISCHARGE ( INCLUDES ITEMS 1,3-6, 9-11, 31, & 31A) 3
2 1290338 FEMNATSUC8P9P MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2,3,4 & 35) 3
3 2408019 8P80TRS STUD, THREADED RING 72
4 6300220 8P80TRSN NUT, THREADED RING STUD 72
5 2408030 9P100PFS STUD, POWER FRAME 24
6 6300200 PZ789LCSN NUT, POWER FRAME STUD 24
7 2402560 8P80DMS STUD,TOP TAPER LOCK (FOR BLIND RING AND WELD NECK FLANGES) 16
8 6300200 PZ789LCSN NUT, STUD (BLIND RING AND WELD NECK FLANGES) 16
9 2408034 8P80DSUCS STUD, DISCHARGE MODULE TO SUCTION MODULE 18
10 6300241 6300241 NUT, DISCHARGE TO SUCTION MODULE STUD 18
11 6511416 PEP70 PIN, DOWELL 6
12 1292141 NATVGB BUSHING,VALVE GUIDE 6
13 1292140 NATVGBR RETAINER, VALVE GUIDE BUSHING 6
14 1540126 1540126 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
15 1290174 NAT8PRETSEAL RETAINER, SEAL 6
16 1290178 NATAWS SCREW, ADJUSTING WEDGE 6
17 G-1290376 8P80LW ASSEMBLY, WEDGE (INCLUDES ITEM #18 WEDGE SPRING) 6
18 1290181 8P80WS SPRING, WEDGE 6
19 1290308 NAT8PFLG RING, THREADED 6
20 1290307 NAT8PCAP CAP, VALVE COVER (THREADED) 6
21 1290315 8PAWSW WASHER, WEDGE ADJUSTING SCREW 6
22 6300160 EMSFB13LCSN NUT, WEDGE ADJUSTING SCREW 6
23 2410031427 2410031427 SEAL,DISCHARGE CONNECTOR & DISCHARGE ADAPTER 4
24 1290343 NAT8PDSMA ADAPTER, DISCHARGE CONNECTOR 2
25 2410031348 2410031348 SEAL,DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
26 1290342 NATPDSMC CONNECTOR, DISCHARGE 2
27 7006607 7006607 CAPSCREW, DISCHARGE SPACER FLANGE 16
28 700030511 700030511 CAPSCREW, DISCHARGE CONNECTOR (WASHER INCLUDED) 16
29 1290357 PP602000 PLATE, WEAR 3
30 1293165 9PLCA BUSHING, LINER 3
31 2408018 2408018 STUD, LINER BUSHING 18
31A 6300160 PZ789TRSN NUT, LINER BUSHING STUD 18
32 1293166 9PLC ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 32A, 32B, 32C,32D,32E,& 32F) 3
32A 7000448 7000448 CAPSCREW, LINER CLAMP 6
32B** ** ** (OPTIONAL) LOCK WASHER 5/8" 6
32C 6309120 6309120 NUT, LINER CAPSCREW 6
32D 1290169 1290169 PIN, CONNECTOR 6
32E G1290168P G1290168P CONNECTOR, LINER CLAMP 6
32F 6571420 6571420 PIN, SPRING 4
33 1290344 1290344 SEAL, MODULE & WEARPLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
34 1590051 1590051 SEAL, SUCTION MANIFOLD 3
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
NATIONAL 8-P-80 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
FEMNAT8PCA FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-6, 9-22, 29-35) 3
1 1291280 FEMNATDIS8P MODULE, STUDDED FLUID END DISCHARGE ( INCLUDES ITEMS 1,3-6, 9-11, 31, & 31A) 3
2 1290338 FEMNATSUC8P9P MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2,3,4 & 35) 3
3 2408019 8P80TRS STUD, THREADED RING 72
4 6300220 8P80TRSN NUT, THREADED RING STUD 72
5 2408026 8P80PFS STUD, POWER FRAME 24
6 6300180 12P160LCSN NUT, POWER FRAME STUD 24
7 2402560 8P80DMS STUD,TOP TAPER LOCK (FOR BLIND RING AND WELD NECK FLANGES) 16
8 6300200 PZ789LCSN NUT, STUD (BLIND RING AND WELD NECK FLANGES) 16
9 2408034 8P80DSUCS STUD, DISCHARGE MODULE TO SUCTION MODULE 18
10 6300241 6300241 NUT, DISCHARGE TO SUCTION MODULE STUD 18
11 6511416 PEP70 PIN, DOWELL 6
12 1292141 NATVGB BUSHING,VALVE GUIDE 6
13 1292140 NATVGBR RETAINER, VALVE GUIDE BUSHING 6
14 1540126 1540126 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
15 1290174 NAT8PRETSEAL RETAINER, SEAL 6
16 1290178 NATAWS SCREW, ADJUSTING WEDGE 6
17 G-1290376 8P80LWA ASSEMBLY, WEDGE (INCLUDES ITEM #18 WEDGE SPRING) 6
18 1290181 8P80WS SPRING, WEDGE 6
19 1290308 NAT8PFLG RING, THREADED 6
20 1290307 NAT8PCAP CAP, VALVE COVER (THREADED) 6
21 1290315 8PAWSW WASHER, WEDGE ADJUSTING SCREW 6
22 6300160 EMSFB13LCSN NUT, WEDGE ADJUSTING SCREW 6
23 2410031427 2410031427 SEAL,DISCHARGE CONNECTOR & DISCHARGE ADAPTER 4
24 1290343 NAT8PDSMA ADAPTER, DISCHARGE CONNECTOR 2
25 2410031427 2410031348 SEAL,DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
26 1290342 NAT8PDSMC CONNECTOR, DISCHARGE 2
27 7006607 7006607 CAPSCREW, DISCHARGE SPACER FLANGE 16
28 700030511 700030511 CAPSCREW, DISCHARGE CONNECTOR (WASHER INCLUDED) 16
29 1290357 PP602000 PLATE, WEAR 3
30 1291165 8PLCA BUSHING, LINER 3
31 2408025 2408025 STUD, LINER BUSHING 18
31A 6300120 8P80LCSN NUT, LINER BUSHING STUD 18
32 1291166 8PLC ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 32A, 32B, 32C,32D,32E,& 32F) 3
32A 700040311 700040311 CAPSCREW, LINER CLAMP 6
32B ** ** (OPTIONAL) LOCK WASHER 5/8" 6
32C 6309100 6309100 NUT, LINER CAPSCREW 6
32D 1291169 121169 PIN, CONNECTOR 6
32E G1290168P G1290168P CONNECTOR, LINER CLAMP 6
32F 6571014 6571014 PIN, SPRING 4
33 1290344 1290344 SEAL, MODULE & WEARPLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
34 1590051 1590051 SEAL, SUCTION MANIFOLD 3
35 7000482-10 7000482-10 CAPSCREW, SUCTION MANIFOLD 24
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

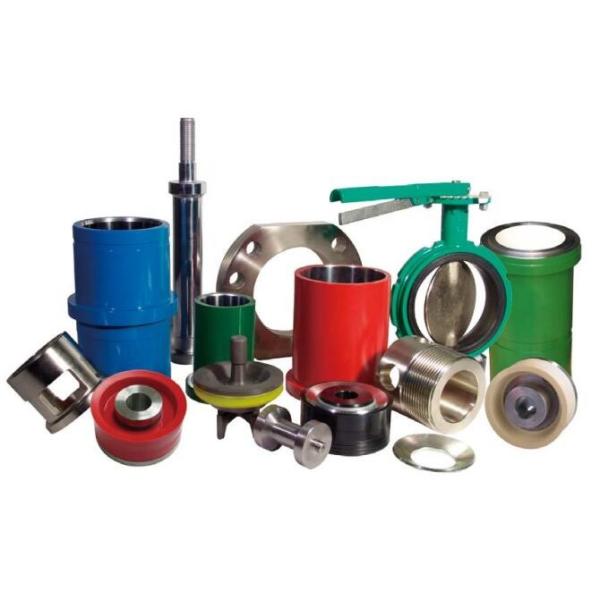

Popular Mud Pump Spare Parts

W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP

Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL

Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000

National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A

National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160

Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P

Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT

Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT

OPI Mud Pumps

350-D | 700-HDL | 1000-HDL

Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036

Wilson Mud Pumps

600 | 900

W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
Item Description Part No.
Complete Assembly 8476-A
1 Threaded Flange 4476
2 Screw Gland 4597
3 Plug Assembly w/Guide & Bushing 4676-2A
4 Valve Guide 4776
5 Valve Guide Bushing 4700-I
6 Valve Guide Screw 4016-98
7 Valve Cover Stud w/Nut 4015-54
8 Power End Stud w/Nut 4015-95
9 Liner Retainer Capscrew 4017-65
10 Liner Retainer Flange 6476
11 Liner Retainer Nut 6576
12 Suction Module Stud w/Nut 4018-17
13 Suction Module (Studded) 8476-2
14 Discharge Module (Studded) 8476-1
15 Dowel Pin 8488-5
16 Wear Plate 8476-3
17 Valve Cover Plug Seal P-107
18 Module & Wear Plate Seal 2988
19 Piston Rod 1286-32
20 Sub Rod 1286-1
21 Rod Clamp w/Spray System 1286-CW
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts

W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP

Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL

Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000

National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A

National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160

Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P

Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT

Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT

OPI Mud Pumps

350-D | 700-HDL | 1000-HDL

Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036

Wilson Mud Pumps

600 | 900

Product tags

catalog pump vickers 3525vq

,

bosch fuel pump 0480494149

,

www diesel pump set
Send your message to this supplier
Send Now

W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP

Ask Latest Price
Product Detail
Brand Name :
Weatherford, Drillmec, TSC, Texma, National, Oilwell
Model Number :
MP5
Certification :
API
Place of Origin :
CHINA
MOQ :
1 SET
Price :
40000 USD
Contact Supplier
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP
W440 MUD PUMP, W446 MUD PUMP, EWECO EWS440 MUD PUMP, EWS446 MUD PUMP, MUD PUMP FOR OILWELL DRILLING, F1600 MUD PUMP, 12P160 MUD PUMP, MP5 MUD PUMP

Qingdao National Premium Oilwell Machinery Co.,Ltd

Verified Supplier
8 Years
shandong, qingdao
Since 2007
Business Type :
Manufacturer, Distributor/Wholesaler, Importer, Exporter, Seller
Main Products :
Mud Pump Chrome Liner, Mud Pump Zirconia Liners, Mud Pump Pistons
Total Annual :
1-5000000
Employee Number :
1~150
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products EWECO MUD PUMP
MachineU China Products Machinery Energy & Mineral Equipment Oil Field Equipment Mud Pump
Contact Supplier
Submit Requirement
