Specifications
Brand Name :
Gardner Denver, National, Oilwell, Southwest, Weatherford, Southwest, Ideco, TSC
Model Number :
PZ7, PZ8, PZ9, PZ10, PZ11, PAH275
Certification :
API
Place of Origin :
CHINA
MOQ :
1 piece
Price :
1 to 500 usd
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union
Supply Ability :
3000 per month
Delivery Time :
In stock
Packaging Details :
Suitable to shipment by sea and air
Usage :
Oil,Water,drill rig
Power :
Hydraulic,Pneumatic,diesel
Pressure :
High Pressure,Low Pressure,Medium pressure
Application :
Conveying mud and flushing fluids,mining,oil,Chemical
Structure :
Piston Pump
Fuel :
Diesel,Gasoline,air operated,diesel engine and hydraulic motor for option
Standard or nonstandard :
Standard
Type :
Mud Pump
Color :
Green or per customer design
Material :
cast iron/stainless steel mud suction pump,Chrome alloy
Warranty :
12 Months
Product name :
Mud Pump
Oem :
Applicable
Condition :
new
Description

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

PZ-8 Pump Technical specifications

  • Input power rating (KW) 559 (750HP)
  • Rated pump speed (RPM) 145
  • Stroke Length (mm) 203 (8”)
  • Gear ratio 4.5
  • Rated speed of transmission shaft (RPM) 652
  • Max. working pressure (Kg/sq.cm) 352 (5000PSI)
  • Valve size (API) 7#
  • Max. liner diameter (mm) Φ7”
  • Max. displacement (GPM) 580
  • Max. liner pressure (Kg/sq.cm) 140 (1996PSI)
  • Diameter of suction pipe (mm) 254 (10”)
  • Diameter of discharge pipe (mm) 100 (4”)
  • Overall dimensions 3650×2460×2520 mm
  • Weight (without dampener and joint atc) 10000kg
  • Weight (with dampener and joint atc) 12200kg

Pump Performance Data


Dia. of Liner		 IN 7” 6 1/2” 6” 5 1/2” 5” 4 1/2” 4”
Gallon/Minute 580 500 426 358 296 240 189
Displacement
Liter/Minute 2196 1893 1613 1355 1120 908 715

Discharge
Pressure		 PSI 1996 2315 2717 3233 3912 4830 5000
Kg/sq.cm 140 163 191 227 285 340 352

Part List of PZ7 mud pump

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

GARDNER DENVER PZ-7 / PZG 201PZG001A FRAME ASM, INCLUDES REFERENCE NUMBERS 1 THRU 11
GARDNER DENVER PZ-7 / PZG 201PZG001 FRAME
GARDNER DENVER PZ-7 / PZG 64AA9 PLUG, CRADLE DRAIN
GARDNER DENVER PZ-7 / PZG 79A238 STUD, CROSSHEAD INSPECTION PLATE
GARDNER DENVER PZ-7 / PZG 50B5 NUT, CROSSHEAD INSPECTION PLATE
GARDNER DENVER PZ-7 / PZG 64A5 PLUG
GARDNER DENVER PZ-7 / PZG 66D13 PLUG-MAGNETIC, SUMP OIL DRAIN
GARDNER DENVER PZ-7 / PZG 200PZG144 SPACER
GARDNER DENVER PZ-7 / PZG 2012526 STUD, SPACER TO FRAME
GARDNER DENVER PZ-7 / PZG 35C19 KEY, SPACER TO FRAME
GARDNER DENVER PZ-7 / PZG 200PZG247 PLATE, SPACER TO FRAME
GARDNER DENVER PZ-7 / PZG 50B34 NUT, SPACER TO FRAME STUD
GARDNER DENVER PZ-7 / PZG PZ715 GASKET, CROSSHEAD INSPECTION PLATE
GARDNER DENVER PZ-7 / PZG 200PZG052 PLATE-INSPECTION, CROSSHEAD
GARDNER DENVER PZ-7 / PZG 655EE060 SCREW, CROSSHEAD INSPECTION PLATE
GARDNER DENVER PZ-7 / PZG 201PZG253 PLATE-RETAINER
GARDNER DENVER PZ-7 / PZG 655EG050 SCREW, BEARING RETAINER PLATE
GARDNER DENVER PZ-7 / PZG 200PZG006 HOUSING-BEARING, ECCENTRIC
GARDNER DENVER PZ-7 / PZG 201PZG715N GASKET, BEARING COVER PLATE
GARDNER DENVER PZ-7 / PZG 200PZG315 PLATE-BEARING COVER (RIGID SIDE)
GARDNER DENVER PZ-7 / PZG 655EG070 SCREW, BEARING COVER PLATE
GARDNER DENVER PZ-7 / PZG 25C1788N GASKET, INSPECTION PLATE
GARDNER DENVER PZ-7 / PZG 202FXT052 PLATE-INSPECTION
GARDNER DENVER PZ-7 / PZG 655EF050 SCREW, INSPECTION PLATE
GARDNER DENVER PZ-7 / PZG 40L17 GAUGE, OIL LEVEL SIGHT
GARDNER DENVER PZ-7 / PZG 27H11 GAUGE, OIL TEMPERATURE
GARDNER DENVER PZ-7 / PZG 64E2 BUSHING-PIPE
GARDNER DENVER PZ-7 / PZG 200PZG309 SLIDE-CROSSHEAD
GARDNER DENVER PZ-7 / PZG 75LM6 SCREW, CROSSHEAD SLIDE TO FRAME
GARDNER DENVER PZ-7 / PZG 60DD35 SEAL-FASTENER
GARDNER DENVER PZ-7 / PZG 50V44 LOCKNUT
GARDNER DENVER PZ-7 / PZG 201PZG315 PLATE-BEARING COVER (FLOATING SIDE)
GARDNER DENVER PZ-7 / PZG 200PZG053 HOOD, ECCENTRIC
GARDNER DENVER PZ-7 / PZG 655EE040 SCREW, HOOD TO FRAME
GARDNER DENVER PZ-7 / PZG 200PZG715 GASKET, HOOD
GARDNER DENVER PZ-7 / PZG 5C24 BREATHER
GARDNER DENVER PZ-7 / PZG KXG842 PLATE, INSPECTION
GARDNER DENVER PZ-7 / PZG 25C1818 GASKET, INSPECTION PLATE
GARDNER DENVER PZ-7 / PZG 655EF040 SCREW, INSPECTION PLATE
GARDNER DENVER PZ-7 / PZG 25F13 GASKET, INSPECTION PLATE SCREW
GARDNER DENVER PZ-7 / PZG 206PZL052 PLATE-INSPECTION
GARDNER DENVER PZ-7 / PZG 25C1839 GASKET, INSPECTION PLATE
GARDNER DENVER PZ-7 / PZG 655ED040 SCREW, INSPECTION PLATE
GARDNER DENVER PZ-7 / PZG 201PZG052 COVER, LEFT SIDE CRADLE AREA
GARDNER DENVER PZ-7 / PZG 202PZG052 COVER, MIDDLE CRADLE AREA
GARDNER DENVER PZ-7 / PZG 203PZG052 COVER, RIGHT SIDE CRADLE AREA
GARDNER DENVER PZ-7 / PZG 655EG070 SCREW, HOOD TO MAIN BEARING SPACER

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

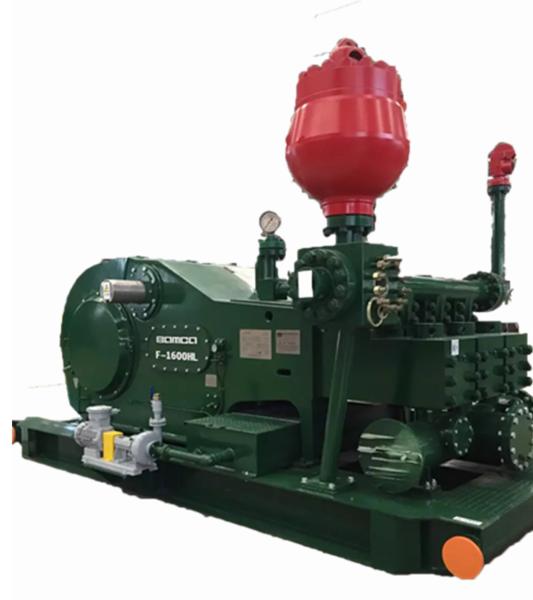

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

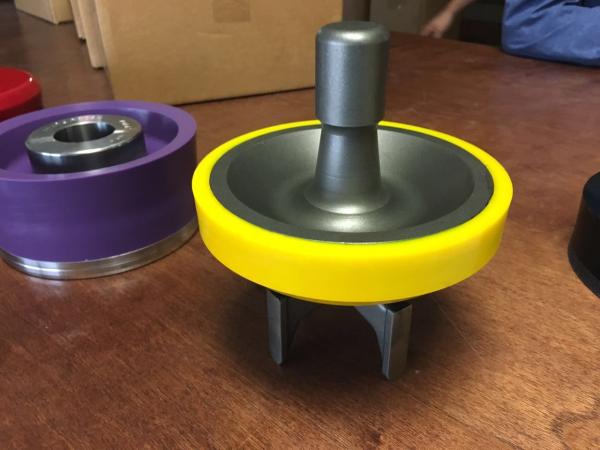

1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

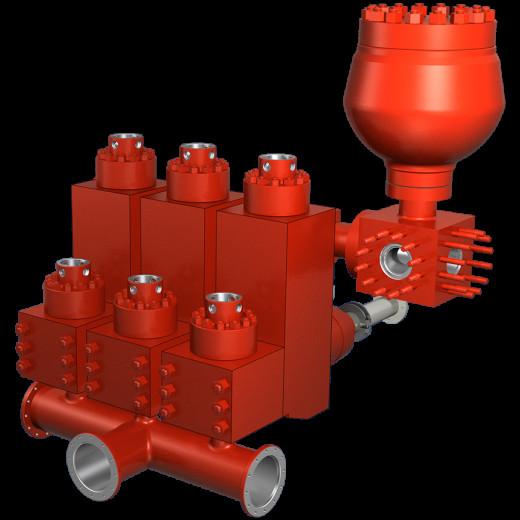

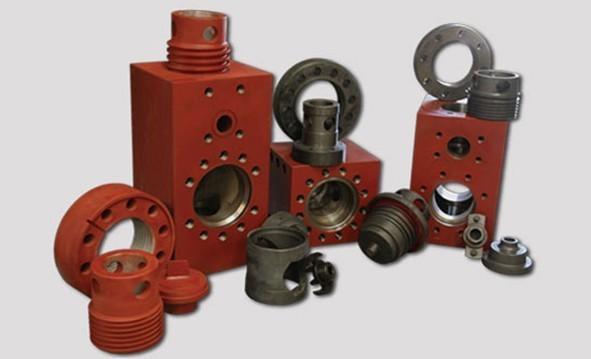

Fluid End Modules

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

Description PZ-7 mud pump PZ-8 mud pump PZ-9 mud pump

PZ-10 and PZ-11

mud pump
Liner of Crosshead Upper 200PZG309 2012509 PZ222 200PZL309
Liner of Crosshead Lower 200PZG309 2012509 PZ222 200PZL309
Pin of Crosshead 200PZG189 200PZH189 PZ189 200PZL706
Extension Rod 200PZH839 1PO183 PZ183 200PZL839
Sub Rod
Crosshead 200PZG005 200PZH005 PZ175 200PZL005
Pinion Shaft 200PZG371 2012507 1PZ371 200PZK371
Connecting Rod 200PZG003 2012506 PZ417 200PZL003
Bull Gear 200PZG280 2012508 1PZ180 200PZK280
Bearing, Crosshead 97A29 12BA44 12AM3 12BA5
Bearing, Pinion Shanft 12W75 12W58 12W60 12W73
Bearing, Eccentric 12BA18 12W85 12W84 12BA6
Bearing, Main 12BA20 12GF38 12GF36 12BA4

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

NATIONAL 14-P-220 (7500 PSI) W/ FAST CHANGE VALVE COVERS FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # DESCRIPTION QTY PER PUMP
80718020 ASSY, COMPLETE FLUID END W/ VALVE SERVICE & SUCTION MANIFOLD 1
1 1295601 MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEMS 1, 3-10) 3
2 1295604 MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2, 3-4) 3
3 2408049 STUD, VALVE COVER 84
4 6300240 NUT, VALVE COVER STUD 84
5 2408027 STUD, POWER FRAME 30
6 6300240 NUT, POWER FRAME STUD 30
7 2408047 STUD, LINER BUSHING 18
8 6300200 NUT, LINER BUSHING STUD 18
9 2408048 STUD, SUCTION TO DISCHARGE MODULE 18
10 6300320 NUT, SUCTION TO DISCHARGE MODULE STUD 18
11 2408014 STUD, DISCHARGE FLANGE 12
12 6300180 NUT, DISCHARGE FLANGE STUD 12
13 1295262 SPACER, STUDDED DISCHARGE (NOT SHOWN) INCLUDED ITEM# 11 AND 12 2
14 1295258 SEAL, DISCHARGE SPACER (NOT SHOWN) 2
15 7006609 CAPSCREW, DISCHARGE SPACER FLANGE 24
16 1295176 RING, THREADED F/C 6
17 1295172 CAP, VALVE COVER (THREADED) F/C 6
18 1292353 PULLER, SEAL RETAINER 6
19 1295174 RETAINER, SEAL 6
20 1540163 SEAL, VALVE COVER 6
21 1292140 HOLDER, VALVE GUIDE INSERT 6
22 1292141 INSERT, VALVE GUIDE 6
23 1540021 SEAL, SUCTION MANIFOLD 3
24 700048511 CAPSCREW, SUCTION MANIFOLD 24
25 2410031440 SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER 4
26 1295253 ADAPTER, DISCHARGE CONNECTOR 2
27 2410031438 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 1295252 CONNECTOR, DISCHARGE 2
28A 1295175 RING, DISCHARGE CONNECTOR BACK UP 4
29 7619050 WASHER, DISCHARGE CONNECTOR CAPSCREW (NOT SHOWN) 16
30 700030711 CAPSCREW, DISCHARGE CONNECTOR 16
31 6511416 PIN, DOWELL 6
32 1295266 PLATE, WEAR 3
33 1295165 BUSHING, LINER 3
34 1295166 CLAMP COMPLETE, LINER (INCLUDES ITEMS 34A, 34B, 34C, 34D, 34E, 34F) 3
34A 1295167 CLAMP, LINER 3
34B 700049110 CAPSCREW, LINER CLAMP 6
34C 6309140 NUT, LINER CAPSCREW 6
34D 1292169 PIN, LINER CLAMP 6
34E G1292168P CONNECTOR, LINER CLAMP 6
34F 6571620 PIN, SPRING 12

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

NATIONAL 12-P-160 W/ TAPR-LOK VALVE COVERS FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
FEMNAT12PCA FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1, 2, 3-10, 29-35) 3
1 1292240 FEMNATDIS12P MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEMS 1, 3-10) 3
1A 1292601 FEMNATDIS12PA MODULE, STUDDED FLUID END DISCHARGE W/ AUTOFRETTAGE (INCLUDES ITEMS 1A, 3-10) 3
2 1292243 FEMNATSUC12P MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2, 3-4) 3
2A 1292604 FEMNATSUC12PA MODULE, STUDDED FLUID END SUCTION W/ AUTOFRETTAGE (INCLUDES ITEMS 2A, 3-4) 3
3 2408027 12P160TRS STUD, THREADED RING 72
4 6300240 12P160TRSN NUT, THREADED RING STUD 72
5 2408029 12P160PFS STUD, POWER FRAME 30
6 6300220 8P80TRSN NUT, POWER FRAME STUD 30
7 2408028 12P160LCS STUD, LINER BUSHING 18
8 6300180 12P160LCSN NUT, LINER BUSHING STUD 18
9 2408033 12P160DSUCS STUD, DISCHARGE MODULE TO SUCTION MODULE 18
10 6300281 PEP55 NUT, DISCHARGE TO SUCTION MODULE STUD 18
11 2408015 12P160DMS STUD, SPACER FLANGE 16
12 6300240 12P160TRSN NUT, SPACER FLANGE STUD 16
13 6511416 PEP70 PIN, DOWELL 6
14 1292141 NATVGB BUSHING,VALVE GUIDE 6
15 1292140 12PVGBR RETAINER, VALVE GUIDE BUSHING 6
16 1540127 1540127 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
17 1292174 NAT12PRETSEAL RETAINER, VALVE & SEAL 6
18 1292178 NAT12PAWS SCREW, ADJUSTING WEDGE 6
19 6300182 12P160AWSN NUT, WEDGE ADJUSTING SCREW 6
20 1292171 12P160AWSW WASHER, WEDGE ADJUSTING SCREW 6
21 G1292268 12P160LW ASSEMBLY, WEDGE (INCLUDES ITEM # 20 WEDGE SPRING) 6
22 1292181 12P160WS SPRING, WEDGE 6
23 1292176 NAT12PFLG RING, THREADED 6
24 1292172 NAT12PCAP CAP, VALVE COVER (THREADED) 6
25 2410031437 2410031437 SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER 4
26 1292253 NAT12PDSMA ADAPTER, DISCHARGE CONNECTOR 2
27 2410031433 2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 1292252 NAT12PDSMC CONNECTOR, DISCHARGE 2
28A 1292717 1292717 BACK UP RING, DISCHARGE CONNECTOR 2
29 7006685 7006685 CAPSCREW, DISCHARGE SPACER FLANGE 16
30 700030711 700030711 CAPSCREW, DISCHARGE CONNECTOR 16

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

MISSION "L" MODULE FOR LEWCO W2215 7500 PSI W/ SWOP FE FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
8482-25LEWA FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-22)
1 8482-27 80732001 MODULE, SUCTION STUDDED (INCLUDES ITEMS 1, 7-8) 3
2 8482-26 80732000 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-9) 3
3 /4020-6 80732002 STUD, DISCHARGE TO SUCTION MODULE 18
4 2"-8 HH 7402422 NUT, DISCHARGE TO SUCTION STUD 18
5 4020-26 80732004 STUD, POWER END 30
6 1-1/2-6 HH 6300240 NUT, POWER END STUD 30
7 4015-54 12PTRSSW STUD, THREADED RING 72
8 1-1/2-6 HH 6300240 NUT, THREADED RING STUD 72
9 /8488-5 6511416 PIN, DOWELL 6
10 4015-52 80732005 STUD, LINER RETAINER FLANGE 18
11 1-1/4-7 HH NUT, LINER RETAINER FLANGE STUD 3
12 May-82 80732007 PLATE, LINER WEAR 3
13 2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
14 6482 FLANGE, LINER RETAINER (LINER BUSHING) 3
15 6582 NUT, LINER RETAINER 3
16 4609-25A ASSY, VALVE COVER PLUG (INCLUDES ITEMS 15,16, 20-22) 6
17 PLUG, VALVE COVER 6
18 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
19 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
20 P-119 7207119 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
21 4776R 12PVGASWNS ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) 6
22 4700I PZ789VGI* BUSHING, VALVE GUIDE 6
23 4016-98 50C125KFCYB SCREW, VALVE GUIDE 12
24 CAPSCREW, SUCTION MANIFOLD
25 GASKET, SUCTION MANIFOLD 3
26 4019-60 STUD, DISCHARGE MANIFOLD 18
27 1-1/4-7 HH NUT, DISCHARGE MANIFOLD 18
28 8382-25 MANIFOLD, DISCHARGE 1
29 2988 1290344 SEAL, DISCHARGE MANIFOLD 3

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

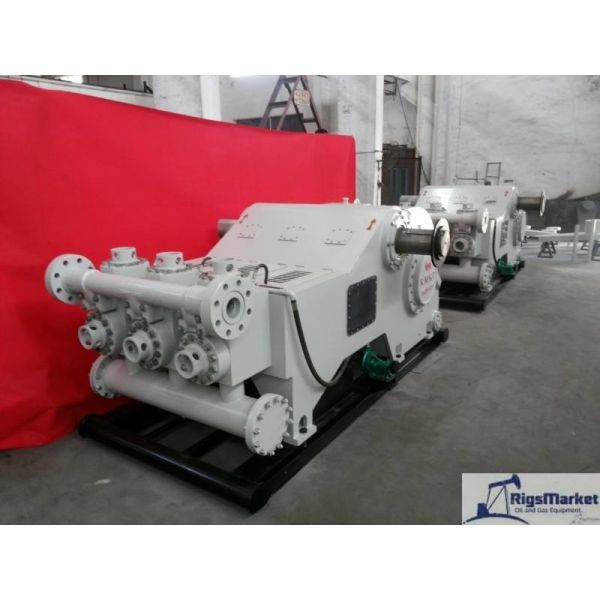

Product Description

· Integrated production line: Premium delivers F series triplex single acting piston mud pump from 500HP up to 2200 HP with time-tested high performance.

· Reliable, compact, well-balanced design: designed for the most severe conditions.

· Power end with fine craftsmanship: High-strength, precisely machined frame; forged, heat-treated crankshaft; hardened surface on drive gears and longer lifetime.

· Fluid end & consumables: interchangeable with multiple OEM.

· Diversified drive options: Through belt, chain or gearbox, pumps could be operated by multiple brand AC/DC motor, diesel engine, or simply couple the pinion shaft with one of our premium Direct Drive motors.

· Upgrade a 1300HP or 1600HP mud pump to achieve higher discharge pressure (7500 psi) simply by changing to an "L" type fluid end, site service optional (extra charge).

· Western brand bearing set, relief valve, pulsation dampener, liner spray pump, pre-charge pump optional.

· Suitable for multiple brand piston & valve quick change tools, liner retention systems.

· Standard qualification and certification satisfies customer demand.

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

TECHNICAL PARAMETERS

Model F-500 F-800 F-1000 F-1300
Max. Liner Size × Stroke

170×191

(6-3/4×7.5)

170×229

(6-3/4×9)

170×254

(6-3/4×10)

180×305

(7×12)
Strokes Rating, r/min 165 150 140 120
Power Rating, kW(HP) 373(500) 597 (800) 746 (1000) 969 (1300)
Gear Type 4.286:1 4.185:1 4.207:1 4.206:1
Suction Inlet Flange , in 8 10 12 12
Discharge Outlet Flange , in 4 5 5 5
Pinion Shaft Dia., mm(in) 139.7(5-1/2) 177.8(7) 196.9(7-3/4) 215.9(8-1/2)
Key, mm(in)

31.75×31.75

(1-1/4×1-1/4)

44.45×44.45

(1-3/4×1-3/4)

50.8×50.8

(2×2)

50.8×50.8

(2×2)
Valve Cavity Valve-Over-Valve, API #5 Valve-Over-Valve, API #6 Valve-Over-Valve, API #6 Valve-Over-Valve, API #7
Approx. Weight, kg(lb) 9770 (21540) 14500 (31970) 18790 (41420) 26700 (54170)

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

TECHNICAL PARAMETERS

Model F-1600/1600L F-1600HL F-2200 F-2200HL
Type Triplex single acting piston Triplex single acting piston Triplex single acting piston Triplex single acting piston
Max. Liner size×stroke length 180×305(7×12) 190×305(7-1/2×12) 230×356(9×14) 230×356(9×14)
Strokes Rating,r/min 120 120 105 105
Power Rating,kW(HP) 1193 (1600) 1193 (1600) 1640 (2200) 1640 (2200)
Gear Ratio 4.206:1 4.206:1 3.512:1 3.512:1
Discharge Outlet Flange, in

5″ Flange,

5000 psi

5″ Flange,

10000psi(110 mm)

5″ Flange,

5000 psi(130 mm)

5″ Flange,

10000 psi(130 mm)
Pinion Shaft Dia.,mm(in) 215.9(8-1/2) 215.9(8-1/2) 254(10) 254(10)
Key,mm(in)

50.8×50.8

(2×2)

50.8×50.8

(2×2)

63.5×44.45

(2-1/2×1-3/4)

63.5×44.45

(2-1/2×1-3/4)
Valve Pots

Valve-Over-Valve,API #7/

L type,API #7

L type,

API #7

Valve-Over

-Valve,API #8

L type,

API #8
Approx. Weight ,kg(lb) 24791 (54660) /27020kg(57100lb) 29400 (64820) 38460 (84790) 44000 (94980)

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

In order to meet the drilling technology requirements for high pump pressure and large displacement in oilfields, designed and manufactured F-500, F-800, F-1000, F-1300, F-1600, F-1600L, F-2200 and F-2200 mud pumps with large power and F-1600HL,F-2200HL high pump pressure based on the said three kinds F-series mud pumps that formed complete F-series single acting triplex mud pumps. In recent years, we also start to supply F1-800, F1-1600 light weight series mud pumps and QDP-3000 large power five cylinder mud pumps designed by Bomco.

Our mud pumps are famous for advanced technology, reliable quality and extraordinary performance which are approved by the customer domestic and abroad. Our mud pumps have been exported to dozens of countries and areas, such as Russia, Thailand, India, Oman, Egypt, Australia, Pakistan, Kazakhstan, Mexico, Indonesia, Uzbekistan, Turkmenistan, U.K., USA and Canada, etc which are equipped most for the rigs and exported most.

Technical Features

· F-1300, F-1600, F-1300L and F-1600L mud pump

has a Max. Pump pressure of 34.5MPa(5000Psi)and a displacement of 46 . 5 L/ S with a l iner of Φ180mm.These two models are the first choice for the medium and deep drilling rig as an assorted component.

· F-1600HL, F-2200HL mud pump with high-power and high-pressure are developed to meet the drilling technology requirements of the offshore deep-water and terrestrial and horizontal well, especially desert areas.

· F1-800, F1-1600 light- weight series mud pumps are newly designed. Compared with same power F series mud pumps, the advance of less volume and weight which are appropriate for the rigs work in swamp and helicopter-lifting rigs.

· QDP-3000 five cylinders mud pump with large power, high pressure, big displacement, small size, light weight, especially suits for offshore platform and drill ship.

F-series Mud Pumps

F-series mud pumps include power end, fluid end, spraying system, lubricating system and charging system.

A1. Power End

Power end features:

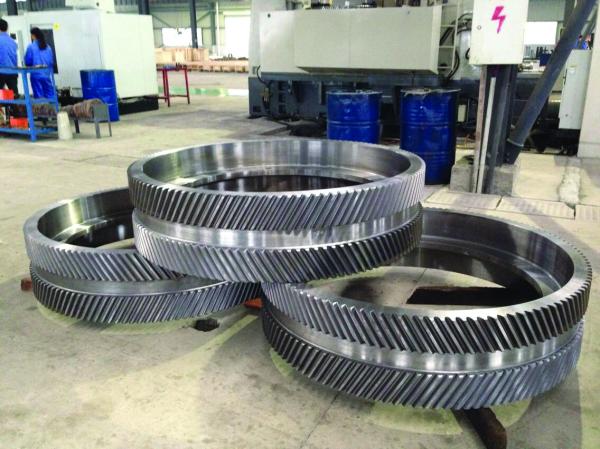

· Continuous tooth herringbone gear.

· The crankshaft is made by alloy steel.

· Changeable crosshead guide.

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight.

· The extension rod packing is duplex seal structure to provide the good seal result.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

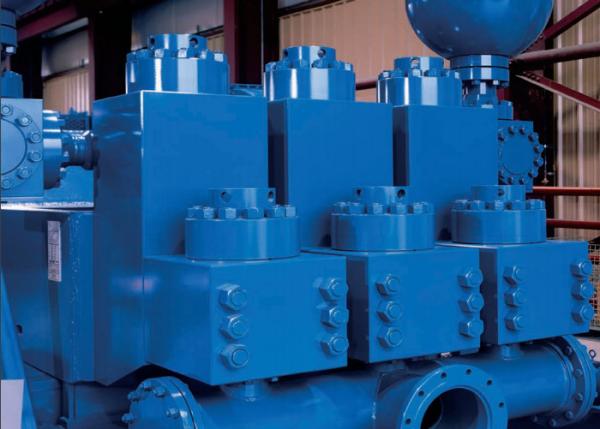

A2. Fluid End

Fluid end features:

· Each sealing part abopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· L fluid end features high pressure resistance,convenient for replacing the valve assembly ;

· Discharge damper ,shear relief valve and discharge

filter are fitted at the discharge outlet.

1. Cylinders

Cylinders are made of forged alloy steel, three cylinders of each pump are interchangeable. At customers're-quest, the cylinder surface may be nickel plated to improve the abrasion resistance.

2. Valve Assembly

The suction valve and the dischange valve for F-series mud pumps are interchangeable. F-500 mud pump uses API#5 valve. F-800 and F-1000 mud pumps use API#6 valve. F-1300 , F-1600, F-1600Land F-1600HL mud pumps use API#7 valve. F-2200Land F-2200HL mud pumps use API#8 valve .

3.Liners

Bi-metal liners are used. The sleeve is made of wear-resistant cast iron,liners feature wear resistance, corrosion resistance.

F-1600HL and F-2200HL mud pumps can choose ceramic liners in order to improve service life.

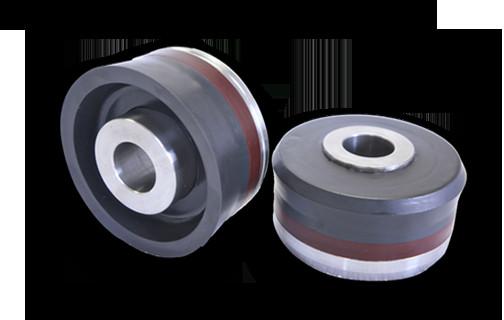

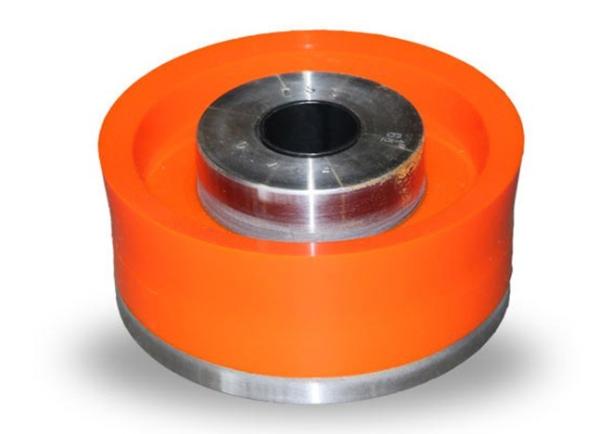

4. Pistons and Piston Rods

They are slide fitted, sealed with rubber seal ring and finally fastened with lock nuts to prevent the piston from looseness and to play a role in sealing.

5. plunger

Fluid end, liners, pistons, valves, valve seats, valve springs, seal rings and gasket ,valve cover and cylinder head of

fluid end assembly for F-800 and F-1000 mud pumps are interchangeable.

Fluid end assemblies of F-1300 and F-1600 mud pump are interchangeable. Fluid end assemblies of F-1300HL and F-1600HL mud pump are interchangeable, too.

A3.Spraying System

The spraying system consists mainly of spray pump, cooling water box, and spray pipe, the function is to cool and flush liners and pistons to improve their service life.The centrifugal spray pump can be driven by a sheave mounted on the input shaft extension end or a separate motor and cooled and lubricated by water.

The spray pipe is mounted on the coupling between the extension rod and the piston rod and can reciprocate with the piston. Nozzles is near the piston end so that the lubricating-cooling fluid can rinse the contact surface between the piston and liner all the time. The durable fixed spray pipe may be used, too.

A4.Lubricating System

The power end uses the combined lubricating system of forced lubrication ad splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the oil box to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.

A5.Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. Mounted on the suction manifold of the mud pump, the charging pump is driven by the special purpose motor or the input shaft of the mud pump through V-belts to reduce the power consumption.

F1 -Series Drilling Mud Pumps

F1-series drilling mud pumps include power end, fluid end, spraying system, lubricating system and charging system. It has light weight and small volume characters.

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

Ⅰ. Power End

Technical features

· Continuous tooth herringbone gear, the gear grinding is carburizing and hardening, which improves the ability of corrosion resistant.

· Furnished with block-type & complete machining crankshaft with advantages of excellent equitability, smooth running and lower vibration & noise.

· The main shaft base uses the “non-cap” structure, which can changes the force condition of bolts in main shaft,

and improves the reliability.

· The replaceable cross head guide, and the cross head adopts spraying special metal;

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight;

· Double sealing structure for extension rod provides good sealing.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.

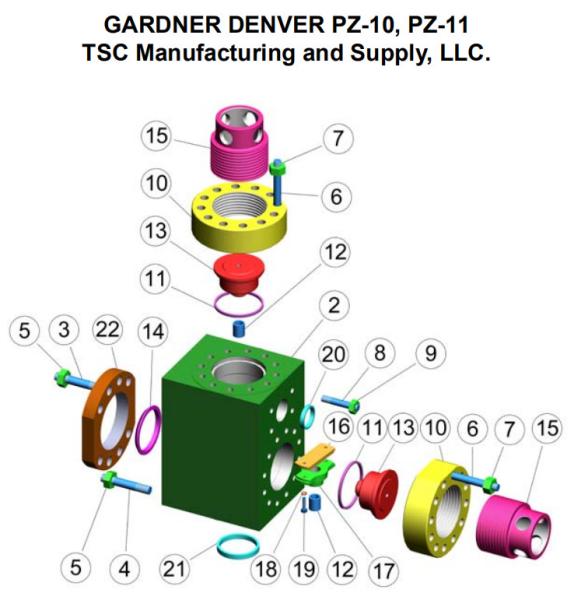

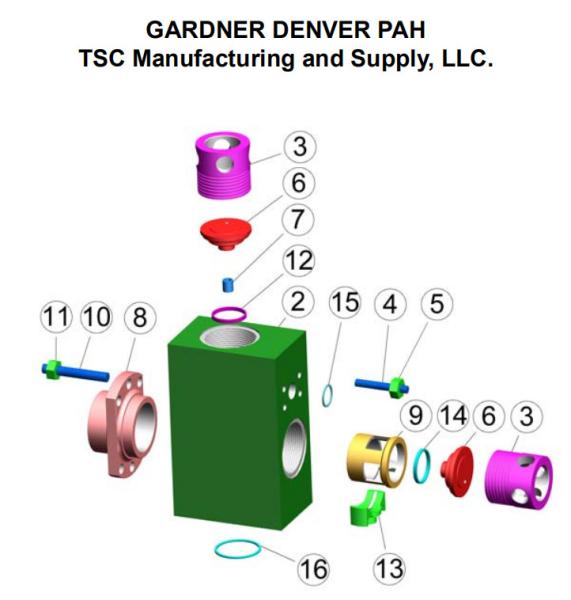

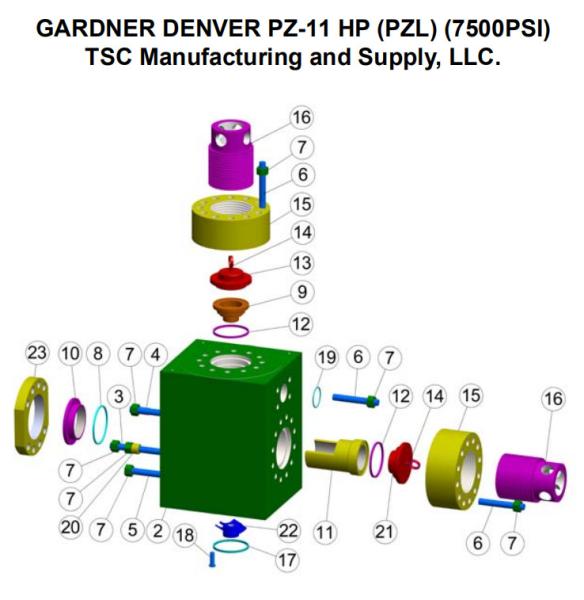

Ⅱ. Fluid End

Technical features

· Each sealing part adopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· Discharge damper, shear relief valve and five way discharge are fitted at the discharge outlet.

Ⅲ. Spraying System

This system mainly consists of spraying pump, cooling water tank and spraying pipe. The function is to cool and wash the liner and piston so as to prolong their service life.

The centrifugal spray pump is driven by a separate motor and cooled and lubricated by water.

Ⅳ Lubricating System

The power end uses the combined lubricating system of forced lubrication and splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the outside of frame to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.

Ⅴ Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. The charging pump is driven by an independent motor and mounted on the suction manifold of the mud pump.

Ⅵ.Specifications

Model F1-800 F1-1600
Type Triplex single acting piston Triplex single acting piston
Max. Liner size × strength

170×216mm

(6 3/4″×8.5″)

180×280mm

(7″×11″)
Strokes rating 160 r/min 130 r/min
Power Rating 597kW (800 hp) 1193kW (1600 hp)
Type of gear Herringbone gear Herringbone gear
Gear ratio 3.3143:1 3.7381:1
Lubrication Forcing and splashing Forcing and splashing
Suction inlet 8″flange(203mm) 10″flange(254mm)
Discharge outlet 4″Flange, 5000 psi 4″Flange, 5000 psi
Pinion Shaft Dia. 177.8mm(7″) 215.9mm(8-1/2″)
Key

44.45×44.45mm

(1 3/4″×1 3/4″)

 50.8×50.8mm (2″×2″)
Valve Pots valve-over-valve,API #6 valve-over-valve,API #7
Approx. Weight 11536kg (25430lb) 20700kg (45635lb)

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

Africa:
Algeria
Angola
Cameroon
Congo
Equatorial Guinea
Gabon
Ghana
Nigeria

Middle East:
Azerbaijan
Bahrain
Egypt
India
Kazakhstan
Kuwait
Oman
Pakistan
Qatar
Saudi Arabia
Turkey
Turkmenistan
UAE
Uzbekistan

South America:
Argentina
Bolivia
Brazil
Chile
Columbia
Ecuador
Papua New Guinea
Peru
Trinidad and Tobago
Venezuela

Central America:
Guatemala
El Salvador
Costa Rica
Nicaragua

Asia:
Russia
Brunei
Indonesia
Malaysia
Philippines
Singapore
Thailand
Vietnam

Europe:
Norway
Poland
United Kingdom

Others:
Australia
Canada
China
Japan
Mexico
Ukraine

Product tags

gxff19 pump spare parts

,

k3v63 hydraulic pump parts

,

a4vg40 pump parts
Send your message to this supplier
Send Now

Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

Ask Latest Price
Product Detail
Brand Name :
Gardner Denver, National, Oilwell, Southwest, Weatherford, Southwest, Ideco, TSC
Model Number :
PZ7, PZ8, PZ9, PZ10, PZ11, PAH275
Certification :
API
Place of Origin :
CHINA
MOQ :
1 piece
Price :
1 to 500 usd
Contact Supplier
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP
Gardner Denver PZ7 mud pump parts, PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PAH275 MUD PUMP

Qingdao National Premium Oilwell Machinery Co.,Ltd

Verified Supplier
7 Years
shandong, qingdao
Since 2007
Business Type :
Manufacturer, Distributor/Wholesaler, Importer, Exporter, Seller
Main Products :
Mud Pump Chrome Liner, Mud Pump Zirconia Liners, Mud Pump Pistons
Total Annual :
1-5000000
Employee Number :
1~150
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Gardner Denver Mud Pumps
MachineU China Products Machinery Energy & Mineral Equipment Oil Field Equipment Mud Pump
Contact Supplier
Submit Requirement
