Specifications
Brand Name :
ELLIS WILLIAMS (EWCO & LEWCO), WEATHERFORD, Southwest, Drillmec, Gardner Denver
Model Number :
W-446 MUD PUMP
Certification :
API
Place of Origin :
CHINA
Delivery Time :
In stock
Packaging Details :
Suitable to shipment by air and sea
MOQ :
1 piece
Price :
1 to 500 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
3000 pieces per month
Usage :
Oil,Water,drill rig
Power :
Electric,Hydraulic
Pressure :
High Pressure,Low Pressure,low pressure submersible mud pump sand dredging slurry pump
Application :
mining,oil
Structure :
Piston Pump
Fuel :
Diesel,Electric
Standard or nonstandard :
Standard
Theory :
Diaphragm pump
Type :
Mud Pump
Weight :
100-3700kg
Color :
blue,red and so on,Green or per customer design
Material :
cast iron/stainless steel mud suction pump,Chrome alloy,Stainless steel aluminum plastic etc
Warranty :
12 Months
Product name :
Mud Pump
Head :
10m mud suction pump
Oem :
can be accept,Applicable
Condition :
new
Description

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

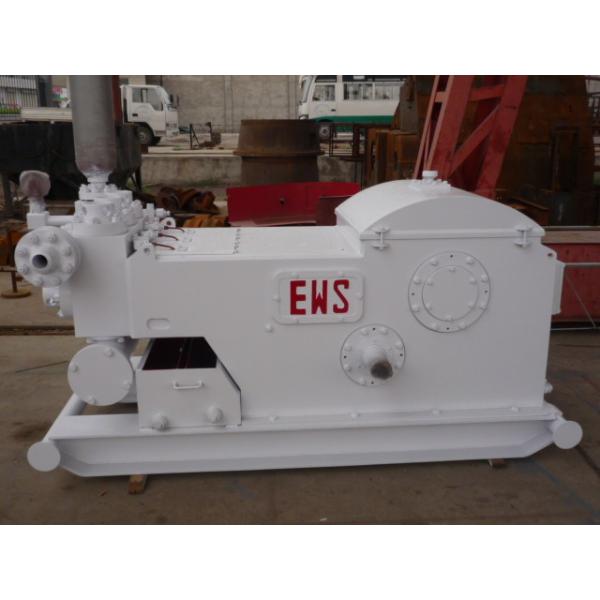

EWS446 Mud Pump TECHNICAL SPECIFICATION

Rated input power 328KW (440HP)
Rated Stroke 320 Stroke/Minute(320SPM)
Stroke 152.4mm (6")
Gear Ratio 4.578 :1
Max. operation pressure 35Mpa
Valve chamber Valve-Over API 4#
Max. liner dia. 6″
Max. liner mud pressure(160 stroke/minute)16.9Mpa
Dia. of suction manifold, 6″ (150#) Flange
Dia. of discharge manifold 3″(900#) Flange
Dia. pinion shaft 95.25 mm(3.75″)
Key 22.174x15.9mm
Dimension:(No included base), 2479X1219X1103 mm

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

The pump is compact structure, small volume, lightweight, integrated herringbone gear pair, large transmit torque and smooth run. Crankshaft is welding forged and light weight without liberation
W446 Mud Pump Single-acting Triplex Pump can be used widely in oilfield operation. Liner size from 31/4"--6" is better-adopted piston structure for workover operation and low well drilling operation while plunger structure for liner size from 2---3-1/4" for high- pressure operation.

POWER END PARTS

The Pump stand is constructed of steel plates by welding. Furthermore, because the post weld annealing treatment is applied to eliminate the internal stress, its strength is high and its steel is good. Moreover, the strengthening plate structure is adopted in the crank shaft bearing house and the main bearing house, therefore its strength is high and its steel is good.

The crank shaft is constructed of forgings in balance, and thus it is light in weight and it runs smoothly without any vibration.

The gear shaft is made of forgings of alloy steel and the herringbone gear as a whole is installed with medium hardness tooth surface gear on the shaft.

The cross head is made of ductile cast iron by entire cast which thus makes the wear-resistant good. The guide plate is formed in up- and - down structure which thus can adjust the concentricity by the gasket in the up or the down gasket.

The hydraulic cylinder is made of alloy steel cast in straight-through type and its volume small and volumetric efficiency high. Furthermore, the surface of the cylinder has been treated with chemical nickel-plating to enhance its wear-resistant.

The cylinder liners of the 446 pump have a same sized external diameter. The fasten effect is achieved by the squared cylinder liner pressing cover and the bolt pressing the hydraulic cylinder. The seal between the cylinder liner and the hydraulic cylinder is achieved by the rubber mat in rectangle.

In the lubrication system, the forced lubricating is adopted. The gear oil pump, which is installed in the oil rank, transmits the pressured oil, through lubrication lines, into the cross head guide plate and all the shafts to achieve the forced lubrication and cooling purpose.

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

EWCO W-446 6 x 6
LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4" 7562400 5562400 7916537 MB40-15 1502052 12180170 15180102
4 1/4"
4 1/2" 7562450 5562450 7916537 MB44-15 1502054 12180197 12180196 15180145 15180144
4 3/4"
5" 7562500 5562500 7916537 MB50-15 1502056 12180254 12180253 15180186 15180185
5 1/4"
5 1/2" 7562550 5562550 7916537 MB54-15 1502058 12180338 12180337 15180228 15180227
5 3/4"
6" 7562600 5562600 7916537 MB60-15 1502060 12180395 12180394 15180269 15180268
6 1/4"
6 1/2"
6 3/4"
7"
7 1/4"
7 1/2"
7 3/4"
8"
For Bonded White Lightning Pistons add "XT" to Green Duo Part #
VALVES, SEATS, SPRINGS & INSERTS GASKETS
ROUGHNECK ROUGHNECK HP SUPREME OEM URETHANE L STYLE URETHANE
VALVE-White Lightning Insert N/A Valve Cover 7916826
VALVE-Urethane Insert 9700099 60152949 Cylinder Head 7916830
VALVE-Rubber Insert N/A N/A Plug Seal
SEAT 80130248 61103008
SPRING 55213417
SPRING-Stainless 55403067
INSERT-Urethane 9705058 62400114 MODULES OEM MISSION L
INSERT-Rubber N/A N/A Complete Assembly
SEAT PULLER ASSEMBLIES Discharge Module Studded
Puller Assembly 1 M 1100 M 1100 Suction Module Studded
Puller Head 181235003 181240110 One Piece OEM Style Studded
Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly Pony Rod Baffle Piston Rod Sub Rod Stud Rod Nut Clamp Covered Rod Nut Pony Rod Seal
2404339 5402052 CRN-1

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

Weatherford is one of the world's largest multinational oil and natural gas service companies. The company provides products and services for drilling, evaluation, completion, production and intervention of oil and natural gas wells, along with pipeline construction and commissioning. Headquartered in Switzerland, Weatherford operates in more than 100 countries across the globe and employs more than 35,000 people (2016).

Weatherford offers a full line of premium-quality mud pumps based on proven and
simple-to-maintain designs that are accepted around the world. Each pump comes with
exceptional service and support that only a true global provider like Weatherford can
promise. When you factor in our competitive pricing and off-the-shelf availability of pumps
and parts, it’s clear that Weatherford has raised the bar for mud pumps.

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

Item Part number Description Qty Item Part number Description Qty
1 B-440343 Valve Cover 2 17 B-440321 Valve Guide, Suction 1
2 B-440323 Plug, Valve Cover 1 18 GB/T 3452.1 O- Ring φ150x5.3 1
3 W-440.01.010 Seal, Valve Cover 1 19 W0101 Stud 3/4-10UNCX1 11/16 4
4 W-440.01.004 Spring, Valve 2 20 W-440.01.008 Seal, Liner 1
5 W-440.01.03.00 Valve Assy(API #4) 2 21 W-440307-Re Liner 1
6 W-440.01.002 Seat, Valve 2 22 B-440322 Liner Clamp 1
7 GB/T 3452.1 O- Ringφ100x3.55 2 23 W-440.01.007 Self-Lock Nut 1
8 D-440342 Valve Cover Flange 2 24 Piston 1
9 D-440003 Fluid End Module 1 25 GB/T 3452.1 O- Ring φ25x3.55 1
10 W-440.01.013 Stud 3/4-10UNCX6 2 26 B-440308 Piston Rod 1
11 NF2-3/4 Nut 3/4-10UNC-2B 2 27 W0105 Nut 9/16-12UNC 2
12 GB/T 3452.1 O-Ring φ47.5x5.3 1 28 GB/T93 Washer 14 2
13 W-440.01.011 Stud 7/8-9UNCX4 1/2 12 29 B-440227.01 Washer Ring 1
14 NF2-7/8 Nut 7/8-9UNC 12 30 W0104 Stud 9/16-12UNCX4 2
15 B-440309 Plug, Cylinder Cover 1 31 W-440.01.006 Nut 1 1/8-8UN 4
16 W-440.01.001 Seal, Cylinder Cover 1 32 W-440.01.005 Stud 1 1/8-8UNX7 1/4 4

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

ITEM PART NUMBER DESCRIPTION QTY/PUMP
TS-6316-0325-00 FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEM 2-24, 26- 29) 3
1 TS-6316-0357-00 FLUID END MODULE STUDDED (INCLUDES ITEM 2-9) 3
2 TS-6316-0356-00 FLUID END MODULE ONLY (UNSTUDED) 3
3 TS-7507-2013-00 STUD, MODULE TO LINER CLAMP 36
4 TS-7601-0610-18 LINER CLAMP STUD NUT 36
5 TS-7507-2201-00 POWER FRAME STUD 18
6 TS-7507-2210-00 STUD, MODULE TO CYLINDER 18
7 TS-7601-0630-17 NUT (FOR ABOVE) 48
8 TS-7507-2108-00 STUD, MODULE TO DISC. MANIFOLD 12
9 TS-7601-0630-24 NUT (FOR ABOVE) 12
10 TS-6316-0354-00 GUIDE, LOWER VALVE (WITH BUSHING) 3
11 TS-6316-0096-00 BUSHING, LOWER VALVE GUIDE 3
12 TS-6316-0360-00 LOCKBOLT, LOWER VALVE GUIDE 3
13 TS-6316-0363-00 ALIGNMENT RING 3
14 TS-6316-0369-00 GASKET, HEAD SEAL (G-801) 3
15 TS-6316-0364-00 PLUG, CYLINDER HEAD 3
16 TS-6316-0361-00 RING, THREADED CYLINDER HEAD 3
17 TS-6316-0362-00 CAP, THREADED CYLINDER HEAD 3
18 TS-6316-0092-00 GASKET, VALVE COVER (G-741) 3
19 TS-7501-0051-00 SCREW, RETAINER (UPPER) 12
20 TS-6397-0603-00 PLATE, RETAINER (UPPER) 3
21 TS-6397-0575-00 GUIDE, UPPER VALVE 3
22 TS-6316-0039-00 COVER, VALVE POT 3
23 TS-6316-0373-00 GASKET, WEAR PLATE (G-800) 3
24 TS-6316-0365-00 PLATE, WEAR 3
25 TS-6316-0373-00 GASKET, LINER (G-800) 3
26 TS-6316-0366-00 RING, LINER THREADED 3
27 TS-6316-0367-00 LINER LOCK 3
28 TS-7602-1600-25 GASKET, DISCHARGE MANIFOLD 3
29 TS-7602-1600-61 GASKET, SUCTION MANIFOLD 3
30 TMFB6-STUDSSET FB-1300/1600 STUDS AND NUTS SET (INCLUDES 12 PCS TS-7507-2013-00, 12 PCS TS-7601-0610-18, 6 PCS TS-7507-2201-00, 6 PCS TS-7507-2210-00, 16 PCS TS-7601-0630-17, 4 PCS TS-7507-2108-00, 4 PCS TS-7601-0630-24) 3
31 TMFB6-SEALKIT FB-1300/1600 MODULE SEAL KIT (INCLUDES ONE G-800, ONE G-741, ONE G-801, ONE TS-7602-1600-25, ONE TS-7602-1600-61) 3

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

MISSION "L" MODULE FOR GARDNER DENVER PZ-10/PZ-11 FLUID END MODULE & ACCESSORIES
ITEM # SW PART # MISSION PART # DESCRIPTION QTY PER PUMP
FEMPZ1011ASSYSW FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-26) 3
1 8477-1D FEMPZ1011DISSW MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1, 3-13) 3
2 8477-2S FEMPZ1011SUCSW MODULE, SUCTION STUDDED - (INCLUDES ITEMS 2, 5-6) 3
3 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
4 0-7601-0630-17 NUT, DISCHARGE TO SUCTION STUD 18
5 Feb-15 OWA17TRSSW STUD, THREADED RING 72
6 6300200 NUT, THREADED RING STUD 72
7 4018-35 PZ1011GPFSSW STUD, POWER FRAME (SHORT) 24
8 6300200 NUT, POWER FRAME STUD AND LINER RETAINER STUD 24
9 4018-34 PZ1011LCSSW STUD, LINER RETAINER (LONG) 24
10 /4017-5 PZ1011DMSSW STUD, DISCHARGE MANIFOLD 12
11 PZ789TRSN NUT, DISCHARGE MANIFOLD STUD 12
12 /8488-5 6511416 PIN, DOWELL 6
13 2988 1290344 SEAL, SUCTION TO DISCHARGE MODULE 3
14 /2930-08 7932009 SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
15 Mar-77 PZ1011WPSW PLATE, WEAR 3
16 6477 PZ1011LC FLANGE, LINER RETAINER 3
17 P-129 7207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
18 4018-88 PEP73 SCREW, VALVE GUIDE 12
19 4775R OWA17VGASW GUIDE, VALVE (INCLUDES ITEMS 20, & 24) 6
20 4675-1A OWA17VCASSYSW PLUG, VALVE COVER (INCLUDES ITEM 19, 20, 21, & 24) 6
21 4475 OWA17FLGSW FLANGE, THREADED 6
22 4575 OWA17CAPSW CAP, THREADED 6
23 4700-I PZ789VGI* BUSHING, VALVE GUIDE 6
24 4017-77 700044111 CAPSCREW, SUCTION MANIFOLD 24
25 AJO-449R 7916747 GASKET, DISCHARGE MANIFOLD 3
26 8014G520 7923283 GASKET, SUCTION MANIFOLD 3

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

MISSION "L" MODULE FOR IDECO T-1300/T-1600 FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP
8407-7A FEMT1316ASSYSW ASSY, FLUID END MODULE COMPLETE (INCLUDES ITEMS: 1 - 22) 3
1 8407-7D FEMT1316DISSW MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1, 3-11) 3
2 8407-11S FEMT1316SUCSW MODULE, SUCTION STUDDED (INCLUDES ITEMS 2, 5, 6) 3
3 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
4 0-7601-0630-17 NUT, DISCHARGE TO SUCTION MODULE STUD AND POWER FRAME STUD 18
5 /4015-2 OWA17TRSSW STUD, THREADED RING 72
6 6300200 NUT, THREADED RING STUD 72
7 4018-68 80711011 STUD, POWER FRAME 24
8 4017-50 T1316DMSSW STUD, DISCHARGE MANIFOLD 12
9 0-7601-0630-24 NUT, DISCHARGE MANIFOLD STUD 12
10 /8488-5 6511416 PIN, DOWELL 6
11 2988 1290344 SEAL, SUC TO DISCH MOD & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
12 /8407-10 T1316WPSW PLATE, LINER WEAR 3
13 6407 T1316LRFLGSW FLANGE, LINER RETAINER 3
14 6507 T1316LLNSW NUT, LINER LOCK 3
15 P-129 7207129 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
16 4016-99 PEP73 CAPSCREW, VALVE GUIDE 12
17 4700-I PZ789VGI* BUSHING, VALVE GUIDE 6
18 4775-2R EMSF1000VGASW GUIDE, VALVE (INCLUDES ITEM 18) 6
19 4675-2A EMSF1000VCASSYSW PLUG, VALVE (INCLUDES ITEMS 17-19) 6
20 4475 OWA17FLGSW RING, THREADED 6
21 4575 OWA17CAPSW CAP, THREADED 6
22 568-339 99609339 GASKET, DISCHARGE MANIFOLD 3
23 568-447 99609447 GASKET, SUCTION MANIFOLD 3
24 4017-59 PEP84 CAPSCREW, SUCTION MANIFOLD 24

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802

Insert Part No. P107186 Spring

2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180

Insert Part No. P107182 Spring

3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187

Insert Part No. P107189 Spring4P102382

SPM2000

1,Plunger Size 3.75" Plunge Part No 3P103887

2,Plunger Size 4.00" Plunge Part No 3P100339

3,Plunger Size 4.50" Plunge Part No 3P100654

4,Plunger Size" 5.00" Plunge Part No 3P100233

5,Plunger Size" 5.50 Plunge Part No 3P107060

6,Plunger Size" 5.75" Plunge Part No 3P107061

7,Plunger Size 6.00 Plunge Part No 3P107062

SPM

TWS 250 Plunger Size 1.75"-3" 3.25"-4"

TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”

TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"

TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"

TWS 900 Plunger Size 3.50"-4"

TWS 1250LW Plunger Size 4"

OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”

TWS1000LW,TWS1300

Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”

TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”

TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL

Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000

National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A

National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160

Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P

Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT

Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT

OPI Mud Pumps

350-D | 700-HDL | 1000-HDL

Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036

Wilson Mud Pumps

600 | 900

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

The pump is compact structure, small volume, lightweight, integrated herringbone gear pair, large transmit torque and smooth run. Crankshaft is welding forged and light weight without liberation
W446 Mud Pump Single-acting Triplex Pump can be used widely in oilfield operation. Liner size from 31/4"--6" is better-adopted piston structure for workover operation and low well drilling operation while plunger structure for liner size from 2---3-1/4" for high- pressure operation.

POWER END PARTS

The Pump stand is constructed of steel plates by welding. Furthermore, because the post weld annealing treatment is applied to eliminate the internal stress, its strength is high and its steel is good. Moreover, the strengthening plate structure is adopted in the crank shaft bearing house and the main bearing house, therefore its strength is high and its steel is good.

The crank shaft is constructed of forgings in balance, and thus it is light in weight and it runs smoothly without any vibration.

The gear shaft is made of forgings of alloy steel and the herringbone gear as a whole is installed with medium hardness tooth surface gear on the shaft.

The cross head is made of ductile cast iron by entire cast which thus makes the wear-resistant good. The guide plate is formed in up- and - down structure which thus can adjust the concentricity by the gasket in the up or the down gasket.

The hydraulic cylinder is made of alloy steel cast in straight-through type and its volume small and volumetric efficiency high. Furthermore, the surface of the cylinder has been treated with chemical nickel-plating to enhance its wear-resistant.

The cylinder liners of the 446 pump have a same sized external diameter. The fasten effect is achieved by the squared cylinder liner pressing cover and the bolt pressing the hydraulic cylinder. The seal between the cylinder liner and the hydraulic cylinder is achieved by the rubber mat in rectangle.

In the lubrication system, the forced lubricating is adopted. The gear oil pump, which is installed in the oil rank, transmits the pressured oil, through lubrication lines, into the cross head guide plate and all the shafts to achieve the forced lubrication and cooling purpose.

Module Assembly

Module Assembly
Item Part Number Description Qty
1 W-446.01.017-Re Blind Flange 1
2 D-440325-Re Discharge Manifold 1
3 W-446.01.018-Re 900磅级 3" Welded Flange 1
4 W-446.01.019-Re Stud 1-8UNCX6 8
5 SY5127 Shim Ring R31 2
6 D-440326-Re Suction Manifold 1
7 GB/T 3452.1 O-ring φ185x7 2
8 W-446.01.020-Re 150# 6" Flange 1
9 W0103-Re Stud 3/4-10UNCX3 20
10 W0102-Re Nut 3/4-10UNC 20
11 W-446.01.21.00-Re Suction Blind 1
12 W-446.01.015-Re Pipe Plug NPT1 1
13 NF2-1 Nut 1-8UNC 16

Item Part number Description Qty Item Part number Description Qty
1 B-440343-Re Valve Cover 2 17 B-440321-Re Valve Guide, Suction 1
2 B-440323-Re Plug, Valve Cover 1 18 GB/T 3452.1-Re O- Ring φ150x5.3 1
3 W-446.01.010-Re Seal, Valve Cover 1 19 W0101 Stud 3/4-10UNCX1 11/16 4
4 W-446.01.004-Re Spring, Valve 2 20 W-446.01.008-Re Seal, Liner 1
5 W-446.01.03.00-Re Valve Assy(API #4) 2 21 W-446307-Re Liner 1
6 W-446.01.002-Re Seat, Valve 2 22 B-440322-Re Liner Clamp 1
7 GB/T 3452.1-Re O- Ringφ100x3.55 2 23 W-446.01.007-Re Self-Lock Nut 1
8 D-440342-Re Valve Cover Flange 2 24 Piston 1
9 D-440003-Re Fluid End Module 1 25 GB/T 3452.1 O- Ring φ25x3.55 1
10 W-446.01.013-Re Stud 3/4-10UNCX6 2 26 B-440308-Re Piston Rod 1
11 NF2-3/4 Nut 3/4-10UNC-2B 2 27 W0105 Nut 9/16-12UNC 2
12 GB/T 3452.1 O-Ring φ47.5x5.3 1 28 GB/T93 Washer 14 2
13 W-446.01.011-Re Stud 7/8-9UNCX4 1/2 12 29 B-440227.01 Washer Ring 1
14 NF2-7/8 Nut 7/8-9UNC 12 30 W0104 Stud 9/16-12UNCX4 2
15 B-440309-Re Plug, Cylinder Cover 1 31 W-446.01.006 Nut 1 1/8-8UN 4
16 W-446.01.001-Re Seal, Cylinder Cover 1 32 W-446.01.005 Stud 1 1/8-8UNX7 1/4 4

Crosshead Assembly

Item Part Number Description Qty
1 W-446.226-Re Extension Rod 1
2 W-446.244-Re Baffle 1
3 W-446.235-Re Cover, Stuffing Box 1
4 W-446.233-Re Stuffing Box 1
5 W-446.243-Re Seal, Stuffing Box 1
6 W-446.228-Re Liner, Crosshead 2
7 W-446.213-Re Crosshead 1
8 W-446.222-Re Retainer, Crosshead 1
9 W-0401-Re Bolt 5/8-11UNCX1.575 2
10 W-0402-Re Bolt5/8-11UNCX2 4
11 ￠1.5 stainless steel wire 按需
12 W-0403-Re Bolt 5/8-11UNCX1 11/16 4
13 W-0404-Re Bolt 4
14 W-446.04.002-Re Seal Ring ￠13 4
15 GB/T97.1-Re Seal Ring ￠12 4
16 W-0405-Re Bolt 3/8-16UNCX11/8 6
17 GB/T97.1-Re Seal Ring ￠10 6
18 W-446.04.003-Re Seal Ring ￠10 6
19 W-446.04.005-Re Double Lip Sea Ring 3”X4”X0.5” 2
20 W-446.04.006-Re Sealing Ring 1
21 GB3452.1-Re O- Ring 75X5.3 1
22 W-446.04.001-Re Fastness Plate 8
23 W-0406-Re Bolt 1/2-13UNCX11/2 8
24 W-446.04.002-Re Adjusting Shim 1
25 W-446.219-Re Pin, Crosshead 1
26 W-3361-C-Re Double Row Roller Bearing 1

Product tags

cessna hydraulic pump parts

,

vickers hydraulic pump pvb6rsy21

,

vickers hydraulics pump v60a35
Send your message to this supplier
Send Now

EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

Ask Latest Price
Product Detail
Brand Name :
ELLIS WILLIAMS (EWCO & LEWCO), WEATHERFORD, Southwest, Drillmec, Gardner Denver
Model Number :
W-446 MUD PUMP
Certification :
API
Place of Origin :
CHINA
Delivery Time :
In stock
Packaging Details :
Suitable to shipment by air and sea
Contact Supplier
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner
EWCO-LEWCO W-446 mud pump fluid end module, liners, pistons, valevs, EWCO-LEWCO W-440 mud pump fluid end liner, E-1600 mud pump liner

Qingdao National Premium Oilwell Machinery Co.,Ltd

Verified Supplier
7 Years
shandong, qingdao
Since 2007
Business Type :
Manufacturer, Distributor/Wholesaler, Importer, Exporter, Seller
Main Products :
Mud Pump Chrome Liner, Mud Pump Zirconia Liners, Mud Pump Pistons
Total Annual :
1-5000000
Employee Number :
1~150
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products ELLIS WILLIAMS (EWCO & LEWCO)
MachineU China Products Machinery Energy & Mineral Equipment Oil Field Equipment Mud Pump
Contact Supplier
Submit Requirement
