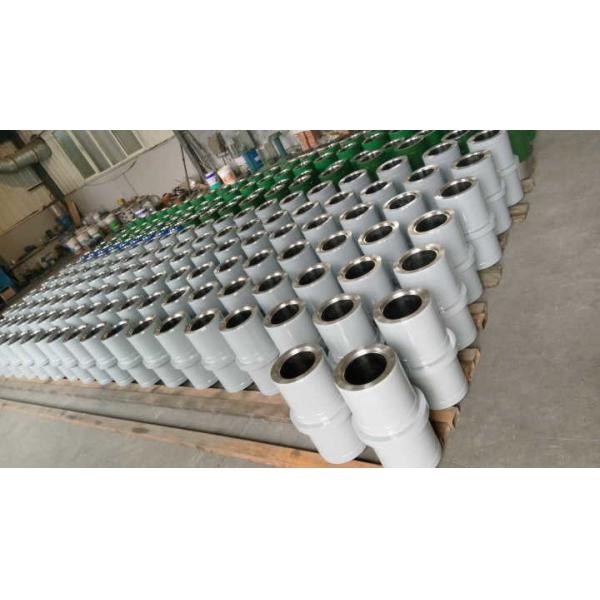

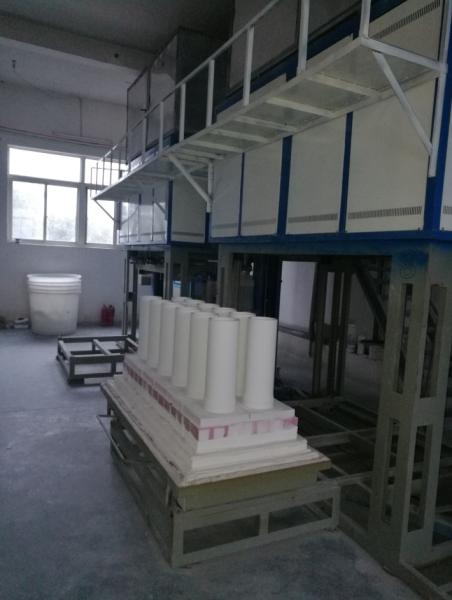

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
Specifications
Brand Name :
National Oilwell NOV Mission, Weatherford, Drillmec, Gardner Denver, Oilwell, Ideco
Model Number :
12P160, MP16, E2200, PZ9, FB1600, F1000
Certification :
API
Place of Origin :
CHINA
Delivery Time :
In Stock
Packaging Details :
Suitable to shipment by air and sea
MOQ :
1 piece
Price :
1 to 200 usd
Payment Terms :
D/A, D/P
Supply Ability :
3000 pieces per month
Usage :
Oil,Water,drill rig
Power :
Electric,diesel
Pressure :
High Pressure,low pressure submersible mud pump sand dredging slurry pump
Application :
mining,oil
Structure :
Piston Pump
Fuel :
Diesel,diesel engine and hydraulic motor for option
Standard or nonstandard :
Standard
Type :
Mud Pump
Color :
red and so on,Green or per customer design
Warranty :
12 Months
Product name :
Mud Pump
Oem :
can be accept,Applicable
Condition :
new
Description

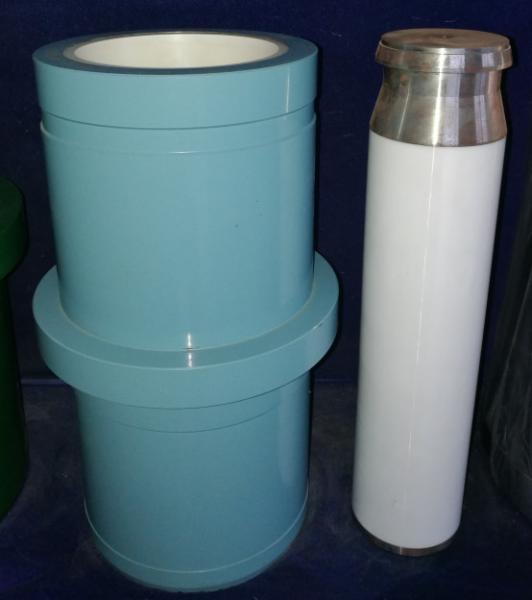

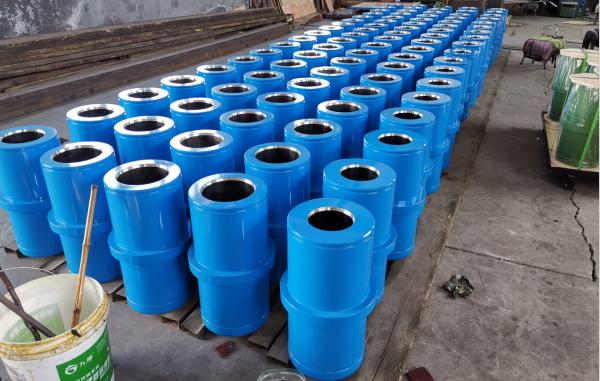

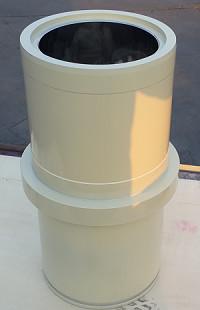

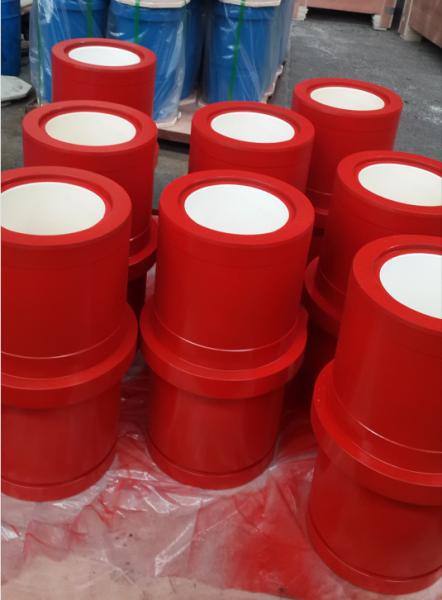

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

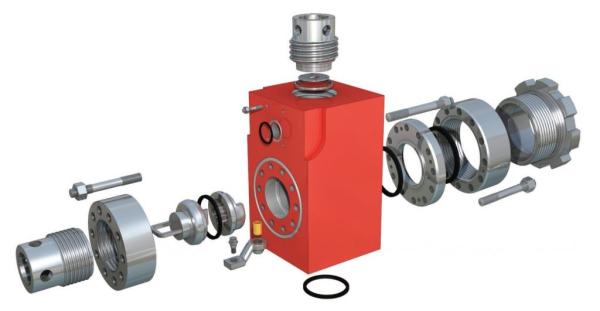

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

Premium can produce the spare parts of National 7P50 MUD PUMP , 8P80 MUD PUMP, 9P100 MUD PUMP, 10P130 MUD PUMP, 12P160 MUD PUMP, 14P220 MUD PUMP.

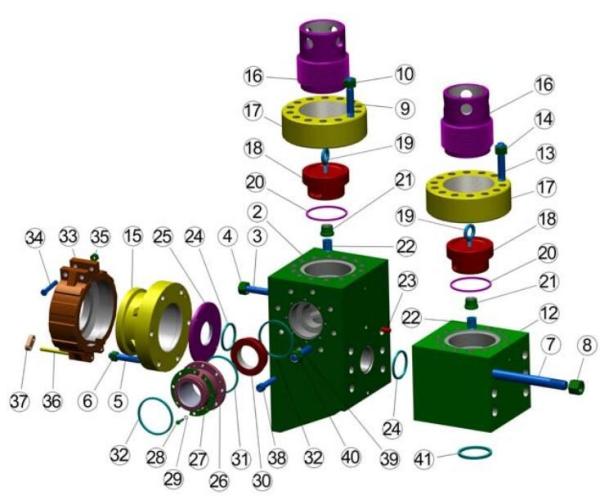

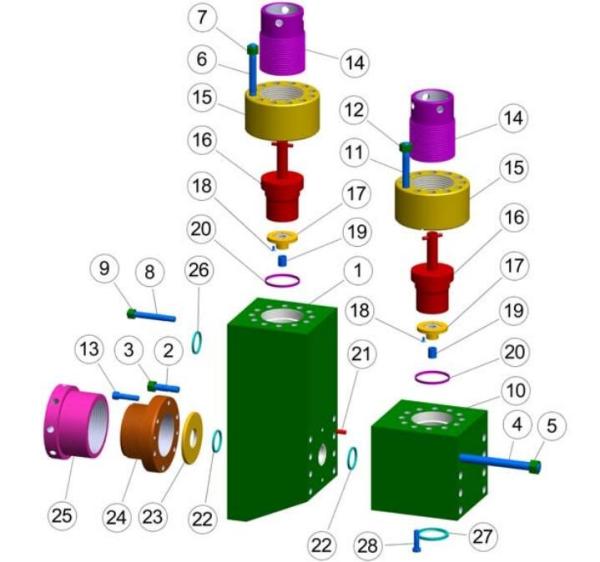

NATIONAL 12-P-160 W/ TAPR-LOK VALVE COVERS FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION QTY PER PUMP AVAILABLE
FEMNAT12PCA FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1, 2, 3-10, 29-35) 3 OK
1 1292240 FEMNATDIS12P MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEMS 1, 3-10) 3 OK
1A 1292601 FEMNATDIS12PA MODULE, STUDDED FLUID END DISCHARGE W/ AUTOFRETTAGE (INCLUDES ITEMS 1A, 3-10) 3 OK
2 1292243 FEMNATSUC12P MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2, 3-4) 3 OK
2A 1292604 FEMNATSUC12PA MODULE, STUDDED FLUID END SUCTION W/ AUTOFRETTAGE (INCLUDES ITEMS 2A, 3-4) 3 OK
3 2408027 12P160TRS STUD, THREADED RING 72 OK
4 6300240 12P160TRSN NUT, THREADED RING STUD 72 OK
5 2408029 12P160PFS STUD, POWER FRAME 30 OK
6 6300220 8P80TRSN NUT, POWER FRAME STUD 30 OK
7 2408028 12P160LCS STUD, LINER BUSHING 18 OK
8 6300180 12P160LCSN NUT, LINER BUSHING STUD 18 OK
9 2408033 12P160DSUCS STUD, DISCHARGE MODULE TO SUCTION MODULE 18 OK
10 6300281 PEP55 NUT, DISCHARGE TO SUCTION MODULE STUD 18 OK
11 2408015 12P160DMS STUD, SPACER FLANGE 16 OK
12 6300240 12P160TRSN NUT, SPACER FLANGE STUD 16 OK
13 6511416 PEP70 PIN, DOWELL 6 OK
14 1292141 NATVGB BUSHING,VALVE GUIDE 6 OK
15 1292140 12PVGBR RETAINER, VALVE GUIDE BUSHING 6 OK
16 1540127 1540127 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6 OK
17 1292174 NAT12PRETSEAL RETAINER, VALVE & SEAL 6 OK
18 1292178 NAT12PAWS SCREW, ADJUSTING WEDGE 6 OK
19 6300182 12P160AWSN NUT, WEDGE ADJUSTING SCREW 6 OK
20 1292171 12P160AWSW WASHER, WEDGE ADJUSTING SCREW 6 OK
21 G1292268 12P160LW ASSEMBLY, WEDGE (INCLUDES ITEM # 20 WEDGE SPRING) 6 OK
22 1292181 12P160WS SPRING, WEDGE 6 OK
23 1292176 NAT12PFLG RING, THREADED 6 OK
24 1292172 NAT12PCAP CAP, VALVE COVER (THREADED) 6 OK
25 2410031437 2410031437 SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER 4 OK
26 1292253 NAT12PDSMA ADAPTER, DISCHARGE CONNECTOR 2 OK
27 2410031433 2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2 OK
28 1292252 NAT12PDSMC CONNECTOR, DISCHARGE 2 OK
28A 1292717 1292717 BACK UP RING, DISCHARGE CONNECTOR 2 OK
29 7006685 7006685 CAPSCREW, DISCHARGE SPACER FLANGE 16 OK
30 700030711 700030711 CAPSCREW, DISCHARGE CONNECTOR 16 OK
31 7919050 7919050 WASHER, DISCHARGE CONNECTOR SCREW 16 OK
32 1292266 PP6021260 PLATE, WEAR 3 OK
33 1292165 12PLCA BUSHING, LINER 3 OK
34 1292166 12PLC ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 33A, 33B, 33C, 33D, 33E, & 33F) 3 OK
34A 700049110 700049110 CAPSCREW, LINER CLAMP 6 OK
34B ** (OPTIONAL) LOCK WASHER 5/8" 6 OK
34C 6309140 6309140 NUT, LINER CAPSCREW 6 OK
34D 1292169 1292169 PIN, CONNECTOR 6 OK
34E G1292168P G1292168P CONNECTOR, LINER CLAMP 6 OK
34F 6571620 6571620 PIN, SPRING 12 OK
35 1292257 1292257 SEAL, MODULE & WEARPLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6 OK
36 1540851 1540851 SEAL, SUCTION MANIFOLD 3 OK
37 700048511 700048511 CAPSCREW, SUCTION MANIFOLD 24 OK
38 1292246 SPACER, STUDDED DISCHARGE 2 OK
39 1292258 SEAL, SPACER TO FLUID END 2 OK
National 12P160 POWER END PARTS
1 1292017 LINER, CROSSHEAD UPPER 3 OK
2 1292007 CONNECTING ROD 3 OK
3 1292017 LINER, CROSSHEAD LOWER 3 OK
4 1292370 SUCTION MANIFOLD 3 OK
5 1292371 SUCTION MANIFOLD 3 OK
6 1292090 CROSSHEAD, LEFT HAND 3 OK
7 1292015 CROSSHEAD, MIDDLE AND RIGHT HAND 3 OK
8 1292010 PINION SHAFT 1 OK
9 1292005 CRANKSHAFT 1 OK

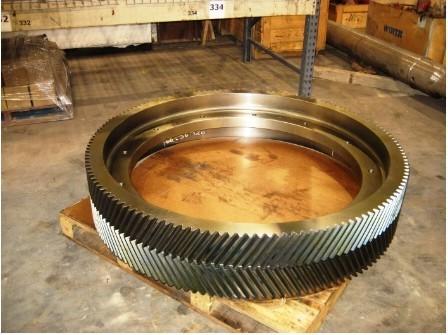

10 1292008 BULL GEAR 1 OK
11 1292028 PIN, CROSSHEAD 3 OK
12 1292147 PISTON ROD 3 OK
13 1292083 PONY ROD 3 OK
14 1292146 SUB ROD 3 OK
15 1292085 CLAMP, PISTON ROD 6 OK
16 1289327 Q.D. hub 1 OK
17 1260318 BONNET 1 OK
18 1260044 SPROCKET 1 OK
19 X13-2058 SPROCKET 1 OK
20 X13-2068 SPROCKET 1 OK
21 1290268 BODY STRAINER CROSS 1 OK
22 ZB-8253 BEARING, CROSSHEAD 3 OK
23 ZB-10236 BEARING, PINIONSHAFT 3 OK
24 ZT-15000 BEARING, MAIN 3 OK
25 ZB-28515 BEARING, ECCENTRIC 3 OK


National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump


NOV offer a full line of triplex mud pumps to handle any drilling requirement.
These tough field-proven models cover input horse power ratings in the 500 to 2,200 range. Our extensive product line include the National P-Series and Continental Emsco FD-Series and F-Series pumps.

National Oil well Varco (NOV) is an American multinational corporation based in Greater Sharps town, Houston, Texas. It is a leading worldwide provider of equipment and components used in oil and gas drilling and production operations, oilfield services, and supply chain integration services to the upstream oil and gas industry. The company conducts operations in more than 1,200 locations across six continents.
Products include all the heavy hardware for oil well drilling as well as drilling instrumentation and controls and drilling power generation and control. A partial list of heavy hardware includes top drives, rotary, draw works, derricks, BOPs (blowout preventers), mud pumps, riser equipment, and complete drilling rigs. Products also include instruments and controls required on the rig floor for the drilling operation. This includes sophisticated electronics for precise control, such as the control system Cyber base. NOV also produces control electronics for power generation and control of drilling motors and motor control centers for AC motor control.
NOV is the Houston area’s largest energy employer, with more than 14,500 workers in the region
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

SOUTHWEST “OLD STYLE” 8476-A FLUID END

FOR NATIONAL 12-P-160

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST (OLD STYLE) NATIONAL 12-P-160 7-1/2” X 12”

ITEM . P/N DESCRIPTION QTY. REQ’D
8476-A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
1 1376YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) 3
2 2930-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1200140 PIPE 3
10C 4018-92 ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3

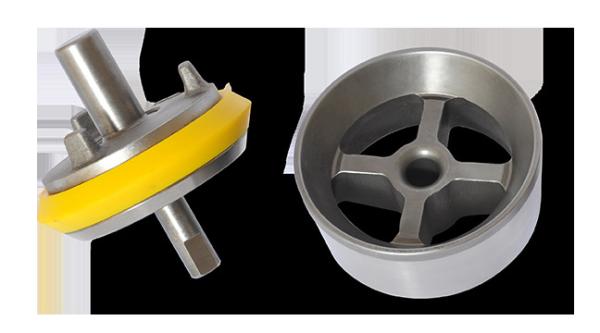

12 VALVE 6
13 VALVE INSERT (IF REQUIRED) 6
14 VALVE SPRING 6
15 VALVE SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
4476-2A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) 6
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4676-2A PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) 6
19 P107 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) 30
25 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
26 6476 LINER RETAINER FLANGE 3
27 6576 LINER RETAINER NUT 3
28 4018-17 SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-2S SUCTION MODULE (STUDDED ONLY) 3
33 8476-1D DISCHARGE MODULE (STUDDED ONLY) 3
34 8488-5 DOWEL PIN 6
ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY
47 4018-18 DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) 16
48 4018-39 DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW 16
49 8376-1 DISCHARGE CONNECTOR 2
50 8376-2 DISCHARGE ADAPTER 2
51 8376-3 BACK-UP RING 4
52 8376-4 DISCHARGE SPACER FLANGE 2
53 2976-3 DISCHARGE SPACER FLANGE SEAL 2
54 2976-1 DISCHARGE CONNECTOR / ADAPTER PACKING 2
55 2976-2 DISCHARGE CONNECTOR / ADAPTER PACKING 4
56 R44D RING JOINT GASKET 2
57 4017-22 DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) 16

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

EMSCO FC-2200
LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE WHITE LIGHTNING SUPREME GREEN DUO FLEXLIP WHITE LIGHTNING SUPREME
4" 012180170 1502052 011102926 015180102
4 1/4"
4 1/2" 012180197 012180196 1502054 011102928 015180145 015180144
4 3/4"
5" 012180254 012180253 1502056 011103033 015180186 015180185
5 1/4"
5 1/2" 07551550 05551550* 07916882 012180338 012180337 1502058 011103132 015180228 015180227
5 3/4"
6" 07551600 05551600* 07916882 012180395 012180394 1502060 011103629 015180269 015180268
6 1/4" 05551625 07916882 012180493 1502061 011103322 015180285 015180284
6 1/2" 07551650 05551650* 07916882 012180536 012180535 1502062 011103827 015180301 015180300
6 3/4"
7" 07551700 05551700* 07916882 012180619 012180618 1502064 011103926 015180343 015180342
7 1/4"
7 1/2" 07551750 05551750* 07916882 012180685 012180683 015180369 015180367
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS GASKETS
ROUGHNECK ROUGHNECK HP SUPREME OEM URETHANE L STYLE URETHANE
VALVE-White Lightning Insert 9700369 Valve Cover 07916850
VALVE-Urethane Insert 9700382 060140100 Cylinder Head
VALVE-Rubber Insert N/A 060112059 Plug Seal
SEAT 9702652 061100608 HYDRA-LOK OEM MISSION L
SPRING 055413421 055413690 Complete Assembly
SPRING-Stainless 055402945
INSERT-Urethane 9705236 062400536 MODULES OEM MISSION L
INSERT-Rubber N/A 062400437 Complete Assembly EMSFEMFC2200CA
SEAT PULLER ASSEMBLIES Discharge Module Studded EMSFEMFC2200DIS
Puller Assembly 1 M 1060 M 1060 M 1060 Suction Module Studded EMSFEMFC2200SUC
Puller Head 8402256 181235706 One Piece OEM Style Studded

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pumpNational 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

GARDNER DENVER PZ-9 7 x 9
LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE WHITE LIGHTNING SUPREME GREEN DUO FLEXLIP WHITE LIGHTNING SUPREME
4" 012180170 1502052 011102926 015180102
4 1/4"
4 1/2" 07493450 05493450 07916692 012180197 012180196 1502054 011102928 015180145 015180144
4 3/4"
5" 07493500 05493500 07916692 012180254 012180253 1502056 011103033 015180186 015180185
5 1/4"
5 1/2" 07493550 05493550* 07916692 012180338 012180337 1502058 011103132 015180228 015180227
5 3/4"
6" 07493600 05493600* 07916692 012180395 012180394 1502060 011103629 015180269 015180268
6 1/4" 05493625* 07916692 012180493 1502061 011103322 015180285 015180284
6 1/2" 07493650 05493650* 07916692 012180536 012180535 1502062 011103827 015180301 015180300
6 3/4"
7" 05493700* 07916692 012180619 012180618 1502064 011103926 015180343 015180342
7 1/4"
7 1/2"
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS GASKETS
ROUGHNECK ROUGHNECK HP SUPREME OEM URETHANE L STYLE URETHANE
VALVE-White Lightning Insert 9700368 9700356 060155042 Valve Cover 07916749 6309143
VALVE-Urethane Insert 9700250 9700354 060155041 Cylinder Head 07916749 6309143
VALVE-Rubber Insert 9700293 N/A 060155033 Plug Seal
SEAT 9702504 9702504 061101507 HYDRA-LOK OEM MISSION L
SPRING 8201650 8201650 055413371 Complete Assembly
SPRING-Stainless 055402952
INSERT-Urethane 9705228 9700360 062400338 MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 062400239 Complete Assembly FEMPZ789CA
SEAT PULLER ASSEMBLIES Discharge Module Studded
Puller Assembly 1 M 1060 M 1060 M 1060 Suction Module Studded
Puller Head 8401985 8401985 181235300 One Piece OEM Style Studded FEMPZ789
Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly Piston Rod Sub Rod Pony Rod Baffle Rod Nut Clamp Covered Rod Nut Pony Rod Seal
07913056 1095035 CLAMP 1551510 07208503 005402052 PP601022 CRN-1 07931171
07913063 1095033 THREAD 1551512 07208503 005402052 CRN-1 07931171

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

GARDNER DENVER PZ-8 7 x 8
LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE WHITE LIGHTNING SUPREME GREEN DUO FLEXLIP WHITE LIGHTNING SUPREME
4" 012180170 1502052 011102926 015180102
4 1/4"
4 1/2" 07493450 05493450 07916692 012180197 012180196 1502054 011102928 015180145 015180144
4 3/4"
5" 07493500 05493500 07916692 012180254 012180253 1502056 011103033 015180186 015180185
5 1/4"
5 1/2" 07493550 05493550* 07916692 012180338 012180337 1502058 011103132 015180228 015180227
5 3/4"
6" 07493600 05493600* 07916692 012180395 012180394 1502060 011103629 015180269 015180268
6 1/4" 05493625* 07916692 012180493 1502061 011103322 015180285 015180284
6 1/2" 07493650 05493650* 07916692 012180536 012180535 1502062 011103827 015180301 015180300
6 3/4"
7" 05493700* 07916692 012180619 012180618 1502064 011103926 015180343 015180342
7 1/4"
7 1/2"
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS GASKETS
ROUGHNECK ROUGHNECK HP SUPREME OEM URETHANE L STYLE URETHANE
VALVE-White Lightning Insert 9700368 9700356 060155042 Valve Cover 07916749 6309143
VALVE-Urethane Insert 9700250 9700354 060155041 Cylinder Head 07916749 6309143
VALVE-Rubber Insert 9700293 N/A 060155033 Plug Seal
SEAT 9702504 9702504 061101507 HYDRA-LOK OEM MISSION L
SPRING 8201650 8201650 055413371 Complete Assembly
SPRING-Stainless 055402952
INSERT-Urethane 9705228 9700360 062400338 MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 062400239 Complete Assembly FEMPZ789CA
SEAT PULLER ASSEMBLIES Discharge Module Studded
Puller Assembly 1 M 1060 M 1060 M 1060 Suction Module Studded
Puller Head 8401985 8401985 181235300 One Piece OEM Style Studded FEMPZ789
Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly Piston Rod Sub Rod Pony Rod Baffle Rod Nut Clamp Covered Rod Nut Pony Rod Seal
07913056 1095034 CLAMP 1551510 07208503 005402052 PP601022 CRN-1 07931171
07913063 1095033 THREAD 1551512 07208503 005402052 CRN-1 07931171
1- Does not include puller head

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts

Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL

Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000

National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A

National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160

Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P

Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT

Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT

OPI Mud Pumps

350-D | 700-HDL | 1000-HDL

Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036

Wilson Mud Pumps

600 | 900

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

CONTINENTAL EMSCO FC-1600
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
EMSFEMFC1600CA FLUID END MODULE COMPLETE ASSEMBLY
1 0-6316-0610-01 EMSFEMFC1600DIS DISCHARGE MODULE-STUDDED
2 0-6316-0611-00 EMSFEMFC1600SUC SUCTION MODULE-STUDDED
3 0-6316-0614-00 THREADED RETAINER
4 0-6316-0615-00 THREADED RING
5 0-6316-0616-00 VALVE POT COVER
6 0-6316-0585-00 VALVE GUIDE
7 0-7601-0040-11 EYEBOLT, 3/4 X 4.50
8 0-6316-0523-00 SUCTION MANIFOLD
9 0-6316-0524-90 FLANGE, SUCTION
10 0-6317-0074-90 FLANGE, BLIND
11 0-6316-0566-01 DISCHARGE MANIFOLD
12 0-6316-0668-00 WEAR PLATE
13 0-6316-0613-00 SPACER FLANGE
14
15 0-6316-0367-20 LINER LOCK
16 0-7601-0820-10 DOWEL PINS
17
18 0-6323-0093-00 RETAINER, VALVE GUIDE
19 0-6316-0565-00 SEAL, F. E. MODULE
20 0-7601-0342-29 HX SOCKET HD CAPSCREW 1 1/2 - 6 X 5.00
21 0-6316-0583-00 BUSHING, VALVE GUIDE
22 0-7602-1600-52 O-RING (SUCTION MANIFOLD)
23 0-7602-1600-61 O-RING (SUCTION MANIFOLD TO F. E.)
24 0-7602-1600-25 O-RING (DISCHARGE TO F. E.)
25 0-7501-0051-00 SCREW RETAINER

Product Description

· Integrated production line: Premium delivers F series triplex single acting piston mud pump from 500HP up to 2200 HP with time-tested high performance.

· Reliable, compact, well-balanced design: designed for the most severe conditions.

· Power end with fine craftsmanship: High-strength, precisely machined frame; forged, heat-treated crankshaft; hardened surface on drive gears and longer lifetime.

· Fluid end & consumables: interchangeable with multiple OEM.

· Diversified drive options: Through belt, chain or gearbox, pumps could be operated by multiple brand AC/DC motor, diesel engine, or simply couple the pinion shaft with one of our premium Direct Drive motors.

· Upgrade a 1300HP or 1600HP mud pump to achieve higher discharge pressure (7500 psi) simply by changing to an "L" type fluid end, site service optional (extra charge).

· Western brand bearing set, relief valve, pulsation dampener, liner spray pump, pre-charge pump optional.

· Suitable for multiple brand piston & valve quick change tools, liner retention systems.

· Standard qualification and certification satisfies customer demand.

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

TECHNICAL PARAMETERS

Model F-500 F-800 F-1000 F-1300
Max. Liner Size × Stroke

170×191

(6-3/4×7.5)

170×229

(6-3/4×9)

170×254

(6-3/4×10)

180×305

(7×12)
Strokes Rating, r/min 165 150 140 120
Power Rating, kW(HP) 373(500) 597 (800) 746 (1000) 969 (1300)
Gear Type 4.286:1 4.185:1 4.207:1 4.206:1
Suction Inlet Flange , in 8 10 12 12
Discharge Outlet Flange , in 4 5 5 5
Pinion Shaft Dia., mm(in) 139.7(5-1/2) 177.8(7) 196.9(7-3/4) 215.9(8-1/2)
Key, mm(in)

31.75×31.75

(1-1/4×1-1/4)

44.45×44.45

(1-3/4×1-3/4)

50.8×50.8

(2×2)

50.8×50.8

(2×2)
Valve Cavity Valve-Over-Valve, API #5 Valve-Over-Valve, API #6 Valve-Over-Valve, API #6 Valve-Over-Valve, API #7
Approx. Weight, kg(lb) 9770 (21540) 14500 (31970) 18790 (41420) 26700 (54170)

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

TECHNICAL PARAMETERS

Model F-1600/1600L F-1600HL F-2200 F-2200HL
Type Triplex single acting piston Triplex single acting piston Triplex single acting piston Triplex single acting piston
Max. Liner size×stroke length 180×305(7×12) 190×305(7-1/2×12) 230×356(9×14) 230×356(9×14)
Strokes Rating,r/min 120 120 105 105
Power Rating,kW(HP) 1193 (1600) 1193 (1600) 1640 (2200) 1640 (2200)
Gear Ratio 4.206:1 4.206:1 3.512:1 3.512:1
Discharge Outlet Flange, in

5″ Flange,

5000 psi

5″ Flange,

10000psi(110 mm)

5″ Flange,

5000 psi(130 mm)

5″ Flange,

10000 psi(130 mm)
Pinion Shaft Dia.,mm(in) 215.9(8-1/2) 215.9(8-1/2) 254(10) 254(10)
Key,mm(in)

50.8×50.8

(2×2)

50.8×50.8

(2×2)

63.5×44.45

(2-1/2×1-3/4)

63.5×44.45

(2-1/2×1-3/4)
Valve Pots

Valve-Over-Valve,API #7/

L type,API #7

L type,

API #7

Valve-Over

-Valve,API #8

L type,

API #8
Approx. Weight ,kg(lb) 24791 (54660) /27020kg(57100lb) 29400 (64820) 38460 (84790) 44000 (94980)

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

In order to meet the drilling technology requirements for high pump pressure and large displacement in oilfields, designed and manufactured F-500, F-800, F-1000, F-1300, F-1600, F-1600L, F-2200 and F-2200 mud pumps with large power and F-1600HL,F-2200HL high pump pressure based on the said three kinds F-series mud pumps that formed complete F-series single acting triplex mud pumps. In recent years, we also start to supply F1-800, F1-1600 light weight series mud pumps and QDP-3000 large power five cylinder mud pumps designed by Bomco.

Our mud pumps are famous for advanced technology, reliable quality and extraordinary performance which are approved by the customer domestic and abroad. Our mud pumps have been exported to dozens of countries and areas, such as Russia, Thailand, India, Oman, Egypt, Australia, Pakistan, Kazakhstan, Mexico, Indonesia, Uzbekistan, Turkmenistan, U.K., USA and Canada, etc which are equipped most for the rigs and exported most.

Technical Features

· F-1300, F-1600, F-1300L and F-1600L mud pump

has a Max. Pump pressure of 34.5MPa(5000Psi)and a displacement of 46 . 5 L/ S with a l iner of Φ180mm.These two models are the first choice for the medium and deep drilling rig as an assorted component.

· F-1600HL, F-2200HL mud pump with high-power and high-pressure are developed to meet the drilling technology requirements of the offshore deep-water and terrestrial and horizontal well, especially desert areas.

· F1-800, F1-1600 light- weight series mud pumps are newly designed. Compared with same power F series mud pumps, the advance of less volume and weight which are appropriate for the rigs work in swamp and helicopter-lifting rigs.

· QDP-3000 five cylinders mud pump with large power, high pressure, big displacement, small size, light weight, especially suits for offshore platform and drill ship.

F-series Mud Pumps

F-series mud pumps include power end, fluid end, spraying system, lubricating system and charging system.

A1. Power End

Power end features:

· Continuous tooth herringbone gear.

· The crankshaft is made by alloy steel.

· Changeable crosshead guide.

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight.

· The extension rod packing is duplex seal structure to provide the good seal result.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

A2. Fluid End

Fluid end features:

· Each sealing part abopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· L fluid end features high pressure resistance,convenient for replacing the valve assembly ;

· Discharge damper ,shear relief valve and discharge

filter are fitted at the discharge outlet.

1. Cylinders

Cylinders are made of forged alloy steel, three cylinders of each pump are interchangeable. At customers're-quest, the cylinder surface may be nickel plated to improve the abrasion resistance.

2. Valve Assembly

The suction valve and the dischange valve for F-series mud pumps are interchangeable. F-500 mud pump uses API#5 valve. F-800 and F-1000 mud pumps use API#6 valve. F-1300 , F-1600, F-1600Land F-1600HL mud pumps use API#7 valve. F-2200Land F-2200HL mud pumps use API#8 valve .

3.Liners

Bi-metal liners are used. The sleeve is made of wear-resistant cast iron,liners feature wear resistance, corrosion resistance.

F-1600HL and F-2200HL mud pumps can choose ceramic liners in order to improve service life.

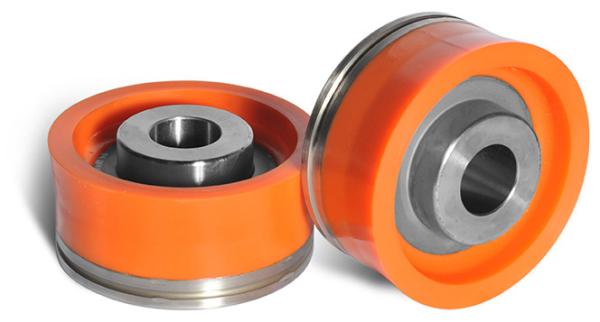

4. Pistons and Piston Rods

They are slide fitted, sealed with rubber seal ring and finally fastened with lock nuts to prevent the piston from looseness and to play a role in sealing.

5. plunger

Fluid end, liners, pistons, valves, valve seats, valve springs, seal rings and gasket ,valve cover and cylinder head of

fluid end assembly for F-800 and F-1000 mud pumps are interchangeable.

Fluid end assemblies of F-1300 and F-1600 mud pump are interchangeable. Fluid end assemblies of F-1300HL and F-1600HL mud pump are interchangeable, too.

A3.Spraying System

The spraying system consists mainly of spray pump, cooling water box, and spray pipe, the function is to cool and flush liners and pistons to improve their service life.The centrifugal spray pump can be driven by a sheave mounted on the input shaft extension end or a separate motor and cooled and lubricated by water.

The spray pipe is mounted on the coupling between the extension rod and the piston rod and can reciprocate with the piston. Nozzles is near the piston end so that the lubricating-cooling fluid can rinse the contact surface between the piston and liner all the time. The durable fixed spray pipe may be used, too.

A4.Lubricating System

The power end uses the combined lubricating system of forced lubrication ad splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the oil box to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.

A5.Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. Mounted on the suction manifold of the mud pump, the charging pump is driven by the special purpose motor or the input shaft of the mud pump through V-belts to reduce the power consumption.

F1 -Series Drilling Mud Pumps

F1-series drilling mud pumps include power end, fluid end, spraying system, lubricating system and charging system. It has light weight and small volume characters.

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

Ⅰ. Power End

Technical features

· Continuous tooth herringbone gear, the gear grinding is carburizing and hardening, which improves the ability of corrosion resistant.

· Furnished with block-type & complete machining crankshaft with advantages of excellent equitability, smooth running and lower vibration & noise.

· The main shaft base uses the “non-cap” structure, which can changes the force condition of bolts in main shaft,

and improves the reliability.

· The replaceable cross head guide, and the cross head adopts spraying special metal;

· The frame is made of welded steel plate to provide the frame with high strength, good rigidity and light weight;

· Double sealing structure for extension rod provides good sealing.

· The power end uses the combined lubricating system of forced lubrication and splash lubrication.

Ⅱ. Fluid End

Technical features

· Each sealing part adopts rigidity compaction and has good high pressure tightness;

· Vertical fluid end features good suction performance;

· Discharge damper, shear relief valve and five way discharge are fitted at the discharge outlet.

Ⅲ. Spraying System

This system mainly consists of spraying pump, cooling water tank and spraying pipe. The function is to cool and wash the liner and piston so as to prolong their service life.

The centrifugal spray pump is driven by a separate motor and cooled and lubricated by water.

Ⅳ Lubricating System

The power end uses the combined lubricating system of forced lubrication and splash lubrication. The pressure oil is conveyed through lubricating pipeline, crosshead, Intermediate rod and all bearings by a gear oil pump within the outside of frame to realize the forced lubrication. The working condition of the gear oil pump may be understood from the pressure gauge behind the frame.

Ⅴ Charging System

To prevent the air lock occurring for low pump inlet pressure, every mud pump is furnished with a complete charging system. It consists of charging pump, pump base, butterfly valve and corresponding manifold. The charging pump is driven by an independent motor and mounted on the suction manifold of the mud pump.

Ⅵ.Specifications

Model F1-800 F1-1600
Type Triplex single acting piston Triplex single acting piston
Max. Liner size × strength

170×216mm

(6 3/4″×8.5″)

180×280mm

(7″×11″)
Strokes rating 160 r/min 130 r/min
Power Rating 597kW (800 hp) 1193kW (1600 hp)
Type of gear Herringbone gear Herringbone gear
Gear ratio 3.3143:1 3.7381:1
Lubrication Forcing and splashing Forcing and splashing
Suction inlet 8″flange(203mm) 10″flange(254mm)
Discharge outlet 4″Flange, 5000 psi 4″Flange, 5000 psi
Pinion Shaft Dia. 177.8mm(7″) 215.9mm(8-1/2″)
Key

44.45×44.45mm

(1 3/4″×1 3/4″)

 50.8×50.8mm (2″×2″)
Valve Pots valve-over-valve,API #6 valve-over-valve,API #7
Approx. Weight 11536kg (25430lb) 20700kg (45635lb)

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

Africa:
Algeria
Angola
Cameroon
Congo
Equatorial Guinea
Gabon
Ghana
Nigeria

Middle East:
Azerbaijan
Bahrain
Egypt
India
Kazakhstan
Kuwait
Oman
Pakistan
Qatar
Saudi Arabia
Turkey
Turkmenistan
UAE
Uzbekistan

South America:
Argentina
Bolivia
Brazil
Chile
Columbia
Ecuador
Papua New Guinea
Peru
Trinidad and Tobago
Venezuela

Central America:
Guatemala
El Salvador
Costa Rica
Nicaragua

Asia:
Russia
Brunei
Indonesia
Malaysia
Philippines
Singapore
Thailand
Vietnam

Europe:
Norway
Poland
United Kingdom

Others:
Australia
Canada
China
Japan
Mexico
Ukraine

Product tags

vickers hydraulic pump pvb6rsy21

,

vickers hydraulics pump v60a35

,

vickers hydraulic pump 058533
Send your message to this supplier
Send Now

National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump

Ask Latest Price
Product Detail
Brand Name :
National Oilwell NOV Mission, Weatherford, Drillmec, Gardner Denver, Oilwell, Ideco
Model Number :
12P160, MP16, E2200, PZ9, FB1600, F1000
Certification :
API
Place of Origin :
CHINA
Delivery Time :
In Stock
Packaging Details :
Suitable to shipment by air and sea
Contact Supplier
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
National 12P160/ 14P220, 9P100 mud pump fluid end liner, Zirconia liner, BREWSTER mud pump B-1600T, Drillmec 12T1600 mud pump liner, Weatherford E2200 mud pump, GD PZ10 mud pump
