Specifications
Brand Name :
SOUTHWEST, National, Gardner Denver, Oilwell, Mud King, Texma, Bomco, Honghua
Model Number :
LEWCO 12-P-WH 1612
Certification :
API
Place of Origin :
CHINA
Supply Ability :
1200 pieces per month
Delivery Time :
In stock
Packaging Details :
Stuitable to shipment by sea and air
MOQ :
1 piece
Price :
1 to 500 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Usage :
Oil,Water,drill rig
Power :
Electric
Pressure :
High Pressure,Low Pressure
Application :
mining,oil
Structure :
Piston Pump
Fuel :
Diesel
Standard or nonstandard :
Standard
Type :
Mud Pump
Color :
Green or per customer design
Material :
cast iron/stainless steel mud suction pump,Chrome alloy
Warranty :
12 Months
Product name :
Mud Pump
Oem :
can be accept,Applicable
Condition :
new
Description

Premium's zirconia liner offers life time cost savings, significantly longer service, better performance and safer operation than those made of more commonly used alumina ceramic. Premium's zirconia liner is a proprietary Zirconium-based matrix that has significantly improved mechanical characteristics.



◎ Zirconia has three important property advantages compared to alumina.

◎ Zirconia exhibits better impact strength.

◎ Zirconia is harder than alumina.

◎ Zirconia can be honed to finer surface finishes than alumina. Finished to 4 RMS, ◎Zirconia liners - provide a surface finish that's three to four times finer than alumina.



All three of these property advantages translate to lower ownership costs. The improved wear directly extends the service life of the sleeve, while the improved impact strength cuts down on the significant costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in trun extends piston life and reduces pump-cooling requirements.



◎ HP design with shoulder-on-hull design to prevent sleeve slippage

◎ Reduced liner and piston wear

◎ Rated for all drilling operations up to 7500 PSI

◎ Bore hardness of 92-94 Rockwell

◎ ID tolerances of +.010”/ -.000”

◎ Surface finish of 4 - 8 RMS

◎ Hardness i s HV 0.3 kg/mm – 1100/1200 ( 92 - 94 Rc)

◎ High pressure design to prevent slippage

◎ Liner sizes are available from 4½” to 7” for all popular mud pumps

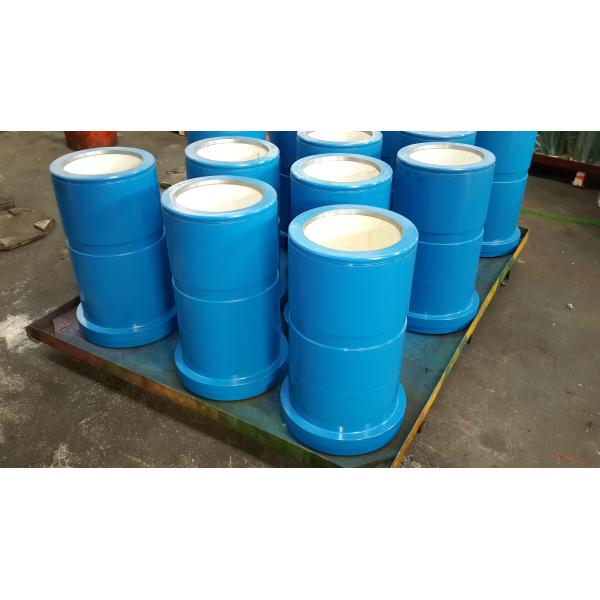

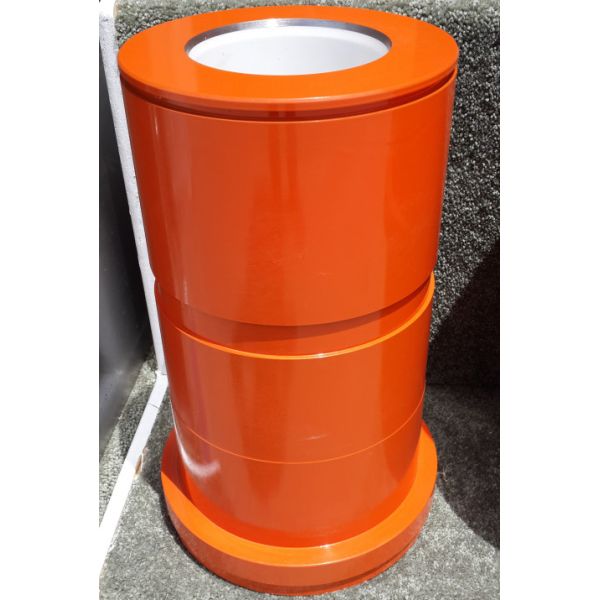

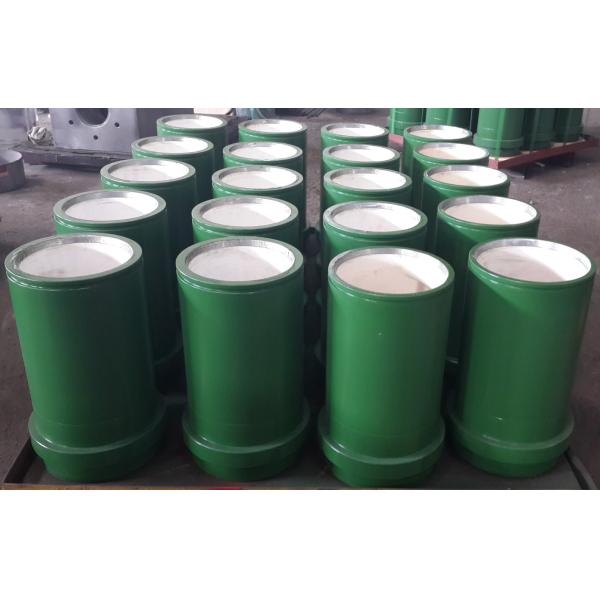

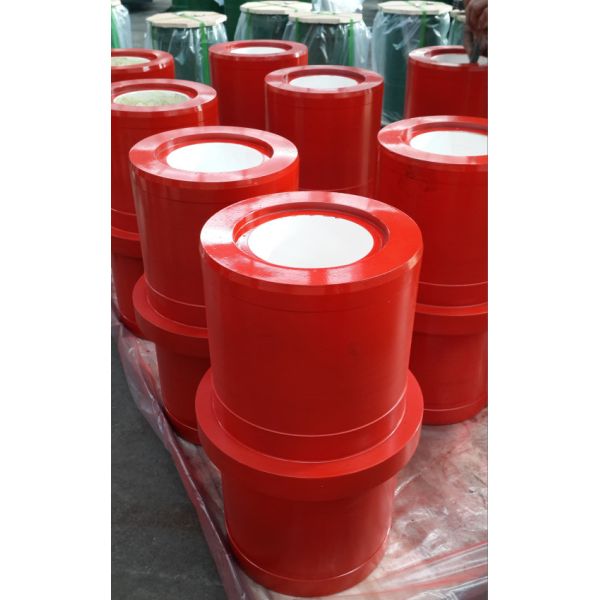

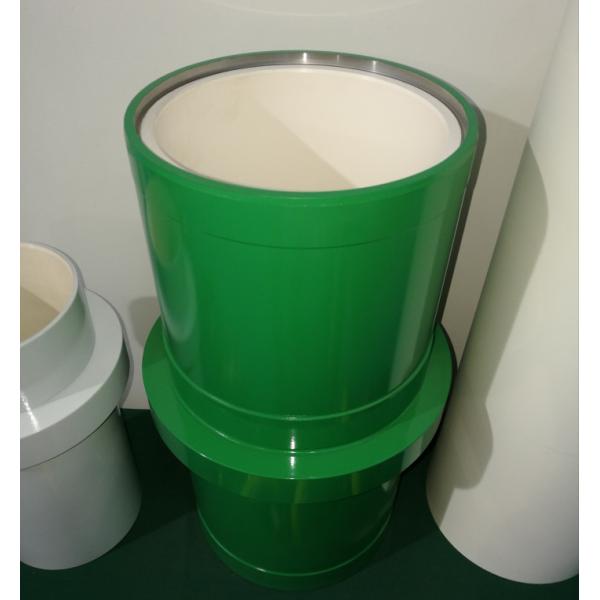

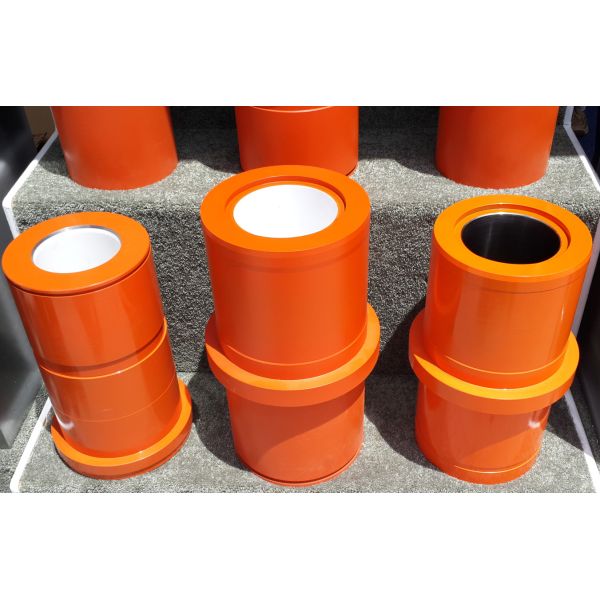

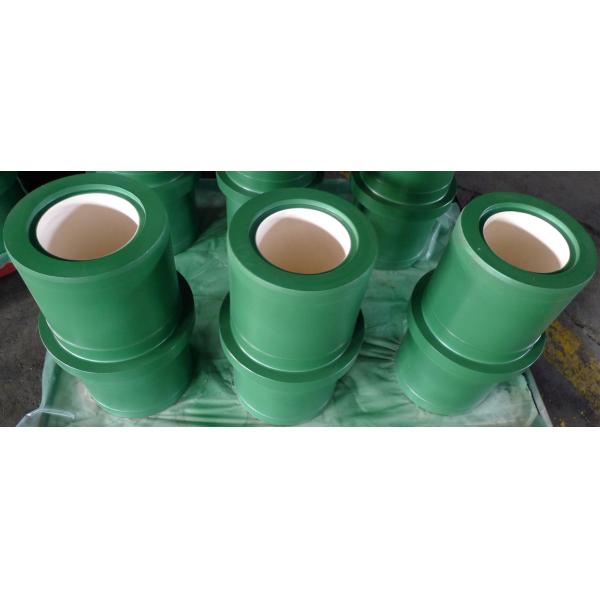

Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump



Southwest  mud pump zirconia liner part number:



Southwest T1300/1600 6307G06 PREM 6307G08 PREM 6307G1 PREM 6307G3 PREM 6307G5 PREM 6307G7 PREM 6307G9 PREM
Southwest A1400/1700PT 1388G06 PREM 1388G08 PREM 1388G1 PREM 1388G3 PREM 1388G5 PREM 1388G7 PREM 1388G9 PREM
Southwest LEWCO 12-P-WH 1612 1376G06 PREM 1376G08 PREM 1376G1 PREM 1376G3 PREM 1376G5 PREM 1376G7 PREM 1376G9 PREM

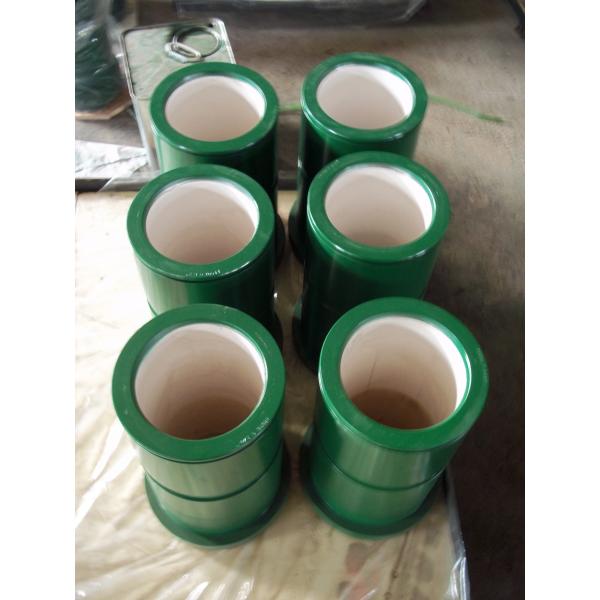

Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump





All our fluid end parts are manufactured to API 7K quality standards.



Parts are available for these popular pump models:



BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,



LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,



Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT



Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200



Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32



WEATHERFORD/Ellis Williams: E-447, E-2200



Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800



Romania: 3PN-1000, 3PN-1600, 3PN-2000



And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.



 Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pumpZirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump

Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump





BOMCO F-1600 W/ MISSION L 7500 PSI FE 7 x 12
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE GREEN DUO SLIP SEAL WHITE LIGHTNING WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4" 7466400 5466400 1540120 7211012 1502052 1502052   12180170   15180102
4" 7466400   7923265 7211011 1502052 1502052   12180170   15180102
4 1/2" 7466450   7923265 7211011 1502054 XM-320WL 12180197 12180196 15180145 15180144
4 1/2"   05466450 1540120 7211012 1502054 XM-320WL 12180197 12180196 15180145 15180144
4 3/4" 7466475 5466475 7923264 7211035   XM475WL   12180311   15100308
5" 7466500 05466500HP 7923264 7211035 1502056 XM500WL 12180254 12180253 15180186 15180185
5 1/4"
5 1/2" 7466550 05466550HP 7923263 7211005 1502058 XM550WL 12180338 12180337 15180228 15180227
5 3/4" 7466575 05466575HP 7923262   1502059     12180352   15180235
6" 7466600 05466600HP 7923261 7211004 1502060 XM600WL 12180395 12180394 15180269 15180268
6 1/4"   05466625HP 7923283   1502061   12180494 12180493 15180285 15180284
6 1/2" 7466650 05466650HP 7923284 7211003 1502062 XM650WL 12180536 12180535 15180301 15180300
6 3/4"   05466675HP 7923287   1502063     12180600   15180326
7" 7466700 05466700HP 7923285 7211002 1502064 XM700WL 12180619 12180618 15180343 15180342
7 1/4"   05466725HP 1540154   1502066     12180642   15180359
7 1/2"
7 3/4"
8"
For White Lightning Bonded Pistons add "XT" to Green Duo Part# For Bonded Slip Seal Pistons add "SS" to Green Duo Part #
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
  ROUGHNECK HP ROUGHNECK BONDED       OEM OEM URETHANE L STYLE L STYLE URETHANE
VALVE-White Lightning Insert 9700359 9700602WL     Valve Cover NA NA 7207115 7211034
VALVE-Urethane Insert 9700353 9700602     Cylinder Head NA NA
VALVE-Rubber Insert N/A N/A     Wear Plate NA NA 1290344 7211023
SEAT 9702555NS 9702555NS     Blak-JAK OEM MISSION L
SPRING 8201684 8201684     LOK-CEL N/A 80501114
SPRING-Stainless         Hydra-Cell N/A 80502100
INSERT-Urethane 9700363 N/A     MODULES OEM MISSION L
INSERT-Rubber N/A N/A     Complete Assembly   80736031
SEAT PULLER ASSEMBLIES Discharge Module Studded   80736002
Puller Assembly 1 M 1060 M 1060     Suction Module Studded   80736005
Puller Head Split Jaw M1093 M1093     One Piece OEM Style Studded NA
Puller Head 8401985 8401985

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly Pony Rod Baffle Piston Rod Sub Rod Stud Rod Nut Clamp Std. Clamp W/Flush Pony Rod Seal
7913077 1 Piece   7208502 1551703     5402052 PP601316 80701027 0-7602-2131-47
7913077 2 Piece 2095002 7208502 HT204A PPHT2145B 10305203NH 5402052 PP601316 80701027

0-7602-2132-76









DRILLMEC     9T1000       7 X 9
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4"
4 1/4"
4 1/2" 7547450 5547450 1540120   MB44-15 1502054 12180197 12180196 15180145 15180144
4 3/4"     1504121
5" 7547500 5547500 7923264   MB50-15 1502056 12180254 12180253 15180186 15180185
5 1/4"
5 1/2" 7547550 5547600 7923263 7211005 MB54-15 1502058 12180338 12180337 15180228 15180227
5 3/4"
6" 7547600 5547600 7923261 7211004 MB60-15 1502060 12180395 12180394 15180269 15180268
6 1/4" 7547625 5547625 7923283     1502061   12180493 15180285 15180284
6 1/2" 7547650 5547650 7923284 7211003 MB64-15 1502062 12180536 12180535 15180301 15180300
6 3/4"
7"   5547700 7923285 7211002 MB70-15 1502064 12180619 12180618 15180343 15180342
7 1/4"
7 1/2"
7 3/4"
8"
          For Bonded White Lightning Pistons add "XT" to Green Duo Part #
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
  ROUGHNECK ROUGHNECK HP SUPREME     OEM OEM URETHANE L STYLE L STYLE URETHANE L STYLE W.L.
VALVE-White Lightning Insert 9700368 9700356 60155042   Valve Cover 7923285 7211002
VALVE-Urethane Insert 9700250 9700354 60155041   Cylinder Head
VALVE-Rubber Insert 9700293 N/A 60155033   Plug Seal
SEAT 9702504 9702504 61101507
SPRING 8201684 8201684 55413421
SPRING-Stainless
INSERT-Urethane 9705228 PFO7I 62400338   MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 62400239   Complete Assembly
SEAT PULLER ASSEMBLIES Discharge Module Studded
Puller Assembly 1 M 1060 M 1060 M 1060   Suction Module Studded
Puller Head 8401985 8401985 181235300   One Piece OEM Style Studded





DRILLMEC 12T1600 5000 PSI SWFE   7-1/2 x 12
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE BLUE LIGHTNING GREEN DUO WHITE LIGHTNING SUPREME WHITE LIGHTNING SUPREME
4"
4 1/4"
4 1/2"     1540120   MB44-15 1502054 12180197 12180196 15180145 15180144
4 3/4"     1504121
5" 7466500 05466500* 7923264   MB50-15 1502056 12180254 12180253 15180186 15180185
5 1/4"
5 1/2" 7466550 05466550* 7923263 7211005 MB54-15 1502058 12180338 12180337 15180228 15180227
5 3/4"
6" 7466600 05466600* 7923261 7211004 MB60-15 1502060 12180395 12180394 15180269 15180268
6 1/4"   05466625* 7923283     1502061   12180493 15180285 15180284
6 1/2" 7466650 05466650* 7923284 7211003 MB64-15 1502062 12180536 12180535 15180301 15180300
6 3/4"
7" 7466700 05466700* 7923285 7211002 MB70-15 1502064 12180619 12180618 15180343 15180342
7 1/4"
7 1/2"
7 3/4"
8"         For Bonded White Lightning Pistons add "XT" to Green Duo Part #
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
Series 7 ROUGHNECK ROUGHNECK HP SUPREME FKN   OEM OEM URETHANE L STYLE L STYLE URETHANE L STYLE W.L.
VALVE-White Lightning Insert 9700368 9700356 60155042 N/A Valve Cover NA NA 7207119 7211013 7213013
VALVE-Urethane Insert 9700250 9700354 60155041 1560985 Wear Plate NA   1290344 7211023 7213023
VALVE-Rubber Insert 9700293 N/A 60155033 1560984 Liner Retention Systems OEM MISSION L
SEAT 9702539 9702539 61102505 1561440 Blak-JAK LOK-CEL 80501100 80501100
SPRING 8201684 8201684 55413421 1560702 Blak-JAK Hydra-Cell 80502100 80502100
SPRING-Stainless     55402945   Hydra-LOK 80500100 80500100
INSERT-Urethane 9705228 PFO7I 62400338 1560557 MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 62400239 1560558 Complete Assembly NA FEM12PASSYSWNS
SEAT PULLER ASSEMBLIES Discharge Module Studded NA FEM12PDISSWNS
Puller Assembly 1 M 1060 M 1060 M 1060 M 1060 Suction Module Studded NA FEM12PSUCSWNS
Puller Head 8401985 8401985 181235300 M 1098 One Piece OEM Style Studded

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods





LEWCO WH-1612 W/ 12P160 5K OEM FC VC FE SN# 353 & 354 7-1/4 x 12
  LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE BLUE LIGHTNING GREEN DUO Slip Seal Bonded SUPREME   SUPREME
4"     1540120   MB40-15 1502052   12180170   15180102
4 1/2" 7466450   7923265   MB44-15 1502054 1502054SS 12180196   15180144
4 1/2"   05466450 1540120 7211012 MB44-15 1502054 1502054SS 12180196   15180144
4 3/4"     1504121
5" 7466500 05466500* 7923264   MB50-15 1502056 1502056SS 12180253   15180185
5 1/4"
5 1/2" 7466550 05466550* 7923263 7211005 MB54-15 1502058 1502058SS 12180337   15180227
5 3/4"
6" 7466600 05466600* 7923261 7211004 MB60-15 1502060 1502060SS 12180394   15180268
6 1/4"   05466625* 7923283     1502061 1502061SS 12180493   15180284
6 1/2" 7466650 05466650* 7923284 7211003 MB64-15 1502062 1502062SS 12180535   15180300
6 3/4"
7" 7466700 05466700* 7923285 7211002 MB70-15 1502064 1502064SS 12180618   15180342
7 1/4"
7 1/2"
7 3/4"
8"         For Bonded White Lightning Pistons add "XT" to Green Duo Part #
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS   GASKETS
Series 7 ROUGHNECK ROUGHNECK HP SUPREME FKN   OEM OEM URETHANE L STYLE L STYLE URETHANE L STYLE W.L.
VALVE-White Lightning Insert 9700368 9700356 60155042 N/A Valve Cover 1540138 1540127 7207119 7211013 7213013
VALVE-Urethane Insert 9700250 9700354 60155041 1560985 Wear Plate 1292257   1290344 7211023 7213023
VALVE-Rubber Insert 9700293 N/A 60155033 1560984 Liner Retention Systems OEM MISSION L
SEAT 9702539 9702539 61102505 1561440 Blak-JAK LOK-CEL 80501100 80501100
SPRING 8201684 8201684 55413421 1560702 Blak-JAK Hydra-Cell 80502100 80502100
SPRING-Stainless     55402945   Hydra-LOK 80500100 80500100
INSERT-Urethane 9705228 PFO7I 62400338 1560557 MODULES OEM MISSION L
INSERT-Rubber 9705244 N/A 62400239 1560558 Complete Assembly FEMNAT12PCA FEM12PASSYSWNS
SEAT PULLER ASSEMBLIES Discharge Module Studded FEMNATDIS12P FEM12PDISSWNS
Puller Assembly 1 M 1060 M 1060 M 1060 M 1060 Suction Module Studded FEMNATSUC12P FEM12PSUCSWNS
Split Jaw Puller Head 8401705 8401705   M1098
Puller Head 8401985 8401985 181235300

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly Rod Nut Piston Rod Sub Rod Pony Rod Baffle Piston Rod Clamp Covered Rod Nut Pony Rod Seal
      5402052       W/SPRAY   CRN-1
              WO/SPRAY





Send your message to this supplier
Send Now

Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612 Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump

Ask Latest Price
Brand Name :
SOUTHWEST, National, Gardner Denver, Oilwell, Mud King, Texma, Bomco, Honghua
Model Number :
LEWCO 12-P-WH 1612
Certification :
API
Place of Origin :
CHINA
Supply Ability :
1200 pieces per month
Delivery Time :
In stock
Contact Supplier
Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump
Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump

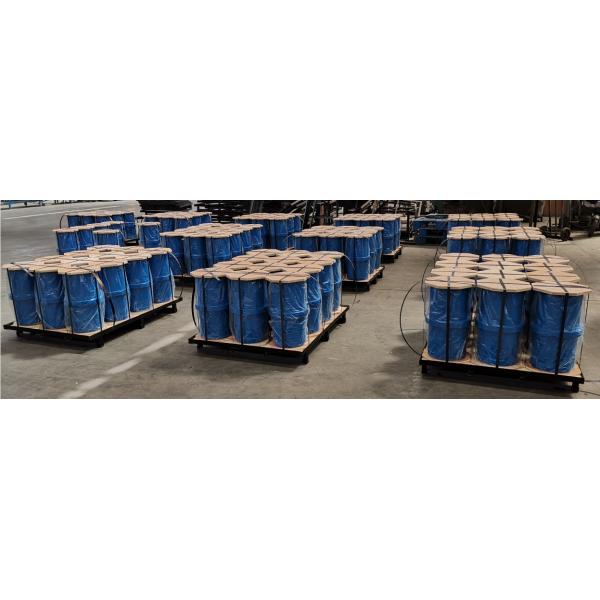

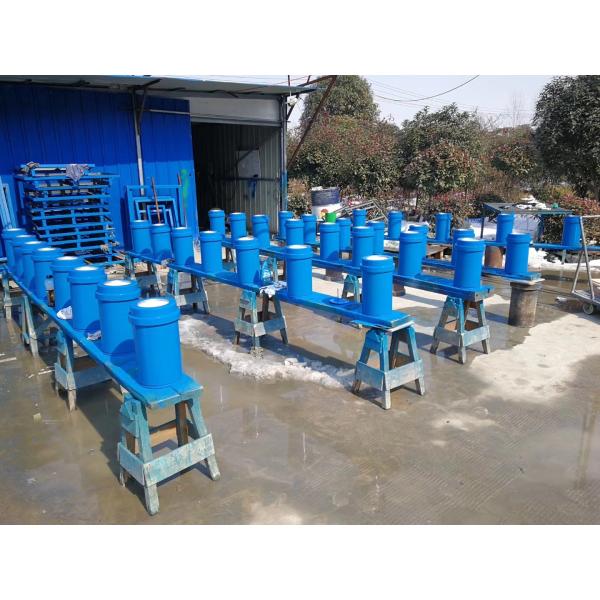

Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump
Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump
Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump
Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump
Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump
Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump
Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump
Zirconia Liners for SOUTHWEST LEWCO 12-P-WH 1612  Mud Pump, WH2214 MUD PUMP, WH2215 MUD PUMP, E-1600 MUD PUMP, WH1312; Ceramic Liner PZ11 mud pump, PZ10 mud pump, FB1600 mud pump

Qingdao National Premium Oilwell Machinery Co.,Ltd

Verified Supplier
8 Years
shandong, qingdao
Since 2007
Business Type :
Manufacturer, Distributor/Wholesaler, Importer, Exporter, Seller
Total Annual :
1-5000000
Employee Number :
1~150
Certification Level :
Verified Supplier
Contact Supplier
Submit Requirement
