Hot Dip Galvanized Solar PV Carports Q235B 2.5M 3.5M Solar Panel Rails And Brackets
Hot Dip Galvanized Solar PV Carports Q235B 2.5M 3.5M Solar Panel Rails And Brackets
Hot Dip Galvanized Solar PV Carports Q235B 2.5M 3.5M Solar Panel Rails And Brackets
Hot Dip Galvanized Solar PV Carports Q235B 2.5M 3.5M Solar Panel Rails And Brackets
Specifications
Place of Origin :
China
Brand Name :
Shandong Xinghua Steel Structure
Certification :
EN1900、Three-Body
Model Number :
Steel plates, H-beams, angle steels, I-beams, channel steels, round pipes, square pipes, etc
MOQ :
10 tons
Price :
8000 yuan per ton
Packaging Details :
Bulk carriers, containers
Delivery Time :
After confirming the drawings, the shipment will be made within 20 days .
Payment Terms :
Advance payment plus full payment for delivery
Supply Ability :
Monthly supply capacity not less than 2000 tons .
Product Name :
Prefab Steel Structure
Seismic Resistance :
Degree 8 Fortification
Wind Resistance Level :
Typhoon Level 12 (35m/s)
Design Service Life :
50 years
Feature :
Anti Earthquake、Antirust、Anti Corrosion
size :
15-80 meters 、80-120 meters 、50-1000M
Grade :
Q235B Q355B
Standard :
GB EN ASTM
Type :
Light
Keyword :
Steel structure warehouse building prefab warehouse steel structure
Performance :
Safety, water-proof, sound insulated,hear-preservation
Description

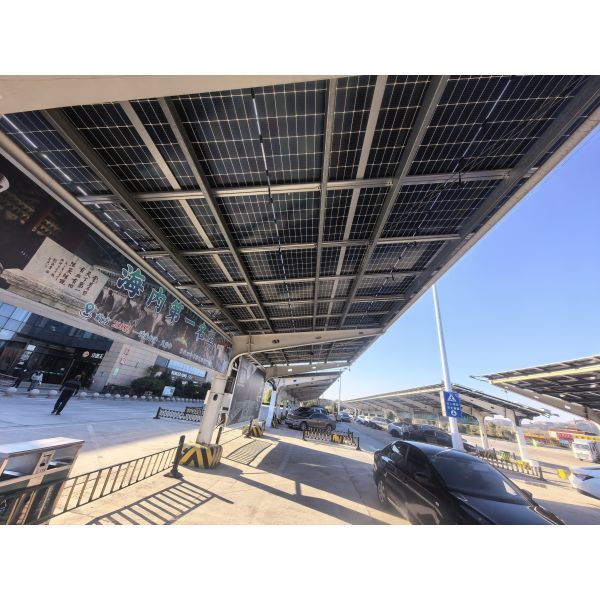

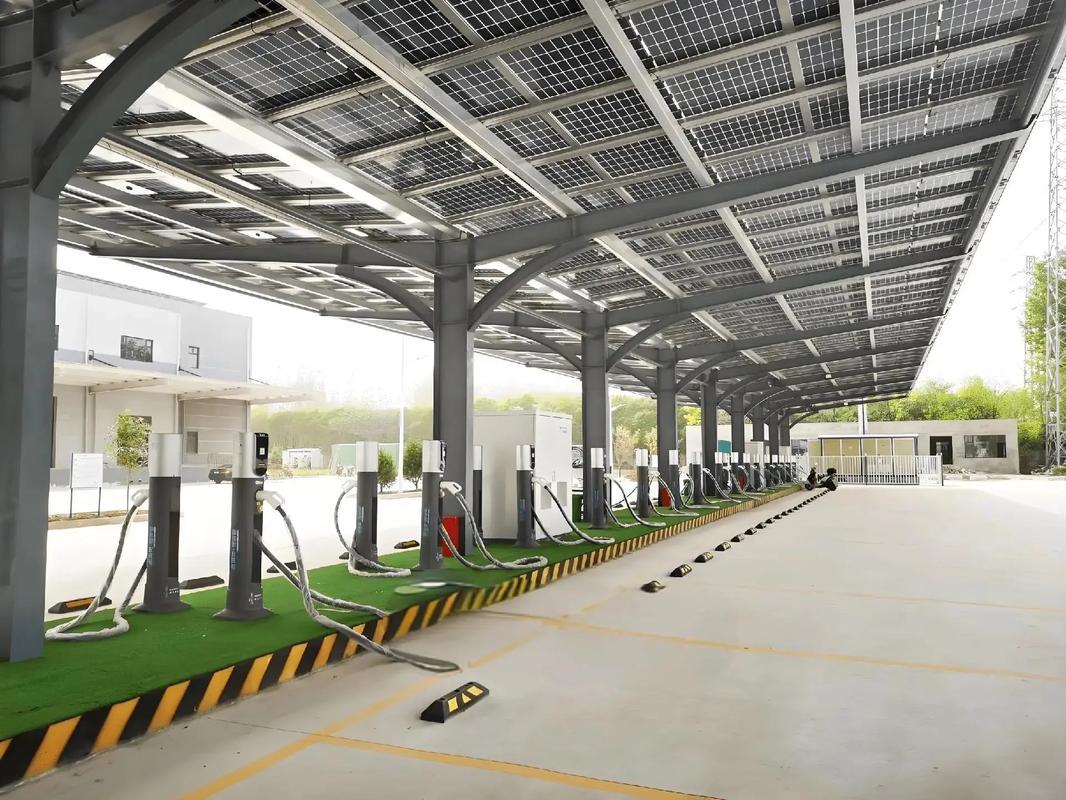

Hot-Dip Galvanized Q235B Solar PV Carport Steel Structure

prodnct deecrlption

This product is a solar PV carport steel structure system manufactured from hot-dip galvanized Q235B steel, perfectly integrating solar power generation with vehicle shade protection functions. The structure's optimized angle design improves PV panel power generation efficiency by 15-20%, while providing all-weather protection for vehicles. For strong sunlight environments in the Middle East, high-weather resistance coatings are used; for rainy climates in Southeast Asia, efficient drainage systems are designed. Modular design supports rapid expansion, suitable for everything from small commercial parking lots to large public facilities.

Technical Specifications

parameter category Detailed Specifications International Standard
Main material Q235B hot-dip galvanized steel (galvanized layer thickness ≥ 85 μ m)

GB/T 13912, ASTM A123, ISO 1461
structural form Single column, double column, multi span continuous type

GB 50017, EN 1993, AISC 360
Vehicle shed height 2.5-3.5 meters (standard), adjustable according to vehicle type ISO 6781
Tilt angle of photovoltaic panel 15-30 degrees (adjustable), optimize power generation efficiency at different latitudes IEC 61215, UL 1703
wind resistance rating Capable of withstanding a Category 12 typhoon with a wind speed of 35m/s GB 50009, ASCE 7, Eurocode 1

advantages

· Hot-dip galvanizing provides over 25 years of anti-corrosion protection, adapting to various climate environments

· Dual-function design: power generation + shade, investment return period shortened by 30%

· Optimized tilt angle design improves power generation efficiency, annual power generation increased by 15-20%

· Modular rapid installation, 100-parking space project can be completed within 30 days

· Certified by TUV, CE and other international certifications, complying with global PV project standards

application

· Commercial centers and shopping plaza parking lots

· Industrial park and enterprise office area parking lots

· Public institutions and government unit parking lots

· Tourist attractions and leisure venue parking lots

· Residential communities and community public parking lots
