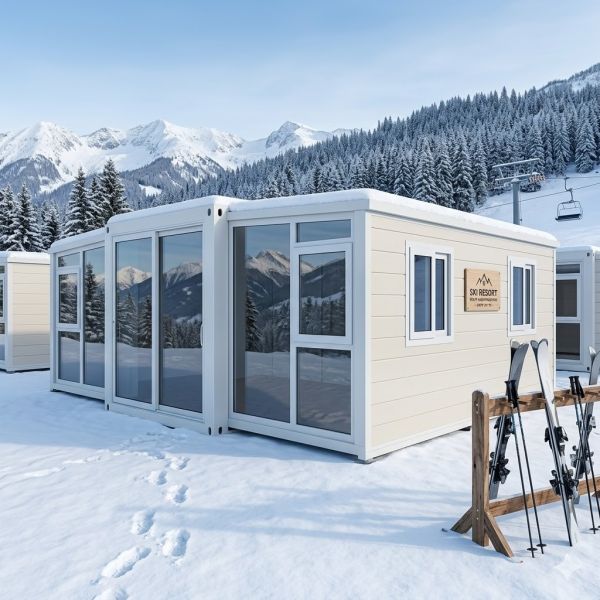

Winter-Proof Heavy-Duty Expandable Container Cabin
Product Overview
Conquer extreme Nordic winters and harsh coastal winds with the heavy-duty Expandable Container House Series, masterfully engineered by Global House (Suzhou) Co., Ltd. Specifically designed to accommodate upgraded, high-density Rock Wool insulation and featuring a reinforced roof system to withstand heavy Scandinavian snow loads, this modular solution guarantees uncompromising warmth and structural safety.
The logistics-friendly 1:4 folding design significantly reduces freight costs from the factory directly to Sweden, Norway, or Finland. Upon arrival at your frosty project site, the unit unfolds swiftly within minutes, immediately transforming into a highly insulated, draft-free, and spacious environment. It is the perfect, highly resilient asset for year-round remote living, forestry operations, or demanding winter construction projects where traditional building is impossible.

Key Advantages
Multiplied Space & Optimized Freight
The unique folding mechanism allows up to 4 sets (10FT) or 2 sets (20FT) to fit inside a single 40HQ shipping container. This drastically reduces international logistics expenses per square meter.Standardized Cost-Efficiency
Manufactured via a mature assembly line, this model provides an exceptional price advantage for bulk orders, shortening the investment payback period for developers.Minimal On-Site Labor
No complex civil engineering is required. A team of 2-3 general laborers can complete the installation within hours using basic lifting equipment.High-Turnover Mobile Asset
The heavy-duty bolt-together design supports repeated disassembly and relocation. Your building asset can move with your projects for multiple life cycles.
Specifications & Loading Capacity
| Type | Extended Size L*W*H (mm) | Folded Size L*W*H (mm) | Area | 40HQ Loading | Shipping Weight |
|---|
| 10FT Model | 2950 * 6480 * 2480 | 2950 * 2200 * 2480 | 20 m² | 4 SETS | ~1.8 - 2.0 Tons |
| 20FT Model | 5900 * 6480 * 2480 | 5900 * 2200 * 2480 | 38.2 m² | 2 SETS | 3.4 Tons |
| 30FT Model | 9000 * 6480 * 2480 | 9000 * 2200 * 2480 | 58.3 m² | 1 SET | ~4.5 Tons |
| 40FT Model | 11800 * 6480 * 2480 | 11800 * 2200 * 2480 | 76.4 m² | 1 SET | 5.4 Tons |
Detailed Material Specifications
- Main Steel Frame: Q235 Hot-dip galvanized steel, 2.5mm - 3.0mm thickness, with 6mm corner head liner plates for maximum structural safety.
- Wall Panels: External wall: 75mm EPS sandwich panel standard (Upgradable to Rock Wool for premium fire resistance). Internal partition: 50mm EPS sandwich panel.
- Roof System: External top: 0.35mm corrugated color steel sheet. Insulation: 50mm EPS sandwich panel. Internal ceiling: 200-type aesthetic ceiling board.
- Flooring: Subfloor: 18mm fireproof magnesite board (moisture-proof & insect-resistant). Surface: 2.0mm wear-resistant PVC floor leather (Upgradable to 4.0mm SPC flooring).
- Doors & Windows (Optional Upgrade): PVC casement windows (with anti-insect screens) + Aluminum security door.
Available Upgrades: Broken bridge aluminum entrance doors (double glass), KFC doors, aluminum alloy sliding doors, broken bridge aluminum windows, plastic steel sliding windows, ceiling-to-floor glass windows, etc.
Color Customization: Wall panel colors: White, Red Wooden, Dark Gray. Frame colors: White, Black, Dark Gray. Optional: 16mm metal carved board as exterior wall decoration.
Target Applications
Project Camps (construction dormitories, site canteens, modular restrooms); Office Spaces (mobile office units, field command centers, temporary meeting rooms); Emergency Housing (post-disaster resettlement, refugee shelters, affordable pods); Utility Buildings (security booths, temporary clinics, mobile convenience stores).
How It Works (4-Step Deployment)
- Unloading: Lift the folded unit onto leveled, hardened ground or simple concrete piers.
- Unfolding Wings: Release the safety latches, lift the two roof sections in sequence, and then lower the floor sections.
- Fixing Walls: Push the folded side walls outward to a vertical position and install the corner connectors.
- Sealing: Apply prefabricated sealing strips and high-quality structural adhesive at joints to ensure a weather-tight finish.
Frequently Asked Questions
Q1: Are you a manufacturing factory or a trading company? Where is your factory located?
A: We are a direct manufacturing factory. Our plant is located in Zhenze Town, Wujiang County, Suzhou City, Jiangsu Province, China. We welcome global clients and third-party inspection agencies to visit us at any time.
Q2: What is the lifespan of this container house? Is it stable under extreme weather?
A: Under standard conditions, the galvanized steel frame has a lifespan of 15 to 20 years. Structurally, it is extremely safe; when properly anchored to a foundation, it can resist winds up to 200km/h and withstand up to a magnitude-9 earthquake outside.
Q3: Can the electrical and plumbing systems meet my local country's strict compliance standards?
A: Yes. We regularly export to regions with strict compliance requirements. We can pre-install electrical wiring, sockets, and plumbing systems that fully meet specific local certifications (such as CE for Europe or AU/NZS for Australia and New Zealand) to ensure fast council approval.
Q4: How long does it take to build? Do I need professional engineers?
A: No professional technicians are needed. We provide comprehensive installation videos and manuals. Generally, 2 workers can master the operation and complete a standard room setup within about 3 hours using basic lifting equipment.
Q5: What is your standard delivery time?
A: Delivery time depends on order quantities and customization. For standard sizes and configurations, delivery preparation generally takes 15 to 20 days after receiving the deposit (with standard scaling varying within 5-15 days depending on exact queue lines).
Q6: What should I provide to get a customized layout or design scheme?
A: It's very easy! If you have a sketch drawing or reference photo, you can send it to us directly. If not, simply notify us of your requirements, such as the total area, target usage, room/sanitary layout, and material preferences, and our design team will provide a detailed scheme and quotation.
Contact For Global Orders: Global House (Suzhou) Co., Ltd.
