1. Product Overview

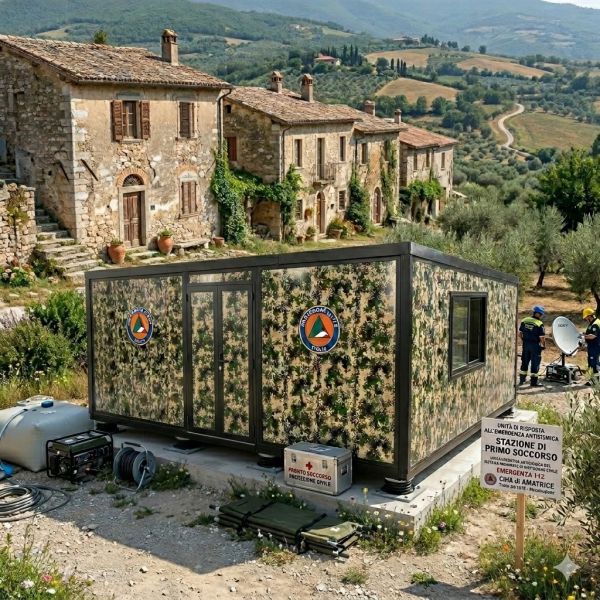

• When responding to crisis or planning safe community infrastructure, safety and speed are paramount. The Expandable Container House Series by Global House (Suzhou) Co., Ltd. provides Italian civil engineers, municipalities, and disaster relief organizations with highly stable, earthquake-resistant temporary housing solutions. The reinforced, heavy-duty 2.5mm-3.0mm galvanized steel main frame ensures exceptional structural safety, capable of withstanding severe seismic activities up to a magnitude-9 earthquake. Simultaneously, the brilliant 1:4 expansion ratio allows governments to stockpile massive quantities of housing in minimal warehouse space and transport them incredibly cheaply. In emergency scenarios, these units can be craned into place and deployed in just 15 minutes, instantly creating secure, weather-proof, and fully insulated living spaces that protect vulnerable communities and restore a sense of normalcy without delay.

2. Key Advantages

• Multiplied Space & Optimized Freight:
  The unique folding mechanism allows up to 4 sets (10FT) or 2 sets (20FT) to fit inside a single 40HQ shipping container. This drastically reduces international logistics expenses per square meter.
• Standardized Cost-Efficiency:
  Manufactured via a mature assembly line, this model provides an exceptional price advantage for bulk orders, shortening the investment payback period for developers.
• Minimal On-Site Labor:
  No complex civil engineering is required. A team of 2–3 general laborers can complete the installation within hours using basic lifting equipment.
• High-Turnover Mobile Asset:
  The heavy-duty bolt-together design supports repeated disassembly and relocation. Your building asset can move with your projects for multiple life cycles.

3. Specifications & Loading Capacity

4. Detailed Material Specifications

• Main Steel Frame: Q235 Hot-dip galvanized steel, 2.5mm - 3.0mm thickness, with 6mm corner head liner plates for maximum structural safety.
• Wall Panels: External wall: 75mm EPS sandwich panel standard (Upgradable to Rock Wool for premium fire resistance). Internal partition: 50mm EPS sandwich panel.
• Roof System: External top: 0.35mm corrugated color steel sheet. Insulation: 50mm EPS sandwich panel. Internal ceiling: 200-type aesthetic ceiling board.
• Flooring: Subfloor: 18mm fireproof magnesite board (moisture-proof & insect-resistant). Surface: 2.0mm wear-resistant PVC floor leather (Upgradable to 4.0mm SPC flooring).
• Doors & Windows (Optional Upgrade): PVC casement windows (with anti-insect screens) + Aluminum security door.
  Available Upgrades: Broken bridge aluminum entrance doors (double glass), KFC doors, aluminum alloy sliding doors, broken bridge aluminum windows, plastic steel sliding windows, ceiling-to-floor glass windows, etc.
• Color Customization: Wall panel colors: White, Red Wooden, Dark Gray. Frame colors: White, Black, Dark Gray. Optional: 16mm metal carved board as exterior wall decoration.

5. Target Applications

Project Camps (construction dormitories, site canteens, modular restrooms); Office Spaces (mobile office units, field command centers, temporary meeting rooms); Emergency Housing (post-disaster resettlement, refugee shelters, affordable pods); Utility Buildings (security booths, temporary clinics, mobile convenience stores).

6. How It Works (4-Step Deployment)

1. Unloading: Lift the folded unit onto leveled, hardened ground or simple concrete piers.
2. Unfolding Wings: Release the safety latches, lift the two roof sections in sequence, and then lower the floor sections.
3. Fixing Walls: Push the folded side walls outward to a vertical position and install the corner connectors.
4. Sealing: Apply prefabricated sealing strips and high-quality structural adhesive at joints to ensure a weather-tight finish.

7. Frequently Asked Questions

Contact For Global Orders: Global House (Suzhou) Co., Ltd.
