Specifications
Certification :
CE
Payment Terms :
T/T, L/C, Western Union
Price :
USD 2999-4999 / Unit
Packaging Details :
Flat-packed panels with protective film, corner guards and steel strapping; hardware and installation drawings included
Steel Frame :
Hot-dip Galvanized Steel, 2.0-3.0 mm
Service Life :
10-15 Years
Model Number :
PCH-20FT-MOD
Temperature Range :
-20 to 60 degC
Application :
Construction, Tourism, Emergency, Commercial
Delivery Time :
15-25 days after deposit
MOQ :
1 Unit
Installation Time :
2-4 Hours Per Unit (2-3 Workers)
Supply Ability :
300 Units per Month
External Dimension :
6000 x 3000 x 2800 mm, Customizable
Floor System :
18 mm Cement Board with PVC Finish
Wind Resistance :
<=12 Wind Level
Color :
White, Customizable
Brand Name :
GlobalContainerHouse
Floor Load Capacity :
>=200 kg per sqm
Roof :
Galvanized Steel Sheet with Waterproof Insulation
Place of Origin :
Suzhou, China
Wall Panel :
EPS / Rock Wool Sandwich Panel, 50-100 mm
Description

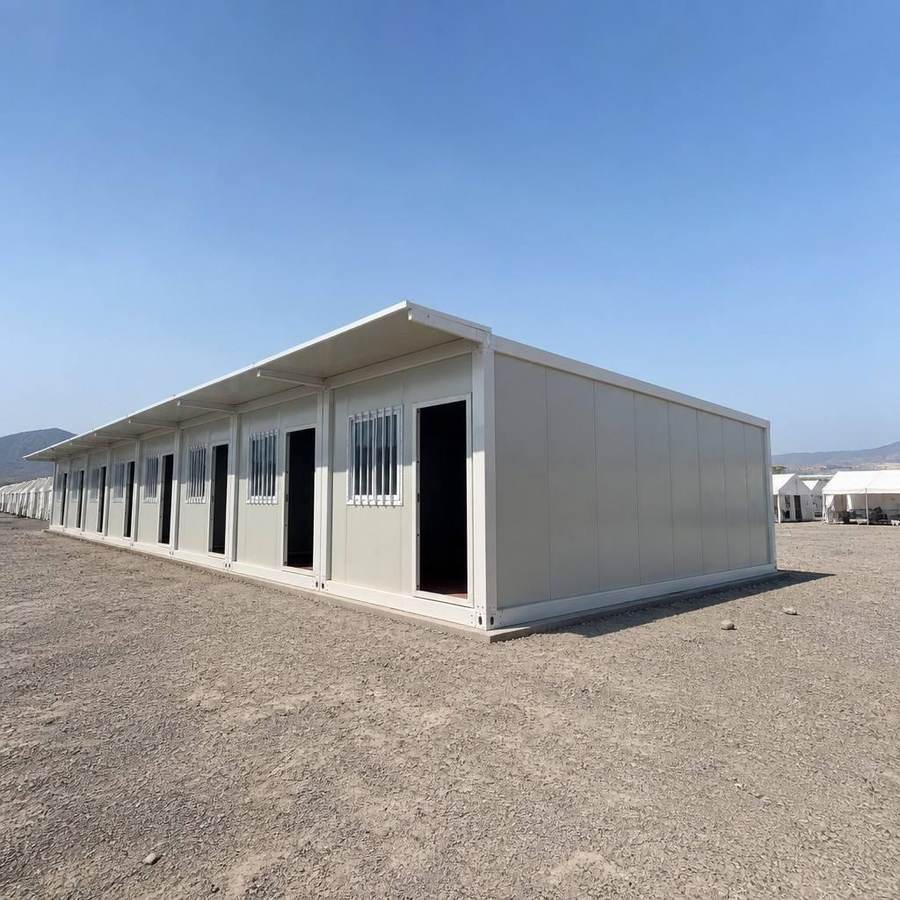

Our Prefabricated Container House is a factory-built, modular living unit engineered for rapid deployment across construction, tourism, commercial and emergency-resettlement projects. Every wall, floor and roof panel is manufactured under controlled factory conditions, then flat-packed for economical ocean freight. On arrival, a small crew assembles a complete unit in just a few hours without welding or heavy machinery, turning an empty site into a weather-tight, insulated and code-ready building. Combining a galvanized steel skeleton, an insulated sandwich-panel envelope and integrated electrical channels, this modular container house delivers a balance of durability, comfort and cost efficiency for buyers who need dependable space quickly and reliably.

Key Features
  • Prefabricated Container House Ready to Deploy: Delivered as a complete kit with pre-cut panels, pre-installed wiring ducts and pre-finished flooring, so the unit becomes usable immediately after a simple bolt-together assembly.
  • Galvanized Steel Frame Modular Home: The hot-dip galvanized steel chassis and columns resist rust, corrosion and deformation, giving the structure a long service life even in coastal, humid or high-salinity environments.
  • Rapid On-Site Assembly Structure: Two to three workers can erect one unit in two to four hours using only hand tools, dramatically reducing labour cost, crane hire and project downtime on remote sites.
  • Insulated Sandwich Panel Envelope: Fifty to one hundred millimetre fire-rated sandwich panels with EPS or rock-wool cores deliver reliable thermal insulation, sound damping and moisture resistance for comfortable year-round living.
  • Flexible Interior Layout: Interior partitions, doors, windows, kitchens and bathrooms can be configured to match your floor plan, allowing the same shell to serve as a dormitory, office, clinic, shop or family home.
  • Flat-Pack Shipping Efficiency: Knock-down panels stack compactly, cutting shipping volume by up to sixty percent and allowing several units to fit inside a single standard container, which lowers freight cost per building.
  • Eco-Friendly and Reusable: The modular design produces almost no construction waste, generates minimal site disturbance and allows the whole building to be dismantled, relocated and reused multiple times over its lifecycle.
Technical Specifications
ParameterSpecification
External Dimension6000 × 3000 × 2800 mm, customizable
Steel FrameHot-dip galvanized steel, 2.0–3.0 mm thickness
Wall PanelEPS or rock-wool insulated sandwich panel, 50–100 mm
Floor System18 mm cement board with PVC or laminate finish
RoofGalvanized steel sheet with waterproof insulation layer
Installation Time2–4 hours per unit, 2–3 workers
Floor Load Capacity≥200 kg per ² (floor load)
Wind Resistance≤12 wind level
Temperature Range−20°C to 60°C
Service Life10–15 years under normal use
Applications

This versatile modular building suits a wide range of real-world applications. On construction sites it serves as worker dormitories, site offices, canteens and secure storage rooms. In remote regions it becomes field camps, geological survey stations and oil-field accommodation. During natural disasters and public emergencies it provides fast temporary shelter, medical points and command centres. In the commercial and tourism sector the same shell converts into retail kiosks, ticket booths, tourist cabins, cafes and pop-up stores, while municipalities use it for temporary schools, clinics and border checkpoints where permanent construction is not practical or economical.

Packaging & Quality Assurance

Each Prefabricated Container House is packed flat with protective film, corner guards and steel strapping to prevent transport damage, and all hardware, fasteners and installation drawings are included in the shipment. Units are produced under an ISO 9001 quality system, and every batch undergoes dimensional, coating-thickness and water-tightness inspections before dispatch. We provide CE-compliant materials, a twelve-month structural warranty and full online technical support. Spare parts and optional accessories such as air conditioners, water heaters and solar systems can be supplied on request for a truly turnkey solution.
