Ⅱ. Key Points of Modular Design

Aerodynamic Structure

• Streamlined Throat: Adopts a divergent design (expansion angle 15°–30°) to reduce airflow resistance and enhance ventilation efficiency.
• Deflector System: Upward-inclined deflectors (angle 45°–60°) guide air flow upward for exhaust, preventing rainwater backflow while enhancing wind pressure utilization.

Prefabricated Installation

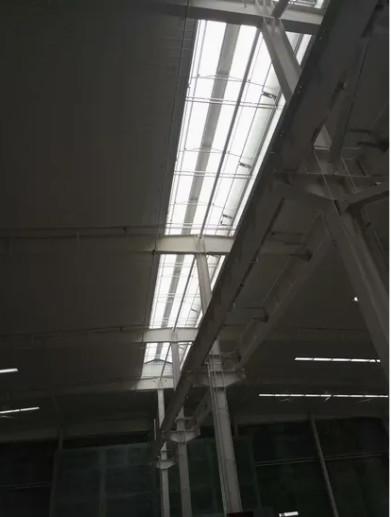

• The main body of the ventilator is modularly assembled in the factory (including framework, deflectors, and waterproof base), requiring only bolted connections to the steel roof purlins on site, increasing installation efficiency by 60%.
• Standardized interfaces adapt to different roof slopes (5°–30°) and can be integrated with roof components such as light strips and solar panels.

Safety-Enhanced Design

• Wind Uplift Resistance Structure: Uses a dual fixation system of hidden clamps + penetrating bolts, with clamp spacing ≤300mm and bolt pull-out resistance ≥8kN.

Seismic Joints: Flexible connections (elastic gaskets) with the steel roof can withstand inter-story displacement of ±15mm, meeting the requirements of 8-degree seismic fortification.

Ⅲ. Application Scenarios and Selection Principles

(1) Typical Application Scenarios

Warehousing and Logistics Workshops

• Scenario Needs: Poor air circulation in high-shelf storage areas, prone to dust and storage odors accumulation.
• Solutions: Ventilators are evenly spaced along the roof ridge (spacing 6–9 meters), combined with low-level air inlets to form a "bottom-in, top-out" air circulation.
•

Mechanical Processing Workshops

• Scenario Needs: Welding, cutting, and other processes generate oil fumes, metal dust, and heat.
• Solutions: Concentrated installation of large-throat ventilators (throat ≥4 meters) above heat sources (e.g., directly above processing stations on the roof) to rapidly exhaust pollutants.
•

Food Cold-Chain Workshops

• • Scenario Needs: High humidity in cold storage and processing areas requires control of condensate and mold growth.
  • Solutions: Select anti-condensation ventilators (with built-in insulation layers, surface temperature ≥ dew point temperature), paired with humidity sensors to interlock and control auxiliary fans
