Specifications
Brand Name :
KXD STEEL STRUCTURE
Certification :
GB, ISO, TUV, CE, SGS, BV
Place of Origin :
Qingdao,China
MOQ :
100 Pieces
Price :
US$8.00-12.00
Payment Terms :
L/C,T/T
Supply Ability :
50000 Pieces Per Month
Packaging Details :
Package size:12000.00mm *2300.00mm *2300.00mm
Delivery Time :
30 Days
Usage :
Residential and commercial houses - Foundation support,Solar panel ground installation system,Wind turbines,Transmission towers
Surface Treatment :
Hot Dip Galvanized
Size :
Customizable
Steel Type :
Q355
Flexibility :
Able To Adjust To Changing Soil Conditions
Description
Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates
Basic Info.
Steel Type Q355 Surface Treatment Hot DIP Galvanizing with an Average of Over 80 μm
Transport Package Pallet and Carton Usage Construction Engineering,Fixed Orchards And Greenhouses,Billboards And Street Lamp Foundations
Certification API, ISO, CB, CE, SGS, BV HS Code 730110
Pipe Diameter Customizable(2-7/8",3-1/2",4-1/2",etc) Trademark KXD STEEL STRUCTURE
Plate Diameter Customizable(8",10",12",14",etc) Production Capacity 50000 PCS/Month
Length

Optional(60",84",120",etc)

 Origin Qingdao,China


Packaging & Delivery


Package Size
12000.00mm * 2300.00mm * 2300.00mm
Package Gross Weight
27000.00kg

Product Description
Spiral piles are a new type of foundation construction material. They are usually made of metal pipes, with spiral blades welded on the surface, and are inserted into the ground through special equipment to replace traditional concrete foundations. Their structure mainly consists of a hot forged pipe body, spiral blades, and connecting flange plates. The working principle of spiral piles is similar to that of wooden screws. They are rotated to insert the pile body into the soil, forming a foundation that can withstand vertical and horizontal loads.
Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates
Spiral piles, as a new type of foundation building material, have gained wide application in various fields due to their advantages such as fast construction, low cost, strong environmental friendliness, strong adaptability and ease of relocation. With the continuous advancement of technology and the enhancement of environmental awareness, the application prospects of spiral piles will be even broader.
Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates
The performance advantages of spiral piles
1. Rapid and efficient construction
The installation process of spiral piles is simple, and it usually takes only a few minutes to complete the construction of one pile. Its construction is not restricted by seasons and weather conditions, and it can be carried out normally even in harsh climates such as rain, snow, or freezing.
Compared with traditional concrete foundation construction, spiral piles do not require complex procedures such as ground leveling, waste soil disposal, and excavation, significantly shortening the construction period.
2. Low Cost
The materials and labor costs for spiral piles are relatively low. Compared to the cumbersome processes of formwork erection, steel bar binding, pouring, curing, dismantling, and base soil backfilling for concrete foundations, spiral piles only require positioning and driving, which can save approximately two-thirds of the cost.
3. Highly Environmentally Friendly
During the construction of spiral ground anchors, there is no need for on-site concrete pouring, which reduces the generation of construction waste. The installation process is basically free from vibration and noise, causing minimal damage to the environment. Moreover, spiral ground anchors can be recycled and can be reversed and pulled out after use, leaving no underground obstacles.
4. Strong adaptability
Spiral piles have a strong adaptability to soil conditions and can be used in various geological environments, including soft soil, expansive soil, frozen soil, and collapsible soil, etc. Their unique blade design enables them to better utilize the soil's bearing capacity.
5. Strong bearing capacity
The spiral pile foundation achieves excellent tensile resistance and insertion grip through the contact between the spiral blades and the soil. Its bearing capacity is closely related to the installation torque. The bearing capacity of the pile can be quickly verified using a torque testing device.
6. Easy to relocate and dismantle
The installation and removal of spiral piles are both very convenient. If relocation or dismantling is required, simply reverse and pull out, which makes them highly flexible for use in temporary buildings and facilities.
Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates
Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates
Applications of spiral piles

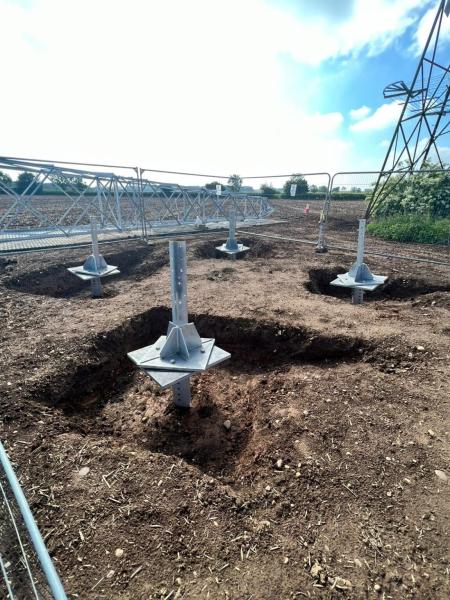

1. Solar photovoltaic power stations
Spiral piles are widely used as the foundation for the supports of solar photovoltaic power stations. They can withstand the weight of the solar panels and wind loads. Their construction is fast, environmentally friendly, and highly adaptable, making them particularly suitable for use in complex terrains and under various climatic conditions.
2. Wind Power Generation
During the installation of wind turbines, spiral piles serve as the foundation support for the wind generators, capable of withstanding strong winds and the weight of large turbines, ensuring the stable operation of the wind power equipment.
3. Temporary Facilities
Spiral ground anchors are widely used for supporting temporary facilities such as tents and pavilions at construction sites, campsites, and music festivals. Their ease of installation and removal makes them an ideal solution for temporary foundations.
4. Transportation Facilities
In the construction of transportation facilities such as roads and railways, spiral piles are used as the supporting foundation for traffic facilities like guardrails and signs, ensuring traffic safety.
5. Garden Landscape
In the design of garden landscapes, spiral posts are used to support outdoor seating, lamp posts, flower racks and other landscape facilities, which are both stable and aesthetically pleasing.
6. Foundation of Buildings
Spiral piles can be used as the foundation for modular buildings, log cabins, and other small structures. Their construction is fast, costs less, and is environmentally friendly, making them particularly suitable for use in complex terrains and temporary buildings.
7. Other fields
Spiral piles can also be applied to riverbank reinforcement, bridge foundations, slope support and renovation projects. Their advantages in special geological conditions are particularly prominent.
Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates

Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates




Product Parameters
The spiral piles we offer can be customized in various sizes according to your specific requirements. Whether it's for large industrial facilities, small residential buildings, or temporary projects, we can ensure that the size of the spiral piles perfectly matches your project. Through precise size customization, you can maximize the utilization of land resources while ensuring the stability and reliability of the foundation.
Size parameter
• outer diameter: there are a variety of specifications, including 76mm, 89mm, 146mm, which are usually between 60mm-3000mm, and different outer diameter can be applied to different load requirements and conditions. The larger the outer diameter, the stronger the bearing capacity is usually.
• inner diameter: generally between 20mm-2500mm, such as 70mm, the size of the inner diameter will affect the weight and strength of the pile.
• length: the range is usually between 1000mm-3000mm, such as 1200mm, 1500mm, 1800mm, 2000mm, 2000mm, 2200mm, 2500mm, 3000mm, etc., the longer the length, the higher the bearing capacity of the ground pile is generally, which can be selected according to the actual usage scenarios and load requirements.
• wall thickness: generally between 1.0mm-60.0mm, there are 3mm, 4mm, etc. The thicker the wall, the greater the strength and stiffness of the ground pile, and the more corrosion resistance may be.
• spiral pitch: there are 50mm, 75mm, 100mm, 120mm, etc., and the size of the pitch will affect the contact area and friction of the ground pile and the soil, which in turn affects its bearing capacity.
• spiral thickness: generally between 3mm-6mm, such as 3mm, 4mm, 5mm, 6mm, etc., the greater the spiral thickness, the higher the strength of the spiral blade, the more effective load transfer.
• spiral outer diameter: for example, 176mm, 216mm, 250mm, etc., the larger the spiral outer diameter, the larger the contact area with the soil, and the corresponding bearing capacity is improved.
Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates
Material parameter
• pile material: steel steel or alloy steel with q235b, q355b, q420 and other materials, which have high strength and toughness and can withstand large loads.
• surface treatment: hot dip galvanizing is the most common surface treatment method. The average thickness of hot dip galvanizing layer is usually between 60 microns to 120 microns, such as 70 microns, 80 microns, 85 microns, etc. Hot dip galvanizing can effectively improve the corrosion resistance of the ground pile and extend its service life.
Performance parameter
• tensile strength: under different geological conditions, the drawing force of spiral pile can bear is different, and generally varies from thousands of cows to dozens of thousands of cows, such as 20kn-30kn in clay, 15kN-20kN in sand, etc., and its size is related to the size, material, surface treatment and geological conditions of ground pile.
• compressive strength: the vertical pressure that can withstand is usually large, and can generally reach dozens of cows to hundreds of thousands of cows or even higher, which enables spiral piles to reliably support various structures.
• shear strength: when subjected to shear force, it can withstand certain shear force to ensure the stability of the connection between the site pile and surrounding soil or rocks, and its value varies with geological conditions and ground pile parameters.
Other parameters
• flange diameter: 200mm, 220mm, etc., flange is used to connect with photovoltaic support or other structures. Its diameter will affect the strength and stability of the connection.
• applicable geological conditions: for example, non-petrochemical soil, clay, gobila, gravel, sand, etc., spiral ground piles of different specifications and materials are suitable for different geological conditions.
• implementation standards: common GB/T 13912, din EN ISO 1461, etc. These standards set out technical requirements for the production, processing, surface treatment of spiral pile to ensure the quality and performance of products.
Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates


Company Profile

Qingdao KXD Steel Structure Co.,Ltd is one subsidiary for XINGUANGZHENG Group focusing on structural steel building construction related business, engineering,supply, fabrication, delivery and installation for whole buildings construction, meanwhile, we also do steel foundation accessories fabrication, foundation anchor, ground screws,helical pile.

Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates

Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates

Our Advantages

Professional Customization: Based on your project requirements, we provide precise size and performance customization to ensure the product is perfectly compatible.

Reliable Quality: A strict quality control system is in place, from raw material procurement to finished product inspection, with each step being strictly controlled to ensure product quality.

Thoughtful Service: Our professional technical team offers you one-stop services from product consultation, scheme design to installation guidance, allowing you to feel at ease and save effort.

Rich Experience: With extensive practical experience in spiral pile foundations, we have successfully applied to multiple large-scale projects and accumulated valuable construction and application experience.


Packaging&Shipping Detailed Photos

As a professional manufacturer of spiral pile anchors, we are well aware of the significance of packaging and transportation in ensuring product quality. In the packaging stage, we use sturdy customized packaging to protect the spiral pile anchors from damage during transportation, and we also take measures to shield the sharp parts to prevent scratches. Regarding transportation, we collaborate with high-quality logistics providers to offer nationwide fast delivery services, and we purchase transportation insurance for each batch of goods to ensure that customers can receive the products safely and on time.

Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates

Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates


Erection


As a professional manufacturer of helical piles, we are well aware of the significance of building a stable and efficient foundation structure for our customers. Our helical piles are made of high-quality steel and crafted through exquisite techniques, featuring outstanding load-bearing capacity and corrosion resistance. During the installation process, they are easy and quick to operate, requiring no complex machinery. Only professional installation tools are needed to effortlessly screw them into the ground. Whether it's for outdoor fences, billboards, solar panel supports or temporary buildings, our helical piles can quickly provide stable support, saving time and labor costs. Meanwhile, we offer detailed installation guidance and full technical support throughout the process to ensure that customers can easily complete the installation, making your project stable, reliable and long-lasting.

Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates

Prefabricated Galvanized Round Or Square,Tubular Or Bar Steel Shafts With Round Helix Plates


If you are interested in our hot-dip galvanized helical piles,please feel free to contact with us,we are very glad to serve you.
