Specifications
Brand Name :
KXD
Model Number :
1.5"
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
500 pcs
Price :
10-25USD/pc
Payment Terms :
,T/T
Supply Ability :
90000 pieces per Month
Delivery Time :
3-6Weeks

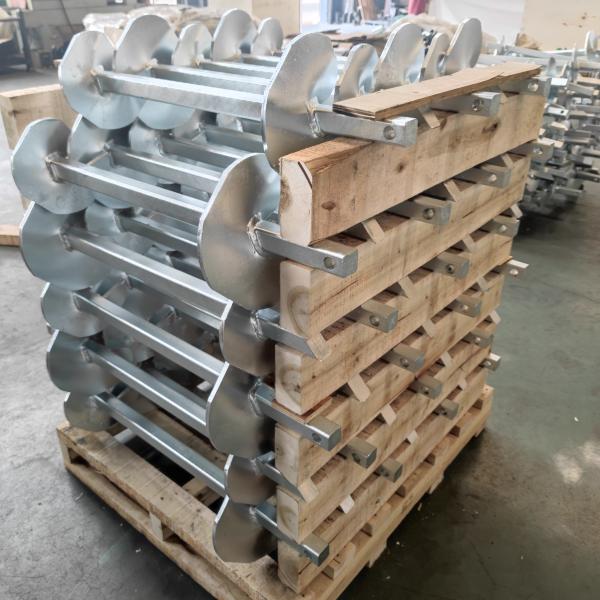

Packaging Details :
Pallet
Material :
85 KSI
Surface :
hot dipped galvanized or painting
Package :
pallet
Port of Loading :
Qingdao
Supply capacity :
90000 pieces per Month
Description

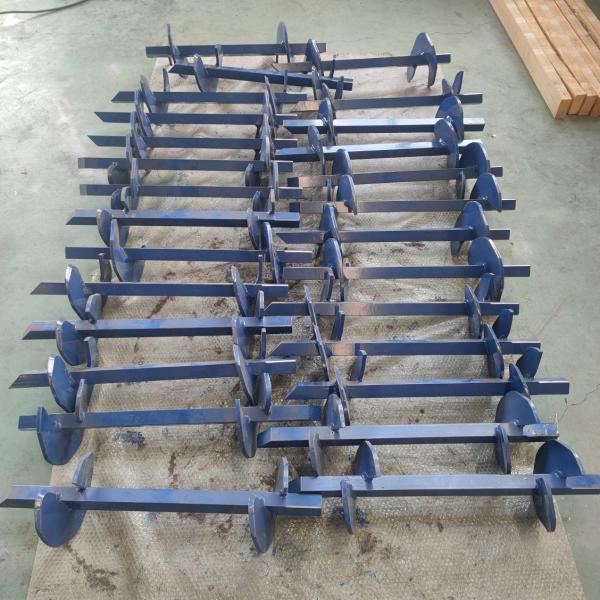

Deep Foundation Solid Square Shaft Round Corner Helical Pile for Steel Tower Structure

Square shafts consist of solid square sections ranging from 1.5 inches to 2 inches in size. These piles are primarily designed for ultimate loads between 100 and 650 kN (25-150 kips), although they have been tested to withstand loads exceeding 900 kN (200 kips) in specific circumstances.

Square shaft piles are typically utilized in small to moderate loading applications and offer excellent resistance to tension. They are particularly effective in penetrating dense and cobble-rich soil compared to their helical pipe pile counterparts. However, they exhibit lower resistance to buckling and provide minimal lateral load resistance.

In scenarios where tension is the primary concern, Square Shaft Piers are highly recommended. These piers offer several advantages over standard square shaft anchors, including enhanced stability and greater load-bearing capacity. Their design allows for more efficient installation and better performance in challenging soil conditions, making them a superior choice for applications requiring robust tension support.

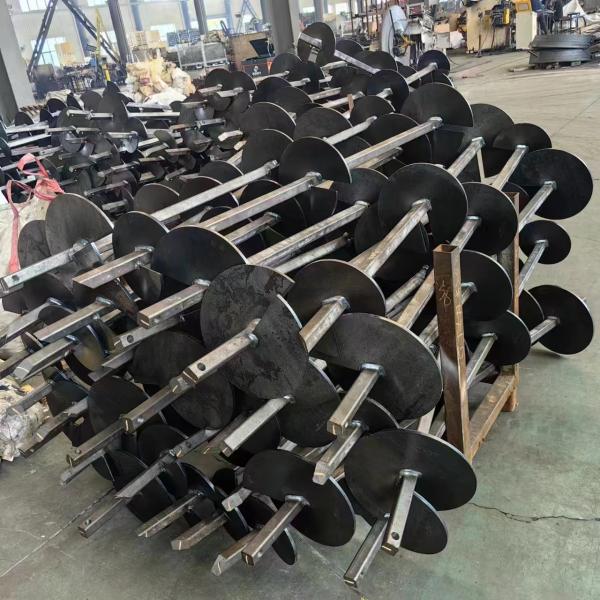

Shaft

1.5 inch RCS bar per 1530M or 1045M

Minimum Yield 85 Ksi

Minimum Tensile Strength 100 Ksi

Torque Strength Rating

= 6,700 Ft-lb

Load To Torque Ratio (Kt)

= 10

To Attach To An Extension

Use one 7/8″ A325 Gr. 5 Bolt

Available Nominal Lengths

5′, 7′ and 10.5’

Available Helix Size

8″, 10″, 12″, 14″ & 16″

Helices

A36 Steel with pitch of 3.0″ ± 0.25″
