Specifications
Brand Name :
KXD
Certification :
CE,ISO,SGS,BV
Place of Origin :
Qingdao,China
MOQ :
100 sqm
Price :
usd 80-100 per sqm
Payment Terms :
,T/T,L/C
Supply Ability :
60000 tons/month
Delivery Time :
25 day
Packaging Details :
seaworthy package
Model Number :
KXD-S53
Advantage :
Insulation ,water-proof ,easy installed
Material :
Steel, Concrete, Wood, Composite Panels
Connect Method :
Welding or Bolt
Main Frame :
Galvanized Square Tube
Connection :
Blots and Screws
Flexibility :
Easy to Expand and Reconfigure
Description

Cheap Prefabricated Workshop Prefab Steel Structure Storage Modular Warehouse Metal Construction Shed Storage Building


Item
Prefab steel structure workshop,warehouse,hangar ,hall building
Model
Single slope, double slope, multi slope. Single span, double-span, Multi-span Single floors, Double floors
Main steel grade
Q235B, Q345B
Column & Beam
Welded or Hot rolled H-section steel, constant cross-section or variable cross-section. H 160~2000*150~800*6/8/10*6/8/10/12mm.
Two coats of primer and finish paint.
Wall & Roof
EPS, Fiber glass, Rockwool, PU sandwich panel 50/75/100mm, and corrugated steel sheet 0.5~0.8 mm
Wall & Roof purlin
C / Z channel steel, Hot dip galvanized. C80~C300, Z100~Z300
Bracing
X or V type Steel round bar, Angle steel and tubes, painted or galvanized.
Strut
Steel round pipe and tube, and angle steel, painted.
Sag rod
Steel round bar, galvanized.
Eave Gutter
Galvanized / Stainless steel sheet
Downspout
UPVC pipe Diameter 110mm
Trim & Flashing
Bended color steel sheet
Door
Roll-up, Sliding, Lifting and Hinged door etc
Window
Plastic steel, Aluminum alloy window etc
Canopy
Color corrugated steel sheet, Sandwich panel
Skylight
Polycarbonate sheet 0.8/1.2mm
Roof ventilation
Monitor or natural ventilator
Bolt
Foundation anchor bolt 10.9S 8.8S, Commercial bolt 4.8S, Expansion bolt.
Accessories
Screw, Rivet, Foam closures, Sealant, Ventilator, etc

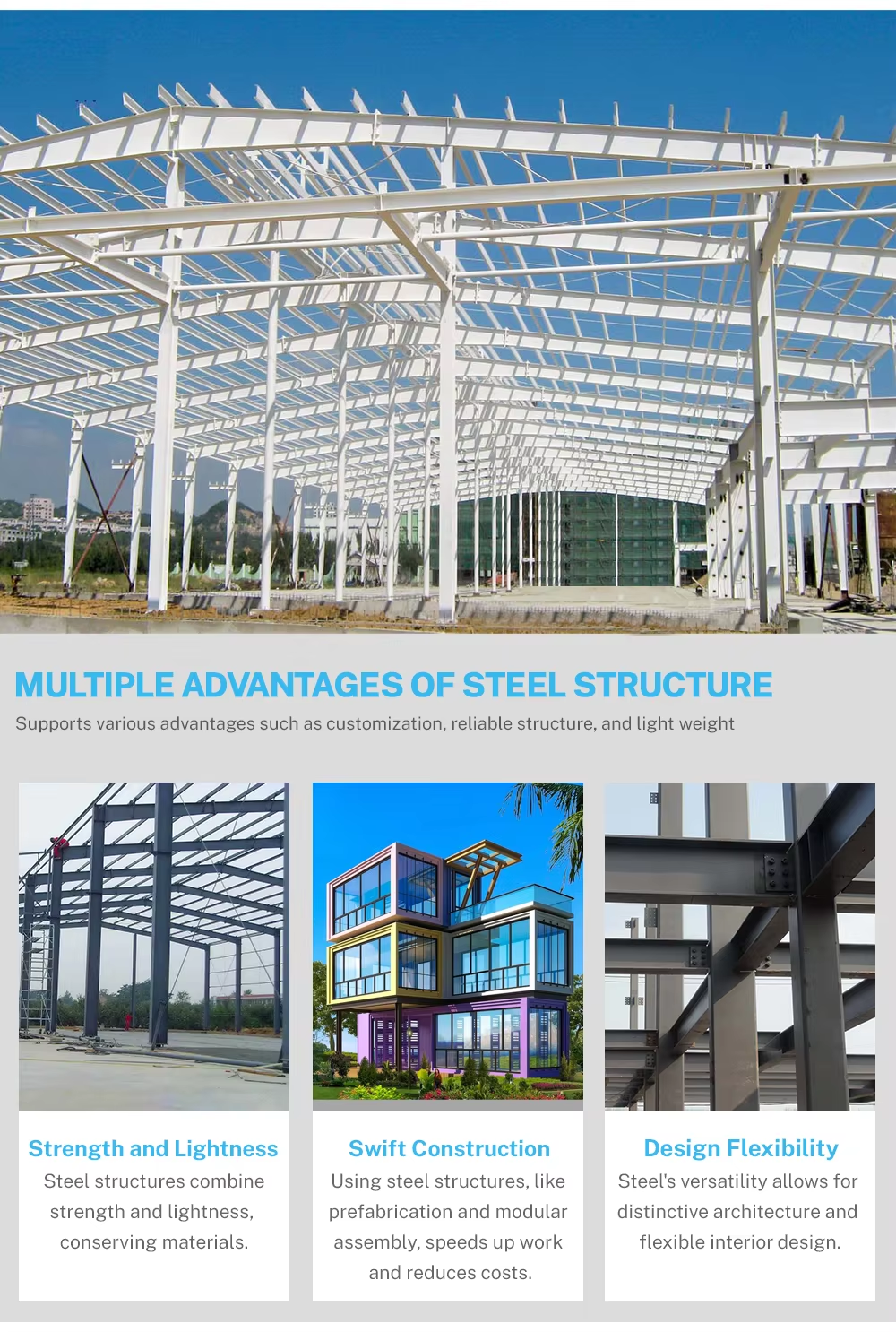

Steel warehouse construction has become a popular choice for large warehouse needs. Steel-framed warehouses are known for their vast and spacious interiors. Building a steel warehouse can reduce construction costs, making it more profitable for factories and large warehouses compared to traditional construction methods.
This prefabricated steel warehouse structure is unique because it can be built quickly and easily.


Steel warehouse construction using steel offers many advantages, making it a popular choice for various industries. Here are some of the benefits:


1. High Strength and Durability
Steel construction provides excellent strength to withstand heavy loads, extreme weather conditions, and daily warehouse operations. The durable steel is also highly resistant to corrosion and fire, providing additional protection for the goods stored inside the warehouse.


2. Fast Construction Process
The construction process using steel is relatively quick because steel components can be cut, shaped, and assembled off-site. This reduces on-site construction time and allows for faster installation.


3. Design Flexibility
Steel warehouse construction allows for high design flexibility, including wide spans without additional columns. Large storage space requirements can rely on the more flexible steel warehouse construction. The warehouse can be designed to accommodate specific storage needs and equipment like large racks or cranes.


4. Long-Term Use
Steel has a long service life with low maintenance costs. It is also a reusable material once dismantled.


5. Easy Adaptation and Expansion
Steel warehouse construction is easy to modify or expand without the need for extensive construction. This flexibility allows for adaptation to business growth or the addition of new facilities.


6. Earthquake Resistance
Steel frames have the ability to absorb seismic energy, making them a safe choice in earthquake-prone areas. Their structural flexibility allows steel structures to withstand lateral forces that often occur during earthquakes.


7. Good Fire Resistance
Steel construction for buildings is generally fire-resistant, such as the LGS material from Tradecorp, which uses high-quality cold-formed steel that is fire-resistant. This material prevents the spread of fire and ensures the safety of goods and products.
