Customized Hot Selling Steel Helical Piles For House Foundation
Customized Hot Selling Steel Helical Piles For House Foundation
Customized Hot Selling Steel Helical Piles For House Foundation
Customized Hot Selling Steel Helical Piles For House Foundation
Customized Hot Selling Steel Helical Piles For House Foundation
Customized Hot Selling Steel Helical Piles For House Foundation
Specifications
Brand Name :
kxd
Model Number :
kxd-9346
Certification :
ISO
Place of Origin :
Qingdao
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS/month
Delivery Time :
two months
Packaging Details :
Seaworthy Package
Material :
steel
Color :
Silver
Metal :
Q345
Type :
Helical Pile
Service :
Design, Production, Transportation, Installation
Surface Treatment :
Hot DIP Galvanizing
Description

Customized Hot Selling Steel Helical Piles For House Foundation


Product description

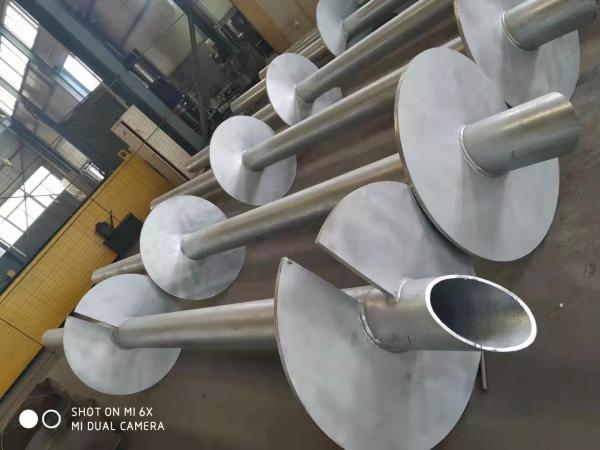

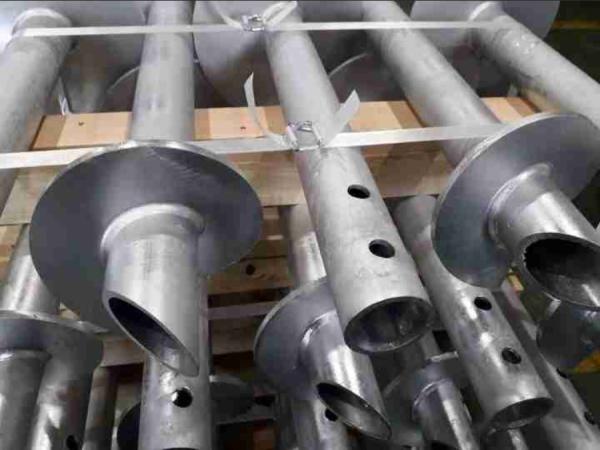

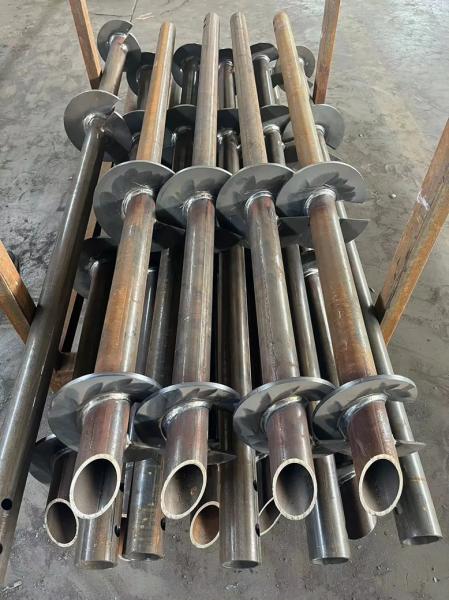

The spiral pile is a pipe pile with spiral blades welded on the surface of a hot-forged metal pipe, which is mainly composed of a hot-forged pipe body, a spiral piece and a connecting flange. The spiral blades and flanges are welded to the pipe body, and then the integral hot-dip galvanizing is carried out. The special spiral pile equipment is screwed into the ground to replace the original concrete foundation, and the top is connected with the load.


Specifications and parameters

Shaft : ASTM A500 Grade B or C
Ø2.375 x 0.19" Wall Ø2.875 x 0.203"/0.217'' Wall Ø3.5 x 0.254" /0.300Wall Ø4.5 x 0.290"/0.337 Wall Ø5.5 x 0.362" Wall Ø6.625 x 0.562" Wall etc. Leader Length :3ft 5ft 7ft 10ft etc. Or Based on the customer's request.
Helix Plates: ASTM A572 Grade 50 x 3/8" Thick (Standard)
ASTM A572 Grade 50 x 1/2" Thick (Available)
OD:8''/10''/12''/14'' etc. Or Based on the customer's request.
Shaft Coupling: Ø3.500" x 0.281" Wall
ASTM A513 Type 5
Shaft Coupling Hardware:
Ø3/4" Grade 8 Bolts with Nuts
Or Based on the customer's request.
Extension Length 3'' 5'' 7'' 10'' Or Based on the customer's request.
Finish:
 Available plain or with hot-dipped galvanized
coating following ASTM A123

Notes: Different materials and specifications can be customized according to your demands.


Product superiority

High-capacity deep foundation solutions

Systems can be installed in areas of limited or tight access

Load tests can be completed immediately following installation

Installations do not generate spoils

Systems are designed to achieve design depth and capacity

All-weather installations


Application Fields of Products

Helical Piles are used for new construction and to support existing structures. They are designed for applications in expansive soils, high water tables, fill areas, and other areas where unstable soils require a deep foundation. In compression, they are used as footers and in tension, they may be used to support retaining or foundation walls. Helical piers are round or square, tubular or bar steel shafts with round helix plates welded.
