Specifications
Brand Name :
kxd
Model Number :
KXD-SSB54
Certification :
SGS / ISO/ BV
Place of Origin :
Qingdao
MOQ :
200 Square Meters
Price :
US$50.00-120.00
Payment Terms :
L/C,T/T
Supply Ability :
5000ton/Month
Delivery Time :
e: 30days
Packaging Details :
pallet
Visit :
Workshop visit and check available
Exterior Wall Panel :
Sandwich Panel
Frametype :
Steel frame
Special Use :
High-strength Steel Plate
Structure Type :
Frame
Length :
1-12m or customized
Web Width :
7-28mm
Turnkey Project :
Acceptable
Application :
Warehouse
Description

Cost-Effective Steel Structure Warehouse Prefabricated Industrial Workshop Building


1. Definition

A cost-efficient prefabricated steel-frame construction, composed of standardized prefabricated components for on-site assembly, tailored for industrial warehousing and workshop operations with optimal cost-performance ratio.


2. Core Advantages & Benefits

  • Cost-saving

    Lower material and labor costs; shortened construction cycle reduces overall project expenditure.
  • Durable & robust

    High load-bearing capacity, corrosion-resistant, service life up to 30–50 years.
  • Rapid installation

    Prefabricated parts allow on-site assembly within weeks, vs. months for concrete buildings.
  • Flexible & expandable

    Easy internal layout adjustment; supports later expansion and renovation.
  • Low maintenance

    Minimal upkeep needed, cutting long-term operational costs.
Main steel frame
H section steel beam and columns,painted or galvanized,galvanized C section or steel pipe
Secondary frame
Hot dip galvanized C purlin,steel bracing,tie bar,knee brace,edge cover etc.
Roof panel
EPS sandwich panel,glass fiber sandwich panel,rock wool sandwich panel,and PU sandwich panel or steel sheet
Wall panel
Sandwich Panel or Corrugated Steel Sheet
Tie Rod
Circular Steel Tube
Brace
Round Bar
Knee Brace
Angle Steel
Drawings & Quotation:
(1) Customized design is welcomed.
(2) In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather. We will quote for you promptly.


Structure
Part
Specification
Main Structure
Frame Column and Beam
Q355B H/I Section & As drawings
Welding
Automatic Submerged Arc Welding
Rust Removing
Shot Blasting
Surface Processing
Coating or Galvanized
High Strength Bolt
Grade 10.9
Secondary Structure
Purlin
C/Z Purlin Size from C120-C320,Z100~Z300,
Angle Brace
Q235B L-Steel
Cross Brace/X Brace
Q235B Round Pipe
Tie Bar
Q235B Round Bar
Roof System
Roofing Material
Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm
Skylight Panel
1.2mm FRP
Gutter
Steel Gutter Galvanized/Coated 2.0mm-3.0mm
Rainspout/Down Pipe
PVC Pipe
Wall Material
Wall System
Wall Material
Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm
Accessories
Sealant, Self-tapping Screw etc
Edge Cover
Color Steel
Ventilator
Unpowered Axial-Flow Ventilator or Monitor Roof
Customizable
Door
Electric Rolling Door/Sliding Door/Access Side Door
Customizable
Window
Aluminum/PVC
Customizable
Crane
1-200 T
Customizable
Packing
Main steel frame without packing load in 40' OT;
Roof and wall panel load in 40' HQ!

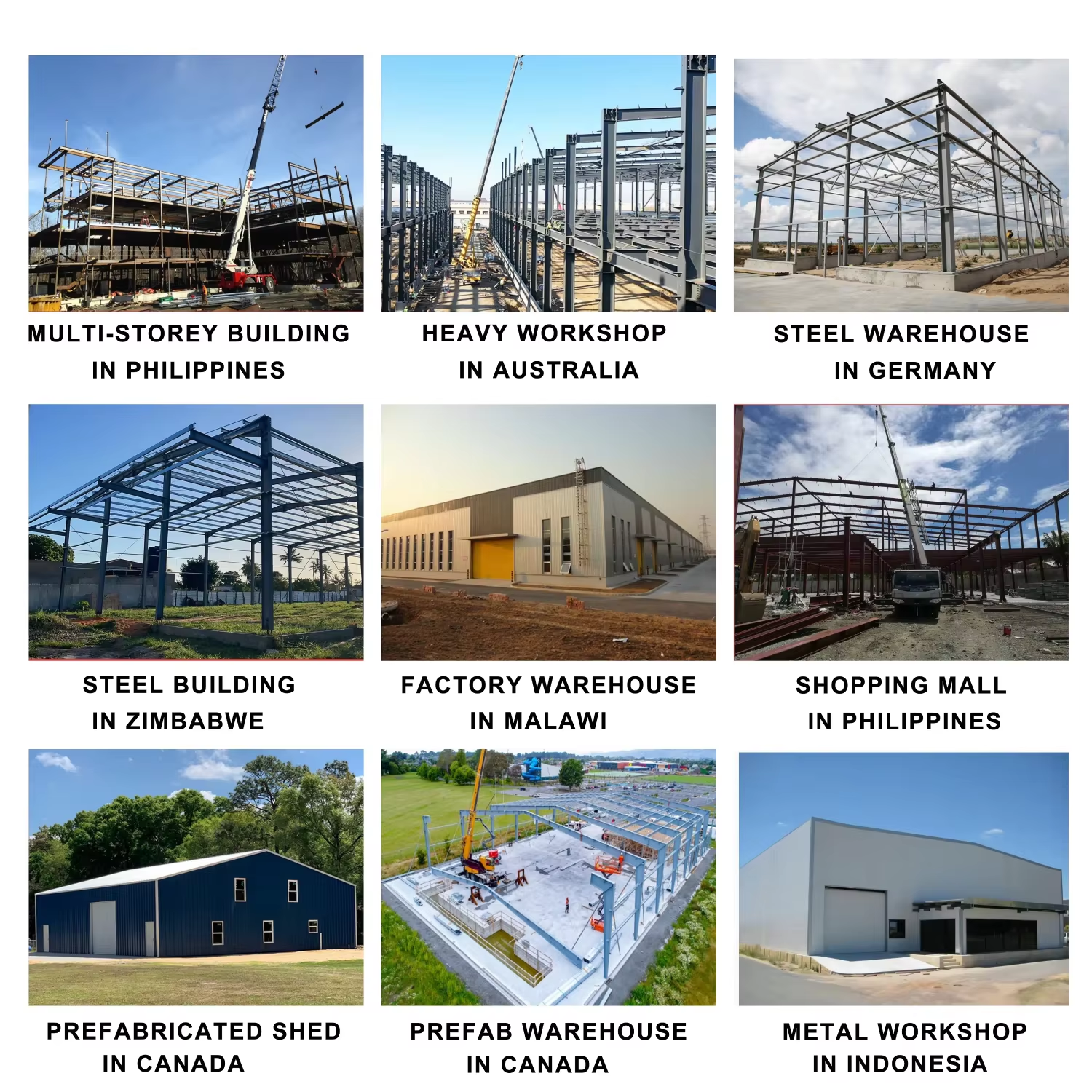

3. Typical Applications

  • Industrial raw material & finished product warehouses
  • Manufacturing workshops (machinery, electronics, textiles)
  • Logistics & distribution centers
  • Light industrial production bases
  • Temporary/permanent industrial auxiliary facilities

Cost-Effective Steel Structure Warehouse Prefabricated Industrial Workshop Building


Cost-Effective Steel Structure Warehouse Prefabricated Industrial Workshop Building

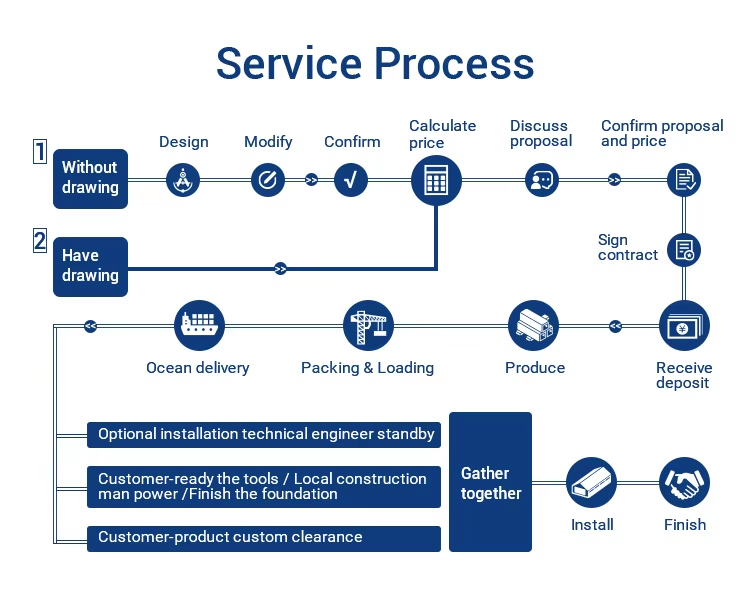

4. Supporting Services

  • Custom design

    Tailored solutions based on size, load, and usage demands.
  • Turnkey project

    One-stop service from design, production, installation to commissioning.
  • Component supply

    Provision of prefabricated steel beams, columns, roof panels, and wall panels.

Cost-Effective Steel Structure Warehouse Prefabricated Industrial Workshop Building

Cost-Effective Steel Structure Warehouse Prefabricated Industrial Workshop Building
