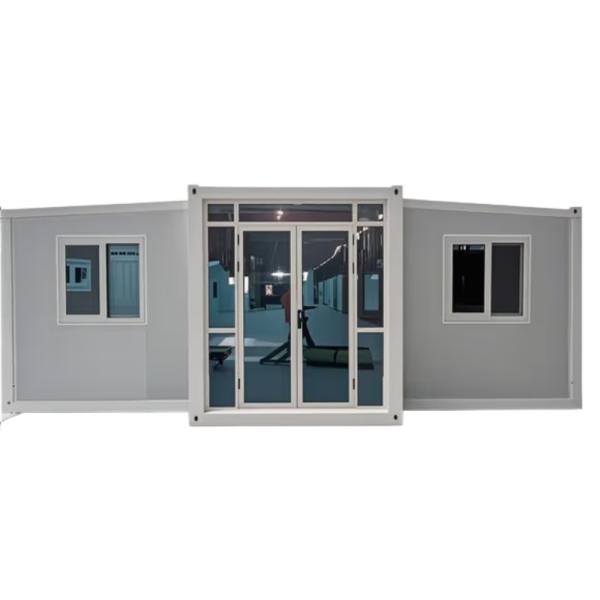

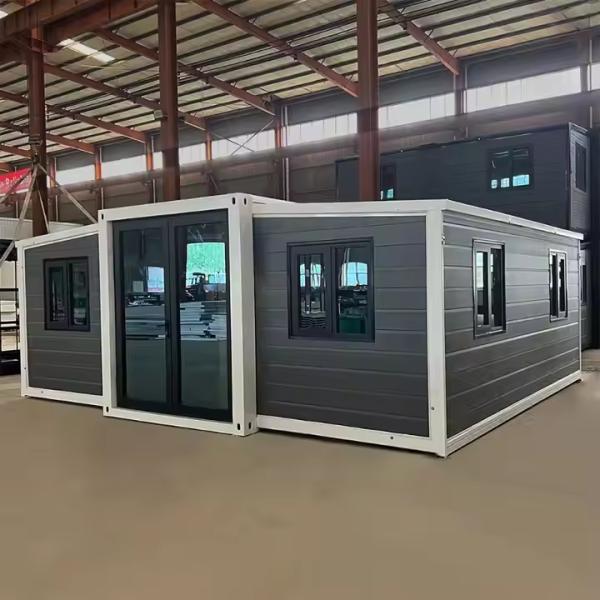

20ft Expandable Container House Dual Wings Mobile Villa for Park Courtyard Kitchen
Basic info.
Design Style | Modern | After-sale Service | Online technical support |
Material | Metal, Steel | Shape | Rectangle |
Feature | Breathable | Product Type | Container house |
Warranty | 1 year | Application | living container house, Villa, Leisure Facilities, Warehouse, Park, Courtyard, Outdoor |
Product name | Expandable Container | Color | Customized Colors |
Product Description
- Energy Efficiency: Adopts new energy, energy-saving lighting, composite walls and other energy/water/material/land-saving technologies for integrated design.
- Structure: Steel frame main structure + detachable insulated enclosure panels; connected by bolts, simple and quick to install.
- Assembly, Dismantling & Reusability: 20+ years service life, recyclable without damage; metal inner walls with strong stain resistance, ideal for secondary relocation.
- Layout: Modular design, freely combinable within container size to meet diverse space and shape needs.
- Application: Highly prefabricated modules, deployable quickly and economically for temporary, semi-permanent or permanent buildings.
- Safety & Comfort: Materials meet national standards (earthquake-resistant Grade 8, wind-resistant Grade 10, fire-resistant Class A); spacious, bright, well-ventilated, soundproof and insulated.
- Eco-friendliness & Energy Efficiency: Zero construction waste; 80% shorter construction period, 70% less labor, 98% less concrete loss, 70% less water use, and over 50% overall energy saving vs. traditional buildings.
- Easy & Quick Installation: Movable and reusable; standard steel-welded units connected by bolts.
- Integrated Customization: Factory-produced modular units (usable alone or combined horizontally/vertically, stackable); suitable for dormitories, offices, tourism camps, exhibition halls, hotels, schools, shops, etc
Product Parameters
20 foot expandable container house configuration parameters |
basic feature | Product model | 20 foot | House type | Open room |
Expand size | L5900*W6200*H2480 | Number of guests | 2-4 people |
Internal dimensions | L5640*W6040*H2040 | Electric power consumption | 12KW |
Folding size | L5900*W2200*H2480 | Total net weight | 2.8T |
area covered | 37 m² |
Frame structure |
name | content | Specifications |
Main frame (fully galvanized) | Top side beam | 80*100*2.5mm square tube |
Top beam | Bending part 2.0mm |
bottom side rail | 80*140*3mm square tube |
Bottom beam | Bending part 2.0mm |
Galvanized suspension head | Galvanized suspension head 210*150*160*4.0 |
Steel column | Bending part 3.0mm |
Side wing frame (fully galvanized) | Top frame | 40*80*1.5mm P-type pipe |
40*80*1.5mm square tube |
Bottom frame | 60*80*1.5mm square tube |
Folding hinges | 130mm galvanized hinges |
Overall framework protection coating | spray | Electrostatic spraying/direct plastic powder |
Box top | External roof panel | T50mm EPS color steel plate+Waterproof coating |
Internal ceiling panel | 200 type ceiling panel |
wallboard | Side walls, front and rear | T65mm EPS color steel plate |
Internal partition board | T50mmEPS color steel plate |
ground | Main frame | Fireproof cement fiber floor 18mm thick |
both wings | Bamboo plywood 18mm thick |
doors and windows | Plastic steel sliding window | 920*920mm |
Steel single door opening | 840*2030mm |
electrical system | Circuit breaker system | One 32A leakage protector;Voltage 220V,50HZ |
lamp | Bull 30*30 flat panel light,large ceiling light |
Socket | Standard international three hole and five hole sockets (socket standards can be configured according to customer needs) |
Lamp switch | Double open,single key switch(switch standard can be configured according to customer needs) |
wiring | 6 square meters of incoming lines,4 square meters of air conditioning sockets,2.5 square meters of regular sockets,and 1.5 square meters of lighting. (Circuit that meets certification requirements can be customized according to the country) |
Number of containers loaded | 2 sets in a 40 foot high container |




FAQ:
1. Q: What is the advantage of this container house compare with the traditional brick house?
A: Long lifetime;Green and energy saving, Good earthquake proof; Fast and easy to install etc...
2. Q: What is life span of your houses?
A: The durable for structure is more than 15 years .
3. Q: What is the maximum storey for this kind of house?
A: 3 storey due to the shipping container house loading limit.
4. Q: How many days needed to install the hosue?
A: A team of 3 experienced workers can install two per day.
