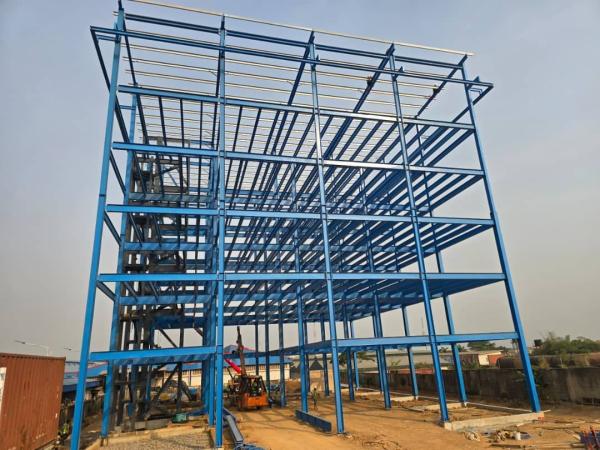

Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
Specifications
Brand Name :
KXD
Model Number :
KXD-SY5
Certification :
ISO/CE
Place of Origin :
Qingdao，China
MOQ :
200 sqm
Price :
usd 80-200 per sqm
Payment Terms :
L/C,T/T
Supply Ability :
200000 ton per month
Delivery Time :
30 days
Main Steel Frame :
H Steel, Z or C Purlin
Surface Treament :
Painted / Hot Dip Galvanized
Loadcapacity :
Designed according to local standards
Surface Treatmen :
Hot DIP Galvanized，Painted
Connection :
Bolts Connection
Size :
Customized
Description

Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application


Key attributes


Material Steel Application Museum, Shop, Toilet, Carport, Office, guard house, Garage Shed
Project Solution Capability graphic design, 3D model design, total solution for After-sale Service Online Technical Support, Onsite Installation, Onsite
Life span 50 Years Product name Prefabricated steel structure warehouse
certificate ISO 9001:2008 Surface

1. paint

2.galvanized
Window Plastic steel window/Aluminum Roof panel EPS/Rock wool sandwich panel or steel sheet
Door EPS/rolling/Sliding/Steel Wall panel EPS/Rock wool sandwich pane or steel sheet


Building Purpose:

we will recommend the best design for the purpose of the building
A. Warehouse/Storage
B. Factory
C. Agriculture Barn
D. Retail Store
E. Repair/Mechanic Shop
F. Office Space
G. Medical Warehouse

Product Details

Connection Method :

The columns are connected with the foundation by pre-embedding anchor bolt The beams and columns, beams and beams are connected with high intensity bolts.

Construction Advantage:

Could be designed according to different purpose and environment condition Long life span, could be more than 50 years Quick and easy install work and the more economic friendly Could be moved and recycle Strong seismic and wind resistance.

Structure
Part
Specification
Main Structure
Frame Column and Beam
Q355B H/I Section & As drawings
Welding
Automatic Submerged Arc Welding
Rust Removing
Shot Blasting
Surface Processing
Coating or Galvanized
High Strength Bolt
Grade 10.9
Secondary Structure
Purlin
C/Z Purlin Size from C120-C320,Z100~Z300,
Angle Brace
Q235B L-Steel
Cross Brace/X Brace
Q235B Round Pipe
Tie Bar
Q235B Round Bar
Roof System
Roofing Material
Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm
Skylight Panel
1.2mm FRP
Gutter
Steel Gutter Galvanized/Coated 2.0mm-3.0mm
Rainspout/Down Pipe
PVC Pipe
Wall Material

Wall System
Wall Material
Sandwich Panel-Insulated PU/Glasswool/Rock Wool/EPS 50mm-200mm
Accessories
Sealant, Self-tapping Screw etc
Edge Cover
Color Steel
Ventilator
Unpowered Axial-Flow Ventilator or Monitor Roof
Customizable
Door
Electric Rolling Door/Sliding Door/Access Side Door
Customizable
Window
Aluminum/PVC
Customizable
Crane
1-200 T
Customizable
Packing
Main steel frame without packing load in 40' OT;
Roof and wall panel load in 40' HQ!

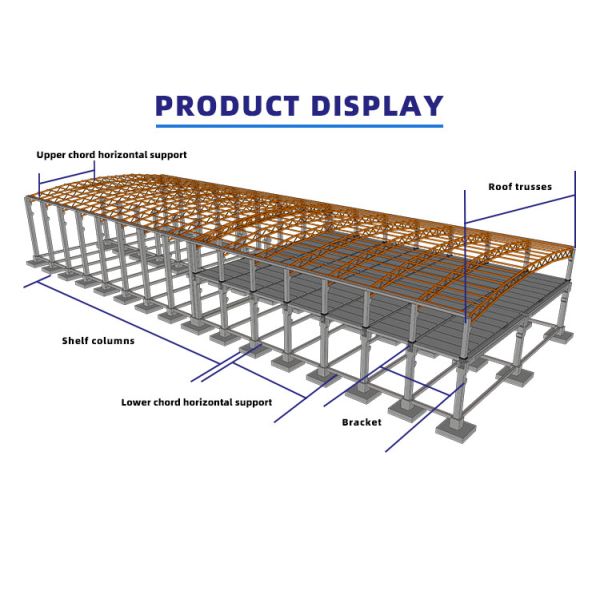

Steel structure building is a popular type of building system now, and its main load-bearing members are made of steel, including column, beam, foundation and roof truss, while roof and wall using variety of materials, such as sandwich panel, steel sheet, wire mesh, foam cement board, ALC board for different building application.


Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application


Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application


Why choose us


1,KXD is a comprehensive enterprise which integrates design, production, processing, logistics and transportation in the steel structure construction industry.

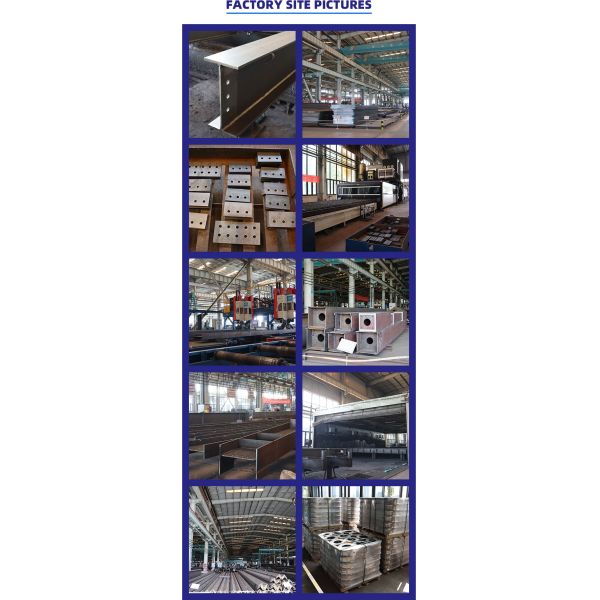

2,KXD has 26 production lines of various types of steel structures and plates, covering the production and processing of all materials in the steel structure construction industry.
3,Obtained ISO 9001 international quality management system certification, steel structure, color steel plate, integrated housing CE certification.


Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application



Multi-Storey Steel Structure Workshop Building for Factory & Warehouse Application
