Specifications
Brand Name :
KXD
Model Number :
KXD-SS7
Certification :
CE、ISO、SGS
Place of Origin :
Qingdao，China
MOQ :
500 sqm
Price :
USD 69-100 per sqm
Payment Terms :
T/T,L/C
Supply Ability :
500000 tons/month
Delivery Time :
25 days
Packaging Details :
steel pallet
Accessibility :
Public Transportation
Software :
CAD, Tekla, Sketchup, Pkpm, Bim
Shot Blasting Level :
SA 2.5
Design :
Customization
Surfacetreatment :
Galvanized / Painted
Roofing :
Sandwich Panel, Single Steel Sheet
Description

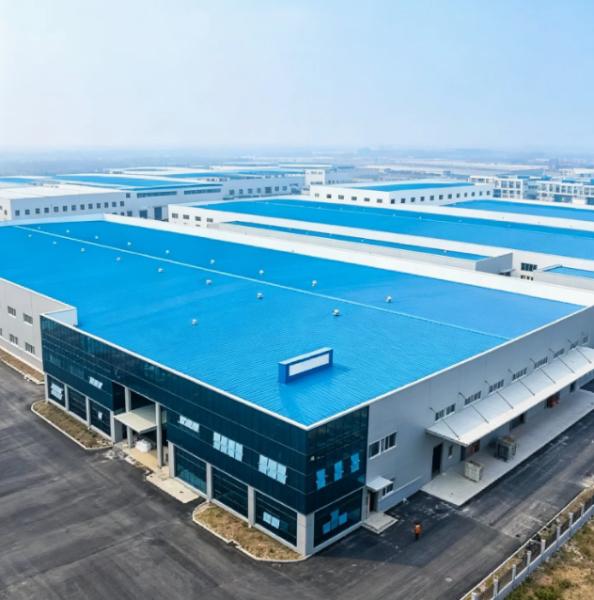

Modern Prefab Steel Structure Building
Steel structure garages primarily refer to structures whose main load-bearing components are made of steel, including steel columns, beams, frames, and roof trusses. All components are connected via welds, bolts, or rivets.
These garages feature excellent fire resistance, strong corrosion resistance, and flexible spatial layouts, while also offering high construction efficiency and cost-effectiveness. Through standardized design, modular construction, and intelligent upgrades, steel structure warehouses have become core infrastructure in modern logistics systems.
Applications
  • Large factories
  • Warehouses
  • Supermarkets
  • Entertainment centers
  • Modular steel structure garages

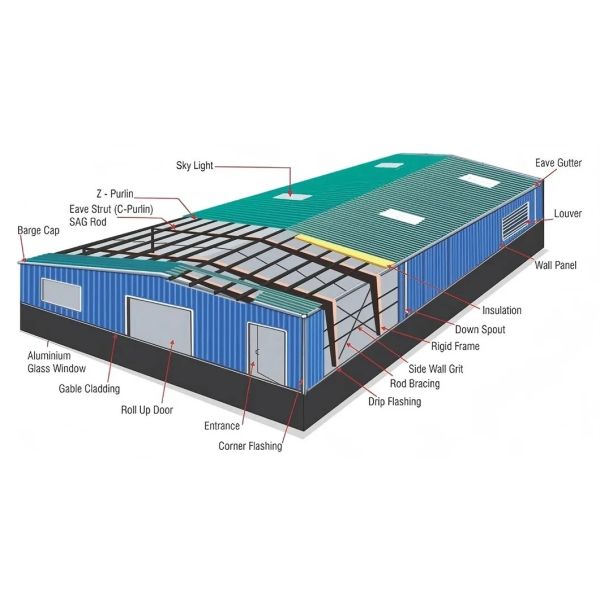

Product Name Steel Structure Garage
Main Steel Frame Beam Q235, Q355 Welded H Section Steel
Column Q235, Q355 Welded H Section Steel
Secondary Frame Q235 C and Z purlin
Knee brace
Tie Rod
Brace
Vertical and Horizontal Support

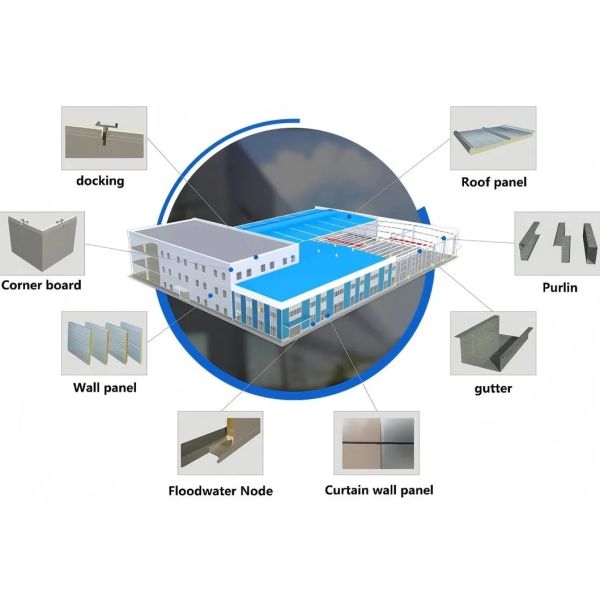

Maintenance System Wall Panel & Roof Panel (Sandwich Panel / Corrugated Steel Sheet)

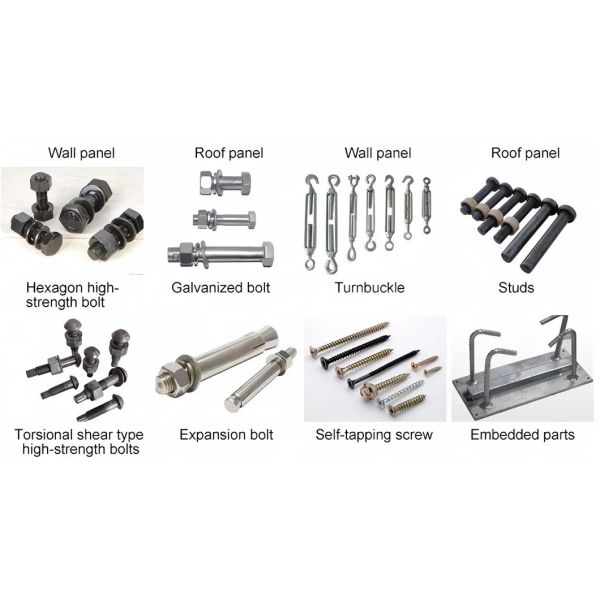

Accessories Window
Door
PVC Rainspout
Usage Warehouse Workshop Garages and so on
Size Customized
Customizable Design Prefabricated Steel Warehouse with Galvanized Surface Treatment for Large Span Construction
Our steel structure hangar is a high-performance, customizable building solution designed for aviation storage, maintenance, and related operations. Integrating advanced steel structure technology, prefabricated modular production, and international quality standards, it is widely used in civil aviation hubs, airbases, general aviation parks, private airports, aircraft maintenance centers, and air cargo logistics yards.
With the advantages of large span, fast construction, high durability, energy conservation, and environmental protection, it perfectly meets the strict requirements of global aviation infrastructure and becomes the preferred choice for overseas aviation projects.
Customizable Design Prefabricated Steel Warehouse with Galvanized Surface Treatment for Large Span Construction
Technical Specifications

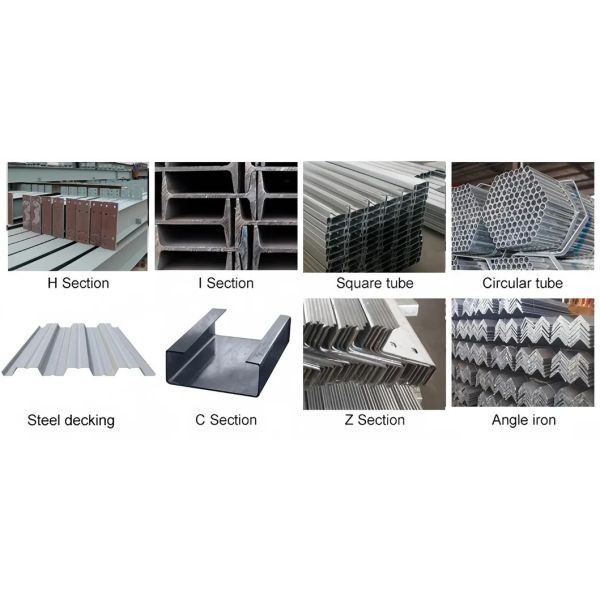

Component Assembly Code Material Specification Application
Steel Column GZ H Section Steel HI600-300-6-10*220, HI500-300-6-10*220, HI500-300-6-10*240 Main vertical support of steel shed/metal building, bearing vertical load
Steel Beam GL H Section Steel HI750-6-8*200, HI650-6-8*200, HI750-900-8-10*220 Horizontal load-bearing structure, connecting columns, bearing bending moments
Wind-Resistant Column KFZ H Section Steel HI800-6-10*230, HI350-6-8*200 Resist wind pressure, enhance building stability, adapt to harsh climates
Roof/Floor Purlin LT C Section Steel CC180-2.5-20*70, CC160-2-20*50, CC180-2-20*70 Support roof/floor panels, distribute load evenly
Horizontal Support SC Round Steel D20 Enhance horizontal stability of steel frame, resist lateral force
Tie Bar XG Steel Round Tube O114*3, O140*4 Connect components, maintain frame integrity
Pull-Rod LG Round Steel D12 Tension support, stabilize local structure
Diagonal Pull-Rod XLG Round Steel D12 Diagonal tension, resist lateral force, enhance stability
Awning Tie Bar YPXL Steel Round Tube O168*6 Support awning structure, bear awning load
Corner Bracing YC Angle Steel L63*4, L50*4 Reinforce corner joints, improve overall stability of the frame
Customizable Design Prefabricated Steel Warehouse with Galvanized Surface Treatment for Large Span Construction Customizable Design Prefabricated Steel Warehouse with Galvanized Surface Treatment for Large Span Construction
