Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty
Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty
Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty
Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty
Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty
Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty
Specifications
MOQ :
500-1,999 Square Meters
Delivery Time :
30days
Cost Efficiency :
High
Payment Terms :
T/T
Design Load :
Wind, Snow, Seismic
Earthquake Resistance :
Strong
Supply Ability :
50000ton/year
Productname :
Steel Structure Building
Model Number :
KXD-SSW1552
Carbon Structural Steel :
Q235/Q355
Brand Name :
kxd
Corrosion Resistance :
High
Product Fire Resistance :
Fireproof
Resistance To Deformation :
High
Price :
US$49.00
Package :
Packages Suitable For Transportation
Packaging Details :
pallet
Frame Type :
Steel Frame
Certification :
ISO CE
Place of Origin :
Qingdao
Connection Form :
Bolt Connection
Description
Steel Metal Sandwich Panel Module Steel House
One bedroom sandwich panel home is very beautiful and comfortable, which is easy to assemble, saves labour cost and is easy to move.
Basic Information
Model Number
PH-T1
Size
According to Design Requirements
Wall and Roof Sandwich Panel
EPS/Rock Wool/Glass Wool/PU
Main Material
H Steel, Z or C Purlin
Connection Method
Welding or Bolt
Window
Aluminium Alloy
Door
Steel Door
Grade
Q235B
Connection
Bolt
Delivery Port
Qingdao Port
Color
RAL
Usage
Warehouse, Villa, Dormitories, Temporary Offices, Workshop
Certification
ISO, CE, SGS
Customized
Customized
Warranty
30 Year Limited Warranty
Production Capacity
500 Units/Month

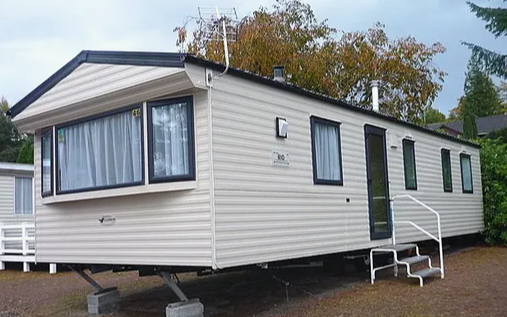

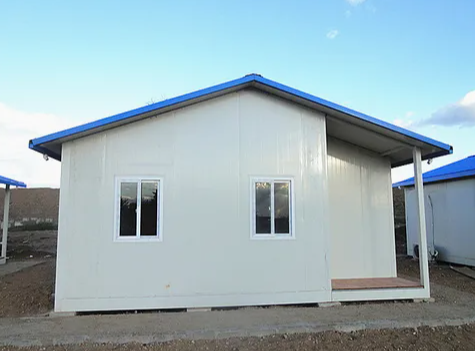

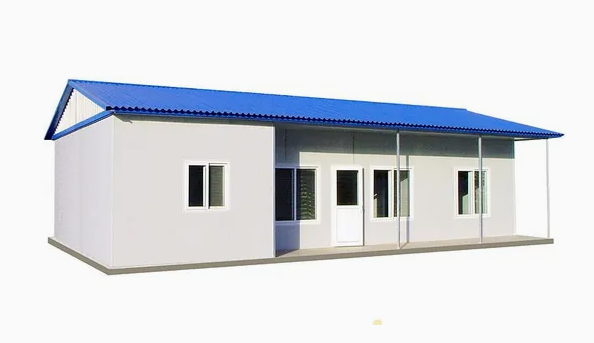

Product Images
Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty
Container Loading Photos
Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty Steel Sandwich Panel House with Earthquake Resistance Grade 7 Wind Resistance Grade 11 and 30 Year Warranty
Technical Parameters
  • Wind resistance: Grade 11 (wind speed ≤ 120km/h)
  • Earthquake resistance: Grade 7
  • Live load capacity of roofing: 0.6 kN/m²
  • External and internal wall heat transmission coefficient: 0.35 Kcal/m²hc
  • Second Floor Load Capacity: 150 kg/m²
  • Live load of corridor: 2.0 kN/m²
  • Wall permitted loading: 0.6 kN/m²
  • Ceiling Permitted live loading: 0.5 kN/m²
  • Wall Coefficient of thermal conductivity: K=0.442 W/m²k
  • Ceiling Coefficient of thermal conductivity: K=0.55 W/m²K
Construction Details
Steel Framework
Main column: 80×80 to 150×150 Square Tube, Q235 Steel with alkyd painting
Main triangle beam: C80 to C140 Section steel, Q235 Steel with alkyd painting
Wall and roof purlin: C80 to C140 Section steel, Q235 Steel, galvanized
Floor
Ground floor: Concrete foundation with ceramic tiles or PVC floor leather
First floor: 18mm plywood with 2.0mm PVC floor leather
Ceiling
6mm Gypsum board for dry room, 12mm PVC ceiling for wet room
Walls
Insulated Steel Sandwich Panel wall, panel width: 950mm, thickness: 50-120mm
Powder coated Color steel: 0.4mm/0.5mm/0.6mm
Insulation: Polystyrene (12-20Kg/m³), Rockwool (120Kg/m³), or Polyurethane (40Kg/m³)
Doors & Windows
External door: Insulated steel door 950×2100mm with lock
Inner door: Insulated steel door
Windows: PVC window with fly screen, 4mm glass
Electrical & Water Systems
Electrical Fittings
Electrical wire: 2.5mm² for lighting, 4mm² for AC units
16A five hole universal socket, double tube fluorescent lamp
Single Switch (Honyar brand), electrical distribution box with breakers
Optional Water System
Water drain pipe: PPR pipe, dim 16-20mm with copper fittings
Exhaust fan or air exchange hole: 250mm×250mm steel or PVC
Sanitary ware: Ceramic western closet, urinal, wash basin, shower
Detailed Specifications
No. Sort Name Specification
1 Specification Length No limited
2 Width Width Less than 11m
3 Wall height Wall height 2600mm/2800mm
4 Clear height Clear height 2600mm/2800mm
5 Roof slope Roof slope 15°
6 Standard accessory Wall board 75mm thickness double color-steel sandwich panel with polystyrene foam
7 False ceiling False ceiling 75mm thickness double color-steel sandwich panel with polystyrene foam
8 Roof board Roof board Color steel corrugated sheet, 0.5mm thickness
9 Outside door Outside door Security door, 900×2100mm, 1.2mm steel frame, 0.7mm steel door
10 Inside door Inside door SIP, 750×2000mm, aluminum frame, 50mm thick EPS insulation
11 Window (W-1) Window (W-1) PVC, 1200×1200mm, 5mm glass, two bay fixed and sliding
12 Window (W-2) Window (W-2) PVC, 500×500mm, 5mm glass, casement opening
13 Channel Channel Galvanized Steel Plain Sheet, Q235 material, painted
14 Post Post Square steel tube, Q235 material, painted
15 Purline Purline Square steel tube, Q235 material, painted
16 Roof truss Roof truss Square steel tube, Q235 material, painted
17 Decoration and connection Decoration and connection Color steel sheet, 0.35mm thickness
18 Option Decorative floor PVC, laminated or ceramic tile
19 Drainage system Drainage system Provided plan, design and construction
20 Electric system Electric system Provided plan, design and construction
21 Technical parameter Bearing load 30kg/m²
22 Wind pressure Wind pressure 0.45 KN/M²
23 Fire proof Fire proof B2 grade
24 Resistant temperature Resistant temperature -20ºC to 50ºC
Our Services
  • Professional design and engineering team: Full solution for site camp design
  • Procurement and manufacture for all prefabricated building materials
  • Site management & installation supervision by experienced engineers
Why Choose Prefabricated Houses?
  • Speed of construction and camp installation
  • Economical solution compared to concrete buildings
  • Ability to service remote locations
  • Long lifespan (10-20+ years)
  • Safe and stable: Earthquake resistance Grade 7, Wind resistance Grade 11
Company Information
Qingdao KXD Steel Structure Co., Ltd. is one of the largest manufacturers of prefabricated houses, flat pack container houses, steel villas, and steel structure workshops in China. With over 15 years of experience and ISO9001 and SGS approval, we have exported our products to more than 40 countries.
