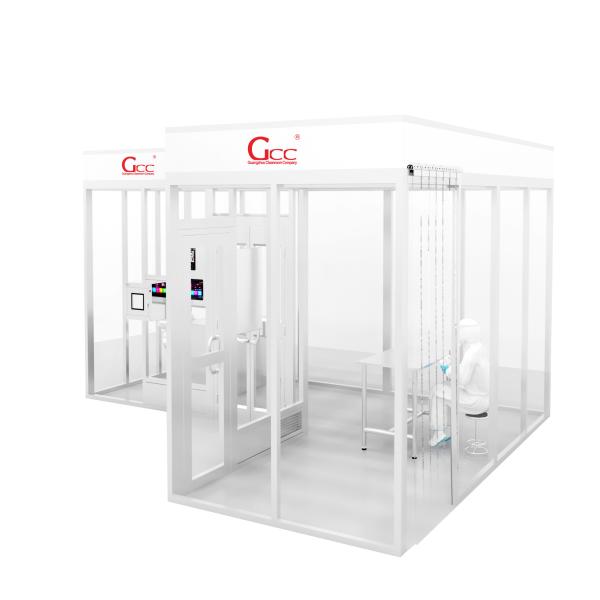

Portable Softwall 30 m2 Laminar Flow Cleanroom with Class 100 for Southeast Asia
Portable Softwall 30 m2 Laminar Flow Cleanroom with Class 100 for Southeast Asia
Portable Softwall 30 m2 Laminar Flow Cleanroom with Class 100 for Southeast Asia
Portable Softwall 30 m2 Laminar Flow Cleanroom with Class 100 for Southeast Asia
Specifications
Brand Name :
GCC
Certification :
ISO/GMP/CE
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000Sets/Month
Delivery Time :
14Days
Packaging Details :
Wooden Box
Key word :
Laminar Flow Clean Shed
Material :
Magnesium Sandwich Panel
Video outgoing-inspectionv :
Provided
Machinery Test Report :
Provided
After-sales Service Provided :
Online support
Description

GCC has changed the traditional design concept of clean booth, mini-clean unit take the concept of modular integration design, this architecture is similar to SMIF form, it has variety of independent clean area, the only difference is that the transmission is not carried out by the connecting arm, but to operate in a closed clean room. It has the independent air conditioning and return air system. The advantage of this form is easy elastic spacing, low construction costs, compared with the traditional civil construction purification room, the cost is greatly reduced.


Level Of Airborne Particulate Cleanliness In Prefab Cleanrooms

Level Maximum Particles/m3 Equivalent

≥0.1 μm ≥0.2 μm ≥0.3 μm ≥0.5 μm ≥1 μm ≥5 μm
ISO 1 10b d d d d e
ISO 2 100 24b 10b d d e
ISO 3 1000 237 102 35b d e Class 1
ISO 4 10000 2370 1020 352 83b e Class 10
ISO 5 100000 23700 10200 3520 832 d,e,f Class 100
ISO 6 1000000 237000 102000 35200 8320 293 Class 1,000
ISO 7 c c c 352000 83200 2930 Class 10,000
ISO 8 c c c 3520000 832000 29300 Class 100,000
ISO 9 c c c 35200000 8320000 293000 Room Air

Specification Table

Area 15㎡ 30㎡ 50㎡ 100㎡
Material Aluminum frame/Baking steel plate/lnsulating glass window
FFU class 1-100 12pcs 24pcs 48pcs 96pcs
FFU class-1K 3pcs 6pcs 9pcs 18pcs
FFU class-10K 2pcs 4pcs 6pcs 12pcs
Speed (m/s) 0.45m/s ±20% 0.45m/s ±20%
Temperature (optional) 18-28°C
Humidity (opiional) 50-70% 50-70%
Illumination 400-800LUX
Power 2.4-7kw 4.8-10kw 9.6-19kw 19.2-30kw


Application

GCC laminar flow clean shed is used for the workshop quest the higher level of purification level, such as the assembly line working area and the assembly area of high-precision products.

Product tags

laminar flow clean room

,

clean room laminar air flow

,

laminar air flow operating room
