Group Control AC/EC Class1000 Clean Room Hepa Fan Filter Unit
Group Control AC/EC Class1000 Clean Room Hepa Fan Filter Unit
Group Control AC/EC Class1000 Clean Room Hepa Fan Filter Unit
Group Control AC/EC Class1000 Clean Room Hepa Fan Filter Unit
Group Control AC/EC Class1000 Clean Room Hepa Fan Filter Unit
Group Control AC/EC Class1000 Clean Room Hepa Fan Filter Unit
Specifications
Brand Name :
GCC
Model Number :
FFUT
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, L/C
Supply Ability :
50000 Sets/Months
Delivery Time :
7-14 Workdays
Packaging Details :
OPP Bag With Carton
Keyword :
Cleanroom Fan Filter Unit
Application :
Cleanrooms, Laboratories, Medical Facilities or Microenvironments etc
Material :
Stainless Steel
Control Method :
Group Control
Power Supply :
3 Levels Adjustable
Fan :
AC/EC
Description

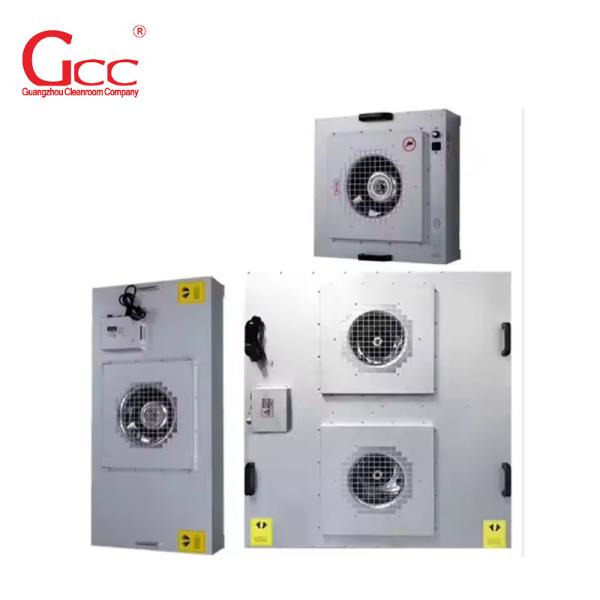

A cleanroom fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to cleanrooms, laboratories, medical facilities or microenvironments by removing harmful airborne particles from recirculating air. The units are installed within the system's ceiling or floor grid. Large cleanrooms require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.

Features

1. Overheating protection

2. The average air speed increase to 25%

3. Life-long span

4. Space-saving

Parameters

Item GCC-FFUT-1 GCC-FFUT-2 GCC-FFUT-3 GCC-FFUT-4
Size (WxLxHmm) 575x875x275 920x615x275 575x1175x275 615x1225x275
Air Flow (m³/h) 800~900 800~900 1100~1200 1100~1200
Air Velocity (m/s) 0.35~0.55
Total Pressure (Pa) 230 230 230 230
Power (W) 100 100 100 100
Weight (kg) 25 27.5 34 37.5
Noise dB
(1m below the HEPA filter)		 55~63
Vibration (mm/s) 0.2~0.7
Control Mode Manually Or Group Control Dy Computer
Options

DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /

Differential Pressure Drop Alarm Device
HEPA Filter Size (WxHxDmm) 570x870x69 915x610x69 570x1170x69 610x1220x69
Efficiency 99.99% 0.3μm
Frame High Quality Anodized Aluminum
Initial Pressure Drop 110Pa@0.45m/s±15%
Trait PU Foam Endless Gasket

Application

Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room , or any other places.
