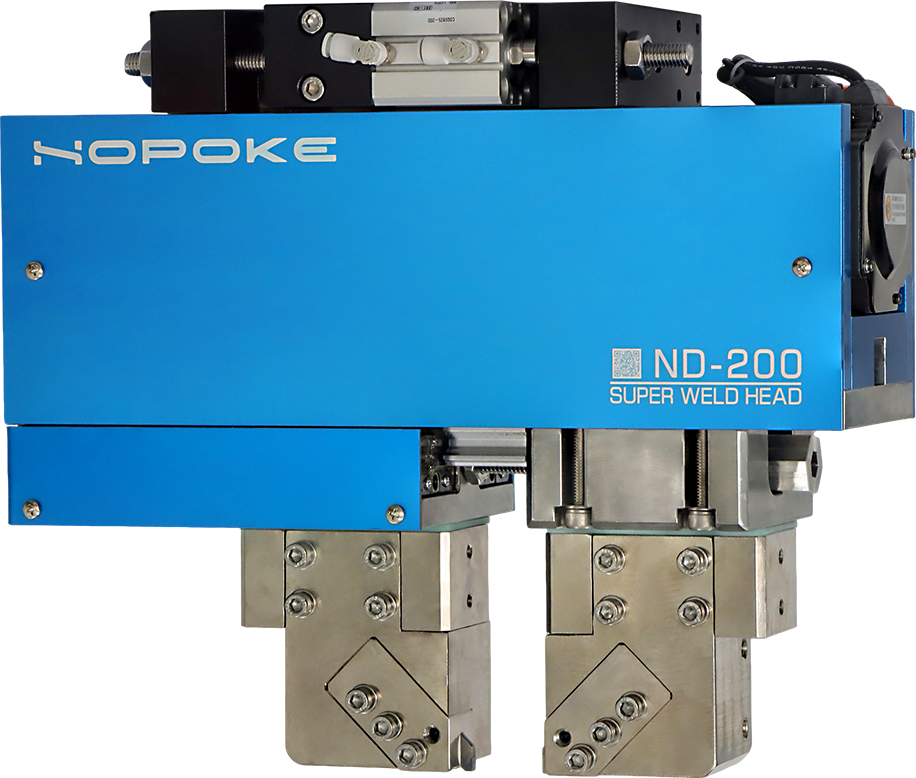

High Force Motorized Servo Weld Heads ND-200
High Force Motorized Servo Weld Heads ND-200
Specifications
Brand Name :
HOPOKE
Model Number :
ND-200
Place of Origin :
CHINA
MOQ :
Mail Inquiry
Price :
Mail Inquiry
Payment Terms :
T/T
Supply Ability :
Mail Inquiry
Delivery Time :
Mail Inquiry
Packaging Details :
Mail Inquiry
Actuation Type :
Motorized
Electrode Configuration :
Opposed
Electrode Alignment :
Pincer
Force range :
300-2300N
Stroke :
45mm
Size（H*W*D) :
377 * 168 * 311
Weight :
32KG
Description

High-Precision and High-Reliability Servo Welding Head Series

  • Technical Specifications

Product Drawing High Force Motorized Servo Weld Heads ND-200
Model ND-200
Drive method Motorized Servo
Force range 300N-2300N
Electrode Type customized
Standard Unit Pressure,Displacement
electrode strok 45mm

Size

L*W*H mm

 377 * 168 * 311
Weight ≈32kg

  • Real-Time Display : Real-time display of pressure-displacement curve, data storage and upload to MES system.

  • Speed-Programmable : Customizable multi-stage speed control programs integrated with adaptive contact protection mechanisms enable soft landing through dynamic trajectory optimization of electrode movement, effectively refining contact dynamics to ensure zero workpiece damage during precision welding processes.

  • Efficiency-Driven Motion : Optimized motion trajectory synchronization with dynamic response control minimizes non-productive travel, enhances welding efficiency, reduces idle energy consumption, and maintains high yield rates.

  • Pressure-Initiated : Closed-loop pressure control enables high-precision pressure regulation, effectively eliminates air pressure fluctuations and mechanical shocks, and significantly enhances welding stability, consistency, and process adaptability.

  • Pressure Recipe On-Demand Invocation : Pre-configured with 32 programmable welding pressure parameters, each independently assignable to dedicated welding parameter sets, achieving intelligent matching for different weld points on the same workpiece, ensuring multi-point process consistency and enhancing welding precision.

  • Application

High Force Motorized Servo Weld Heads ND-200 High Force Motorized Servo Weld Heads ND-200 High Force Motorized Servo Weld Heads ND-200 High Force Motorized Servo Weld Heads ND-200
