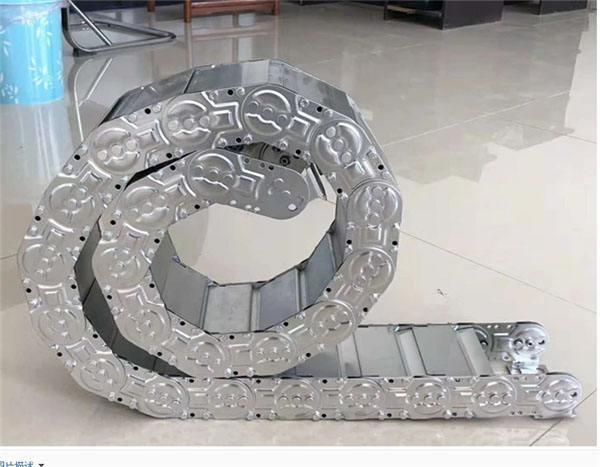

Our TL Stainless Steel Cable Holder Chain is a precision-engineered cable and hose management system, designed to deliver reliable guidance and protection for industrial hoses, cables, and tubing—ideal for high-demand scenarios like machine tools, automated production lines, and heavy-duty equipment. Unlike generic drag chains, this TL series stands out with its premium material combination (chromium-plated stainless steel, extruded aluminum alloy, and alloy pinshaft) and thoughtful structural design, which eliminates relative movement between cables/hoses and the chain itself. This key feature prevents deformation, twisting, or kinking of internal components, ensuring stable power, signal, and fluid transmission even during high-speed operation.

Beyond functionality, the chain elevates equipment competitiveness: its chromium-plated chain plates boast a sleek, high-end appearance, while the neat cable/hose organization enhances the overall aesthetics of machine tool units—helping machinery stand out in the international market. Whether for new equipment integration or old chain replacement, it balances durability, ease of use, and visual appeal, making it a cost-effective choice for long-term industrial operations.

The TL series drag chain’s performance is rooted in its high-quality components, each optimized for specific industrial needs:

• Chain Plate: Crafted from top-grade stainless steel with chromium plating—features a rational structural design, flexible operation, and high tensile strength. The chromium plating not only enhances the chain’s visual appeal (bright, corrosion-resistant finish) but also boosts its resistance to wear and environmental damage (e.g., oil, coolant, dust).
• Supporting Board: Made of extruded aluminum alloy—lightweight yet rigid, providing stable support for cables/hoses without adding excessive weight to equipment moving parts. Its design simplifies installation and disassembly, reducing maintenance time for operators.
• Pinshaft: Constructed from high-strength alloy—works with wear-resistant materials to significantly improve the chain’s anti-wearing performance. This ensures smooth, low-resistance bending during operation, minimizing noise and extending the chain’s service life.

Collectively, these components deliver three key benefits: no relative movement (protects cables/hoses from damage), flexible bending (adapts to equipment movement), and long-term stability (no deformation or sagging even after prolonged use).

To ensure the drag chain fits your cables/hoses perfectly and avoids damage from overcrowding, follow these two core selection rules (reserve 10% extra space for safe movement):

• Height Selection: Use the maximum height of built-in components (cables, tubing, trachea, conduit) as the reference. The drag chain’s inner height must leave at least 10% remaining space—prevents vertical compression of cables/hoses during bending.
• Width Selection: Calculate the total sum of outer diameters of all built-in components (cables, tubing, trachea). The drag chain’s inner width must have at least 10% remaining space—avoids friction between components and ensures smooth horizontal movement.

For accurate order placement, please reference the following key parameters to specify your required TL series drag chain:

1. Chain Type: Confirm "TL series stainless steel cable holder chain" (base model).
2. Size Parameters: Provide required inner height and inner width (calculated per the selection guide above, with 10% extra space).
3. Application Scenario: Note the intended use (e.g., machine tool hoses, automated line cables) to ensure compatibility with speed and load requirements.
4. Custom Needs: Specify any special requirements (e.g., additional support boards, custom lengths) if applicable.

This detailed ordering information ensures you receive a drag chain that perfectly matches your equipment’s cable/hose management needs.
