Horizontal Machining Center Fixture Base Plate With Hole
Horizontal Machining Center Fixture Base Plate With Hole
Specifications
Brand Name :
OEM
Certification :
CO, FORM-E
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
10/monthd
Delivery Time :
20days
Packaging Details :
wooden
Material :
Grey iron HT250
Name :
Horizontal Machining Center Fixture Base Plate With Hole
apply :
machining center
Table type :
basal plate
Suitable for machine tool :
modular machine tool
type :
fixture
Surface Treatment :
Spray-Paint
standard size :
BP08
Description
Material:Cast Iron TH250,Heat treated(Normalized).
● Horizontal Machining Center..
● Ready to accept a hole pattern for your special jig
Advantage : By hole positioning, the use of standardized fixture parts, can be quickly assembled into a set of fixtures to meet the needs

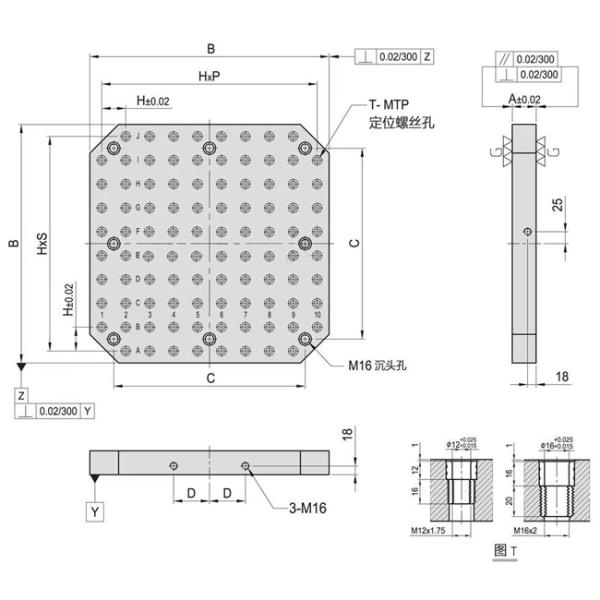

Horizontal Machining Center Fixture Base Plate With Hole
Model No. A B C D T H P S MTP Mounting holes kg
BP05-50400-0400-12 50 400 320 55 Φ12 M12 50 7 7 59 4 54
BP05-50500-0500-12 500 400 75 9 9 93 8 83
BP05-50630-0630-12 50 630 500 135 Φ12 M12 50 11 11 139 8 135
BP05-50800-0800-12 800 640 55 15 15 237 206
BP05-50400-0400-16 50 400 320 55 Φ16 M16 50 7 7 59 4 52
BP05-50500-0500-16 500 400 75 9 9 93 8 80
BP05-50630-0630-16 50 630 500 100 Φ16 M16 50 11 11 139 8 130
BP05-50800-0800-16 800 640 135 15 15 237 204

Special specifications acceptable customization
