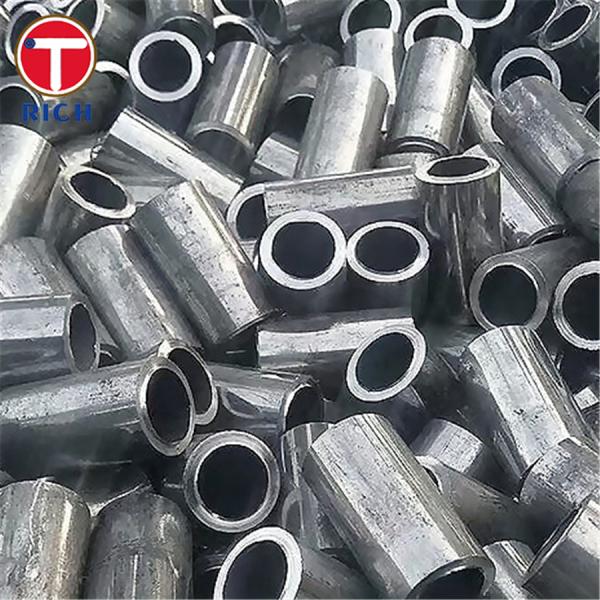

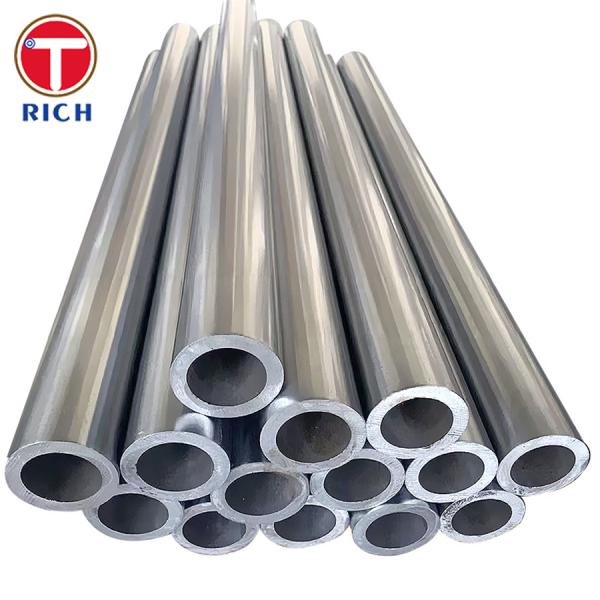

DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified
DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified
DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified
DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified
DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified
DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified
DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified
DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified
DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified
DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified
Specifications
Brand Name :
TORICH
Model Number :
DOM Roll Cage Tubing
Certification :
API,CE,ISO,ISO9001-2008,ISO9001
Place of Origin :
Zhejiang/China
MOQ :
1Ton
Price :
800-1100 USD/Ton
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
60000 Ton/Tons per Year
Delivery Time :
20-30days upon products
Packaging Details :
In bundles or in wooden boxes.
Application :
Roll Cage
Standard :
ASTM,DIN,GB,JIS,API
Outer diameter(round) :
30 - 426 mm
Thickness :
2 - 100 mm
Technique :
Cold Drawn,Hot Rolled,Cold Rolled,ERW,Hot Rolled/Cold Drawn
Grade :
1020 1026 SAE520 ST52.3 4130
Length :
6M or as requirement,As customer's require,
Description

DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified

Round DOM Roll Cage Tubing Structural Steel Pipe DOM Tubing For Roll Cage

【Material】

Drawn Over Mandrel (DOM) tubing is produced by electric resistance welding of carbon-steel strip followed by cold drawing over a mandrel to remove weld flash and enhance mechanical properties. This process yields:

  • Uniform wall thickness and concentric OD/ID.

  • Improved yield and tensile strength compared to standard ERW tubes.

  • Smooth OD/ID surfaces, requiring minimal machining.

【Specifications】

Property Value
OD range 3/16″ to 5″ (4.76 mm to 127 mm)
Wall thickness 0.028″ to 0.625″ (0.71 mm to 15.88 mm)
Length Random lengths 17′–24′ (5.18 m–7.32 m); cut-to-length available
Tolerances ±0.005″ for OD; ±0.003″ for wall thickness
Surface finish Pickled and oiled; optional honing for hydraulic applications

【Chemical Composition】

Grade C Mn P (max) S (max)
SAE 1020 0.18–0.23 0.30–0.60 0.04 0.05
SAE 1026 0.22–0.28 0.60–0.90 0.015 0.005
SAE 520 0.17–0.23 0.30–0.60 0.04 0.05
EN-ST52.3 ≤ 0.22 ≤ 1.60 ≤ 0.025 ≤ 0.025
AISI 4130 0.28–0.33 0.40–0.60 0.035 0.040

【Mechanical Performance】

Grade Yield Strength (MPa) Tensile Strength (MPa) Elongation (%)
SAE 1020 512 602 15
SAE 1026 517 586–690 15
SAE 520 512 602 15
EN-ST52.3 ≥ 355 510–690 ≥ 20
AISI 4130 ≥ 482 ≥ 586 ≥ 20

【Main Features】

  • High Strength-to-Weight Ratio: Superior yield and tensile properties for lightweight yet robust roll-cage structures.

  • Precision Dimensions: Tight tolerances reduce machining time and ensure consistent fitment.

  • Excellent Weldability: Low sulfur and phosphorus content facilitates gas- and arc-welding without pre- or post-heat in most grades.

  • Uniform Grain Structure: Cold drawing promotes refined microstructure and improved fatigue resistance.

【Standards & Specifications】

Region Standard Scope
USA ASTM A513 Type 5 Cold-drawn ERW carbon-steel mechanical tubing
USA ASTM A500 Cold-formed welded or seamless structural tubing
EU EN 10305-3 Welded, cold-sized precision steel tubes
Russia GOST 8732 Electric-welded steel tubes
Japan JIS G3445 Welded steel precision tubes
China GB/T 3094 Welded, cold-drawn precision steel tubes

【Application Fields】

Automotive & Motorsports

  • Roll Cages: Main chassis members, hoop assemblies, cross-bracing

  • Chassis Tubing: Frame rails, suspension links

  • Drive Shafts & Axle Tubes

Industrial & Construction

  • Hydraulic Cylinders: Honing stock for rods and barrels

  • Pneumatic Systems: Cylinder bodies

  • Structural Supports: Frames and guard rails

Usage Examples

  • Roll Cage A-Pillar Hoop: 1.75″ × 0.120″ DOM 1026 for FIA compliance

  • Main Hoop Backbone: 2.00″ × 0.120″ AISI 4130 for maximum strength

  • Honing Stock: EN-ST52.3 for hydraulic rams requiring honed ID


DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified

DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified


DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified


DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified

DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified

DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified

DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified

DOM Steel Tube for Roll Cage ASTM DIN GB JIS API Certified

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.


Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,

it is according to quantity.


Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
