Boiler 195GH OD 420mm DIN17175 Seamless Steel Pipe
Boiler 195GH OD 420mm DIN17175 Seamless Steel Pipe
Boiler 195GH OD 420mm DIN17175 Seamless Steel Pipe
Boiler 195GH OD 420mm DIN17175 Seamless Steel Pipe
Boiler 195GH OD 420mm DIN17175 Seamless Steel Pipe
Boiler 195GH OD 420mm DIN17175 Seamless Steel Pipe
Boiler 195GH OD 420mm DIN17175 Seamless Steel Pipe
Boiler 195GH OD 420mm DIN17175 Seamless Steel Pipe
Specifications
Brand Name :
TORICH
Model Number :
EN10216-2& DIN17175
Certification :
ISO14001:2008,TS16949
Place of Origin :
ZheJiang,CHINA
MOQ :
5 Tons
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
60000 Ton per year
Delivery Time :
30-35 days
Packaging Details :
packing in wooden boxes or in hexagonal bundles
Standard :
EN10216-2& DIN17175
Application :
For manufacturing pipelines of boilers, Vessel equipment
Alloy or not :
Alloy
Technique :
Cold-drawn
Secondary or not :
Non-secondary
Grade :
195GH P235GH P265GH 20MnNb6 16Mo3 St35.8 St45.8 15Mo3
O.D. :
5-420mm
W.T. :
0.5-50mm
Length :
12000
Section shape :
Round
Usage :
Boiler pipes
Surface Treatment :
Oiled
Description

EN10216-2& DIN17175 Seamless Steel Tubes For Pressure Purposes-Technical Delivery Conditions

Applications:

  • For manufacturing pipelines of boilers
  • Vessel equipment

Size range:

O.D. 5-420mm
W.T. 0.5-50mm
Length max12000mm

Steel Grade, Chemical Compositions and Mechanical Property:

Standard Grade Chemical Compostion Mechanical Property
C Si Mn P S Cr Mo Mpa Mpa L T
EN10216-2 195GH ≤0.13 ≤0.35 ≤0.70 ≤0.025 ≤0.020 ≤0.30 ≤0.08 320-440 ≥195 ≥27 ≥25
P235GH ≤0.16 ≤0.35 ≤1.20 ≤0.025 ≤0.020 ≤0.30 ≤0.08 360-500 ≥235 ≥25 ≥21
P265GH ≤0.20 ≤0.40 ≤1.40 ≤0.025 ≤0.020 ≤0.30 ≤0.08 410-570 ≥265 ≥23 ≥20
20MnNb6 ≤0.22 0.15-0.35 1.00-1.50 ≤0.025 ≤0.020 500-650 ≥355 ≥22 ≥20
16Mo3 0.12-0.20 ≤0.35 0.40-0.90 ≤0.025 ≤0.020 ≤0.30 0.25-0.35 450-600 ≥280 ≥22 ≥20
DIN17175 St35.8 ≤0.17 0.10-0.35 0.40-0.80 ≤0.030 ≤0.030 / / 360-480 ≥235 ≥25
St45.8 ≤0.21 0.10-0.35 0.40-1.20 ≤0.030 ≤0.030 / / 410-530 ≥255 ≥21
15Mo3 0.12-0.20 0.10-0.35 0.40-0.80 ≤0.030 ≤0.030 / 0.25-0.35 460-600 ≥270 ≥20

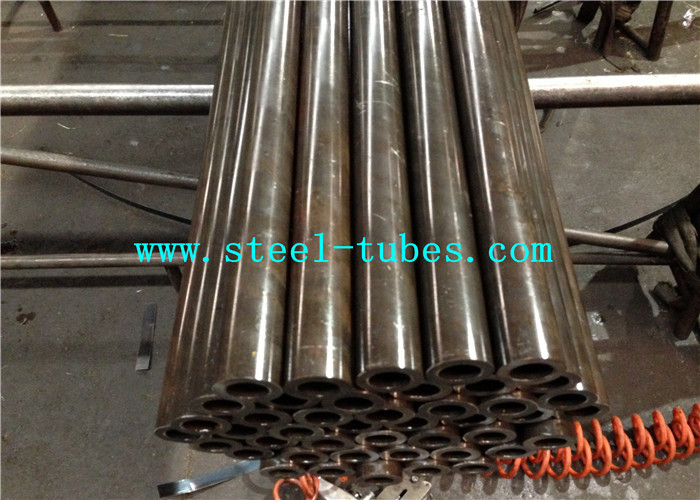

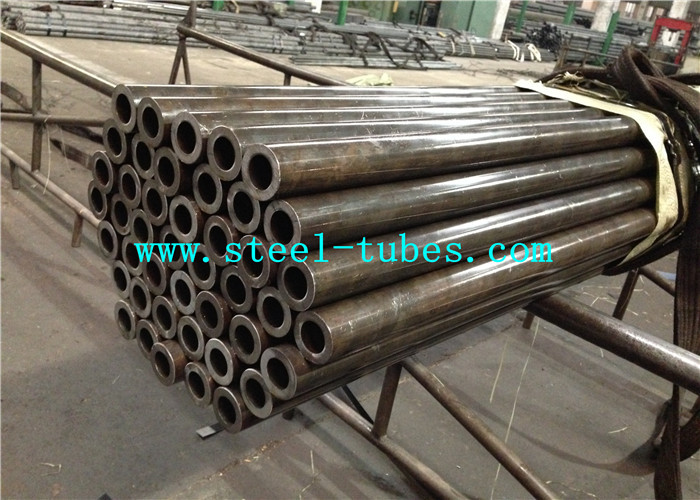

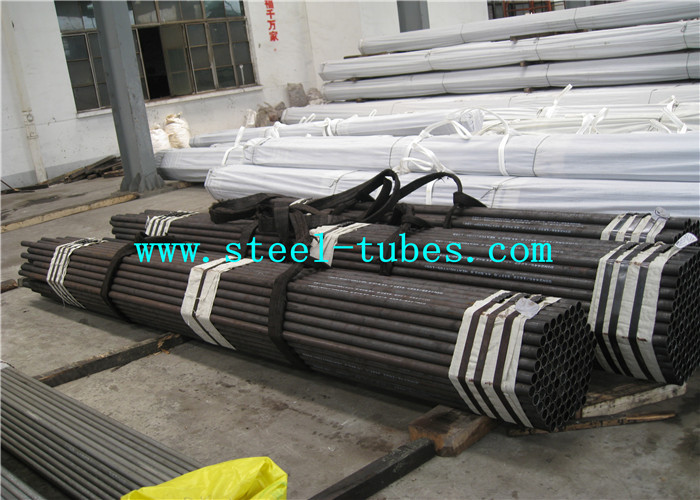

Products Show

Boiler 195GH OD 420mm DIN17175 Seamless Steel PipeBoiler 195GH OD 420mm DIN17175 Seamless Steel PipeBoiler 195GH OD 420mm DIN17175 Seamless Steel Pipe

FAQ

What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation

Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc


How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!

Any more questions about your doubts, please feel free to send us your emails or call!
