Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Black Seamless And Welded Rolled Steel Pipe
Specifications
Brand Name :
Torich
Model Number :
ASTM A268
Place of Origin :
zhejiang, China
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-45days
Packaging Details :
In hexagonal bundles or wooden box
Model No :
ASTM A268
Technique :
Cold Drawn
Surface Treatment :
Oiled
Section Shape :
Round
Alloy or not :
Is alloy
Material :
Stainless Steel
Key Word :
DOM Tuebs Pipes
Type :
Welded
Grade :
TP405,TP410,TP409,TP410S,TP430,etc.
End :
Plain
Description

Black Seamless And Welded Rolled Steel Pipe

Product Description

Standard ASTM A268
Material TP405, TP410, TP430, TP446-1, TP446-2, 26-3-3, other material is also available
O.D. 3.2 - 200 mm
W.T. 0.5 - 30 mm
Length Max 12000 mm

Chemical Composition

Grade
UNS
C
Mn
P
S
Ni
Cr
Mo
N
TP410
S41000
0.15 max
1.00 max
0.040 max
0.030 max
---
11.5-13.5
---
---
S42035
0.08 max
1.00 max
0.045 max
0.030 max
1.0-2.5
13.5-15.5
---
0.30-0.50
TP430
S43000
0.12 max
1.00 max
0.040 max
0.030 max
---
16.0-18.0
---
---
TP446-1
S44600
0.025 max
1.50 max
0.040 max
0.030 max
≤0.75
23-27
---
0.025 max
TP446-2
S44600
0.012 max
1.50 max
0.040 max
0.030 max
≤0.50
23-27
---
0.025 max
26-3-3
S44660
0.030 max
1.50 max
0.040 max
0.030 max
1.0-3.5
25-28
---
0.040 max

Tensile and hardness requirements

Grade
UNS
Tensile Strength, min ksi MPa
Yeild Strength, min ksi MPa
Elongation in 2 in or 50mm, min %
Rockwell Hardness B Scale
TP410
S41000
60 (415)
30 (205)
20
95
S42035
80 (550)
55 (380)
16
88
TP430
S43000
60 (415)
35 (240)
20
90
TP446-1
S44600
70 (485)
40 (275)
18
95
TP446-2
S44600
65 (450)
40 (275)
20
95
26-3-3
S44660
85 (585)
65 (450)
20
25

Characteristic:

Good concentricity

Good surface quality

Good OD and ID tolerance

High Precision

Stable quality

Smooth

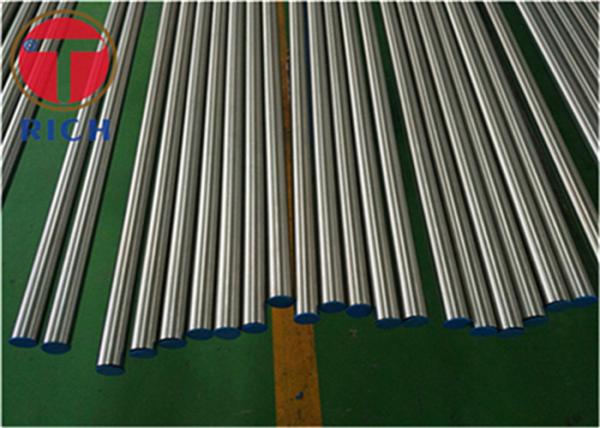

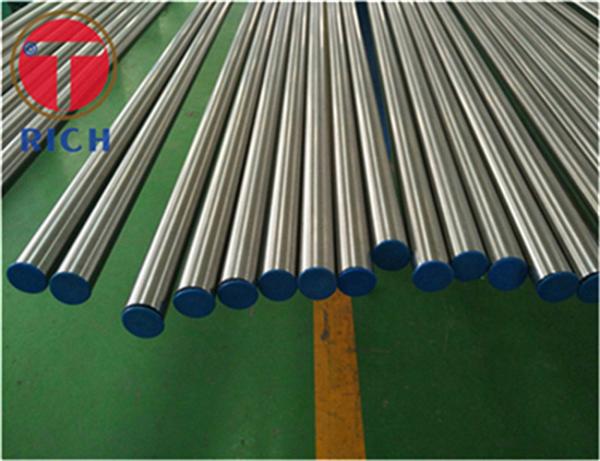

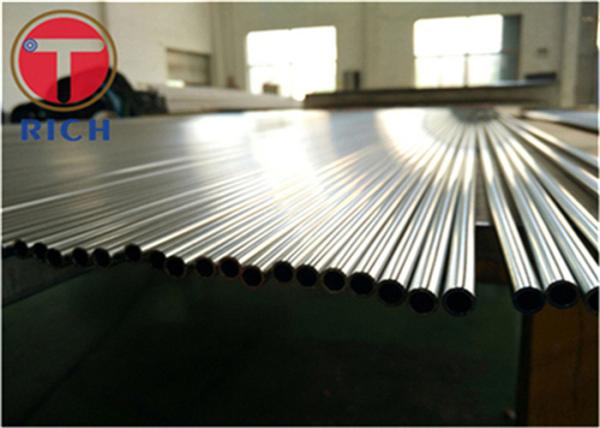

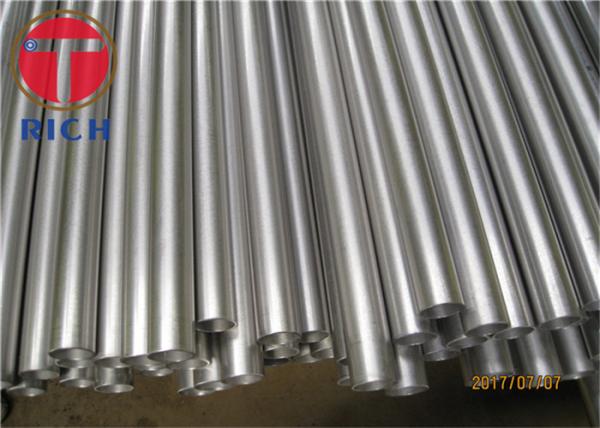

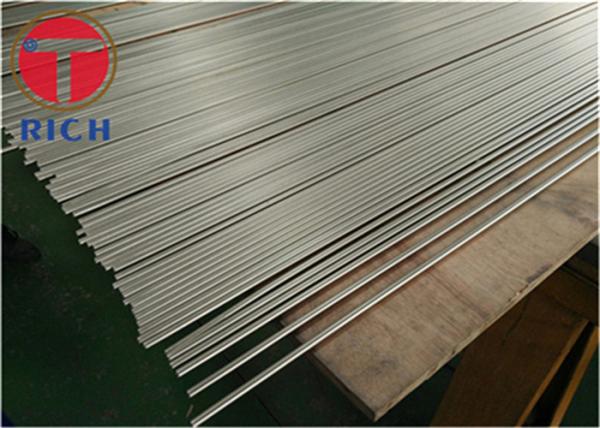

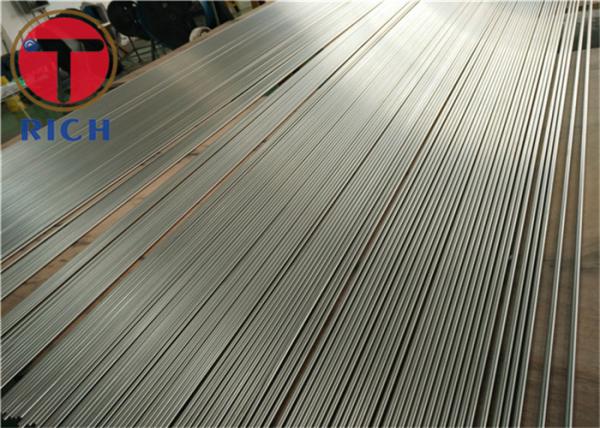

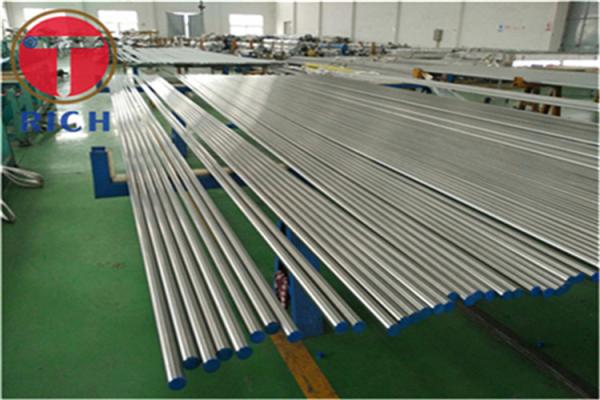

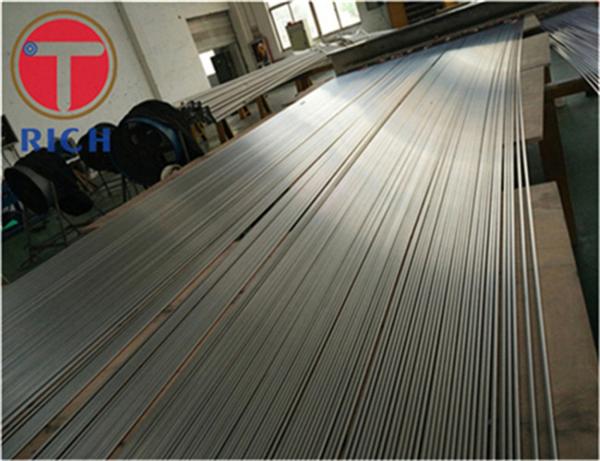

Product Pictures

Black Seamless And Welded Rolled Steel Pipe

Black Seamless And Welded Rolled Steel Pipe

Company Introduction

Black Seamless And Welded Rolled Steel Pipe

QUALITY CONTROL

1. Incoming Raw Material Inspection

2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects
