Precision steel tube Medical industry Stainless Steel Tube 304 316 capillary stainless tube 0.1mm
Precision steel tube Medical industry Stainless Steel Tube 304 316 capillary stainless tube 0.1mm
Precision steel tube Medical industry Stainless Steel Tube 304 316 capillary stainless tube 0.1mm
Precision steel tube Medical industry Stainless Steel Tube 304 316 capillary stainless tube 0.1mm
Precision steel tube Medical industry Stainless Steel Tube 304 316 capillary stainless tube 0.1mm
Precision steel tube Medical industry Stainless Steel Tube 304 316 capillary stainless tube 0.1mm
Specifications
Brand Name :
TORICH
Model Number :
ASTM, AISI, DIN, EN, GB, JIS
Certification :
ISO,SGS
Place of Origin :
Zhejiang
MOQ :
5 Kg
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 Tons Per Month
Delivery Time :
1-2 Weeks
Packaging Details :
Anti Rust Oil Protection, in seaworthy packing
Steel grade :
300 Series,400 series,TP316
Application :
Chemical
Welding line type :
Seamless
Standard :
GB,ASTM,DIN,AISI,JIS
Thickness :
0.1-0.25
Length :
1m-12m,6m or as customers' request
Color :
Natural Color
Description

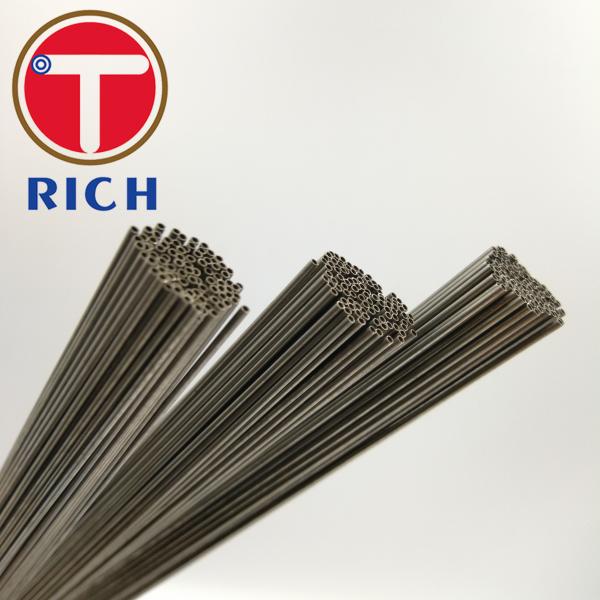

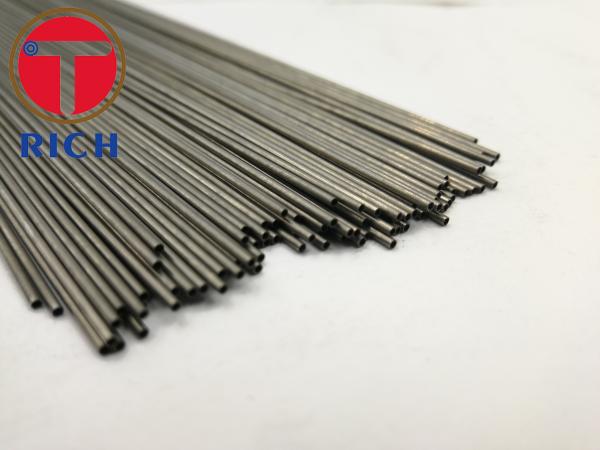

Outer Diameter 0.1mm--8mm seamless stainless steel capillary tubes for handrails

Name

 Stainless steel capillary pipes

Standard

 ASTM A554

Material Grade

 201/202/304/316

Outer Diameter

 0.1mm--8mm

Thickness

 0.05mm - 2.1mm

Length

 2440mm, 3050mm, 5800mm, 6000mm, 6100mm or as customer request

Tolerance

a) Outer Diameter: +/- 0.2mm

b) Thickness: +/- 10% OR as customer request

c) Length: +/- 10mm
Surface

Satin / Hairline :180#, 320#

Polish : 400# ,600# ,800# or Mirror surface

Application

 Processed into railings, handrails, doors and Windows

PACKING

 Plastic bag / woven packing(please send details packing to us if you have other requirements )

Precision steel tube Medical industry Stainless Steel Tube 304 316 capillary stainless tube 0.1mm

Precision steel tube Medical industry Stainless Steel Tube 304 316 capillary stainless tube 0.1mm

Chemical composition

Element

 201 202 304 316 S31803 S32750

C

 ≤0.15 ≤0.15 ≤0.08 ≤0.08 ≤0.030 ≤0.030

Si

 ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤0.80

Mn

 5.5-7.5 7.5-10.0 ≤2.00 ≤2.00 ≤2.00 ≤1.20

P

 ≤0.060 ≤0.060 ≤0.045 ≤0.045 ≤0.030 ≤0.035

S

 ≤0.030 ≤0.030 ≤0.030 ≤0.030 ≤0.020 ≤0.020

Cr

 16-18 17-19 18-20 16-18 21-23 21-23

Ni

 3.5-5.5 4.0-6.0 42958 43022 4.5-6.5 6.0-8.0

Mo

 2.0-3.0 2.5-3.5 3.0-5.0
N ≤0.25 ≤0.25 0.08-0.2 0.24-0.32

Cu

 ≤0.50
Mechanical properties

Material Item

 201 202 304 316 S31803 S32750

Tensile Strength (MPa)

 ≥655 ≥620 ≥515 ≥515 ≥620 ≥800

Yield Strength (MPa)

 ≥260 ≥310 ≥205 ≥205 ≥450 ≥550

Elongation (%)

 ≥35 ≥35 ≥35 ≥35 ≥25 ≥15

Hardness (HV)

 ≤230 ≤230 ≤200 ≤200 ≤303 ≤323
