Brake System Welded Steel Tube Single Wall Bundy Tube For Refrigerator
Brake System Welded Steel Tube Single Wall Bundy Tube For Refrigerator
Brake System Welded Steel Tube Single Wall Bundy Tube For Refrigerator
Brake System Welded Steel Tube Single Wall Bundy Tube For Refrigerator
Specifications
Brand Name :
TORICH
Model Number :
SAE J526
Certification :
ISO9001
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
5Tons
Price :
USD1000-1500
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 Tons per Month
Delivery Time :
45-50 work days
Packaging Details :
Packing: antirust protection, In hexagon bundles, in wooden box
Key words :
Single Wall Bundy Tube
Material :
BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06
OD :
4-9.52mm
WT :
0.5-1m
Usage :
For Refrigerator
Coating :
Copper/Zinc/PVF/Military Green Zinc/GALFAN/Nylon
Length :
180Kg/coil
Description

SAE J526 PVF/ Copper Coating Single Wall Bundy Tube For Brake System

1. Standard

SAE J526 Welded low-carbon tubing

EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems

ASTM A254 Copper-brazed steel tubing

2. Steel Grade

BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06

3. Heat Treatment

BK or NBK

4. Specification

O D/ mm 4 4.2 4.76 6 6.35 7.8 8 9.52
W T 0.5-1.0mm (0.5-0.7mm common WT)
Tolerance ±0.05mm
Length 180Kg/coil; 700-1000m/coil; per customer’s request

5. Production Process

Tube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere— Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing

6. Surface Treatment

Coating Thickness Salt spray test duration
Copper/White Zinc/Colour-Zinc 8μm 72h
PVF 8μm+20μm 1000-2000h
Military Green Zinc 8μm 180h
GALFAN 8μm+20μm 1000-2000h
Nylon 8μm+40μm 180h

7. Packing: In coil, in wooden box with seaworthy packing

8. Application

1) Fluid carrying system for automobiles

2) Fluid carrying system for refrigerators

3) Wire condenser for chillers, showcase

4) Vending machine, ice machine etc.

Detailed Images

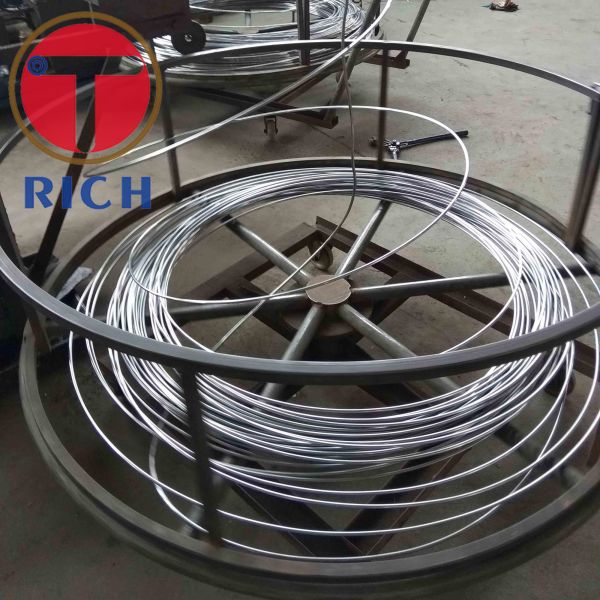

Brake System Welded Steel Tube Single Wall Bundy Tube For RefrigeratorBrake System Welded Steel Tube Single Wall Bundy Tube For Refrigerator

QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

A&Q

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
