JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
Specifications
Brand Name :
TORICH
Model Number :
JIS G3452
Certification :
ISO 9001 ISO14001 TS 16949 KR LR NK
Place of Origin :
China
MOQ :
5TONS
Price :
negotiation
Supply Ability :
5,000tons per year
Delivery Time :
30-60days after received your payment
Packaging Details :
Packed in bundles or wooden box or upon requests
Product Name :
Carbon steel pipes for ordinary piping
Material :
Carbon steel
Grade :
SGP
Standard :
JIS G3452
Size range :
OD 5-420mm*WT 0.5-50mm*12000mm below
Application :
For ordinary piping
Surface :
Black or Zinc Coating
Relevant standard :
KS D 3507 ASTM A 53 API 5L DIN 2440 DIN2441 BS 1387 BS 3601
Description
 JIS G3452 SGP Welded Carbon Steel Pipes for Ordinary Piping

Application for ordinary piping
Diameter: 5-420mm, Wall thickness: 0.5-50mm
Length: 12mmax
Grade: SGP
Standard: JISG3452

Black pipe: without zinc coating
Galvanized pipe: with zinc coating
Produce method:ERW
Steel Grade:SGP
Relevant standard: KSD3507, ASTMA53, API5L, DIN2440, DIN2441, BS1387, BS3601, JISB0203, JISB0253, JISB2301

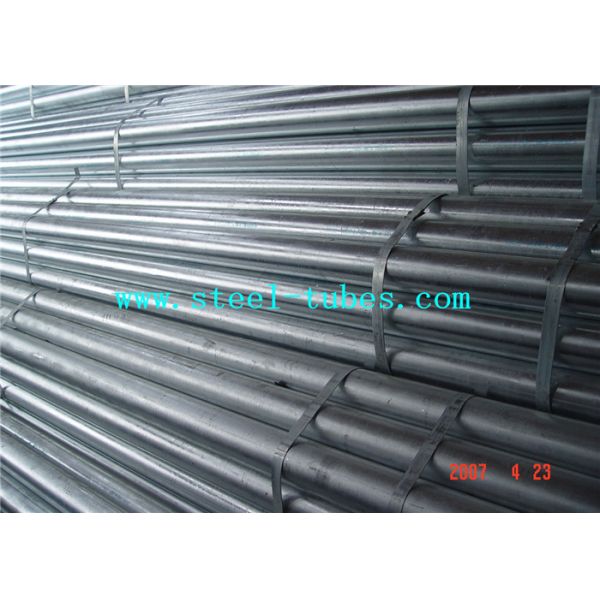

Black pipe without zinc coating

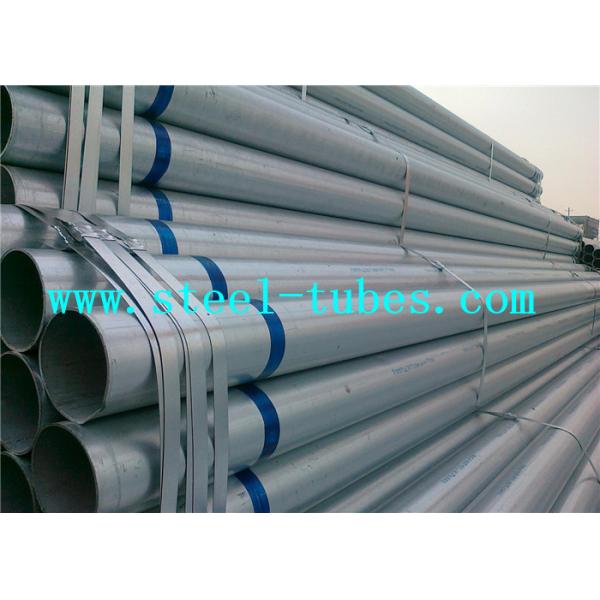

Galvanized pipe with zinc coating

CHEMICAL COMPOSITION unit (%)

Steel grade

P

S

SGP

0.040max

0.040max

Note: Special steel grade is also available, according to customer request.

MECHANICAL PROPERTIES

Steel grade

Tensile strength Mpa

Elongation%

SGP

290 min

30min

Dimensions weights and Demensional Tolerances

Nominal Diameter

OD(mm)

OD Tolerances

WT mm

WT Tolerances

Unit mass excluding socket kg/m

A

B

Pipes to be cut in taper thread

Other pipes

6

1/8

10.5

±0.5mm

±0.5mm

2.0

+Not specified

-12.5%

0.419

8

1/4

13.8

±0.5mm

±0.5mm

2.3

0.652

10

3/8

17.3

±0.5mm

±0.5mm

2.3

0.851

15

1/2

21.7

±0.5mm

±0.5mm

2.8

1.31

20

3/4

27.2

±0.5mm

±0.5mm

2.8

1.68

25

1

34.0

±0.5mm

±0.5mm

3.2

2.43

32

1 1/4

42.7

±0.5mm

±0.5mm

3.5

3.38

40

1 1/2

48.6

±0.5mm

±0.5mm

3.5

3.89

50

2

60.5

±0.5mm

±1%

3.8

5.31

65

2 1/2

76.3

±0.7mm

±1%

4.2

7.47

80

3

89.1

±0.8mm

±1%

4.2

8.79

90

3 1/2

101.6

±0.8mm

±1%

4.2

10.1

100

4

114.3

±0.8mm

±1%

4.5

12.2

125

5

139.8

±0.8mm

±1%

4.5

15.0

150

6

165.2

±0.8mm

±1.6mm

5.0

19.8

175

7

190.7

±0.9mm

±1.6mm

5.3

24.2

200

8

216.3

±1.0mm

±0.8%

5.8

30.1

225

9

241.8

±1.2mm

±0.8%

6.2

36.0

250

10

267.4

±1.3mm

±0.8%

6.6

42.4

300

12

318.5

±1.5mm

±0.8%

6.9

53.0

350

14

355.6

-

±0.8%

7.9

67.7

400

16

406.4

-

±0.8%

7.9

77.6

450

18

457.2

-

±0.8%

7.9

87.5

500

20

508.0

-

±0.8%

7.9

97.4

JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping

JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping JIS G3452 SGP Welded Carbon Steel Tube Pipes For Ordinary Piping
