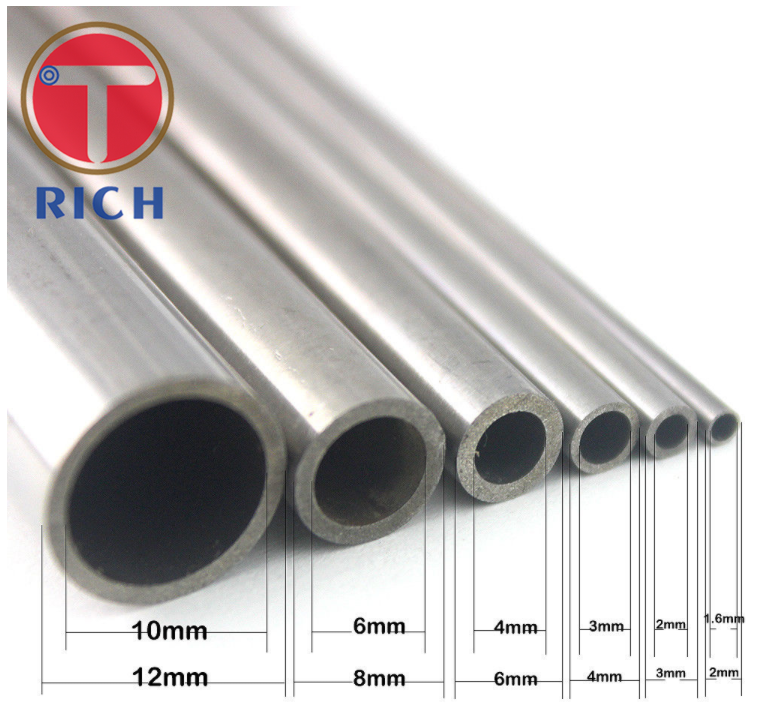

201 304 316 Stainless Steel Tube Medical Needle Tube Welded Round Shape
201 304 316 Stainless Steel Tube Medical Needle Tube Welded Round Shape
201 304 316 Stainless Steel Tube Medical Needle Tube Welded Round Shape
201 304 316 Stainless Steel Tube Medical Needle Tube Welded Round Shape
201 304 316 Stainless Steel Tube Medical Needle Tube Welded Round Shape
201 304 316 Stainless Steel Tube Medical Needle Tube Welded Round Shape
Specifications
Brand Name :
TORICH
Model Number :
SS201 304 316
Certification :
ISO9001, TS16949
Place of Origin :
CHINA
MOQ :
100kgs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
60000ton/year
Delivery Time :
45-60 days
Packaging Details :
in bundles with seaworthy packing
Product name :
Stainless Steel Medical Needle Tube
Standard :
ASTM A270
Technique :
Welded
Section shape :
Round
Alloy or not :
No
Secondary or not :
Non-secondary
Special tube :
Stainless Steel Capillary Tube
Surface :
Polished
Shipment :
Ocean/ air
Description

201 304 316 Stainless Steel Medical Needle Tube

Name Stainless needle tube
Standard ASTM A213,ASTM A312,ASTM A789,ASTM A790
Material Grade 201/202/304/316/S31803/S32750
Outer Diameter 0.1mm--219.1mm
Thickness 0.05mm - 20mm
Length ≤12000mm or as per customer request
Tolerance a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 10% OR as customer request
c) Length: +/- 10mm
Surface Satin / Hairline :180#, 320#
Polish : 400# ,600# ,800# or Mirror surface
Pickling
Application Decoration ,( Processed into railings, handrails, doors and Windows ),medical,industry,etc
Packaing Plastic bag/woven packing(please send details packing to us if you have other requirements)

Chemical composition Element 201 202 304 316 S31803 S32750
C ≤0.15 ≤0.15 ≤0.08 ≤0.08 ≤0.030 ≤0.030
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤0.80
Mn 5.5-7.5 7.5-10.0 ≤2.00 ≤2.00 ≤2.00 ≤1.20
P ≤0.060 ≤0.060 ≤0.045 ≤0.045 ≤0.030 ≤0.035
S ≤0.030 ≤0.030 ≤0.030 ≤0.030 ≤0.020 ≤0.020
Cr 16-18 17-19 18-20 16-18 21-23 21-23
Ni 3.5-5.5 4.0-6.0 42958 43022 4.5-6.5 6.0-8.0
Mo 2.0-3.0 2.5-3.5 3.0-5.0
N ≤0.25 ≤0.25 0.08-0.2 0.24-0.32
Cu ≤0.50
Mechanical properties Material Item 201 202 304 316 S31803 S32750
Tensile Strength (MPa) ≥655 ≥620 ≥515 ≥515 ≥620 ≥800
Yield Strength (MPa) ≥260 ≥310 ≥205 ≥205 ≥450 ≥550
Elongation (%) ≥35 ≥35 ≥35 ≥35 ≥25 ≥15
Hardness (HV) ≤230 ≤230 ≤200 ≤200 ≤303 ≤323

201 304 316 Stainless Steel Tube Medical Needle Tube Welded Round Shape
