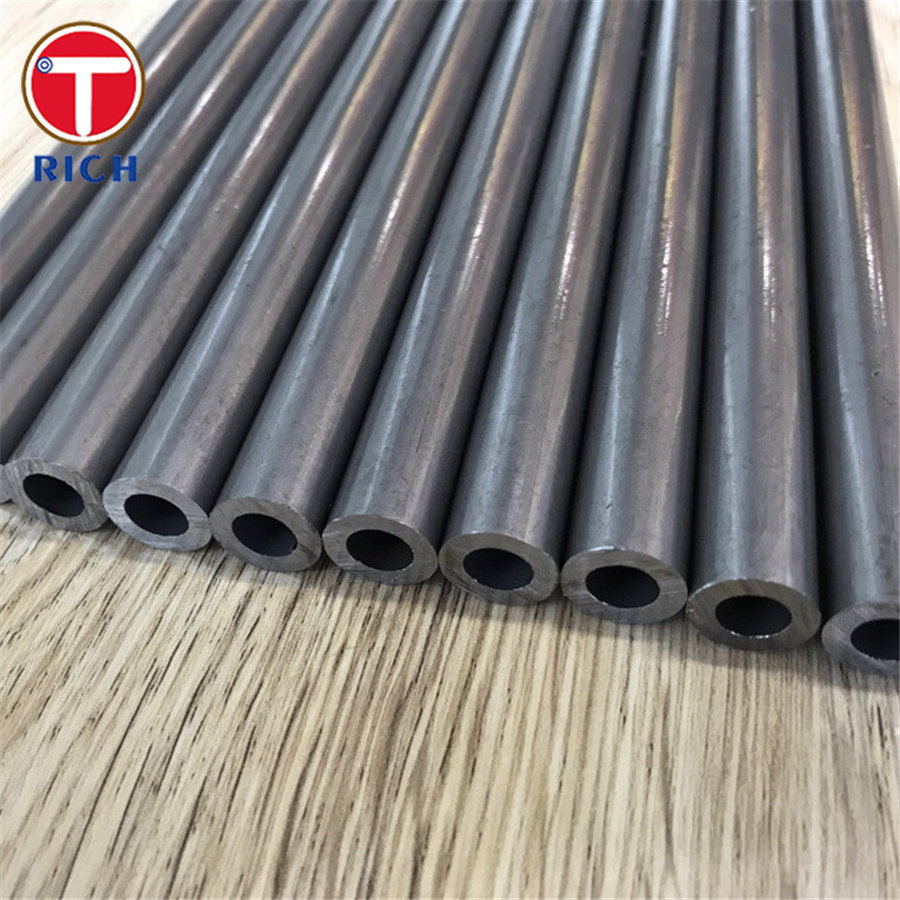

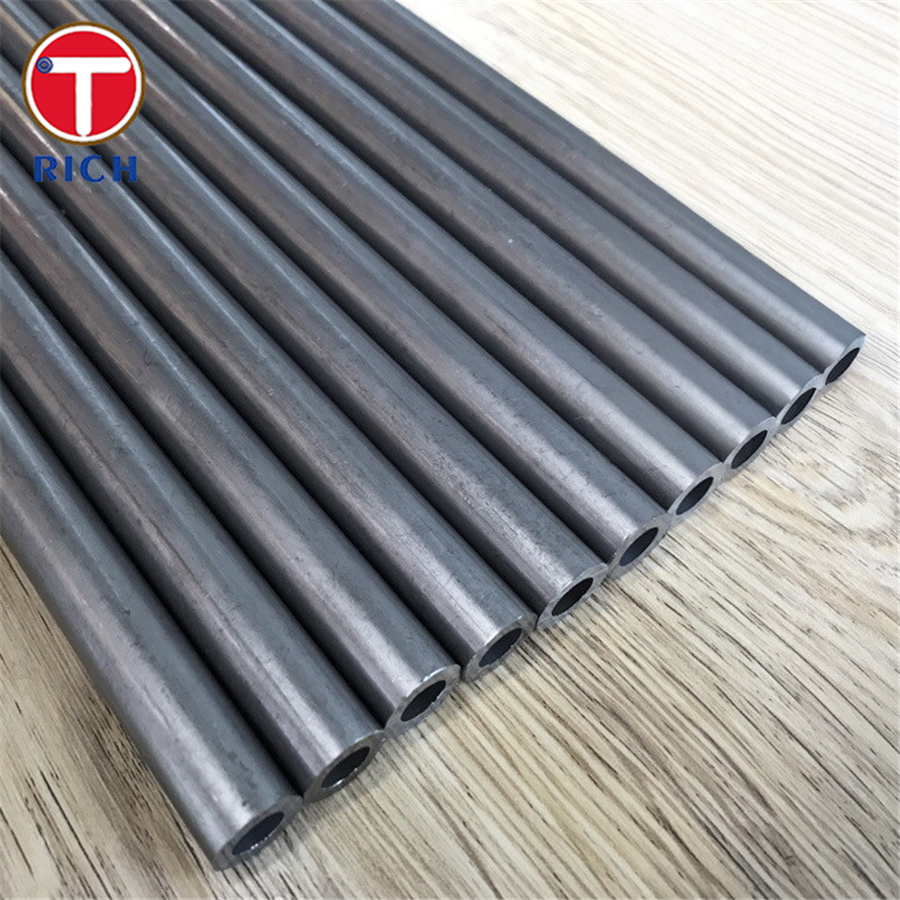

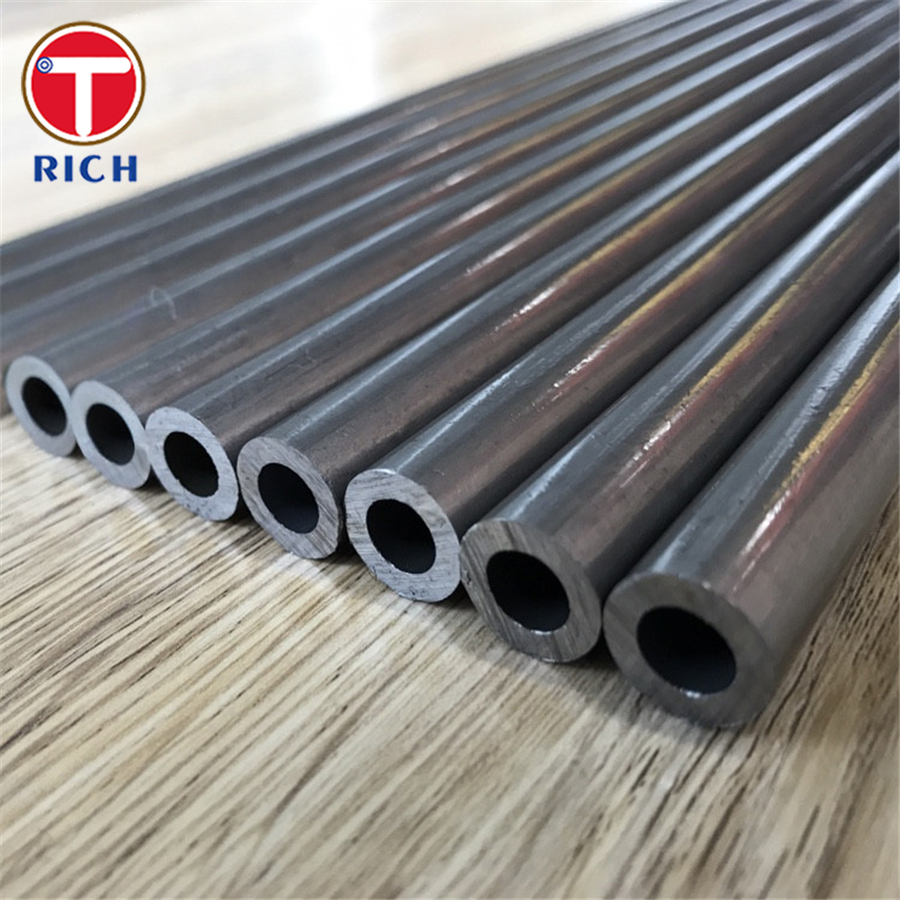

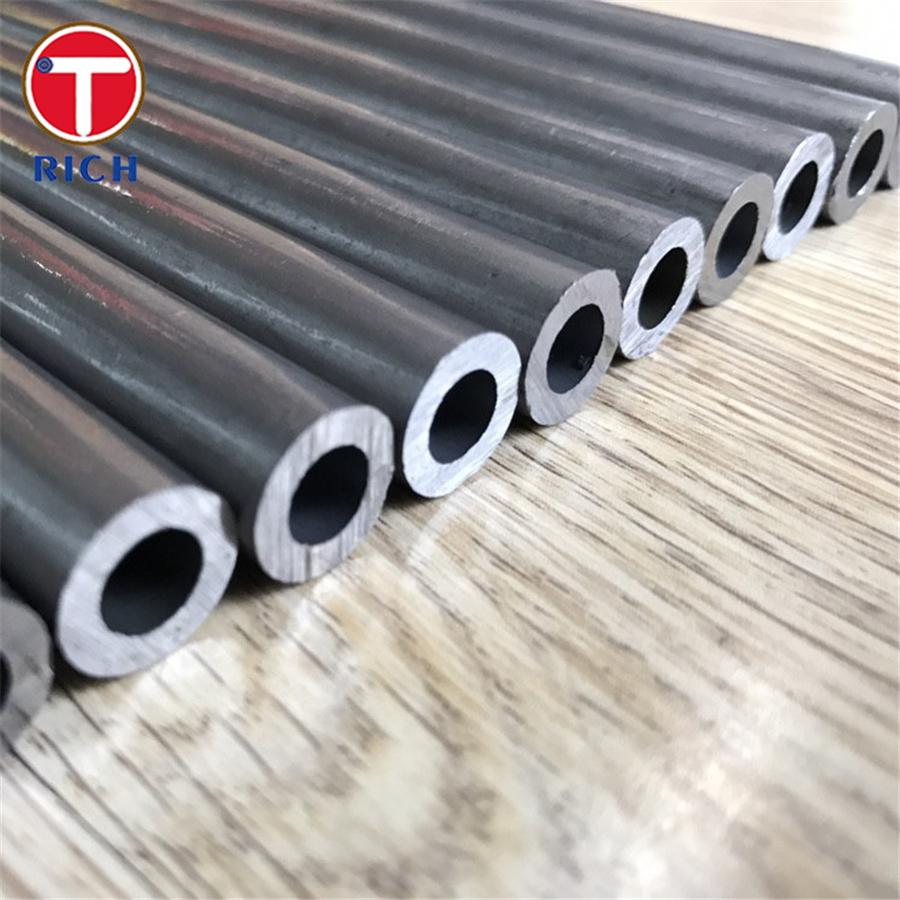

Cold Rolled ASTM A106 12m Seamless Hydraulic Tubing with Precision Dimensional Control
Cold Rolled ASTM A106 12m Seamless Hydraulic Tubing with Precision Dimensional Control
Cold Rolled ASTM A106 12m Seamless Hydraulic Tubing with Precision Dimensional Control
Cold Rolled ASTM A106 12m Seamless Hydraulic Tubing with Precision Dimensional Control
Cold Rolled ASTM A106 12m Seamless Hydraulic Tubing with Precision Dimensional Control
Cold Rolled ASTM A106 12m Seamless Hydraulic Tubing with Precision Dimensional Control
Cold Rolled ASTM A106 12m Seamless Hydraulic Tubing with Precision Dimensional Control
Cold Rolled ASTM A106 12m Seamless Hydraulic Tubing with Precision Dimensional Control
Cold Rolled ASTM A106 12m Seamless Hydraulic Tubing with Precision Dimensional Control
Cold Rolled ASTM A106 12m Seamless Hydraulic Tubing with Precision Dimensional Control
Specifications
Brand Name :
TORICH
Model Number :
ASTM A106
Certification :
ISO
Place of Origin :
ZHEJIANG
MOQ :
1Ton
Price :
800-1000 USD/Tons
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
5000 Tons per Year
Delivery Time :
4-6 Weeks
Packaging Details :
Standard Exporting Seaworthy Packing
Description
Cold Rolled ASTM A106 12m Seamless Hydraulic Tubing with Precision Dimensional Control
Cold Rolled ASTM A106 12 m × 24 mm Seamless Hydraulic Tubing
This 24 mm seamless carbon steel tube is manufactured by cold drawing or cold rolling to improve dimensional consistency, surface quality, roundness, and straightness. It is available in fixed 12 m lengths and can be supplied in ASTM A106 Grades A, B, or C according to the required strength level.
Important specification note: ASTM A106 is primarily a seamless carbon steel pipe standard for high-temperature pressure service, rather than a dedicated precision hydraulic tubing standard. For hydraulic systems using compression fittings, controlled surface roughness, or tighter OD tolerances, EN 10305-4, EN 10305-1, or ASTM A519 should be specified as an additional or alternative requirement. ASTM permits non-standard dimensions when the finished product complies with the remaining specification requirements.
Product Specifications
Item Specification
Product Cold Rolled / Cold Drawn Seamless Carbon Steel Tube
Primary Standard ASTM A106/A106M
Optional Precision Standards ASTM A519, EN 10305-1, EN 10305-4
Material Grades ASTM A106 Grade A, Grade B, Grade C
Precision Grade Options E235, E355
Outside Diameter 24 mm
Wall Thickness 1.5-4.0 mm, customizable
Length 12 m fixed length; 1-12 m customizable
Manufacturing Process Seamless hot piercing followed by cold drawing or cold rolling
OD Tolerance Custom precision tolerance available; typically ±0.08 mm or ±0.10 mm subject to purchase agreement
Wall-Thickness Tolerance ASTM tolerance or customized precision tolerance, typically ±7.5% subject to order confirmation
Straightness Customized to ≤1.0 mm/m; tighter straightness available after precision straightening
Surface Condition Cold-finished, bright, phosphated, oiled, black, or zinc-coated
Internal Surface Smooth cold-finished surface; controlled roughness available for hydraulic service
Heat Treatment Normalized, stress-relieved, annealed, or as required by the applicable standard
End Condition Plain ends, square cut, deburred, capped
Inspection Documents EN 10204 Type 3.1 inspection certificate available
Testing Chemical analysis, tensile test, dimensional inspection, flattening test, hydrostatic or nondestructive electric test
Marking Standard, grade, heat number, size, manufacturing batch, and inspection status
Main Features
Controlled 24 mm Outside Diameter
The final cold-sizing process improves OD consistency around the tube circumference. For precision orders, the 24 mm OD can be controlled to a contractual tolerance such as ±0.08 mm or ±0.10 mm, depending on wall thickness, delivery condition, and inspection method.
  • Tube bending
  • Ferrule installation
  • End forming
  • Automated cutting
  • Fixture positioning
Improved Roundness and Straightness
Multi-pass cold working followed by precision straightening reduces ovality and longitudinal deviation. A straightness requirement of ≤1.0 mm/m can be specified for long 12 m tubes, with tighter limits available after technical review.
Smooth Internal and External Surfaces
Cold finishing produces a more uniform surface than conventional hot-finished pressure pipe. Where hydraulic-system cleanliness and fitting performance are critical, EN 10305-4 requirements can be added. EN 10305-4 is specifically intended for seamless cold-drawn tubes used in hydraulic and pneumatic power systems and includes controlled dimensional, surface, and inspection requirements.
Grade Selection According to Pressure and Forming Requirements
ASTM A106 provides three strength levels:
  • Grade A for lower-strength applications requiring good formability
  • Grade B for general pressure-service requirements
  • Grade C where higher minimum yield and tensile strength are required
The selected wall thickness must be verified by the system designer using operating pressure, temperature, material allowable stress, corrosion allowance, bending reduction, and fitting type.
Our Advantages
1. Standard Compatibility Is Confirmed Before Production
Purchasing concern: A tube may be described as "ASTM A106 hydraulic tubing" even though ASTM A106 does not define the tight dimensional and surface requirements normally expected for hydraulic ferrule connections.
Our approach: The order is reviewed according to its actual function. ASTM A106 chemical and mechanical requirements can be combined with separately agreed OD tolerance, wall tolerance, straightness, roughness, cleanliness, and end-preparation requirements. For dedicated hydraulic lines, EN 10305-4 or ASTM A519 can be proposed where technically appropriate.
2. Pressure Integrity Is Verified by Documented Testing
Purchasing concern: Dimensional accuracy alone does not confirm that a seamless tube is free from longitudinal defects, laps, internal discontinuities, or pressure-leakage risks.
Our approach: Each production lot can be supplied with hydrostatic or nondestructive electric testing, dimensional records, heat-number traceability, chemical analysis, and mechanical test results. ASTM A106 includes hydrostatic and nondestructive electric testing provisions, subject to the ordered inspection route.
3. Internal Condition Is Controlled for Hydraulic Assembly
Purchasing concern: Residual scale, rust, oil contamination, sharp end burrs, or excessive internal roughness can damage valves, seals, and hydraulic components.
Our approach: Tubes can be supplied internally cleaned, dried, lightly oiled, end-capped, and deburred. For higher cleanliness requirements, internal roughness, particle limits, protective packaging, and cleanliness verification can be defined in the purchase specification. EN 10305-4 hydraulic tubing can be ordered with smooth internal and external surfaces and specified roughness requirements.
Execution Standards
Standard Scope
ASTM A106/A106M Seamless carbon steel pipe for high-temperature pressure service
ASTM A519/A519M Seamless carbon and alloy steel mechanical tubing, including cold-finished tubing
EN 10305-1 Seamless cold-drawn steel tubes for precision applications
EN 10305-4 Seamless cold-drawn tubes for hydraulic and pneumatic power systems
GOST 8734 Cold-deformed seamless steel tubes
JIS G3445 Carbon steel tubes for machine structural purposes
GB/T 3639 Cold-drawn or cold-rolled precision seamless steel tubes
Chemical Composition
Grade Standard C, % max Si, % Mn, % P, % max S, % max Cr, % max Ni, % max Mo, % max Cu, % max
Grade A ASTM A106 0.25 0.10 min 0.27-0.93 0.035 0.035 0.40 0.40 0.15 0.40
Grade B ASTM A106 0.30 0.10 min 0.29-1.06 0.035 0.035 0.40 0.40 0.15 0.40
Grade C ASTM A106 0.35 0.10 min 0.29-1.06 0.035 0.035 0.40 0.40 0.15 0.40
E235 EN 10305-4 0.17 0.35 max 1.20 max 0.025 0.015 -- -- -- --
E355 EN 10305-4 0.22 0.55 max 1.60 max 0.025 0.015 -- -- -- --
Mechanical Properties
Grade Standard / Condition Minimum Yield Strength, MPa Tensile Strength, MPa Minimum Elongation
Grade A ASTM A106 205 330 minimum Determined by ASTM A106 specimen and area formula
Grade B ASTM A106 240 415 minimum Determined by ASTM A106 specimen and area formula
Grade C ASTM A106 275 485 minimum Determined by ASTM A106 specimen and area formula
E235 EN 10305-4, +N 235* 340-480 25%
E355 EN 10305-4, +N 355* 490-630 22%
Manufacturing Process
  1. Steel billet inspection and identification
  2. Billet heating and seamless piercing
  3. Hot rolling or elongation
  4. Pickling and surface preparation
  5. Cold drawing or cold rolling to 24 mm OD
  6. Intermediate annealing where required
  7. Final heat treatment according to the ordered delivery condition
  8. Precision straightening
  9. Cutting to 12 m fixed length
  10. End deburring and cleaning
  11. Dimensional and surface inspection
  12. Hydrostatic or nondestructive electric testing
  13. Marking, capping, bundling, and protective packaging
Application
Rigid Pressure Line for a Hydraulic Power Unit
The 24 mm seamless tube can be used as a rigid pressure line connecting the hydraulic pump, directional control valve, and actuator in an industrial hydraulic power unit.
Before final selection, the system designer should confirm:
  • Maximum working and surge pressure
  • Required internal diameter and flow velocity
  • Operating temperature
  • Hydraulic-fluid compatibility
  • Bend radius
  • Fitting system
  • Required safety factor
  • Corrosion protection
  • Internal cleanliness class
For compression-ring or ferrule-type hydraulic fittings, EN 10305-4 E235+N or E355+N is generally the more technically direct specification than ASTM A106 alone. Parker's technical guidance also recommends cold-drawn, normalized hydraulic tubes manufactured to DIN EN 10305, including E235 and E355 grades.
