Specifications
Brand Name :
TORICH
Model Number :
GOST9567
Certification :
ISO 9001 ISO 14001 EN 10204.3.1 TS 16949
Place of Origin :
China
MOQ :
5 tons
Price :
USD 600-1200 ton
Supply Ability :
60000tons per year
Delivery Time :
35-60 days
Packaging Details :
oil antirust In export Standard packing
Material :
Carbon Steel and Alloy Steel
Steel Grade :
10 20 35 45 40X
Standard :
GOST9567
Shape :
Round
Applications :
Automobile, Machinery Engineering, Autoparts etc.
Size range :
O.D.:6-168mm W.T.:1-15mm L:max12000mm
Production method :
Seamless Cold Drawn
Description

GOST9567 10 20 35 45 40X 30ХГСА Steel Tubes-Precision Steel Tubes

GOST9567 Precision steel tubes

TORICH is specialized in manufacturing cold drawn precision steel tube according to technical standard of GOST9567.

precision carbon steel tube is usually manufactured from round billet to hollow tubes, then after several cold drawn process to the final diemenion with target size tolerances and mechanical properties.


Applications of carbon steel precision tube:

Automobile, Machinery Engineering, Autoparts etc.


Size range of cold-drawn precision seamless steel tube:

O.D.:6-168mm W.T.:1-15mm L:max12000mm

Chemical Composition(%,max) for carbon steel precision tube:

Steel Grade C Si Mn Cr Ni Mo S P Cu
10 0.07-0.14 0.17-0.37 0.35-0.65 0.15 0.3 - - - -
20 0.17-0.24 0.17-0.37 0.35-0.65 0.25 0.25 - 0.03 0.025 0.3
35 0.32-0.40 0.17-0.37 0.50-0.80 0.25 0.3 - 0.04 0.035 0.3
45 0.42--0.45 0.17-0.37 0.50-0.80 0.25 - - - - -
40X 0.36-0.44 0.17-0.37 0.50-0.80 0.80-1.10 0.3 - 0.035 0.035 0.3
30ХГСА 0.28-0.34 0.90-1.20 0.80-1.10 0.80-1.10 0.3 - 0.005 0.025 -

Mechanical Properties:

Steel Grade Tensile Strength,
N/mm2 (min)		 Yield Strength, N/mm 2 (min) Elongation,
%(min)
10 343 206 24
20 412 245 21
35 510 294 17
45 589 323 14
40X 618 - 14
30ХГСА 491 - 18

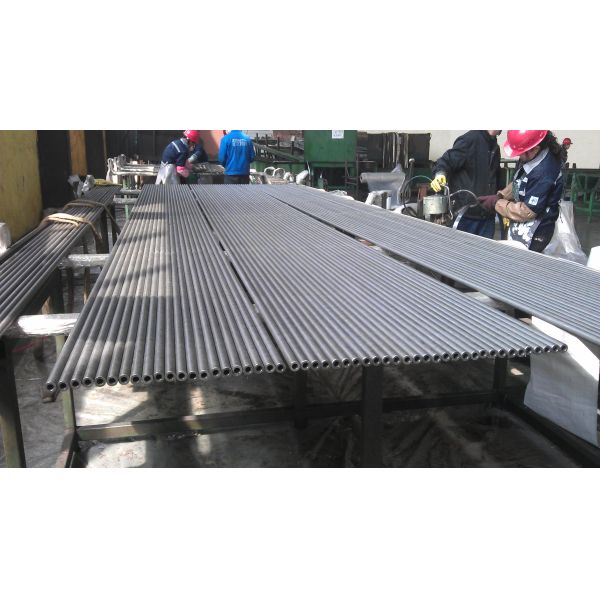

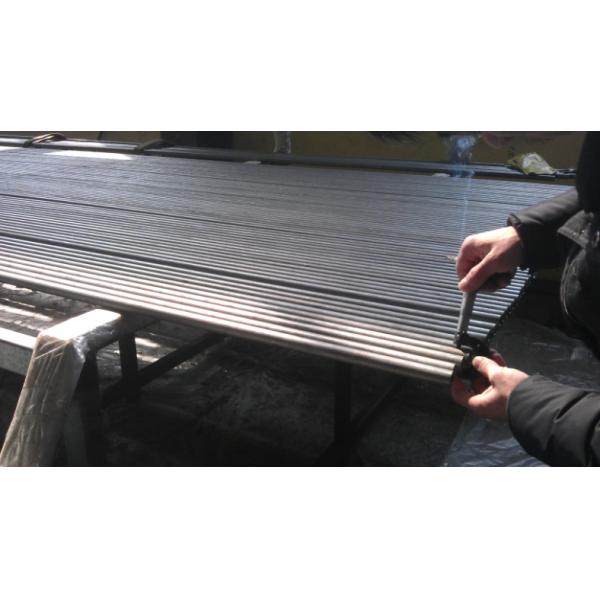

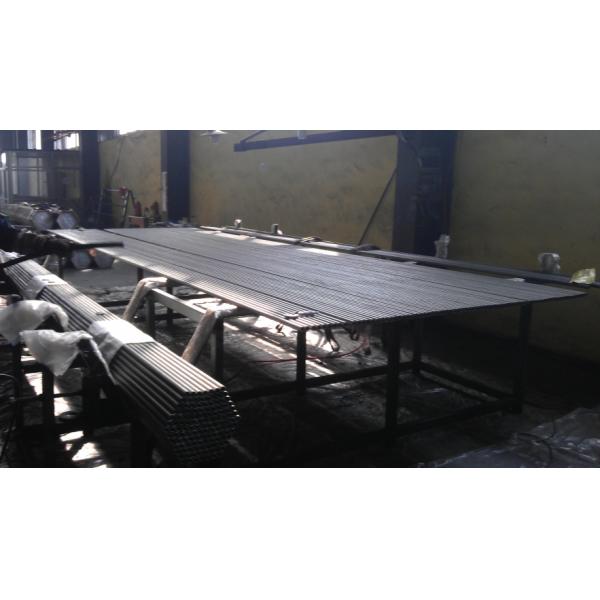

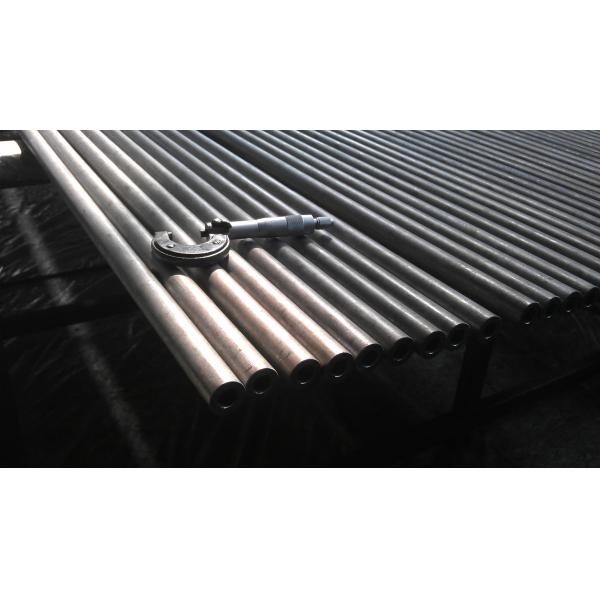

Production and Quality Inspection:

Precision Steel Tubes GOST9567 10 20 35 45 40X 30ХГСА Alloy Steel Tubes Precision Steel Tubes GOST9567 10 20 35 45 40X 30ХГСА Alloy Steel TubesPrecision Steel Tubes GOST9567 10 20 35 45 40X 30ХГСА Alloy Steel TubesPrecision Steel Tubes GOST9567 10 20 35 45 40X 30ХГСА Alloy Steel Tubes
