Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes
Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes
Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes
Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes
Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes
Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes
Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes
Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes
Specifications
Brand Name :
TORICH
Model Number :
EN10305-1
Certification :
ISO 9001-2008 ISO14001 TS16949 DNV
Place of Origin :
China
MOQ :
5 tons
Price :
900-1200USD/ton
Supply Ability :
50000 tons one year
Delivery Time :
5-8 weeks work days
Packaging Details :
oil antirust in carton boxes or in wooden boxes
Payment Terms :
L/C, D/A, D/P, T/T
Material :
Carbon and Alloy Steel
Steel grade :
E235 E355 or others
Shape :
Round
Standard :
EN 10305-1
Dimension :
OD6-380mm*WT-35mm*max12000mm
Manufacture :
Seamless Cold Drawn/Rolling
Applications :
for Hydraulic Systems
MTC :
EN10204 3.1B
Description

Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes

Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes
Carbon Steel Precision Tube for precision applications.

Ra roughness max 0.8μm


Applications: for Hydraulic Systems


Size range for cold-drawn precision seamless steel tube:

O.D.:6-380mm

W.T.:1-35mm

L:max12000mm


Steel Grade and Chemical Compositions:

Steel Grade C Si Mn P S Al
Steel Name Steel Number max max max max max min
E215 1.0212 0.10 0.05 0.70 0.025 0.025 0.025
E235 1.0308 0.17 0.35 1.20 0.025 0.025 -
E355 1.0580 0.22 0.55 1.60 0.025 0.025 -

Mechanical properties at room temperature
Steel grade Minimum values for the delivery condition
Steel Name Steel Nubmer (+Cc) (+LCc) (+SR) (+Ad) (+N) NBK
Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A %
E215 1.0212 430 8 380 12 380 280 16 280 30 290-430 215 30
E235 1.0308 480 6 420 10 420 350 16 315 25 340-480 235 25
E355 1.0580 640 4 580 7 580 450 10 450 22 490-630 355 22

Note: Special steel grade is also available, according to customer request.

Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes

Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes

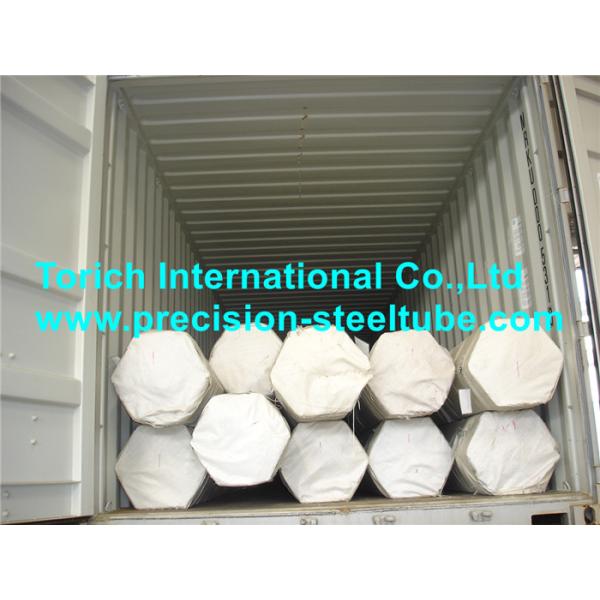

Container Loading and Ready for Shipment

Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes Precision Hydraulic Tubing EN10305-1 Seamless Cold Drawn Steel Tubes
