Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI
Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI
Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI
Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI
Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI
Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI
Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI
Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI
Specifications
Brand Name :
TORICH
Model Number :
DIN2391
Certification :
ISO 9001 ISO 14001 TS 16949 EN 10204.3.1 ABS DNV
Place of Origin :
China
MOQ :
5 tons
Price :
USD 600-1200 ton
Supply Ability :
20000 tons per year
Delivery Time :
35-40 days
Packaging Details :
Oil antirust In hexagonal bundles with seaworthy packing or per request
Payment Terms :
L/C, D/A, D/P, T/T
Material :
Carbon Steel
Steel grade :
St 30SI, St 30 Al, St35,St45, St52, Other materials upon agreement with customers.
Shape :
Round
Standard :
DIN2391 EN10305-1
Manufacture :
Seamless Cold Drawn
Surface treatment :
Bright Annealing and Oil
Application :
In auto parts industry
Characteristic :
High Accuracy, Clean ID, Smooth Roughness
Description

Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI

Cold Drawn Carbon Seamless Steel Pipe

Precision Steel Tube DIN2391 St35, St45, St37.0, St37.4, St52.0, St 30SI,

Grade:

St 30SI, St 30 Al, St35,St45, St52, Other materials upon agreement with customers.

Quick Detail:

Precision Steel Pipes for Hydraulic system

Size Range:

OD: 4-80 (mm)

WT 0.5-10 (mm)

Length 12000mm

1. Standard:
DIN2391 Precision Seamless Steel tubes for precision hydraulic systems
DIN2393 Precision Welded Steel tubes for precision hydraulic systems

2. Steel Grade:
St 30SI, St 30 Al, St35,St45, St52, other materials upon agreement with customers.

Steel Grade and Chemical Compositions:

Steel Grade C Si Mn P S
max max max max
ST35 0.17 0.35 ≥0.40 0.025 0.025
ST45 0.21 0.35 ≥0.40 0.025 0.025
ST52 0.22 0.35 ≥1.60 0.025 0.025

3. Production method:
Cold Drawn on the seamless steel tubes, to reach high accuracy on the OD and WT tolerance

4.Size range:
O.D.:20-350mm W.T.:1-15mm L:max12000mm

5. Packing:
In Hexagonal Bundles, wth anti-rust oil protection, with seaworthy packing

6.Deliver condition:

1). BK Cold finished (hard)
2). BKW Cold finished (soft)
3). BKS Cold finished and stress relieved
4). GBK Annealed
5). NBK Normalized

Mechanical properties at room temperature
Steel Grade Minimum values for the delivery condition
BKW BKS GBK (+N) NBK
ST35 480 6 420 10 420 315 14 340-470 235 25
ST45 580 5 520 8 520 375 12 440-570 235 21
ST52 640 4 580 7 580 420 10 490-630 355 22

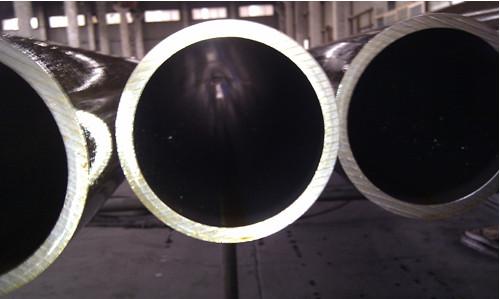

Tube in production:
Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SIPrecision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI

Tube under Inspection:

Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0 St37.4 St52.0 St 30SI
