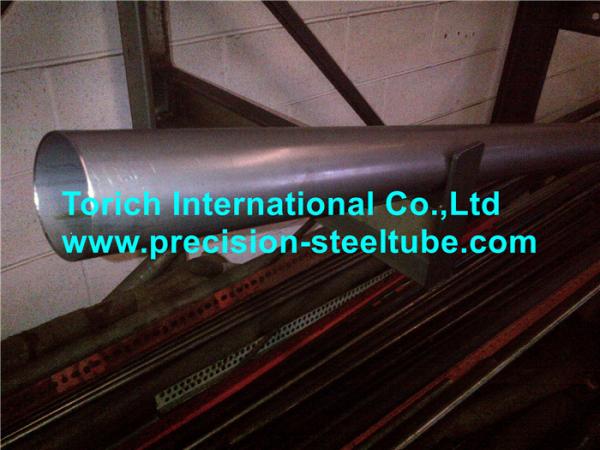

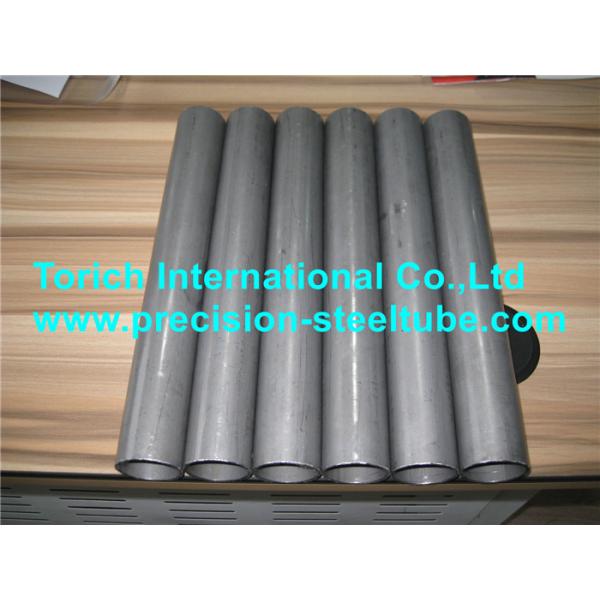

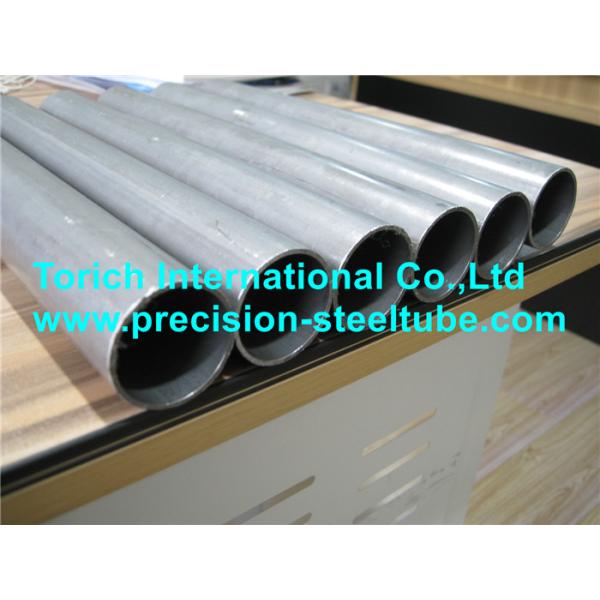

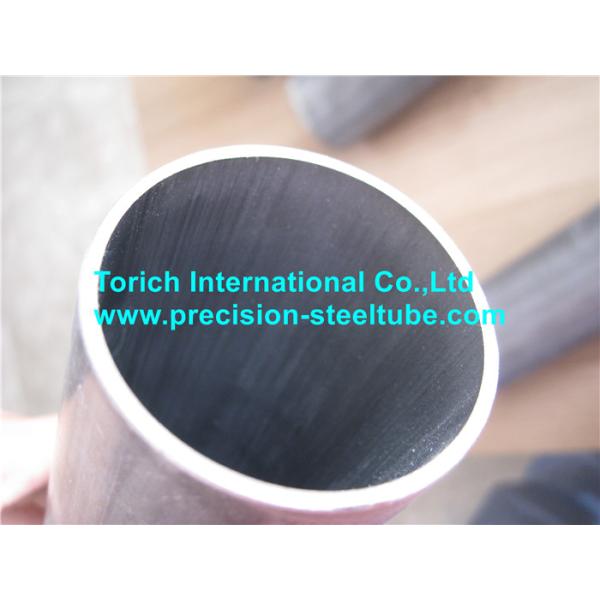

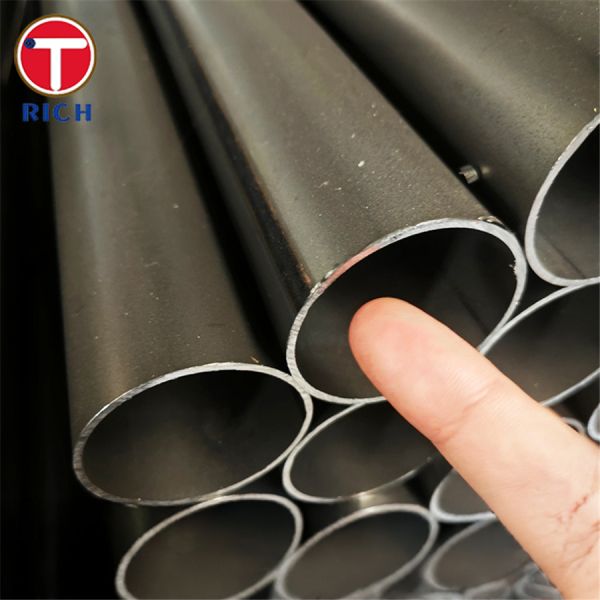

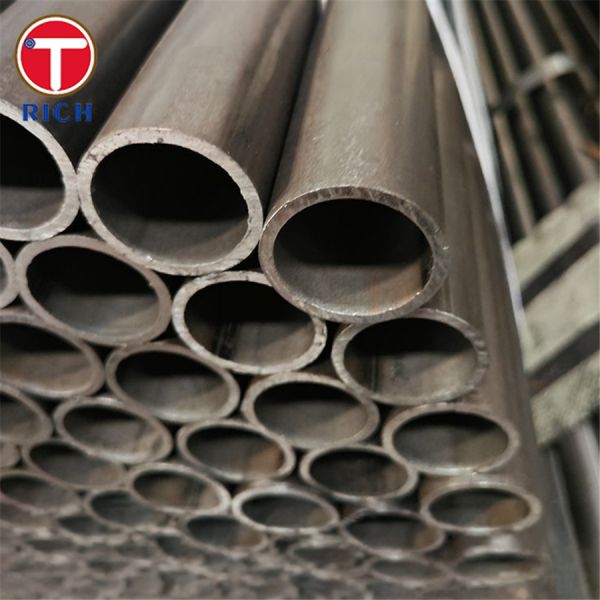

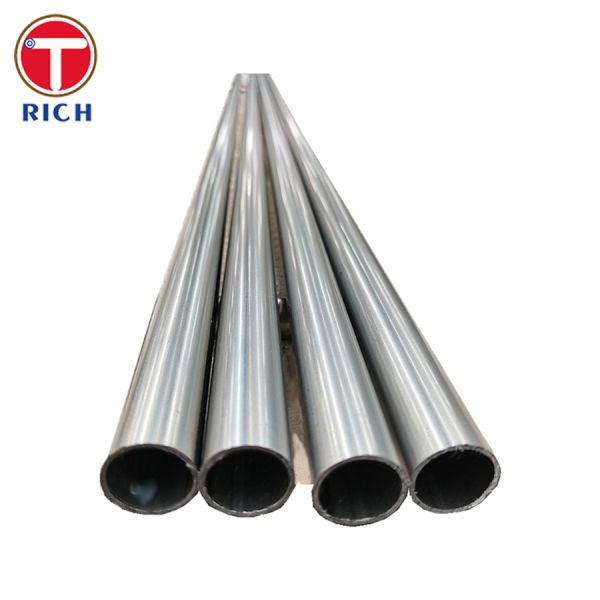

SAE J525 Welded Cold Drawn Low Carbon Steel Tubing Annealed for Bending and Flaring

Applications: for Bending and Flaring to Auto Parts

Quick Detail:

Size range: O.D.:6-350mm W.T.:1-15mm L: According to customer Order

Grade: Low Carbon Steel

Manufacture and Production: ERW+ DOM

The tubing is made from flat-rolled steel shaped into a tubular form, the edges of which are joined and fused together by electric-resistance welding.

After forming and welding, the tubing shall be normalized and subjected to a cold-drawing operation that shall result in a 15% minimum reduction in cross-sectional area, of which 8% shall consist in a reduction in wall thickness. Subsequent to cold working, the tubing shall be normalized via an atmospherically controlled method to produce a finished product that will meet requirement of SAE J525.

Description:

Mechanical tubing made from hot or cold-rolled steel.

Covers electric-resistance-welded low carbon steel tubing for use as mechanical tubing

Advantage:

Good concentricity, Better price than seamless.

Production & Sample:

SAE PUBLICATIONS FOR RELATED STNANDARDS:

SAE J409 Product Analysis - Permissible Variations from Specified Chemical Analysis of a Heat or Cast
Cast of Steel

SAE J514 Hydraulic Tube Fittings

SAE J533 Flares for Tubing

SAE J1677 Test and Procedures for Low Carbon Steel and Copper Nickel Tubing

SAE J1065 Norminal Reference Working Pressure for Steel Hydraulic Tubing

SAE J1453 Fitting - O Ring Face Seal

PERFORMANCE REQUIREMENTS:

Flattening test - SAE1677

Flaring test - SAE1677

Reverse Flattening test - SAE1677

Expansion Test - SAE1677

Hardness Test - SAE1677

Tensile Test - SAE1677

Elongation Test - SAE1677

Pressure Proof Test - SAE1677

Nondestructive Electric Test - SAE1677

Test Certificate: EN10204 3.1 B

Cleanliness- The Inside and outside surfaces of the tubing is commercially bright, clean, and free from grease, oxide scale, carbon deposits, and any other contamination that can not be readily removed by cleaning agents normally used in manufacturing plant

Corrosion Protection - The inside and outside of the finished tubing is protected against corrosion during shipment and normal storage. The corrosion preventive compound can be readily removed by cleaning agents normally used in manufacturing after normal storage periods.

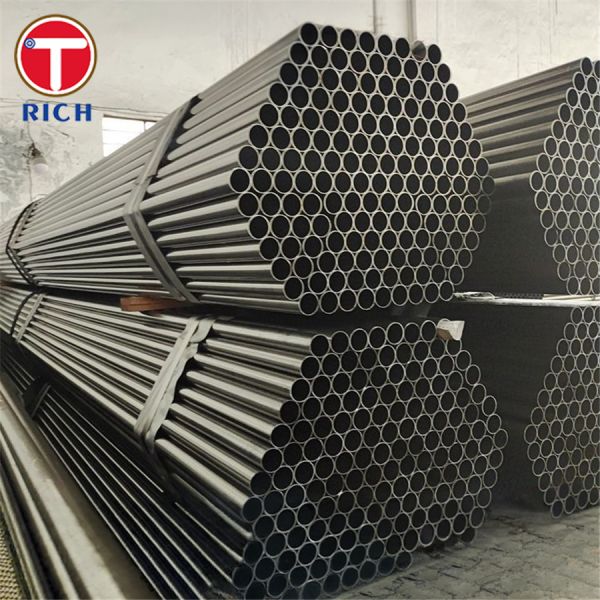

Packaging - The tubing is packed in a way allow it to be transported and stored. Usually in bundles with hexagonal shape with strong strips and lifting string for loading and unloading. Could also follow purchaser's requirement and agreement.
