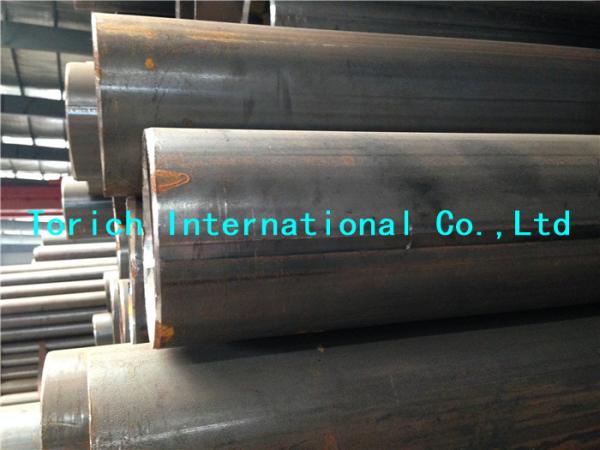

ASTM A135 Electric-Resistance-Welded tube steel pipe for Automotive Industry
ASTM A135 Electric-Resistance-Welded tube steel pipe for Automotive Industry
ASTM A135 Electric-Resistance-Welded tube steel pipe for Automotive Industry
ASTM A135 Electric-Resistance-Welded tube steel pipe for Automotive Industry
ASTM A135 Electric-Resistance-Welded tube steel pipe for Automotive Industry
ASTM A135 Electric-Resistance-Welded tube steel pipe for Automotive Industry
ASTM A135 Electric-Resistance-Welded tube steel pipe for Automotive Industry
ASTM A135 Electric-Resistance-Welded tube steel pipe for Automotive Industry
Specifications
Brand Name :
TORICH
Model Number :
ASTM A135
Certification :
ISO9001
Place of Origin :
China
MOQ :
6 Tons
Price :
650-750USD
Payment Terms :
L/C, T/T
Supply Ability :
6000 Metric Ton/Metric Tons per Month
Delivery Time :
6-9weeks
Packaging Details :
oil antirust+in hexagonal bundles
Material :
ASTM A135 GRA GRB
Type :
Electric-Resistance-Welded Steel Pipe
Outer Diameter :
5 - 420 mm
Production Technology :
Cold Draw/Cold Rolled/Hot rolled
Surface Treatment :
black varnish painted,oil painted,Galvanized
Alloy Or Not :
Not alloy
Description

ASTM A135 Electric-Resistance-Welded tube steel pipe for Automotive Industry

Specifications

Standard:
ASTM A135 Standard Specification for Electric-Resistance-Welded Steel Pipe


Material:
ASTM A135 GRA GRB

Application:
1. Low and middle pressure fluid transportation pipeline
2. Casing Tube
3. Boiler Pipe
4. Petroleum and natural gas industry
5. Chemistry industry
6. Electric industry

Surface Treatment:
1.Bared
2.Black Painted (varnish coating)
3.Galvanized
4.Oiled
5.PE,3PE, FBE, corrosion resistant coating, Anti corrosion coating.
Table TUBING WALL THICKNESS TOLERANCE
Nominal
Wall Thickness		 Nominal OD
Through 22mm
±mm		 Nominal OD
22-48mm
±mm		 Nominal OD
48-100mm
±mm
0.89 0.05/0.05 0.05/0.05 0.05/0.05
1.00 0.05/0.05 0.05/0.08 0.05/0.08
1.25 0.05/0.05 0.05/0.08 0.05/0.08
1.50 0.05/0.05 0.05/0.08 0.05/0.08
1.65 0.05/0.05 0.05/0.08 0.05/0.08
2.00 0.05/0.05 0.05/0.08 0.05/0.08
2.11 0.05/0.05 0.05/0.08 0.05/0.08
2.410 0.05/0.05 0.05/0.08 0.08/0.08
2.500 0.05/0.08 0.05/0.10 0.08/0.08
2.770 0.05/0.08 0.05/0.10 0.08/0.08
3.000 0.05/0.08 0.05/0.10 0.08/0.08
3.050 0.05/0.08 0.05/0.10 0.08/0.08
3.40 - 0.05/0.10 0.08/0.08
3.75 - 0.05/0.10 0.08/0.08
4.00 - 0.08/0.10 0.08/0.10
4.19 - 0.08/0.10 0.08/0.10
4.57 - 0.10/0.10 0.08/0.13
5.00 - 0.10/0.13 0.10/0.13
Table 2- CHEMICAL REQUIREMENTS
Element %
Carbon 0.06-0.18
Manganese 0.30 to 0.60
Phosphprus 0.040 max
Sulfur 0.050 max
Table 3- MECHANICAL PROPERTIES
Properties Value
Yield Strength,min 170 Mpa
Ultimate Strength,min 310 Mpa
Elongation in 50mm, min 35%
Hardness ( Rockwell B),max 65.00

Sizes: OD:5-420 mm WT: 0.5mm-50mm L:max 12000mm

Description:

MechaniCal tubing made from hot or cold-rolled steel.

Covers electric-resistance-welded low carbon steel tubing for use as mechanical tubing
