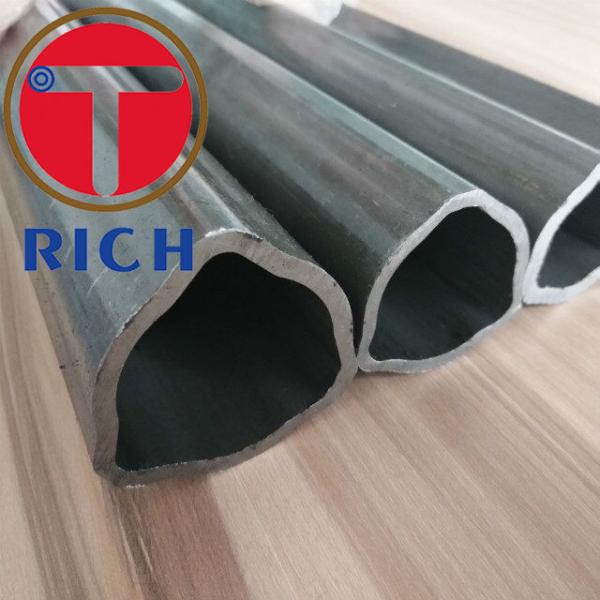

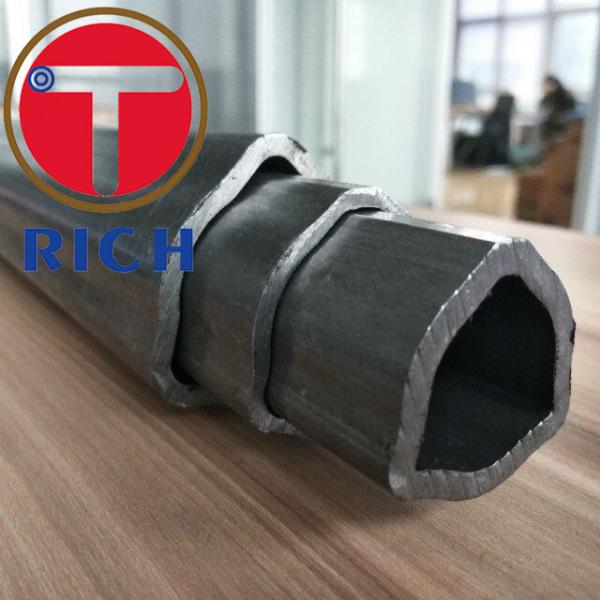

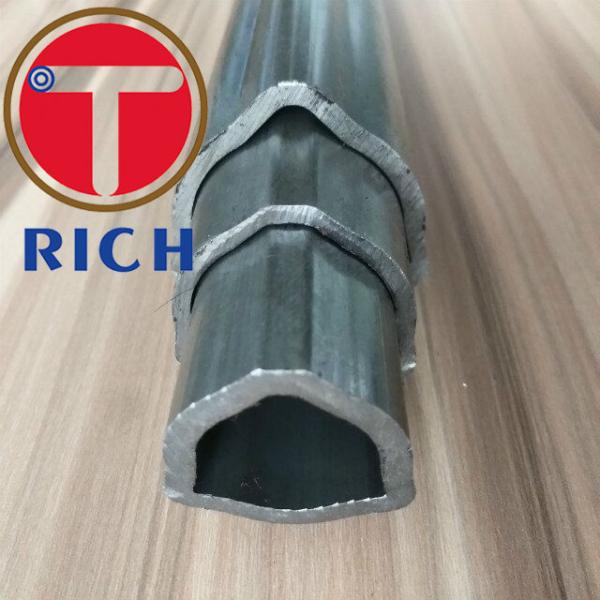

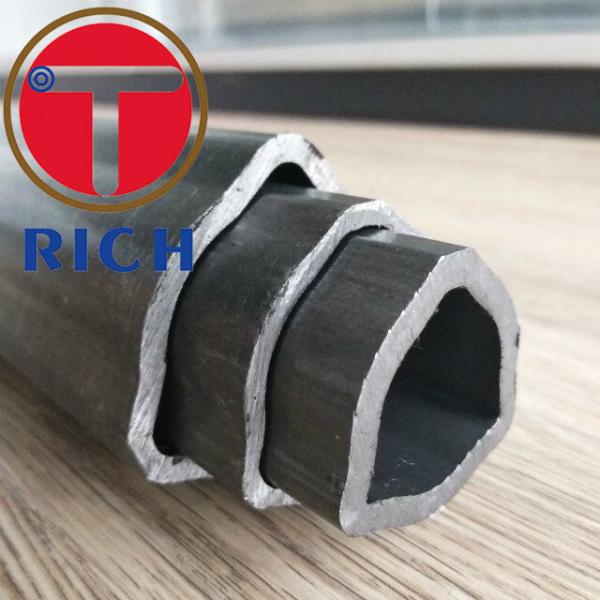

DIN ST52 PTO Triangle Lemon Shape Shaft Lemon Tube for Agricultural Drive System
DIN ST52 PTO Triangle Lemon Shape Shaft Lemon Tube for Agricultural Drive System
DIN ST52 PTO Triangle Lemon Shape Shaft Lemon Tube for Agricultural Drive System
DIN ST52 PTO Triangle Lemon Shape Shaft Lemon Tube for Agricultural Drive System
DIN ST52 PTO Triangle Lemon Shape Shaft Lemon Tube for Agricultural Drive System
DIN ST52 PTO Triangle Lemon Shape Shaft Lemon Tube for Agricultural Drive System
DIN ST52 PTO Triangle Lemon Shape Shaft Lemon Tube for Agricultural Drive System
DIN ST52 PTO Triangle Lemon Shape Shaft Lemon Tube for Agricultural Drive System
Specifications
Brand Name :
TORICH
Model Number :
DIN ST52
Certification :
ISO
Place of Origin :
Zhejiang
MOQ :
5 Tons
Price :
USD 1000-1300 Per Ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Tons Per Month
Delivery Time :
4-6 Weeks
Packaging Details :
Anti Rust Oil Protection, in seaworthy packing
Grade :
10#, 20#, 45#, 16Mn
Thickness :
0.5 - 50 mm
Section Shape :
Triangle
Alloy Or Not :
Non-alloy
Type :
Seamless Cold Drawn
Shape :
Triangle Lemon Shape
Description

for PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube

Products Description:

for PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube

Quick Detail:

Chemical Compositions:

Standard Steel Grade C Si Mn P S
EN 10305-1 E215 ≤0.10 ≤0.05 ≤0.70 ≤0.025 ≤0.025
E235 ≤0.17 ≤0.35 ≤1.20 ≤0.025 ≤0.025
E355 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025
DIN 2391 St35 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St37.4 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St45 ≤0.21 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St52 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025
GB/T 3639 10 0.07-0.13 0.17-0.37 0.35-0.65 ≤0.030 ≤0.030
20 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.030 ≤0.030
35 0.32-0.39 0.17-0.37 0.50-0.80 ≤0.030 ≤0.030
45 0.42-0.50 0.17-0.37 0.50-0.80 ≤0.030 ≤0.030
Q345B ≤0.20 ≤0.50 ≤1.70 ≤0.030 ≤0.030

Size:

Triangle Steel Tube Outer (mm) Inner (mm)
H S H S
1S 32.4 2.5 26.6 3.5
2S 36.1 3.4 29 4
4S 43.4 3.3 36.1 4.4
5S 51.3 2.9 44.7 4
6S 53.6 3.8 44.7 4
7S 53.6 3.8 44.7 5.5
8S 62.7 4 53.6 4.5
9S 62.7 4 53.6 5.5


Applications/End Use: PTO Agricultural Drive Shaft Tube

Product information:

Material: SAE1010 , SAE1020 , SAE1035 , SAE1045 , ST37.0 , ST44 , ST52 , E235 , E355
Grade: BS, JIS, GB, DIN, ASTM, API,
Shape: Lemon
Wall thickness: 0.5-50mm
Length: up to 12m, or according to customer's requirement.
Outer diameter: Round: 5-420mm
Diameter and wall thickness could be at customer's request.
Technology: Cold Draw/Cold Rolled
Surface treatment: painted,galvanized,or oiled according to customer's requirement
Application: Lighting,furniture,medical equipments
Place of origin: China
Application Mechanical structure, Carbon pressure machinery etc.

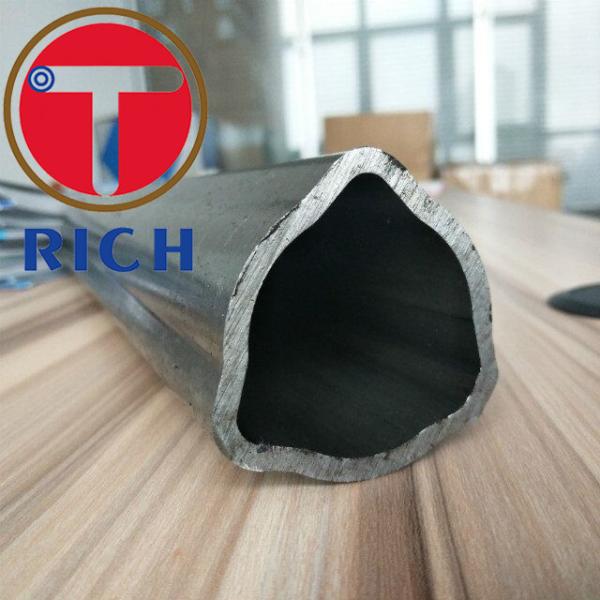

DIN ST52 PTO Triangle Lemon Shape Shaft Lemon Tube for Agricultural Drive System DIN ST52 PTO Triangle Lemon Shape Shaft Lemon Tube for Agricultural Drive System

DIN ST52 PTO Triangle Lemon Shape Shaft Lemon Tube for Agricultural Drive System
