Specifications
Brand Name :
TORICH
Model Number :
GB/T 3093
Certification :
ISO 9001 ISO 14001 TS 16949
Place of Origin :
Zhejiang China
MOQ :
5 Ton
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
40000 Ton/Year
Delivery Time :
30 days
Packaging Details :
Packing in wooden box，hexagonal bundles or other seaworthy ways.
Product Name :
High-Pressure Seamless Steel Tubes for Diesel Engine GB/T 3093
Material :
10A 20A Q345A
Surface :
With anti rust protection
Application :
Diesel engine
Shape :
Round
OD :
4-1200mm
WT :
0.3-200mm
Length :
1.5-6m
Description

High-Pressure Seamless Steel Tubes for Diesel Engine GB/T 3093

Spec:
Material:10A 20A Q345A
Size Range:OD:4-1200mm
WT:0.3-200mm
General Length:1.5-6m
Tolerance:
According to the following tables or customers’ request.

Characteristic:Technical Requirements

Chemical component:

Name

GradeChemical component(mass fraction )%
CSiMnPSCrNiCu
Max
U2010310A0.07-0.130.17-0.370.35-0.650.030.030.150.300.20
U2020320A0.17-0.230.17-0.370.35-0.650.030.030.250.300.20
L03451Q345A0.20Max0.55Max1.00-1.600.030.300.300.300.20

Mechanical Properties:

GradeTensile strength /MpaYeild strength/MpaElongation/%
Max
10A335-47020530
20A390-54024525
Q345A470-63034522

Producing Method:cold drawn


Technical Delivery Conditions:Cold drawn + Heat treatment
Widely used in the field of/Application:Diesel engine

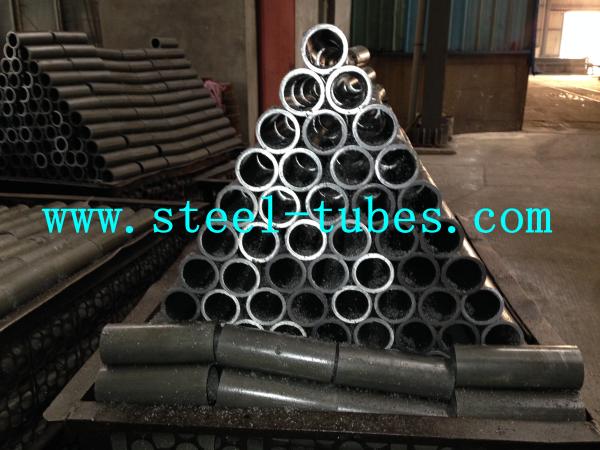

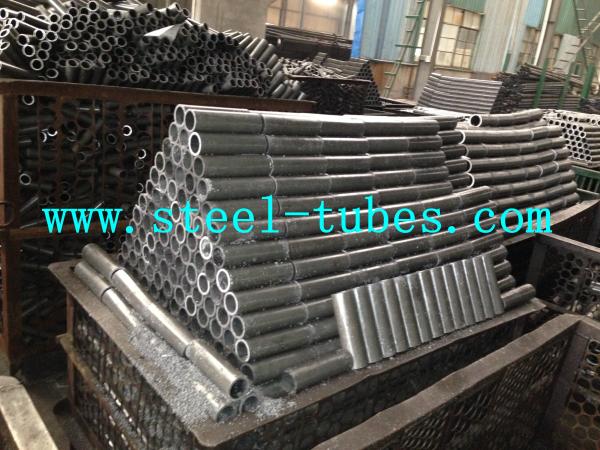

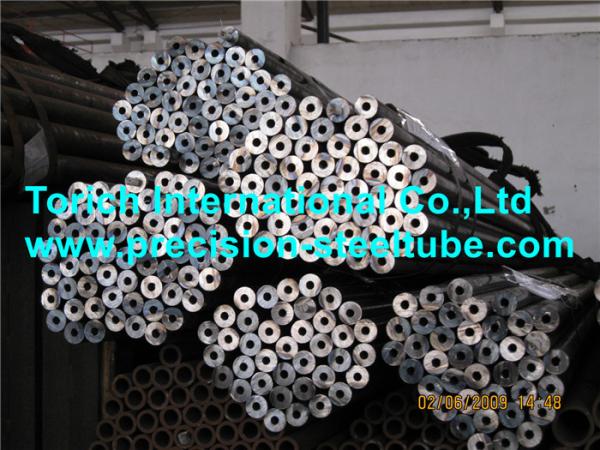

Product Images:High Pressure Seamless Steel Tubes for Diesel Engine GB/T 3093
High Pressure Seamless Steel Tubes for Diesel Engine GB/T 3093
High Pressure Seamless Steel Tubes for Diesel Engine GB/T 3093
High Pressure Seamless Steel Tubes for Diesel Engine GB/T 3093
