Precision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic System
Precision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic System
Precision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic System
Precision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic System
Precision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic System
Precision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic System
Precision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic System
Precision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic System
Specifications
Brand Name :
New Era
Model Number :
EN10305-1
Certification :
ISO 9001 ISO 14001 EN 10204.3.1 TS 16949 TUV GL PED
Place of Origin :
China
MOQ :
5tons
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 tons/month
Delivery Time :
45 days
Packaging Details :
Oil antirust In hexagonal bundles
Length :
max12000mm
Shape :
Round
OD Size :
6-420mm
WT Size :
1-50mm
Steel Material :
Carbon Steel E235
Applications :
For Auto Industry/for Machinery Use/Oil Cylinder Tube/Motorcycle Shock Absorber
Production Method :
Seamless+Cold Rolling
Description

Precision Steel Tube EN10305-1 Seamless Cold Rolling Steel Tubes for Hydraulic Systems

Quick Detail:

Standard: EN10305-1 Seamless Cold Rolling Steel Tubes
Steel tubes for precision applications.


Applications:

for Auto industry/for machinery use/Oil Cylinder Tube/Motorcycle shock absorber
Auto shock absorber inner cylinder/Telescopic Cylinders


Size range: O.D.:6-420mm W.T.:1-50mm L:max12000mm

Production: Cold Drawn + Cold Rolling

Steel Grade and Chemical Compositions:

Steel Grade C Si Mn P S Al
Steel Name Steel Number max max max max max min
E215 1.0212 0.10 0.05 0.70 0.025 0.025 0.025
E235 1.0308 0.17 0.35 1.20 0.025 0.025 -
E355 1.0580 0.22 0.55 1.60 0.025 0.025 -

Mechanical properties at room temperature
Steel Grade Minimum values for the delivery condition
Steel Name Steel Nubmer (+Cc) (+LCc) (+SR) (+Ad) (+N) NBK
Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A %
E215 1.0212 430 8 380 12 380 280 16 280 30 290-430 215 30
E235 1.0308 480 6 420 10 420 350 16 315 25 340-480 235 25
E355 1.0580 640 4 580 7 580 450 10 450 22 490-630 355 22

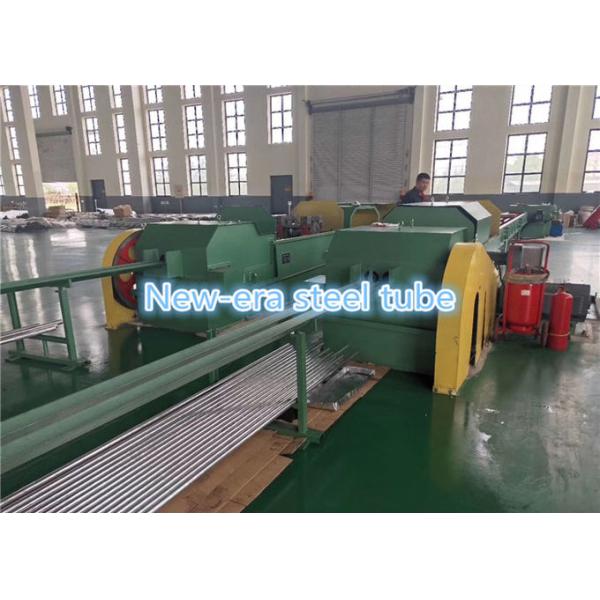

Production:

Precision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic SystemPrecision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic System

Precision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic System

Precision Steel EN10305-1 Cold Rolled Seamless Tube For Hydraulic System
