TP316 Stainless Steel Tubing
TP316 Stainless Steel Tubing
TP316 Stainless Steel Tubing
TP316 Stainless Steel Tubing
TP316 Stainless Steel Tubing
TP316 Stainless Steel Tubing
Specifications
Brand Name :
New-Era
Model Number :
ASTM A269/ASME SA269
Certification :
ISO9001, ISO14001, TS16949
Place of Origin :
China
MOQ :
1ton
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
500tons per month
Delivery Time :
35-45days
Packaging Details :
in wooden boxes in seaworthy packing.
Keyword :
TP316 brightness annealed stainless steel tube
Usage :
Condenser,boiler,Heat-Exchanger
Material :
TP316 TP316L,316SS,S31603
OD Size :
OD:10mm to 168mm
WT Size :
W. T.: 1.2 mm to 15mm
Length :
max 25meters
Type: :
Seamless cold drawn or welded
Surface finish: :
A & P, bright annealing
Description

ASTM A269/ASME SA269 Stainless steel 316L/S31603 seamless bright annealed tubing

We always have stock of normal export size by materials 316L bright annealed:

STOCK

SIZE

 4.76*0.71mm/4.76*0.89mm/4.76*1.24mm
6*1mm/6*1.5mm
6.35*0.71mm/6.35*0.89mm/6.35*1.24mm/6.35*1.65mm
7.94*0.71mm/7.94*0.89mm/7.94*1.24mm/7.94*1.65mm
9.53*0.71mm/9.53*0.89mm/9.53*1.24mm/9.53*1.65mm
10*1mm/10*1.5mm/10*2mm
12*1mm/12*1.5mm
12.7*0.71mm/12.7*0.89mm/12.7*1.24mm/12.7*1.65mm
14*1mm/14*1.5mm/14.1*2mm
15.88*0.71mm/15.88*0.89mm/15.88*1.24mm/15.88*1.65mm/15.88*2.11mm
16*1mm/16*1.5mm/16*2mm
19.05*1mm/19.05*1.24mm/19.05*1.65mm/19.05*2.11mm
25.4*1.24mm/25.4*1.65mm/25.4*2.11mm/25.4*2.54mm
31.8*1.24mm/31.8*1.65mm/31.8*2.11mm/31.8*2.54mm
38.1*1.24mm/38.1*1.65mm/38.1*2.11mm/38.1*2.4mm/38.1*3.05mm

Chemical composition:

C(max) Si(max) Mn(Max) P(max) S(max) Cr Ni Mo
316L/1.4404 0.035 1.00 2.00 0.045 0.030 16-18 10-14 2.0-3.0


Standard & Tolerance: ASTM A213,ASTM A269,EN10216-5 TC1,D4/T3

NDT: Eddy Current or Hydraulic Test

Heat Treatment: Bright Annealed

Sample: Avaliable according to customer requirement.

Delivery: 7- 20 days
Inspection: ISO 9001-2000, PED 97/23/EC, ASME, DNV, TUV
Applications: Processing plant for sulphuric, phosphoric and acetic acids fluid and gas transportation;

Structure and Machining; Pulp and paper processing; Components in gas scrubbing plants;

Seawater cooling equipment; Oil refinery components;
Packing: Seaworthy wooden cases/plywood box/steel framed cases/ simple packaging

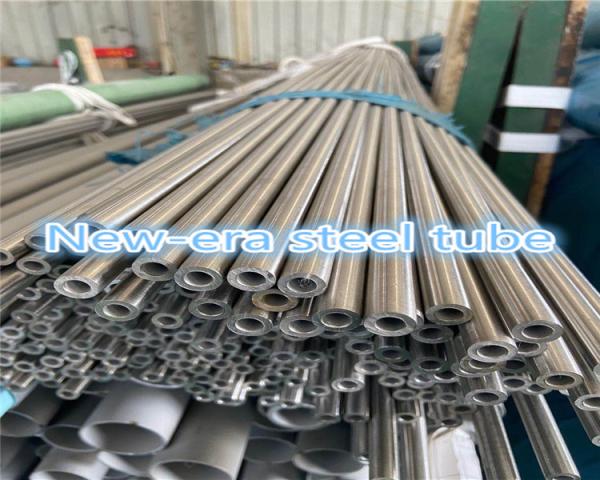

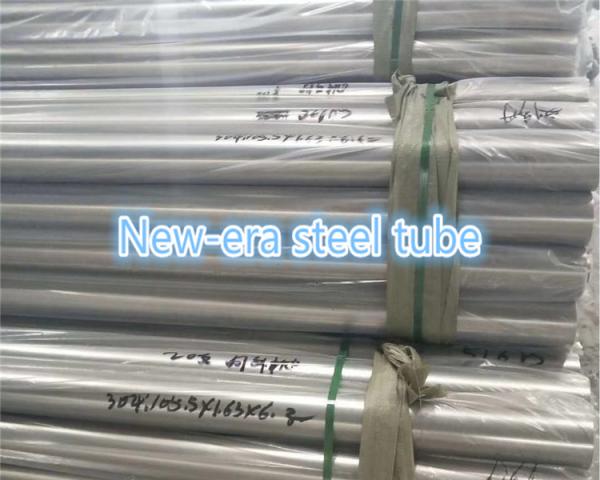

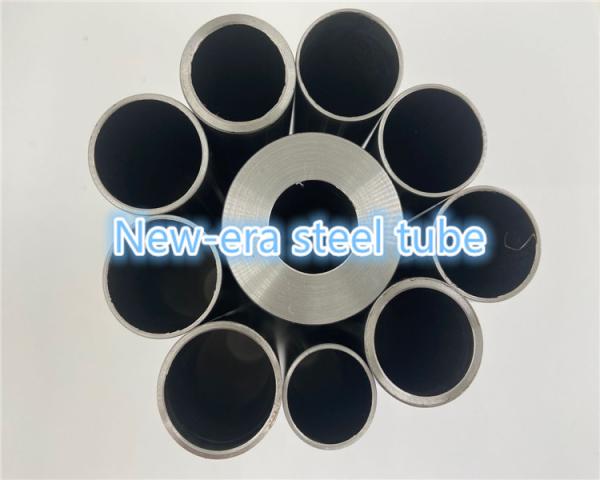

product pictures:

We are the professional duplex stainless steel pipe supplier and super duplex stainless steel pipe manufacturer in China, providing high-quality duplex stainless steel pipes and super duplex tubing.

We can offer the stainless tubes as follows:

Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L

Duplex steel: 31803,32205,32750,32760

Nickel Alloy:

Hastelloy: UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035,

N06030, N06635, N10003, N06002, R30188, N06230, R30556

Inconel: UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810,

N08811, N08825, N09925, N08926

Monel: UNS N04400, N05500

Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH

Nickel: N4/UNS N02201, N6/UNS N02200

Tags:ASTMA269 Stainless tubes,S31603 bright annealed tubing,TP316 bright annealed tubing
