25m Length ASTM Polished Stainless Steel Tubing
25m Length ASTM Polished Stainless Steel Tubing
25m Length ASTM Polished Stainless Steel Tubing
25m Length ASTM Polished Stainless Steel Tubing
25m Length ASTM Polished Stainless Steel Tubing
25m Length ASTM Polished Stainless Steel Tubing
Specifications
Brand Name :
New-Era
Model Number :
ASTM A312 ASME SA312
Certification :
ISO9001, ISO14001, TS16949
Place of Origin :
China
MOQ :
1ton
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1500tons per month
Delivery Time :
35-45days
Packaging Details :
in wooden boxes in seaworthy packing.
Keyword :
TP316 Stainless Steel Tube
Usage :
Boiler,condensor,chemical industry
Material :
316,316L,TP316 316SS
OD Size :
OD.: 6 mm to 168 mm
WT Size :
W. T.: 1 mm to 15mm
Length :
max 25meters
Type: :
Seamless cold drawn or cold rolled
Surface finish: :
Annealed,pickled, polised
Description

316L/TP316 Stainless Steel Pipes ASTM A-312/SA312 316SS stainless steel tubes

Standard: ASTM269, ASTMA213, SA-312/312M, DIN17456. DIN17458, EN10216-5,
JIS 3459 JIS G3463, GB/T14976-2002,
1. Material Grade: 304, 304L, 316, 316L, 310S, 430.
2. Finish: NO. 1, NO. 4, BA, 2B, mirror polised
3. O. D range: (6.35mm-168mm)1/4inch, 3/8inch, 1/2inch-8inch
4. Wall thickness: (0.2mm-30mm). 028inch, . 0079inch, . 049inch, . 065inch, 1.2inch
5. Surface treatment: AP(Annealed & Pickled) or according to customer requirement.
6. Appication: Chemical industry, chemical fertilizer production, and petrochemical industry, natural gas industry,

environmental protection, pharmaceutical chemical, food machinery, water supply, architecture and boiler heat exchangers.
7. Sample: Avaliable according to customer requirement.
8. Delivery: 7- 20 days
9) Inspection: ISO 9001-2000, PED 97/23/EC, ASME, DNV, TUV
10) Applications: Processing plant for sulphuric, phosphoric and acetic acids fluid and gas transportation;

Structure and Machining; Pulp and paper processing; Components in gas scrubbing plants;

Seawater cooling equipment; Oil refinery components;
11) Packing: Seaworthy wooden cases/plywood box/steel framed cases/ simple packaging

Grade Chemical Composition % Max ASTM A240/240M-05 ISO 9445-2002
C Cr Ni Mn P S Mo Si Cu N Other
301 ≤0.15 16.00-18.00 6.00-8.00 ≤2.00 ≤0.065 ≤0.030 - ≤1.00 - - -
302 ≤0.15 17.00-19.00 8.00-10.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - -
303 ≤0.15 17.00-19.00 8.00-10.00 ≤2.00 ≤0.20 ≤0.030 1) ≤1.00 - - -
303se ≤0.15 17.00-19.00 8.00-10.00 ≤2.00 ≤0.20 ≤0.030 - ≤1.00 - - Se≥0.15
304 ≤0.07 17.00-19.00 8.00-10.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - -
304L ≤0.030 18.00-20.00 8.00-10.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - -
304N1 ≤0.08 18.00-20.00 7.00-10.50 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - 0.10-0.25
304N2 ≤0.08 18.00-20.00 7.50-10.50 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - 0.15-0.30 Nb≤0.15
304LN ≤0.030 17.00-19.00 8.50-11.50 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - 0.12-0.22 -
305 ≤0.12 17.00-19.00 10.50-13.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - -
309S ≤0.08 22.00-24.00 12.00-15.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - -
310S ≤0.08 24.00-26.00 19.00-22.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - -
316 ≤0.08 16.00-18.50 10.00-14.00 ≤2.00 ≤0.035 ≤0.030 2.00-3.00 ≤1.00 - - -
≤0.12 16.00-19.00 11.00-14.00 ≤2.00 ≤0.035 ≤0.030 1.80-2.50 ≤1.00 - - Ti5(C%-0.02)~0.08
≤0.08 16.00-19.00 11.00-14.00 ≤2.00 ≤0.035 ≤0.030 1.80-2.50 ≤1.00 - - Ti5*C%-0.70
316L ≤0.030 16.00-18.00 12.00-15.00 ≤2.00 ≤0.035 ≤0.030 2.00-3.00 ≤1.00 - - -
316N ≤0.08 16.00-18.00 10.00-14.00 ≤2.00 ≤0.035 ≤0.030 2.00-3.00 ≤1.00 - 0.10-0.22 -
316N ≤0.030 16.00-18.50 10.50-14.50 ≤2.00 ≤0.035 ≤0.030 2.00-3.00 ≤1.00 - 0.12-0.22 -
316J1 ≤0.08 17.00-19.00 10.00-14.50 ≤2.00 ≤0.035 ≤0.030 1.20-2.75 ≤1.00 1.00-2.50 - -
316J1L ≤0.030 17.00-19.00 12.00-16.00 ≤2.00 ≤0.035 ≤0.030 1.20-2.75 ≤1.00 1.00-2.50 - -
317 ≤0.12 18.00-20.00 11.00-15.00 ≤2.00 ≤0.035 ≤0.030 3.00-4.00 ≤1.00 - - -
317L ≤0.08 18.00-20.00 11.00-15.00 ≤2.00 ≤0.035 ≤0.030 3.00-4.00 ≤1.00 - - -
≤0.12 16.00-19.00 11.00-14.00 ≤2.00 ≤0.035 ≤0.030 2.50-3.50 ≤1.00 - - Ti5(C%-0.02)~0.08
≤0.08 16.00-19.00 11.00-14.00 ≤2.00 ≤0.035 ≤0.030 2.50-3.50 ≤1.00 - - Ti5*C%-0.70
317J1 ≤0.040 16.00-19.00 15.00-17.00 ≤2.00 ≤0.035 ≤0.030 4.00-6.00 ≤1.00 - - -
321 ≤0.12 17.00-19.00 8.00-11.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - Ti5(C%-0.02)~0.08
≤0.08 17.00-19.00 9.00-12.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - Ti≥5*C%
347 ≤0.08 17.00-19.00 9.00-13.00 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 - - Nb≥10*C%
XM7 ≤0.08 17.00-19.00 8.50-10.50 ≤2.00 ≤0.035 ≤0.030 - ≤1.00 3.00-4.00 - -
XM15J1 ≤0.08 15.00-20.00 11.50-15.00 ≤2.00 ≤0.035 ≤0.030 - 3.00-5.00 - - 2)
329J1 ≤0.08 23.00-28.00 3.00-6.00 ≤1.50 ≤0.035 ≤0.030 1.00-3.00 ≤1.00 - - 2)
0.10-0.18 17.50-19.50 10.--120.. ≤0.80 ≤0.035 ≤0.030 - 3.40-4.00 - - Al 0.10-0.

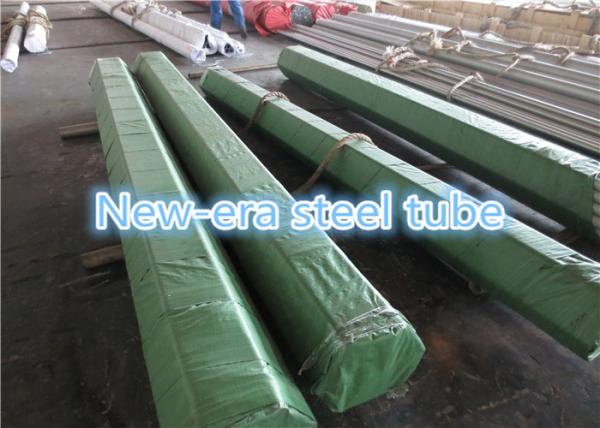

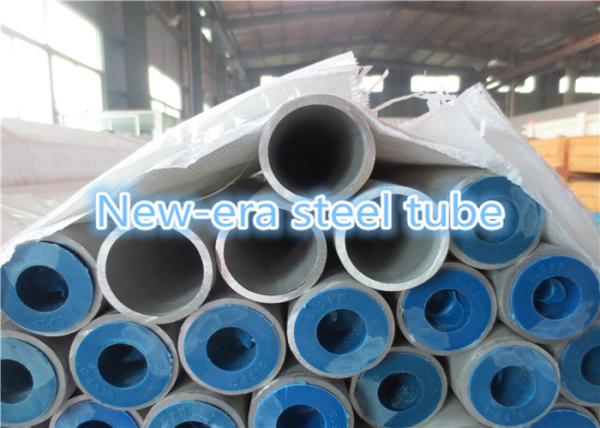

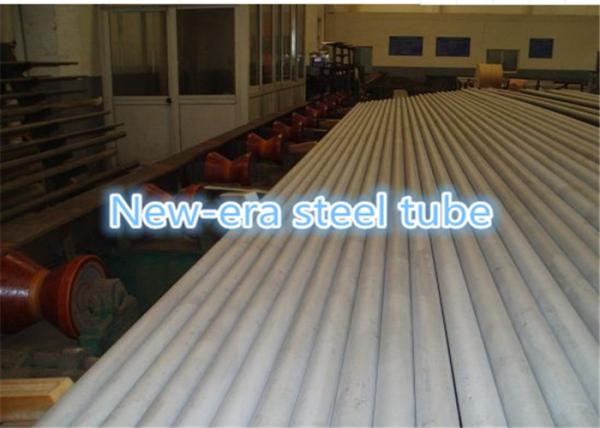

Products pictures:

We are the professional duplex stainless steel pipe supplier and super duplex stainless steel pipe

manufacturer in China, providing high-quality duplex stainless steel pipes and super duplex tubing.

Tags:304L stainless steel tubes,TP304 stainless steel tubes,SA312 304L stainless pipes

316L stainless steel pipes,316 stainless steel tubes,TP316 stainless steel tubes
