Specifications
Brand Name :
Minsing
Model Number :
MF5A-3 Series
Place of Origin :
China
Certification :
IATF16949/ISO9001/CE/RoHS
MOQ :
100pcs
Price :
Negotiable
Packaging Details :
Anti-static bag & box
Delivery Time :
7-10 work days
Payment Terms :
T/T
Supply Ability :
50 Million Pieces Per Year
Supplier Type :
Original Manufacturer
Product Name :
NTC Thermistor
Output Signal Type :
Analog Type
HS Code :
8533400000
Size :
Φ1.0~Φ4.5mm
R value :
0.5KΩ-2000KΩ
Tolerance :
0.5%,1%,2%,3%,5%
B value :
3000-4500K
Description

0.5KΩ-2000KΩ Resistance Range Highly Accurate NTC Thermistor For DIP Resistor Installation

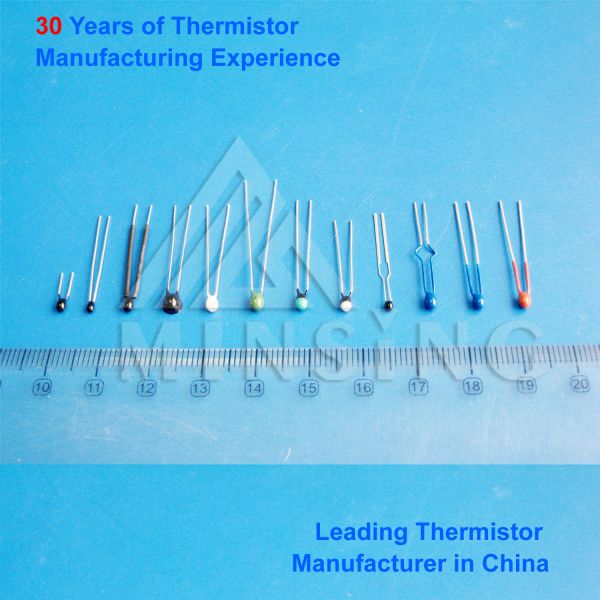

These negative temperature coefficient thermistors consist of a mini-chip soldered between two tin plated 0.4 mm nickel leads, coated with black colored epoxy lacquer and coded with a color dot.

Product Feature:

Epoxy coated / Miniature designed / Bare and bendable wire / Fast response

Application:

Temperature sensor / Electronic calendar and electronic thermometer / Temperature compensation

Mounting:

The thermistors are suitable for all standard assembly processes like crimping, soldering, welding, and potting into epoxy or silicon resins. The parameters and materials of the assembly process should be chosen in accordance with the lead-wire and coated body and validated in the application.

0.5KΩ-2000KΩ Resistance Range Highly Accurate NTC Thermistor For DIP Resistor Installation

0.5KΩ-2000KΩ Resistance Range Highly Accurate NTC Thermistor For DIP Resistor Installation0.5KΩ-2000KΩ Resistance Range Highly Accurate NTC Thermistor For DIP Resistor Installation0.5KΩ-2000KΩ Resistance Range Highly Accurate NTC Thermistor For DIP Resistor Installation

0.5KΩ-2000KΩ Resistance Range Highly Accurate NTC Thermistor For DIP Resistor Installation

Specification Explain:

MJ MF 5A-3 -3470 -502 F

① ② ③ ④ ⑤ ⑥

① Minsing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-3 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Specification R25℃ (KΩ) B25/50℃ (K) Disspation constant Thermal time constant Operating temp. range
MJMF5A-□-347/395/385-202□ 2 3470/3950/3850

ln still air

≥ 2.1mW/℃

ln still air

≤ 10s

-40～+150℃
MJMF5A-□-327/347/395-502□ 5 3270/3470/3950
MJMF5A-□-338/347/390-103□ 10 3380/3470/3900
MJMF5A-□-395/420/405-473□ 47 3950/4200/4050
MJMF5A-□-395/420/405-503□ 50 3950/4200/4050
MJMF5A-□-395/348-152□ 1.5 3950/3480
MJMF5A-□-397/418-104□ 100 3970/4180
MJMF5A-□-453-105□ 1000

4530

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ. MF5A can be custom designed.

FAQ:

How to order?

1. The application of the NTC thermistor or temperature sensor:__________

2. The range of operation temperature:___°c to ___°c

3.The dimension and the drawing of the Thermistor

4. The R value:_____K ohm ±________% at _____°c,

5. The B value: (_____°c/____°c) = ______K ± _____%

6. Quantity demanded: _________ pcs
