Glass Fiber Sleeves White Nylon Temperature Ring Probe
Glass Fiber Sleeves White Nylon Temperature Ring Probe
Glass Fiber Sleeves White Nylon Temperature Ring Probe
Glass Fiber Sleeves White Nylon Temperature Ring Probe
Glass Fiber Sleeves White Nylon Temperature Ring Probe
Glass Fiber Sleeves White Nylon Temperature Ring Probe
Glass Fiber Sleeves White Nylon Temperature Ring Probe
Glass Fiber Sleeves White Nylon Temperature Ring Probe
Specifications
Brand Name :
Hefei Minsing
Model Number :
MFP-2
Certification :
IATF16949, UL, REACH ,ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6 Million Pieces Per Year
Delivery Time :
7-10 work days
Packaging Details :
Bulk
Shell :
Nylon Ring Lug
Lead Wire :
PVC , XLPE, Silicone,...
Head Size :
Φ4×26mm (Customizable)
Wire Length :
Customized To Your Demands
R25℃ :
0.5KΩ-2000KΩ
B Value :
3000K-4500K
R Tolerance :
1%,2%,3%,5%
B Tolerance :
1%, 2%,3%,5%
Description

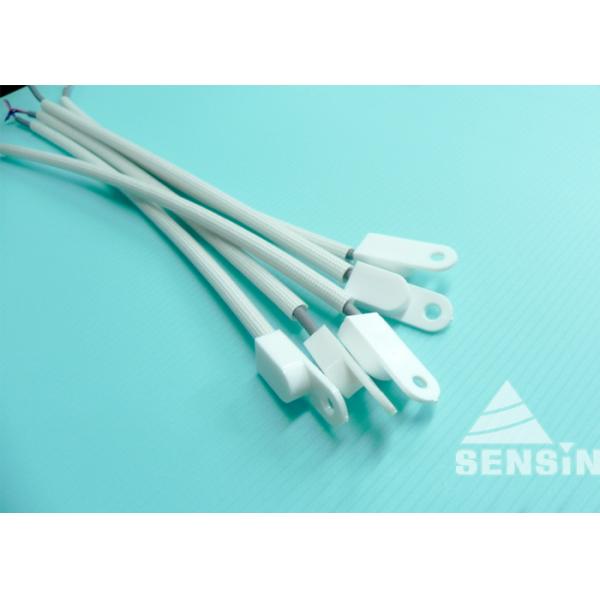

White Nylon Material Temperature Ring Probe, with Glass Fiber Sleeves,Surface Mountable and Various Mounting Options

Application:

Power Supply / Electrical motor / Radiator

Technical Data:

Items Product Parameters
Minsing component NTC Thermistor various R and B value on request
Probe/ Shell materials Nylon /ABS Ring lug
Wire materials Gauge AWG28~AWG20 PVC, XLPE, Silicone, ,etc.
Operating temp. range -40°C to +120°C various
Thermal time constant 25~65s ln still air
Disspation factor 2.1~15mW/℃ ln still air
Long-term stability Drift ≤ 3% after 1000h heat and cold store (120°C / -40°C)
Voltage withstanding 1800VAC
Insulation resistance ≥100MΩ 500VDC

Glass Fiber Sleeves White Nylon Temperature Ring Probe

Our Services:
1. Good quality is assured by advanced manufacturing technique.
2. All products will be checked by our quality-control department.
3. Customized design. OEM&ODM is accepted.

Glass Fiber Sleeves White Nylon Temperature Ring Probe

FAQ:

1.Can I visit your factory?

We have over 7800 square meters of workspace and sincerely welcome your business visit.

2.Do you accept OEM or ODM?

Of course.

3.How’ your production capacity? How long is the lead time ?

Monthly output 5000,000 piece . It usually take us 5-10 days to finish the goods.

4.What’s your main payment term?

T/T ,LC ,D/P.

5.Any quality guarantee or after-sales service?

If any quality complaint , we will give out solution within 5 days.

6.Can sample fee be returned back to me ?

Sample amount can be deducted from your bulk order payment when order quantity is over 1000 pieces at the first time.

7.How many days it takes to finish the samples?

Usually 2-5 work days .
