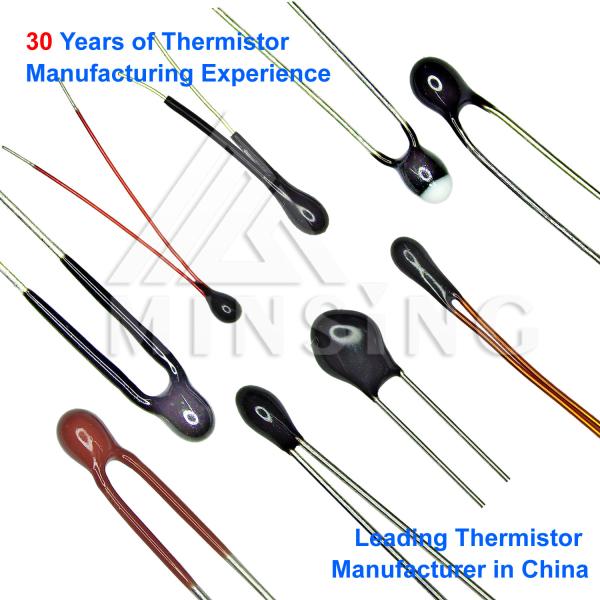

AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter
AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter
AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter
AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter
AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter
AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter
AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter
AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter
Specifications
Brand Name :
Minsing
Model Number :
MF5A-3 Series
Certification :
IATF16949/ISO9001/CE/RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 Million Pieces Per Year
Delivery Time :
7-10 work days
Packaging Details :
Anti-static bag & box
Supplier Type :
Original Manufacturer
Product Name :
NTC Thermistor
Output Signal Type :
Analog Type
HS Code :
8533400000
Size :
Φ1.0~Φ4.5mm
R Value :
0.5KΩ-2000KΩ
Tolerance :
0.5%,1%,2%,3%,5%
B Value :
3000-4500K
Description

AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter

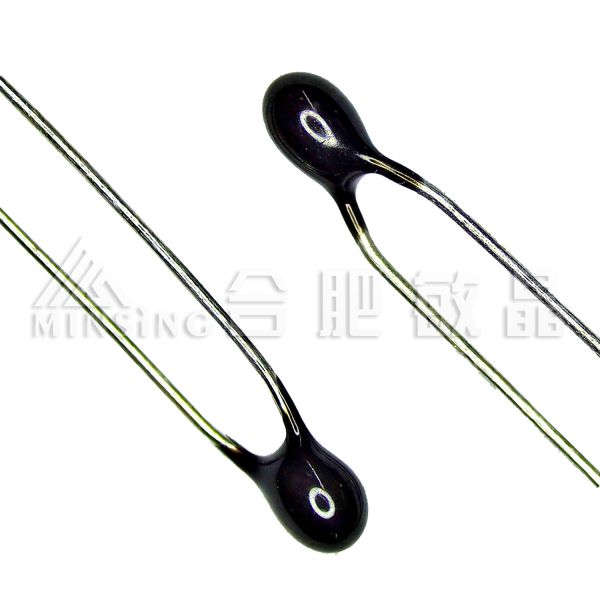

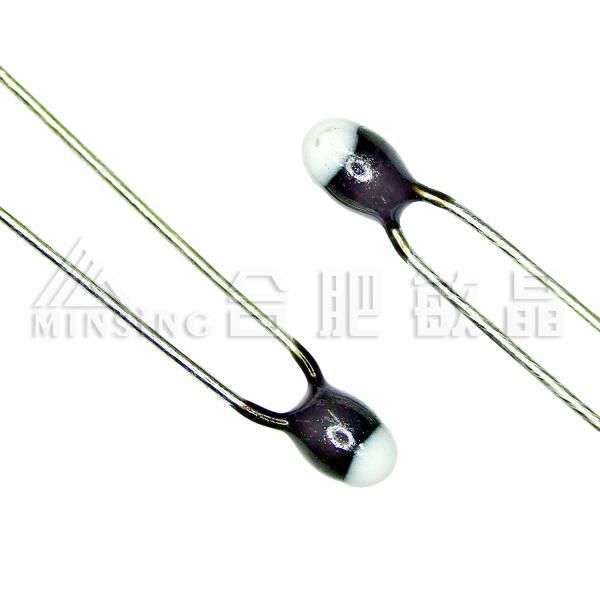

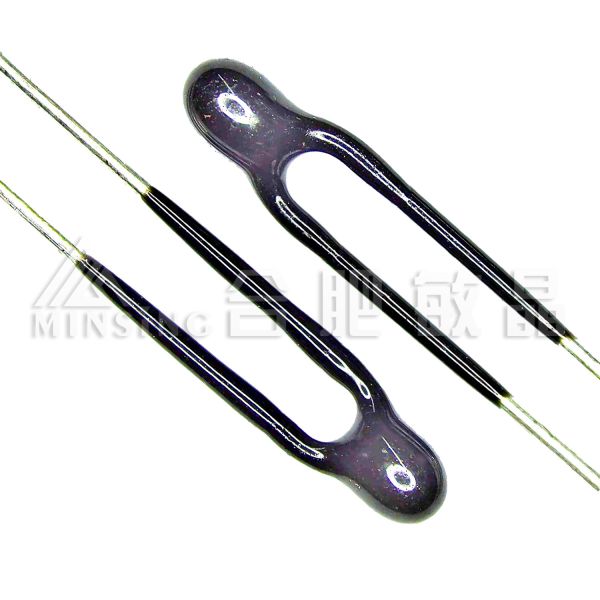

The device consists of a chip with two tinned solid copper-plated leads. It is black coated epoxy and colour coded, but not insulated.

Product Feature:

Epoxy coated / Miniature designed / Bare and bendable wire / Fast response

Application:

Temperature sensing, control and compensation.

E.g. inlet air temperature sensing thermistors or ECT in automotive applications, sensor elements in industrial and commercial applications, heating systems and industrial systems.

Mounting:

The thermistors are suitable for all standard assembly processes like crimping, soldering, welding, and potting into epoxy or silicon resins. The parameters and materials of the assembly process should be chosen in accordance with the lead-wire and coated body and validated in the application.

AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter

AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body DiameterAEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body DiameterAEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter

AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter

AEC-Q200 Qualified Epoxy Coated NTC Thermistor 3.0 mm Max Body Diameter

Specification Explain:

MJ MF 5A-3 -3470 -502 F

① ② ③ ④ ⑤ ⑥

① Minsing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-3 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Specification R25℃ (KΩ) B25/50℃ (K) Disspation constant Thermal time constant Operating temp. range
MJMF5A-□-347/395/385-202□ 2 3470/3950/3850

ln still air

≥ 2.1mW/℃

ln still air

≤ 10s

-40～+150℃
MJMF5A-□-327/347/395-502□ 5 3270/3470/3950
MJMF5A-□-338/347/390-103□ 10 3380/3470/3900
MJMF5A-□-395/420/405-473□ 47 3950/4200/4050
MJMF5A-□-395/420/405-503□ 50 3950/4200/4050
MJMF5A-□-395/348-152□ 1.5 3950/3480
MJMF5A-□-397/418-104□ 100 3970/4180
MJMF5A-□-453-105□ 1000

4530

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ. MF5A can be custom designed.

FAQ:

Tell us your request:

1.The application of the NTC thermistor:__________

2.Working environment of NTC thermistor:________

3.Operation temperature range:___℃ to ___℃

4.Any requirement about sensor probe material or dimension:______________

5.The R value:___K ohm ±___% at ___℃,

6.The B value: B(____℃/____℃) = _____K ± ___%
