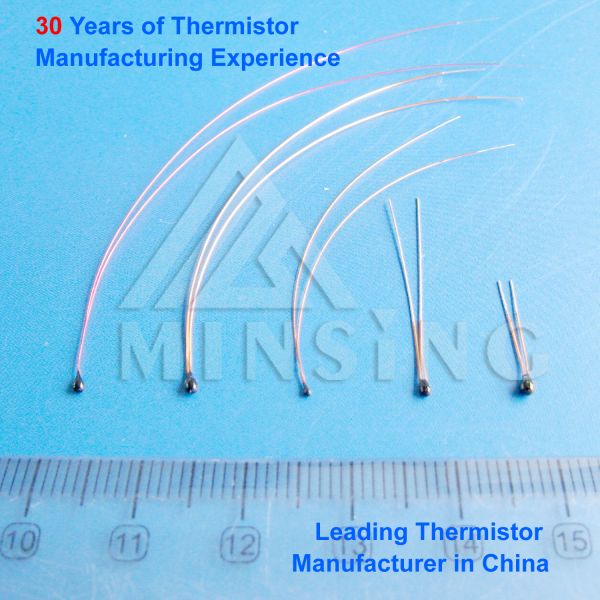

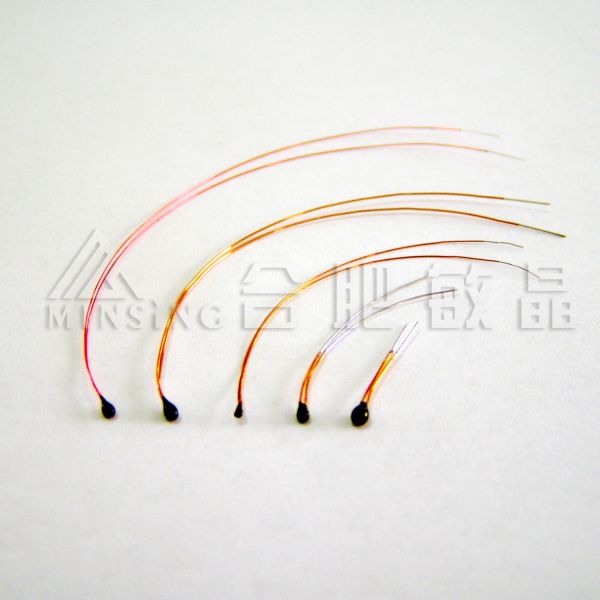

Precision Epoxy-Encapsulated NTC Thermistor with Enameled Lead Wires

NTC thermistors have a wide range of applications. The medical industry relies on NTC thermistors in various applications such as catheters, dialysis equipment, and patient monitoring. Many household appliances such as dryers and coffee makers use NTC thermistors to accurately measure temperature. In the field of building control and process, HVAC and refrigeration equipment uses NTC sensors to measure temperature to improve efficiency and control levels. The automotive and aerospace industries use NTC thermistors for test, measurement, and production applications.

Applications:

Temperature compensation in circuitry.

Digital thermometer / Microwave therapeutic equipment

Thermo control instruments and electronic washing equipment

Product Feature:

Medical application precise / Varnished wire / Miniature sensor bead

Specification Explain:

MJ MF 5A-4 -3470 -502 F

① ② ③ ④ ⑤ ⑥

① Minsing Co.,Ltd

② NTC thermistor

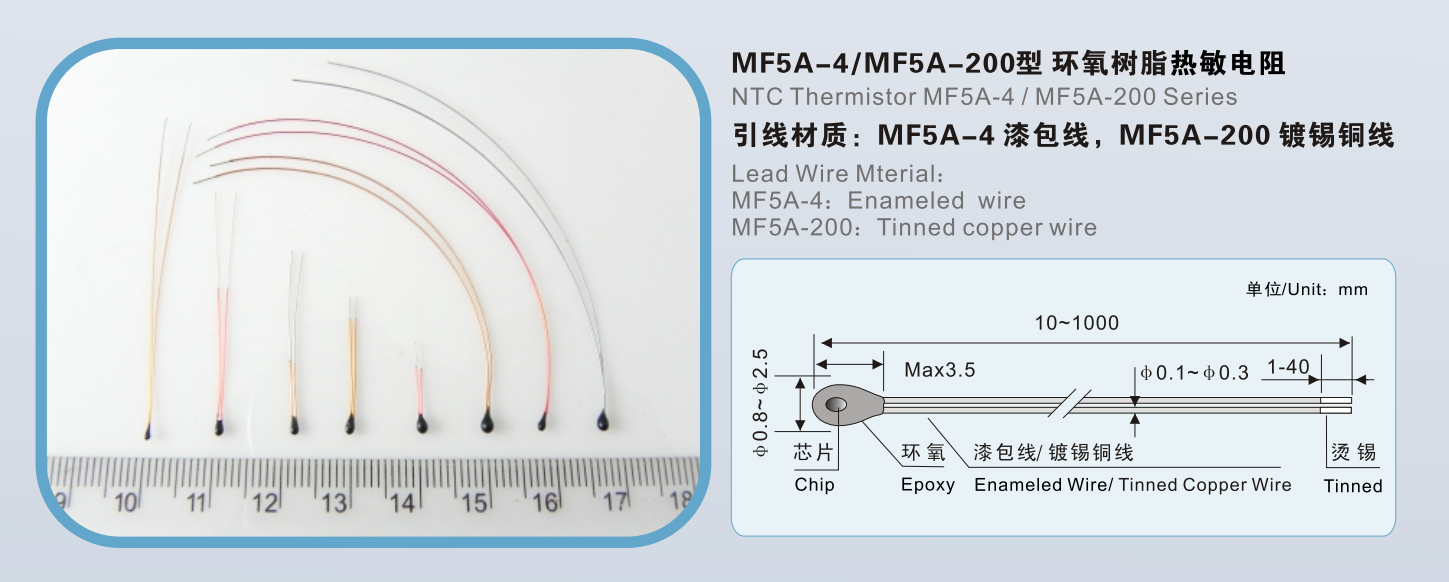

③ Epoxy coating type 5A-4 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ. MF5A can be custom designed.

FAQ:

Q: What can i do if i got a broken product from Hefei Minsing Automotive Electronic Co., Ltd?
A: First of all please tell us as soon as possible after we will send a new one to you immediately but please send the broken product to us .you don't have to worry about the carriage charge we will pay for that.

Q: Are you importer or manufacturer?
A: We are manufacturer.

Q: Why you have to choose us?
A: High quality assurance, the most competitive price and fast shipping.
