0-600mm Electronic Digital Height Gauge for Precise Height Measurement with Bluetooth for Wireless Data Transmission
0-600mm Electronic Digital Height Gauge for Precise Height Measurement with Bluetooth for Wireless Data Transmission
0-600mm Electronic Digital Height Gauge for Precise Height Measurement with Bluetooth for Wireless Data Transmission
0-600mm Electronic Digital Height Gauge for Precise Height Measurement with Bluetooth for Wireless Data Transmission
0-600mm Electronic Digital Height Gauge for Precise Height Measurement with Bluetooth for Wireless Data Transmission
0-600mm Electronic Digital Height Gauge for Precise Height Measurement with Bluetooth for Wireless Data Transmission
0-600mm Electronic Digital Height Gauge for Precise Height Measurement with Bluetooth for Wireless Data Transmission
0-600mm Electronic Digital Height Gauge for Precise Height Measurement with Bluetooth for Wireless Data Transmission
Specifications
Brand Name :
KM
Model Number :
KM-426-600
Certification :
ISO DIN GB RoHS
Place of Origin :
Shaanxi, China
Payment Terms :
T/T,L/C,D/P,D/A,PayPal,etc.
Supply Ability :
50000pieces/Month
Delivery Time :
Within 15days
Packaging Details :
Polyfoam+Paper Box 60*18*15cm/Piece 4.30kg/Piece
Warranty :
One Year
Measurement :
Metric/Inch Conversion
Range :
0-600mm/0-24″
Resolution :
0.01mm/0.0005″
Accuracy :
±0.04mm
Material :
Stainless Steel
Measurement Object :
Height
Feature :
Large LCD Screen
Customized :
Acceptable
Package :
Polyfoam+Paper Box
Description

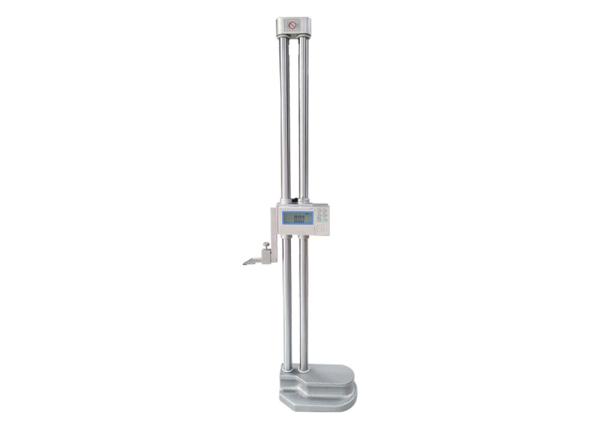

0-600mm Electronic Digital Height Gauge with Bluetooth
Our digital height gauge features Bluetooth wireless data transmission and optional SPC data output. The large digital display provides clear, bright readings with real-time data updates for convenient operation.
Designed for precise height measurement in metalworking and metrology applications, this electronic digital height gauge can also function as a scriber for marking workpieces. Available in multiple measuring ranges from 0-300mm (0-12") up to 0-1000mm (0-40").
Key Features:
  • Large LCD display for easy reading
  • Precision gear drive for accurate positioning
  • Convenient handwheel movement
  • Bluetooth and SPC data output capability
  • Preset function for measurement values
  • Tolerance setting capability
  • Relative measurement mode
  • Measurement hold function
  • mm/inch conversion
  • Durable chromium-plated base with spray finish
  • Includes protective carrying case
Technical Specifications:
Order No. Measuring Range Resolution Accuracy
KM-426-300 0-300mm/0-12" 0.01mm/0.0005" 0-300mm ±0.03mm
＞300-600mm±0.04mm
＞600-1000mm ±0.07mm
KM-426-450 0-450mm/0-18" 0.01mm/0.0005"
KM-426-500 0-500mm/0-20" 0.01mm/0.0005"
KM-426-600 0-600mm/0-24" 0.01mm/0.0005"
KM-426-1000 0-1000mm/0-40" 0.01mm/0.0005"
Applications:
Widely used in construction, bridge engineering, geological exploration, and engineering testing. Also effective for detecting vertical displacement of moving objects.
Usage Precautions:
  • Clean the main ruler and measuring jaw before use
  • When measuring height, slightly swing the measuring jaw to obtain the maximum reading
  • Maintain clean measuring surfaces during operation
  • Store in case when not in use for extended periods
  • Remove battery during prolonged storage
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing and manufacturing KM brand precision measuring tools in China.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and etc..
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. We provide replacement parts or products for any defective items received.
