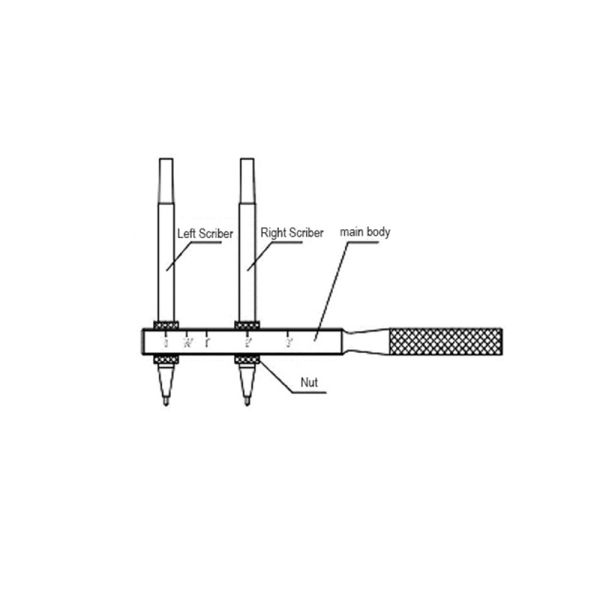

Make Marks on Threads under Inspection 0-4″ Scriber for The API Spec 5B Standard Threads

Quick Detail:

1.Used to make marks or reference points on threads under inspection for the API Spec 5B standard threads.

Specification:

Packing&Shipping:

Company Profile:

Precautions:

1. According to the specifications of the thread to be measured, place the measuring tip in the corresponding standard

template U-shaped slot, adjust the indicator to zero position, and tighten the bezel locking screw.

2. The measuring tip is placed in the V-shaped groove of the standard template, the indicating value should be the same as

the U-shaped groove, if the indicating value is different, the value table should not exceed 0.013mm, if greater than the value,

indicating that the measuring head is easy is damage, the measuring head should be replaced.

3. Place the measuring point of the calibrated internal thread height measuring instrument in the thread groove to be measured,

and the anvil is close to the adjacent thread top, and then the oil pipe external thread height measuring instrument makes a

small arc swing on both sides of the position perpendicular to the cone, and the maximum negative value or the minimum

positive value should be the thread height error.

Applications:

Oil pipe thread instruments are widely used in the oil industry for measuring geometric accuracy of pipe threads for oil pipes,

such as casing pipe, oil pipe, pipe line and drill pipe.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, etc..

5) Do we accept customization?

Yes, OEM is available.
